鈥?/div>
1.20
戮
Max
戮
9.00
1.30
8.00
Mechanical Data
路
路
路
路
路
Case: 5KP/5KW, Transfer Molded Epoxy
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity Indicator: Cathode Band
(Note: Bi-directional devices have no polarity
indicator.)
Marking: Type Number
Weight: 2.1 grams (approx.)
All Dimensions in mm
鈥淪鈥?Suffix Designates 5KW Package
No 鈥淪鈥?Designates 5KP Package
Maximum Ratings
@ T
A
= 25掳C unless otherwise specified
Symbol
P
PK
Value
5000
Unit
W
Characteristic
Peak Pulse Power Dissipation
(Non repetitive current pulse derated above T
A
= 25掳C)
( Note 1)
Peak Forward Surge Current, 8.3ms Single Half Sine
Wave Superimposed on Rated Load (JEDEC Method)
(Notes 1, 2, & 3)
Steady State Power Dissipation at T
L
= 75掳C,
Lead Lengths @ 9.5mm(Note 1)
Instantaneous Forward Voltage @ I
PP
= 100A
(Notes 1, 2, & 3)
Operating and Storage Temperature Range
I
FSM
P
D
V
F
T
j
, T
STG
400
8.0
3.5
-55 to +150
A
W
V
掳C
Notes:
1. Valid provided that the terminals are maintained at a distance of 10mm from case at 25掳C.
2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
3. Unidirectional units only.
DS21504 Rev. H-2
1 of 3

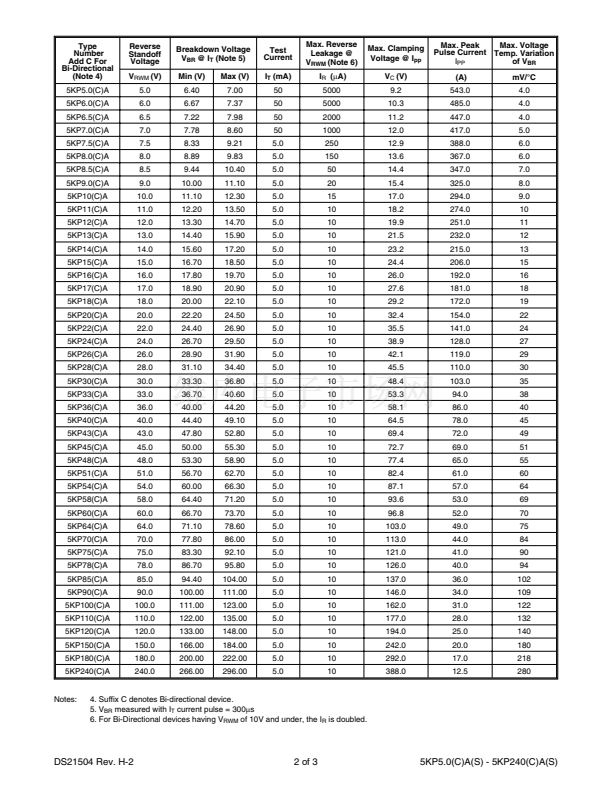

5KP5.0(C)A(S) - 5KP240(C)A(S)
