MODEL 830-004

Power Supply Module

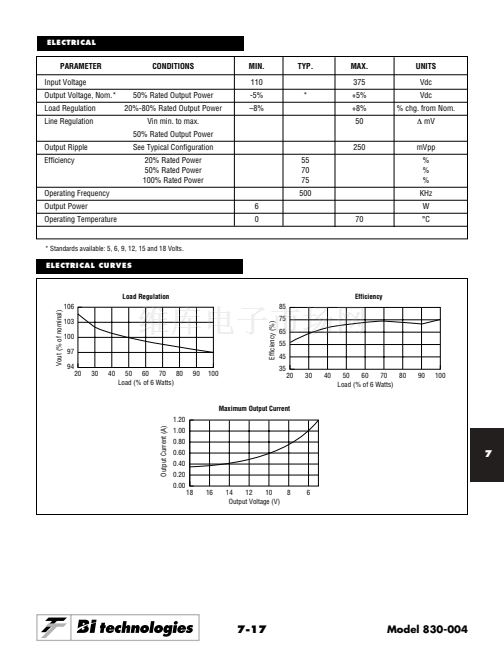

DESCRIPTION

The 830-004 is a single output isolated DC/DC

converter with an input range of 110 to 375 Vdc. This

allows the module to operate from any recti铿乪d 80 to

265 Vac line, corresponding to line voltages found

worldwide. Fixed output voltages between 5 to 18 Vdc

FEATURES

are available to suit a variety of applications. Low cost,

high reliability and small dimensions are the main

characteristics of this design. The use of an advanced

PWM provides for stable and ef铿乧ient operation over a

wide load range.

鈥?/div>

Continuous 6 watts of output power without use of a heat sink

Wide input voltage range from 110 Vdc to 375 Vdc

Single 铿亁ed regulated output, voltages available from 5 Vdc to 18 Vdc

Sustains continuous short circuit

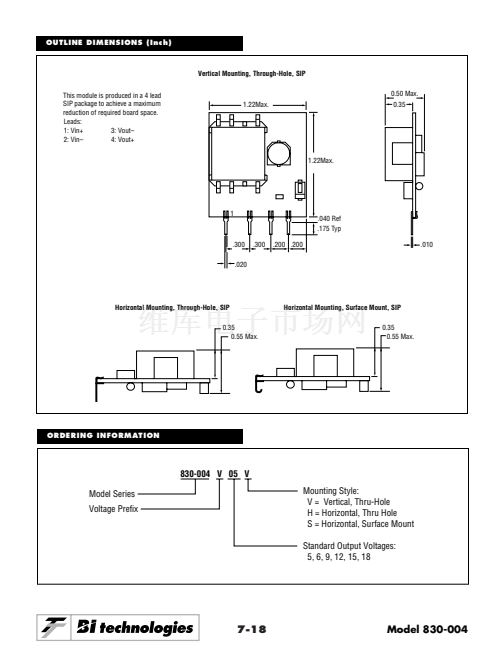

Two sided layout design and SIP package minimized board space requirement

Ef铿乧ient circuit design constructed on a thermally conductive ceramic substrate

UL recognition pending

APPLICATIONS

鈥?/div>

Provides DC power for PWM and control circuitry for off-line switching power suppliers

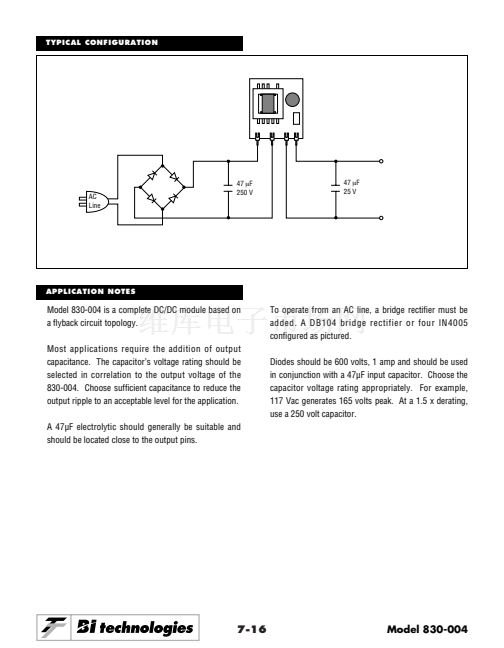

Provides isolated low DC voltages from AC line voltage levels (recti铿乪r external)

Battery chargers for portable personal electronics

Industrial controls and line monitoring

Stand-alone power supply for small electronics and 碌P controlled appliances

Replacement for wall mount transformers and linear regulators

Speci铿乧ations subject to change without notice.

Last update: 06/06/02.
