Model 85 5psi
316L SS Pressure Sensor
High Performance, Small Profile
0-100 mV Output
Absolute and Gage
Low Pressure
Medical Instruments
Process Control
Oceanography
Refrigeration/Compressors
Pressure Transmitters
Level Systems
DESCRIPTION
This ia a micromachined piezoresistive silicon pressure sensor. It
is designed for OEM applications where compatibility with
corrosive media must be maintained. The sensor chip is
mounted on a TO style header, which is resistance welded to a
316 stainless steel package. A 316 stainless steel convoluted
isolation diaphragm is welded to the package, sealing a small
volume of silicone oil between the diaphragm and the sensor
chip. The ISO pressure housing utilizes the oil column to couple
the piezoresistive sensor to the isolation diaphragm. A thickfilm
ceramic compensation board with laser trimmed resistors, and
an additional gain set resistor to normalize pressure sensitivity
are an integral part of the sensor package. A variety of threaded
process fittings are available. Fittings include standards like 1/4
and 1/8 NPT, 1/4 BSP as well as custom process fittings.
FEATURES
Weldable and O-Ring Flush Mount
0掳C to +50掳C Compensated
Temperature Range
+0.1% Pressure Non-linearity
+1.0% Interchangeable Span
(provided by gain set resistor)
Solid State Reliability
Low Power
Electrical options include cable and connector.
DIMENSIONS
STANDARD RANGES
Range
0 to 5
psig
psia
鈼?/div>
鈼?/div>
1-64
ISO 鈥?Standard
1

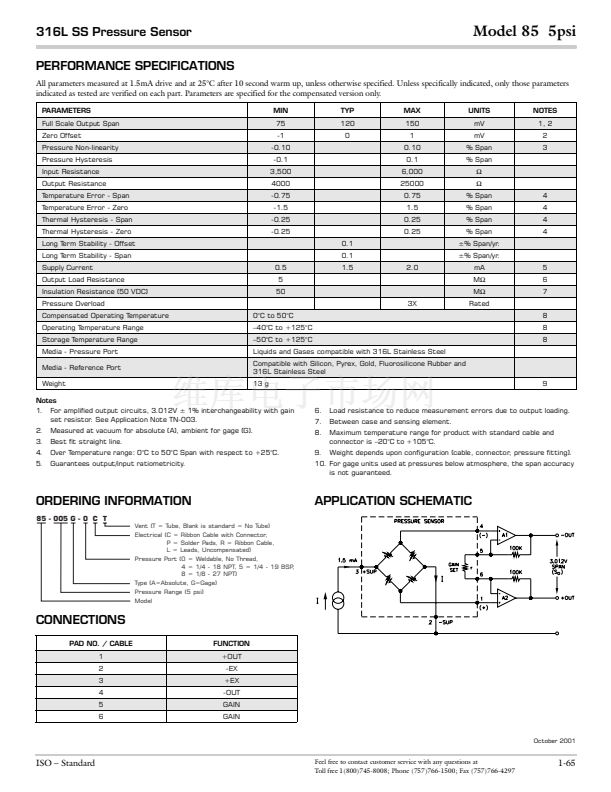

2
