Model 85 UltraStable
316L SS Pressure Sensor
High Performance, Small Profile
0-100 mV Output
Absolute and Gage
Low Pressure
Hydraulic Controls
Process Control
Oceanography
Refrigeration/Compressors
Pressure Transmitters
Level Systems
DESCRIPTION
This ia a micromachined piezoresistive silicon pressure sensor. It
is designed for OEM applications where compatibility with
corrosive media must be maintained. The sensor chip is
mounted on a TO style header, which is resistance welded to a
316 stainless steel package. A 316 stainless steel convoluted
isolation diaphragm is welded to the package, sealing a small
volume of silicone oil between the diaphragm and the sensor
chip. The ISO pressure housing utilizes the oil column to couple
the piezoresistive sensor to the isolation diaphragm. A thickfilm
ceramic compensation board with laser trimmed resistors, and
an additional gain set resistor to normalize pressure sensitivity
are an integral part of the sensor package. A variety of threaded
process fittings are available. Fittings include standards like 1/4
and 1/8 NPT, 1/4 BSP as well as custom process fittings.
FEATURES
Weldable and O-Ring Flush Mount
-20掳C to +85掳C Compensated
Temperature Range
+0.1% Pressure Non-linearity
+1.0% Interchangeable Span
(provided by gain set resistor)
Solid State Reliability
Low Power
Electrical options include cable and connector.
DIMENSIONS
STANDARD RANGES
Range
0 to 15
0 to 30
0 to 50
0 to 100
0 to 300
0 to 500
psig
psia
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>

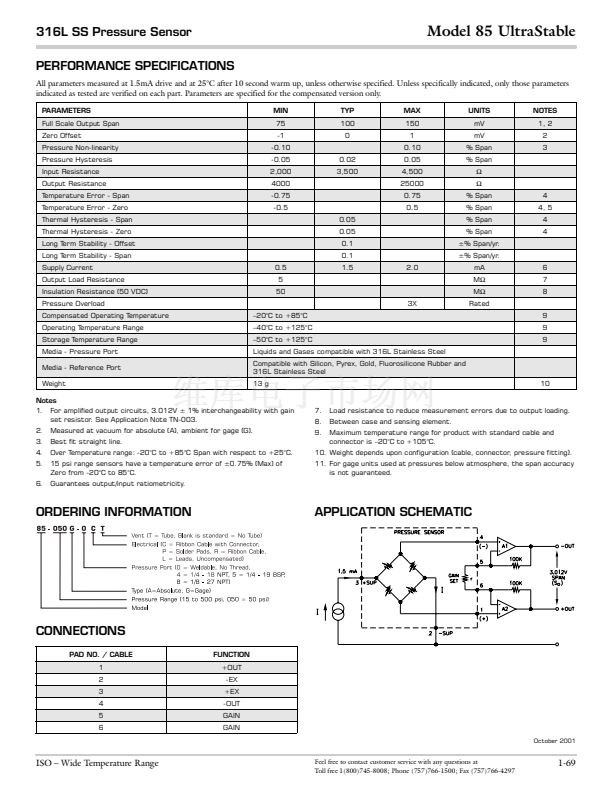

1-68
ISO 鈥?Wide Temperature Range
85-300G-4C 产品属性
10
传感器，转换器
压力
-
压力计
300 PSI
公型，1/4"（6.35mm）NPT
0 ~ 100mV
-
-
带连接器的缆线
-25°C ~ 70°C
不锈钢
-
MSP6857
