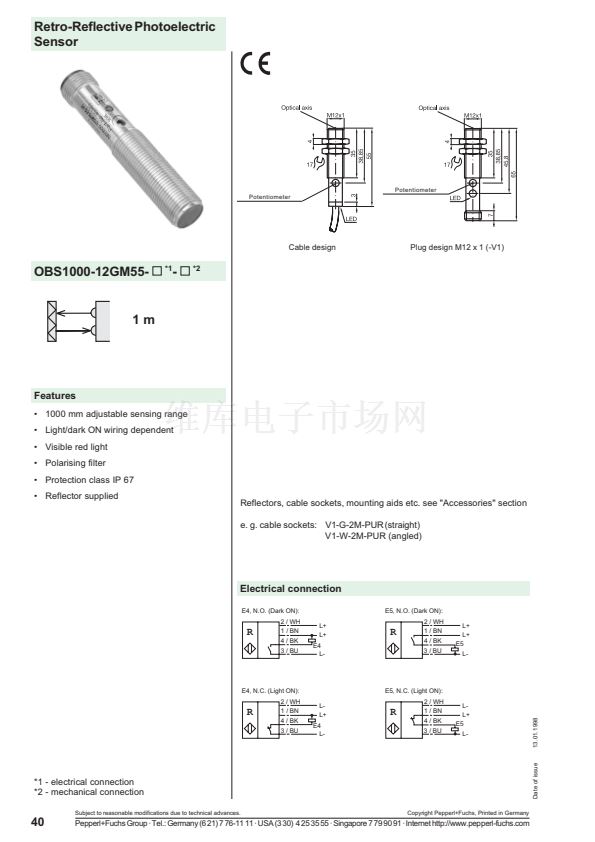

Retro-Reflective Photoelectric
Sensor
Potentiometer
Potentiometer
Cable design
Plug design M12 x 1 (-V1)
OBS1000-12GM55-
1m
*1
-
*2
Features
聲 1000 mm adjustable sensing range
聲 Light/dark ON wiring dependent
聲 Visible red light
聲 Polarising filter
聲 Protection class IP 67
聲 Reflector supplied
Reflectors, cable sockets, mounting aids etc. see "Accessories" section
e. g. cable sockets: V1-G-2M-PUR (straight)
V1-W-2M-PUR (angled)
Electrical connection
E4, N.O. (Dark ON):
E5, N.O. (Dark ON):
L+
L+
E4
L-
2 / WH
1 / BN
4 / BK
3 / BU
2 / WH
1 / BN
4 / BK
3 / BU
R
R
L+
L+
E5
L-
E4, N.C. (Light ON):
E5, N.C. (Light ON):
L-
L+
E4
L-
L-
*1 - electrical connection
*2 - mechanical connection
40
Subject to reasonable modifications due to technical advances.
Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group 路 Tel.: Germany (6 21) 7 76-11 11 路 USA (3 30) 4 25 35 55 路 Singapore 7 79 90 91 路 Internet http://www.pepperl-fuchs.com
Date of issue
13.01.1998
R
2 / WH
1 / BN
4 / BK
3 / BU
R
2 / WH
1 / BN
4 / BK
3 / BU
L-
L+
E5
1
2
