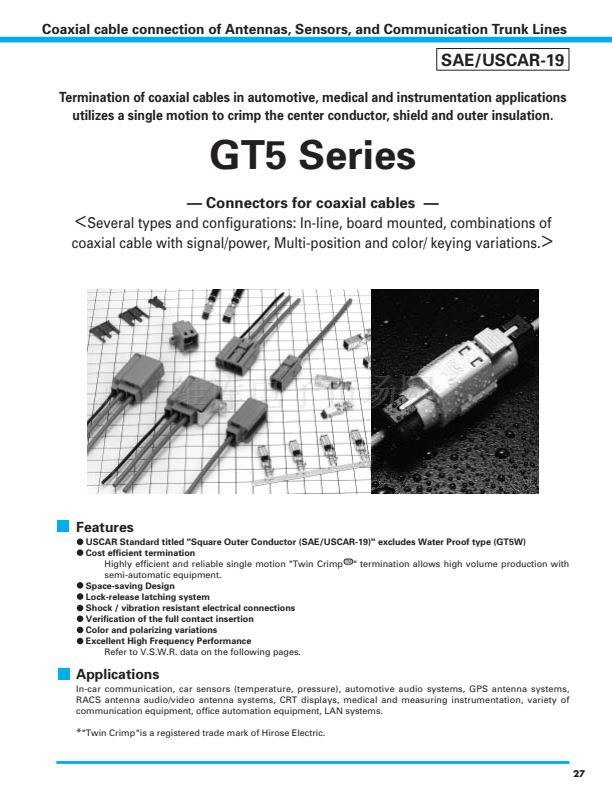

Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
SAE/USCAR-19
Termination of coaxial cables in automotive, medical and instrumentation applications
utilizes a single motion to crimp the center conductor, shield and outer insulation.
GT5 Series
鈥?Connectors for coaxial cables 鈥?/div>
<
Several types and configurations: In-line, board mounted, combinations of
coaxial cable with signal/power, Multi-position and color/ keying variations.
>
Features
USCAR Standard titled "Square Outer Conductor (SAE/USCAR-19)" excludes Water Proof type (GT5W)
Cost efficient termination
Highly efficient and reliable single motion "Twin Crimp
TM
" termination allows high volume production with
semi-automatic equipment.
Space-saving Design
Lock-release latching system
Shock / vibration resistant electrical connections
Verification of the full contact insertion
Color and polarizing variations
Excellent High Frequency Performance
Refer to V.S.W.R. data on the following pages.
Applications
In-car communication, car sensors (temperature, pressure), automotive audio systems, GPS antenna systems,
RACS antenna audio/video antenna systems, CRT displays, medical and measuring instrumentation, variety of
communication equipment, office automation equipment, LAN systems.
*
"Twin Crimp "is a registered trade mark of Hirose Electric.
27
