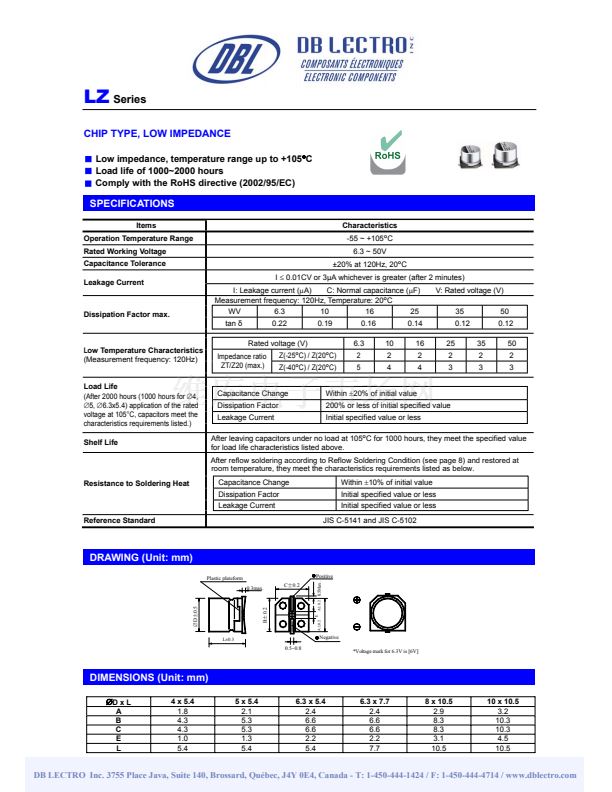

LZ
Series
CHIP TYPE,
LOW IMPEDANCE
Low impedance, temperature range
up
to +105 C
Load life of 1000~2000 hours
Comply with the RoHS directive (2002/95/EC)
SPECIFICATIONS
Items
Operation Temperature Range
Rated Working Voltage
Capacitance Tolerance
Leakage Current
I
Characteristics
-55 ~ +105掳C
6.3 ~ 50V
卤20% at 120Hz, 20掳C
0.01CV or 3 A whichever is greater (after 2 minutes)
V: Rated
voltage
(V)
35
0.12
25
2
3
35
2
3
50
0.12
50
2
3
I: Leakage current ( A)
C: Normal
capacitance
( F)
Measurement frequency: 120Hz, Temperature: 20掳C
WV
6.3
10
16
25
tan
Low
Temperature Characteristics
(Measurement frequency: 120Hz)
Load Life
(After 2000 hours (1000 hours for 4,
5, 6.3x5.4) application of the rated
voltage at 105掳C, capacitors meet the
characteristics requirements listed.)
Shelf Life
0.22
Rated voltage (V)
Impedance ratio
ZT/Z20 (max.)
Z(-25掳C) / Z(20掳C)
Z(-40掳C) / Z(20掳C)
0.19
0.16
6.3
2
5
10
2
4
0.14
16
2
4
Dissipation Factor max.
Capacitance Change
Dissipation Factor
Leakage Current
Within 20% of initial value
200% or less of initial specified value
Initial
specified value or less
After leaving capacitors under no load at 105掳C for 1000 hours, they meet the specified value
for load life characteristics listed above.
After
reflow soldering according to Reflow Soldering Condition (see page 8) and restored at
room temperature,
they meet the
characteristics requirements listed as below.
Resistance to Soldering Heat
Capacitance Change
Dissipation Factor
Leakage Current
Within 10% of initial value
Initial
specified value or less
Initial
specified value or less
JIS C-5141 and JIS C-5102
Reference Standard
DRAWING (Unit: mm)
0.3max.
C
0.2
A 0.2
0.5Max.
A 0.2
E
Plastic plateform
Positive
0.5
D
B
0.2
L 0.3
Negative
0.5~0.8
*Voltage
mark for 6.3V is [6V]
DIMENSIONS (Unit: mm)
DxL
A
B
C
E
L
4 x 5.4
1.8
4.3
4.3
1.0
5.4
5 x 5.4
2.1
5.3
5.3
1.3
5.4
6.3 x 5.4
2.4
6.6
6.6
2.2
5.4
6.3 x 7.7
2.4
6.6
6.6
2.2
7.7
8 x 10.5
2.9
8.3
8.3
3.1
10.5
10 x 10.5
3.2
10.3
10.3
4.5
10.5
DB LECTRO Inc. 3755 Place Java, Suite 140, Brossard, Qu茅bec, J4Y 0E4, Canada - T: 1-450-444-1424 / F: 1-450-444-4714 / www.dblectro.com
