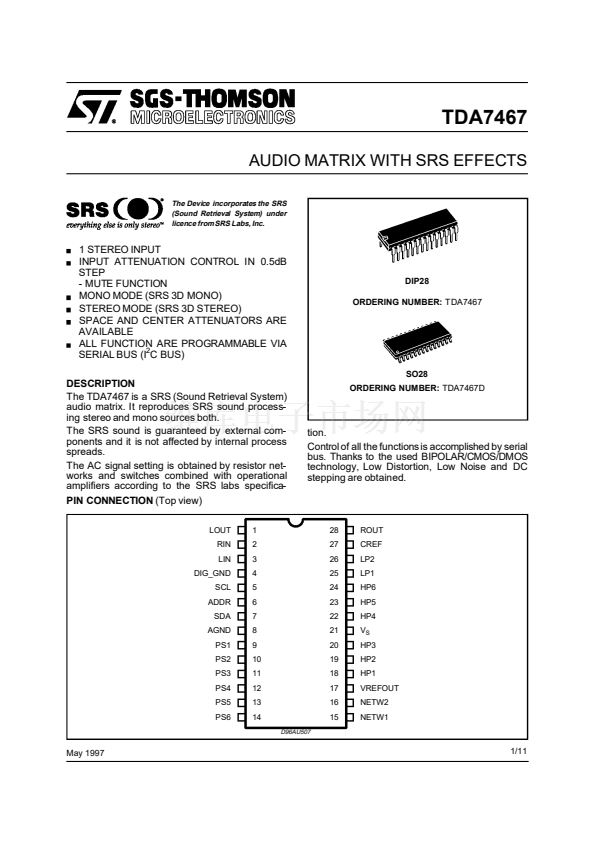

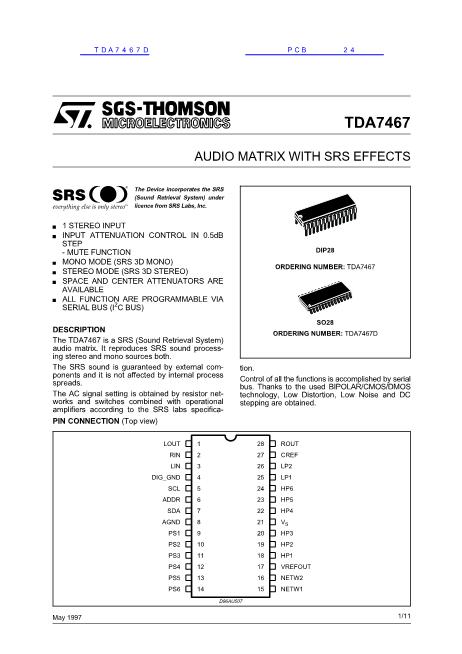

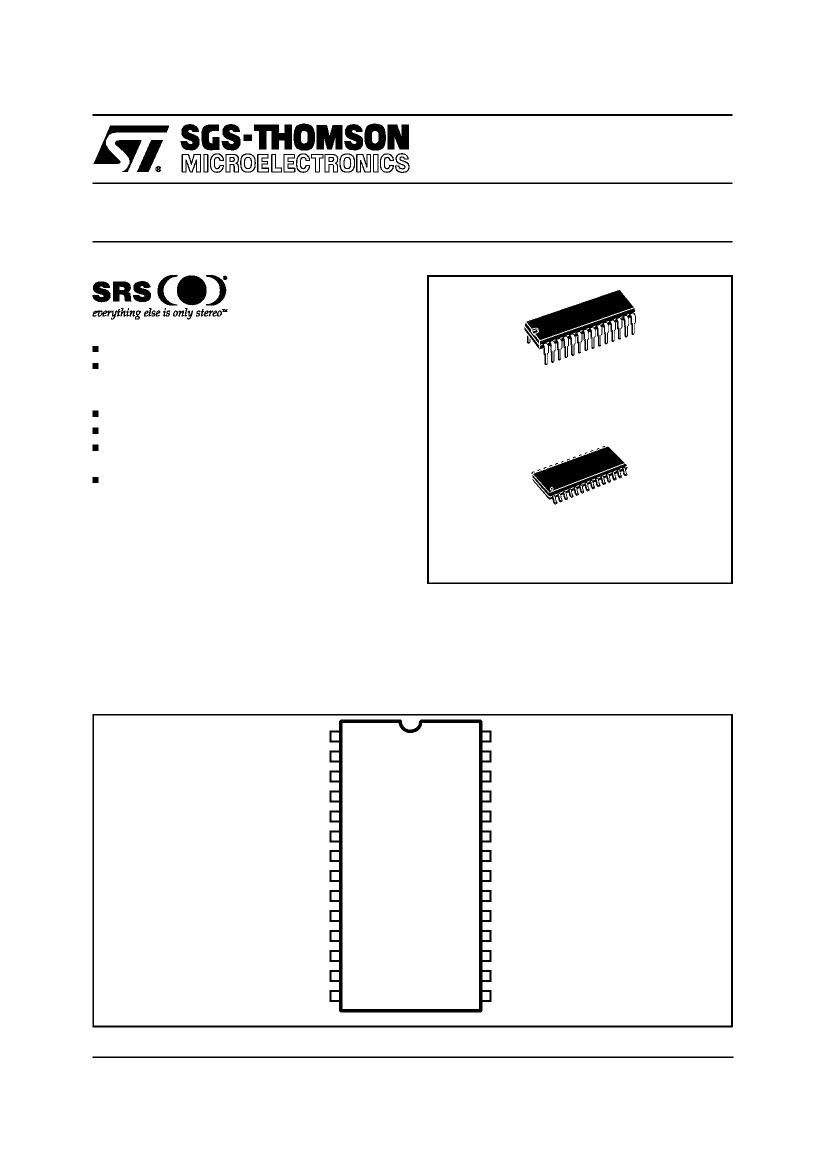

TDA7467

AUDIO MATRIX WITH SRS EFFECTS

The Device incorporates the SRS

(Sound Retrieval System) under

licence from SRS Labs, Inc.

1 STEREO INPUT

INPUT ATTENUATION CONTROL IN 0.5dB

STEP

- MUTE FUNCTION

MONO MODE (SRS 3D MONO)

STEREO MODE (SRS 3D STEREO)

SPACE AND CENTER ATTENUATORS ARE

AVAILABLE

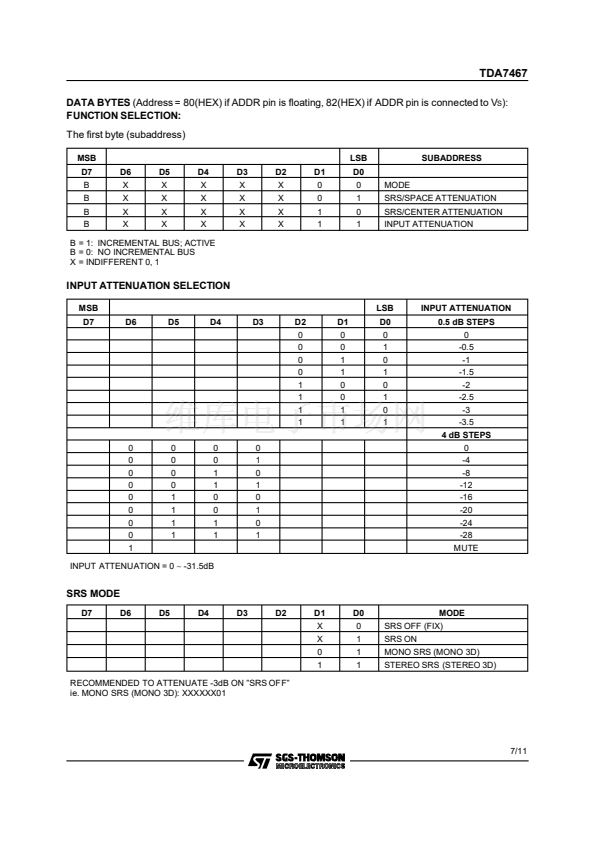

ALL FUNCTION ARE PROGRAMMABLE VIA

SERIAL BUS (I

2

C BUS)

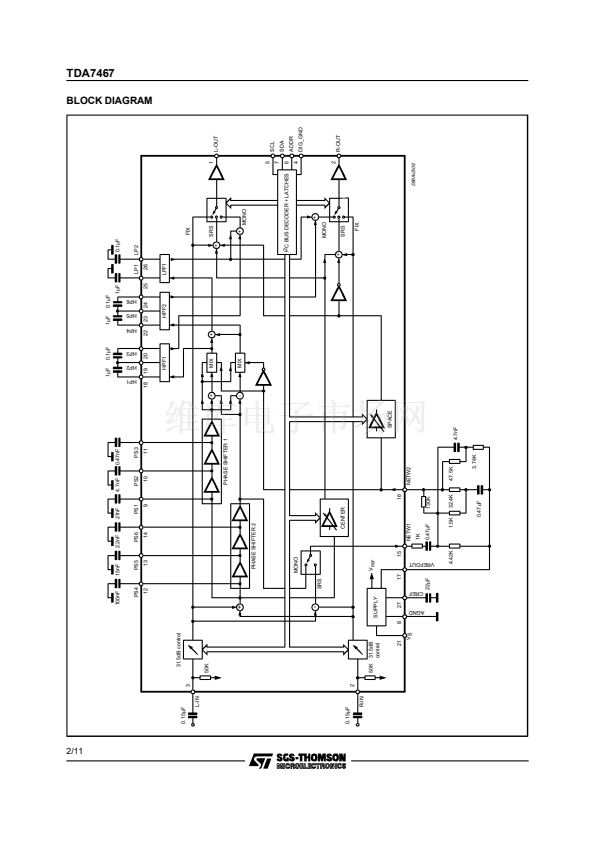

DESCRIPTION

The TDA7467 is a SRS (Sound Retrieval System)

audio matrix. It reproduces SRS sound process-

ing stereo and mono sources both.

The SRS sound is guaranteed by external com-

ponents and it is not affected by internal process

spreads.

The AC signal setting is obtained by resistor net-

works and switches combined with operational

amplifiers according to the SRS labs specifica-

PIN CONNECTION

(Top view)

LOUT

RIN

LIN

DIG_GND

SCL

ADDR

SDA

AGND

PS1

PS2

PS3

PS4

PS5

PS6

1

2

3

4

5

6

7

8

9

10

11

12

13

14

D96AU507

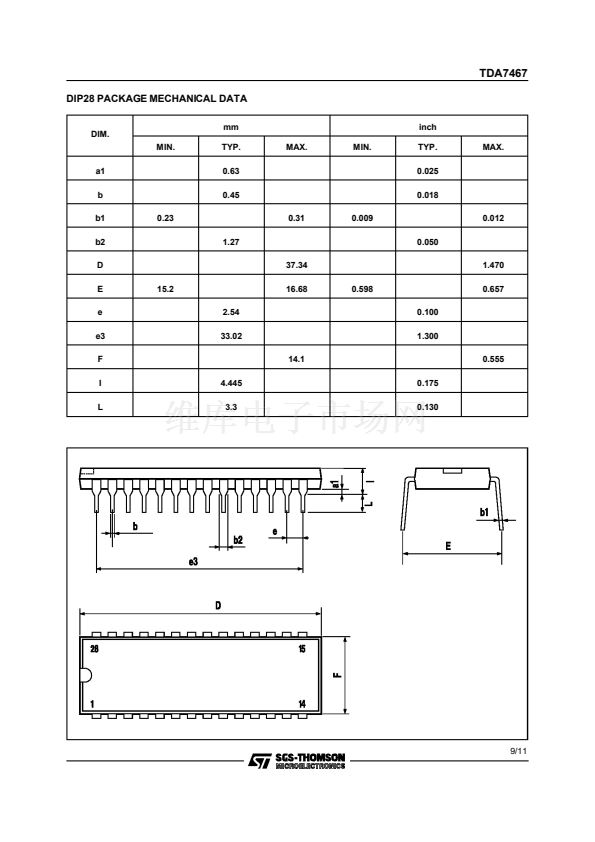

DIP28

ORDERING NUMBER:

TDA7467

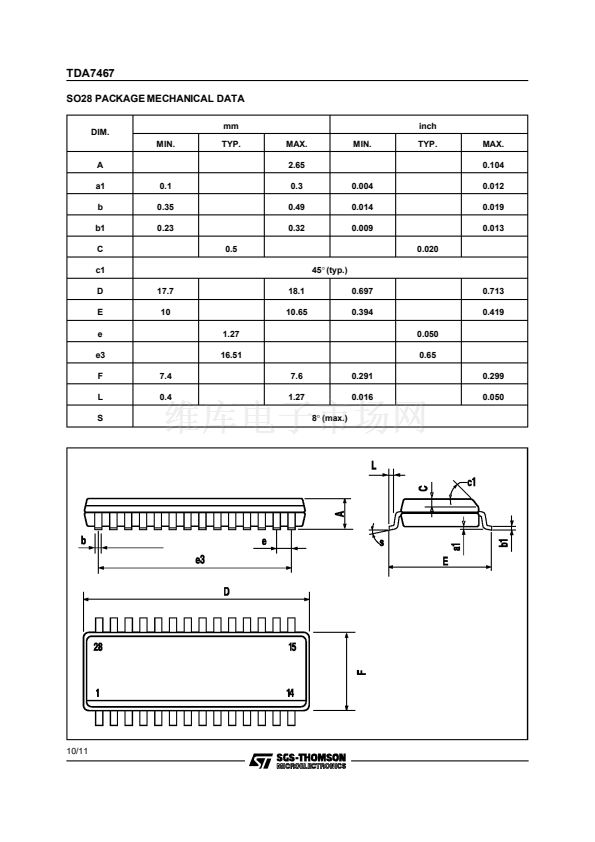

SO28

ORDERING NUMBER:

TDA7467D

tion.

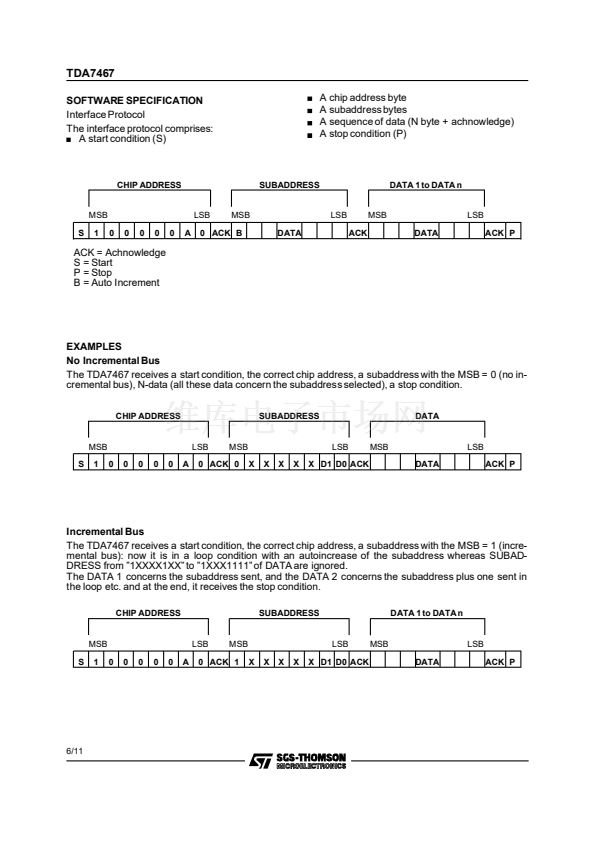

Control of all the functions is accomplished by serial

bus. Thanks to the used BIPOLAR/CMOS/DMOS

technology, Low Distortion, Low Noise and DC

stepping are obtained.

28

27

26

25

24

23

22

21

20

19

18

17

16

15

ROUT

CREF

LP2

LP1

HP6

HP5

HP4

V

S

HP3

HP2

HP1

VREFOUT

NETW2

NETW1

May 1997
