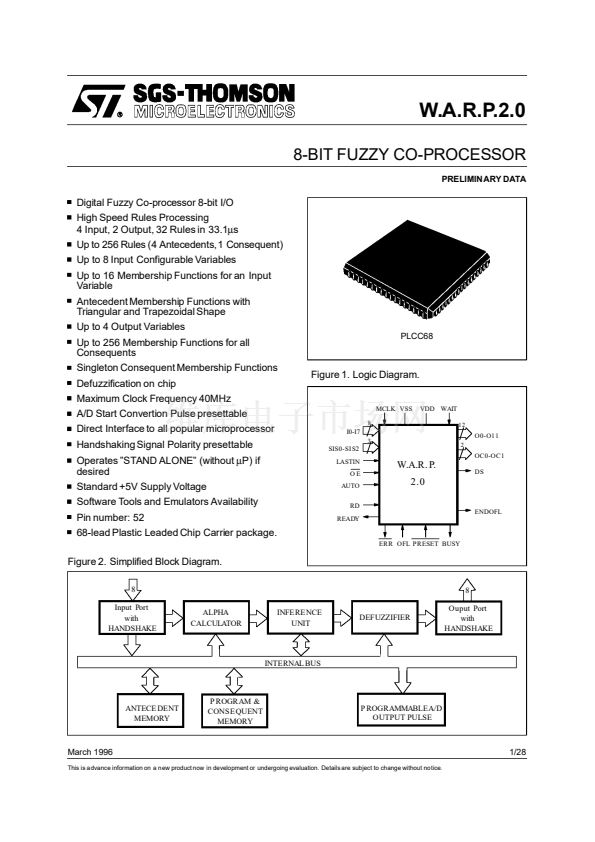

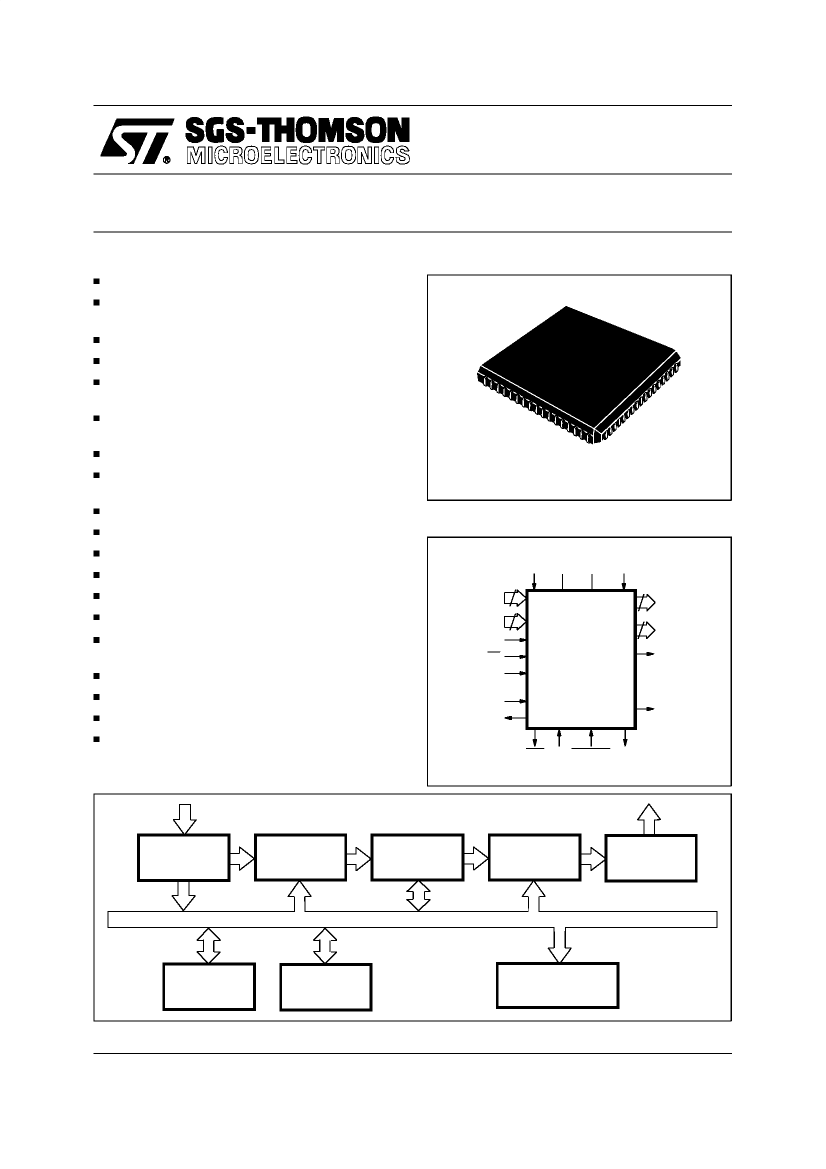

W.A.R.P.2.0

8-BIT FUZZY CO-PROCESSOR

PRELIMINARY DATA

Digital Fuzzy Co-processor 8-bit I/O

High Speed Rules Processing

4 Input, 2 Output, 32 Rules in 33.1碌s

Up to 256 Rules (4 Antecedents,1 Consequent)

Up to 8 Input Configurable Variables

Up to 16 Membership Functions for an Input

Variable

Antecedent Membership Functions with

Triangular and Trapezoidal Shape

Up to 4 Output Variables

Up to 256 Membership Functions for all

Consequents

Singleton Consequent Membership Functions

Defuzzification on chip

Maximum Clock Frequency 40MHz

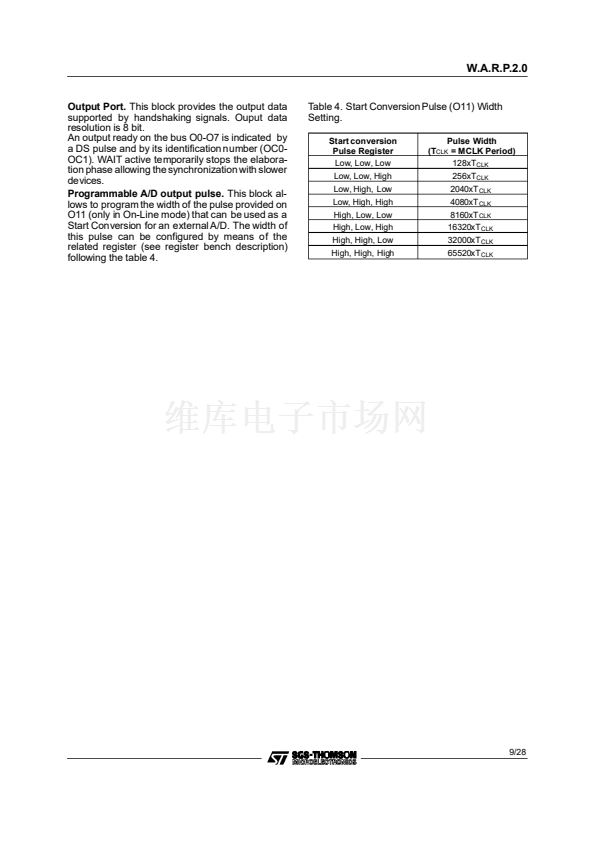

A/D Start Convertion Pulse presettable

Direct Interface to all popular microprocessor

Handshaking Signal Polarity presettable

Operates 鈥漇TAND ALONE鈥?(without

碌P)

if

desired

Standard +5V Supply Voltage

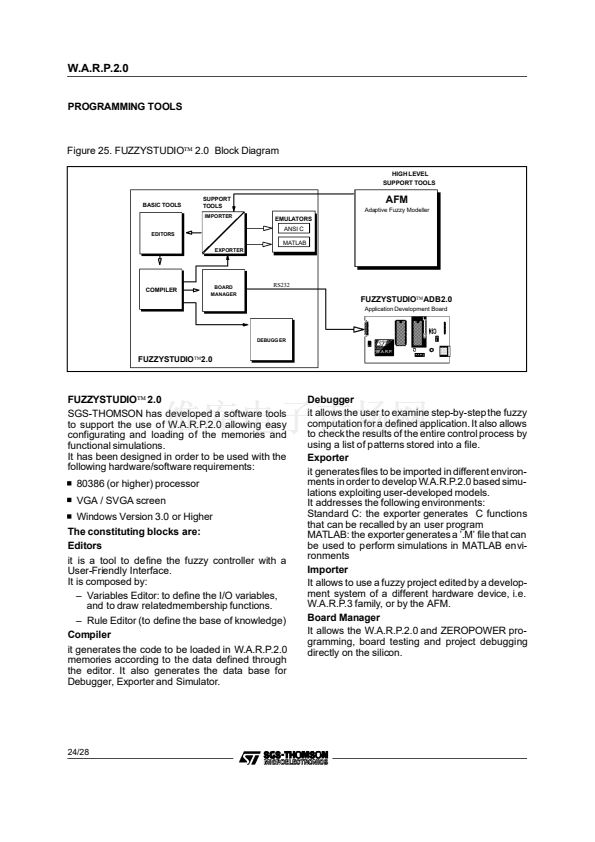

Software Tools and Emulators Availability

Pin number: 52

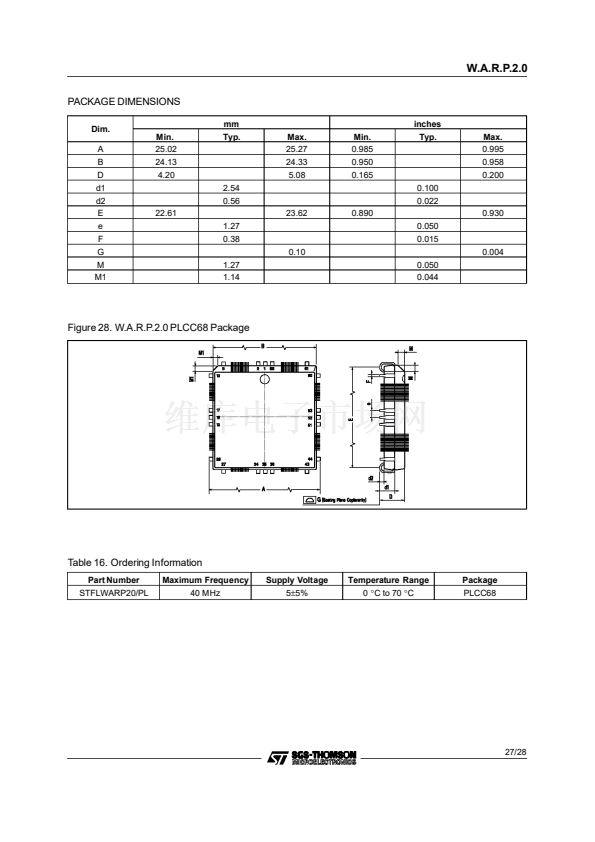

68-lead Plastic Leaded Chip Carrier package.

Figure 2. Simplified Block Diagram.

8

Input Port

with

HANDSHAKE

ALPHA

CALCULATOR

INFERENCE

UNIT

8

DEFUZZIFIER

Ouput Port

with

HANDSHAKE

PLCC68

Figure 1. Logic Diagram.

MCLK VSS

8

VDD WAIT

12

I0-I7

3

O0-O11

2

SIS0-SIS2

LASTIN

OE

AUTO

RD

OC0-OC1

W.A.R. P.

2.0

DS

ENDOFL

READY

ERR OFL PRESET BUSY

INTERNAL BUS

ANTECE DENT

MEMORY

P ROGRAM &

CONSE QUENT

MEMORY

P ROGRAMMABLEA/D

OUTPUT PULSE

March 1996

This is advance information on a new product now in development or undergoing evaluation. Details are subject to change without no tice.

1/28

next
