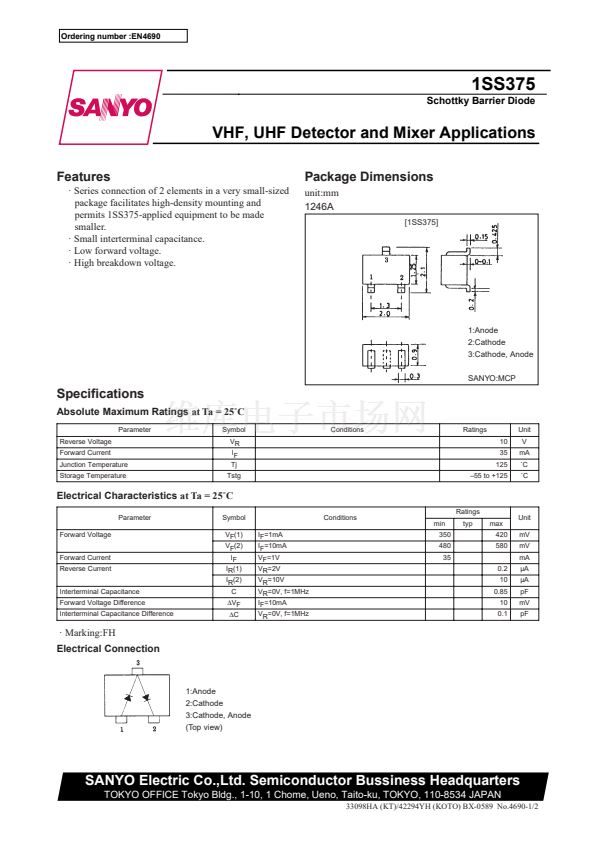

Ordering number :EN4690
1SS375
Schottky Barrier Diode
VHF, UHF Detector and Mixer Applications
Features
路 Series connection of 2 elements in a very small-sized
package facilitates high-density mounting and
permits 1SS375-applied equipment to be made
smaller.
路 Small interterminal capacitance.
路 Low forward voltage.
路 High breakdown voltage.
Package Dimensions
unit:mm
1246A
[1SS375]
1:Anode
2:Cathode
3:Cathode, Anode
SANYO:MCP
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Reverse Voltage
Forward Current
Junction Temperature
Storage Temperature
Symbol
VR
IF
Tj
Tstg
Conditions
Ratings
10
35
125
鈥?5 to +125
Unit
V
mA
藲C
藲C
Electrical Characteristics
at Ta = 25藲C
Parameter
Forward Voltage
Forward Current
Reverse Current
Interterminal Capacitance
Forward Voltage Difference
Interterminal Capacitance Difference
Symbol
VF(1)
VF(2)
IF
IR(1)
IR(2)
C
鈭哣
F
鈭咰
IF=1mA
IF=10mA
VF=1V
VR=2V
VR=10V
VR=0V, f=1MHz
IF=10mA
VR=0V, f=1MHz
Conditions
Ratings
min
350
480
35
0.2
10
0.85
10
0.1
typ
max
420
580
Unit
mV
mV
mA
碌A
碌A
pF
mV
pF
路 Marking:FH
Electrical Connection
1:Anode
2:Cathode
3:Cathode, Anode
(Top view)
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/42294YH (KOTO) BX-0589 No.4690-1/2
