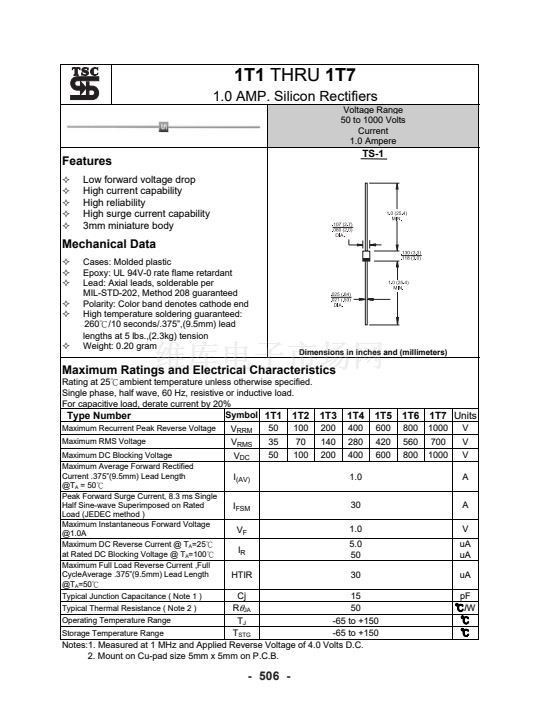

1T1
THRU
1T7
1.0 AMP. Silicon Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
3mm miniature body
TS-1
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed:
260鈩?10 seconds/.375鈥?(9.5mm) lead
lengths at 5 lbs.,(2.3kg) tension
Weight: 0.20 gram
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
1T1 1T2
Type Number
Maximum Recurrent Peak Reverse Voltage
50
100
V
RRM
Maximum RMS Voltage
35
70
V
RMS
Maximum DC Blocking Voltage
100
50
V
DC
Maximum Average Forward Rectified
Current .375鈥?9.5mm) Lead Length
@T
A
= 50鈩?/div>
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@1.0A
Maximum DC Reverse Current @ T
A
=25鈩?/div>
at Rated DC Blocking Voltage @ T
A
=100鈩?/div>
Maximum Full Load Reverse Current ,Full
CycleAverage .375鈥?9.5mm) Lead Length
@T
A
=50鈩?/div>
Typical Junction Capacitance ( Note 1 )
1T3
200
140
200
1T4
400
280
400
1.0
30
1.0
5.0
50
30
1T5
600
420
600
1T6
800
560
800
1T7
Units
1000
700
1000
V
V
V
A
A
V
uA
uA
uA
pF
鈩?W
鈩?/div>
鈩?/div>
I
(AV)
I
FSM
V
F
I
R
HTIR
Cj
15
Typical Thermal Resistance ( Note 2 )
50
R
胃
JA
Operating Temperature Range
T
J
-65 to +150
Storage Temperature Range
T
STG
-65 to +150
Notes:1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.
2. Mount on Cu-pad size 5mm x 5mm on P.C.B.
- 506 -
