Ordering number:EN5957A
NPN Triple Diffused Planar Silicon Transistor
2SC5452
Ultrahigh-Definition CRT Display
Horizontal Deflection Output Applications
Features
路 High speed.
路 High breakdown voltage (V
CBO
=1600V).
路 High reliability (Adoption of HVP process).
路 Adoption of MBIT process.
Package Dimensions
unit:mm
2039D
[2SC5452]
3.4
16.0
5.0
8.0
5.6
3.1
21.0
22.0
4.0
2.8
2.0
20.4
1.0
2.0
0.6
1
2
3
3.5
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-3PML
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tc=25藲C
5.45
5.45
Conditions
Ratings
1600
800
6
20
40
3
75
150
鈥?5 to +150
2.0
Unit
V
V
V
A
A
W
W
藲C
藲C
Tj
Tstg
Electrical Characteristics
at Ta = 25藲C
Parameter
Collector Cutoff Current
Collector-to-Emitter Sustain Voltage
Emitter Cutoff Current
Collector Cutoff Current
DC Current Gain
Symbol
ICES
VCE=1600V, RBE=0
VCEO(sus) IC=100mA, IB=0
IEBO
VEB=4V, IC=0
ICBO
VCB=800V, IE=0
hFE1
hFE2
VCE=5V, IC=1A
VCE=5V, IC=14A
Conditions
Ratings
min
800
1.0
10
15
4
30
7
typ
max
1.0
Unit
mA
V
mA
碌A

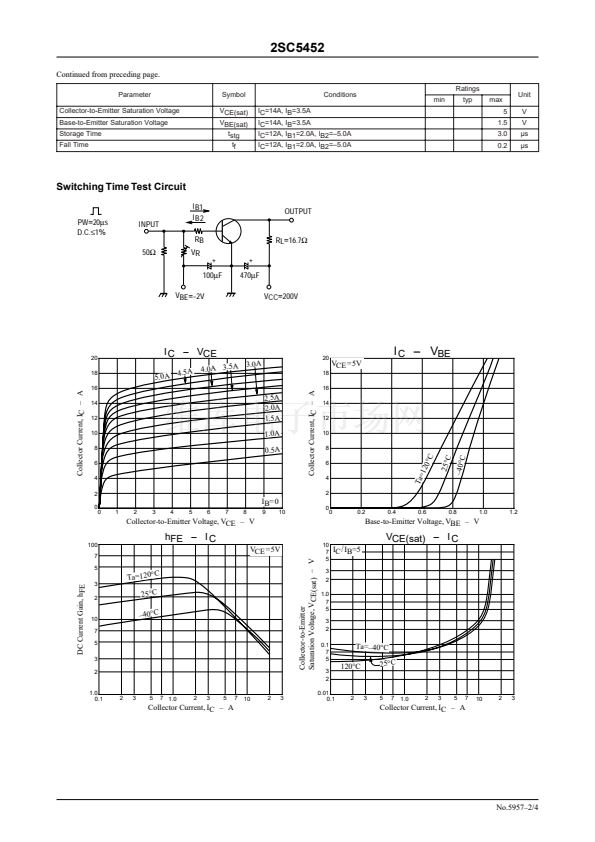

Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft鈥檚
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
61099TS (KOTO) TA-1384 No.5957鈥?/4
