Preliminary Data Sheet I2155 05/98
QUIET
IR
Series
70EPF..
FAST SOFT RECOVERY
RECTIFIER DIODE
I
F(RMS)
= 135A
V
F
t
rr
Description/Features
The 70EPF.. fast soft recovery
QUIET
IR
rectifier series
has been optimized for combined short reverse recovery
time and low forward voltage drop.
The glass passivation ensures stable reliable operation in
the most severe temperature and power cycling
conditions.
Available in the new
Pow
IR
tab
TM
package, this new series
is suitable for a large range of applications combining
excellent die to footprint ratio and sturdeness connectivity
for use in high current environments.
Typical applications are both:
Output rectification and freewheeling in
inverters, choppers and converters
Input rectifications where severe
restrictions on conducted EMI should be met.
< 1.4V @ 85A
= 95ns
V
RRM
800 to 1200V
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rect. Conduction
50% duty Cycle
@ T
C
= 80掳 C
I
F(RMS)
V
RRM
range
I
FSM
V
F
t
rr
T
J
@ 85 A, T
J
= 25掳C
@ 1A, - 100A/碌s
range
135
800 to 1200
700
1.4
95
- 40 to 150
A
V
A
V
ns
掳C

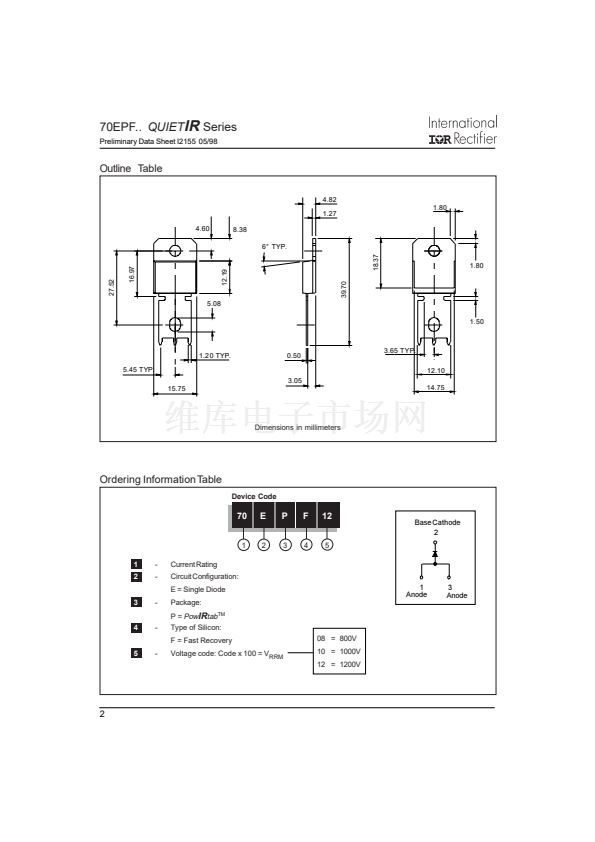

Package Outline
Units
A
70EPF..
85
Pow
IR
tab
TM
1
1
2
