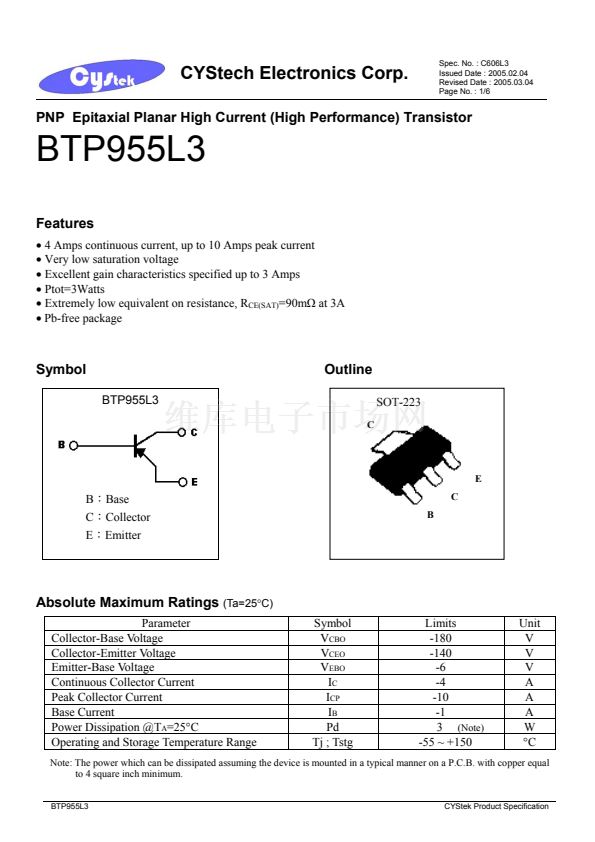

CYStech Electronics Corp.

Spec. No. : C606L3

Issued Date : 2005.02.04

Revised Date : 2005.03.04

Page No. : 1/6

PNP Epitaxial Planar High Current (High Performance) Transistor

BTP955L3

Features

鈥?/div>

4 Amps continuous current, up to 10 Amps peak current

鈥?/div>

Very low saturation voltage

鈥?/div>

Excellent gain characteristics specified up to 3 Amps

鈥?/div>

Ptot=3Watts

鈥?/div>

Extremely low equivalent on resistance, R

CE(SAT)

=90m鈩?at 3A

鈥?/div>

Pb-free package

Symbol

BTP955L3

Outline

SOT-223

B锛欱ase

C锛欳ollector

E锛欵mitter

Absolute Maximum Ratings

(Ta=25掳C)

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Base Current

Power Dissipation @T

=25掳C

Operating and Storage Temperature Range

Symbol

CBO

CEO

EBO

Tj ; Tstg

Limits

-180

-140

-6

-4

-10

-1

(Note)

-55 ~ +150

Unit

掳C

Note: The power which can be dissipated assuming the device is mounted in a typical manner on a P.C.B. with copper equal

to 4 square inch minimum.

BTP955L3

CYStek Product Specification
