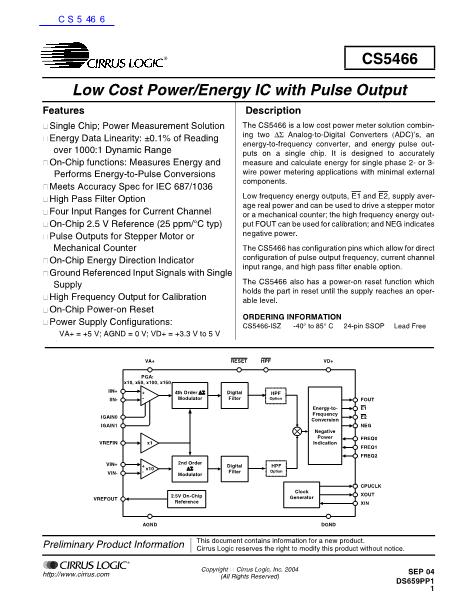

CS5466

Low Cost Power/Energy IC with Pulse Output

Features

Single Chip; Power Measurement Solution

Energy Data Linearity: 卤0.1% of Reading

over 1000:1 Dynamic Range

On-Chip functions: Measures Energy and

Performs Energy-to-Pulse Conversions

Meets Accuracy Spec for IEC 687/1036

High Pass Filter Option

Four Input Ranges for Current Channel

On-Chip 2.5 V Reference (25 ppm/掳C typ)

Pulse Outputs for Stepper Motor or

Mechanical Counter

On-Chip Energy Direction Indicator

Ground Referenced Input Signals with Single

Supply

High Frequency Output for Calibration

On-Chip Power-on Reset

Power Supply Configurations:

VA+ = +5 V; AGND = 0 V; VD+ = +3.3 V to 5 V

Description

The CS5466 is a low cost power meter solution combin-

ing two

鈭單?/div>

Analog-to-Digital Converters

(ADC)鈥檚,

energy-to-frequency converter, and energy pulse out-

puts on a single chip. It is designed to accurately

measure and calculate energy for single phase 2- or 3-

wire power metering applications with minimal external

components.

Low frequency energy outputs, E1 and E2, supply aver-

age real power and can be used to drive a stepper motor

or a mechanical counter; the high frequency energy out-

put FOUT can be used for calibration; and NEG indicates

negative power.

The CS5466 has configuration pins which allow for direct

configuration of pulse output frequency, current channel

input range, and high pass filter enable option.

The CS5466 also has a power-on reset function which

holds the part in reset until the supply reaches an oper-

able level.

ORDERING INFORMATION

CS5466-ISZ

-40掳 to 85掳 C

24-pin SSOP

Lead Free

VA+

PGA:

x10, x50, x100, x150

IIN+

IIN-

4th Order

鈭單?/div>

Modulator

RESET

HPF

VD+

Digital

Filter

HPF

Option

FOUT

Energy-to-

Frequency

Conversion

Negative

Power

Indication

NEG

FREQ0

FREQ1

FREQ2

IGAIN0

IGAIN1

VREFIN

VIN+

VIN-

x10

2nd Order

鈭單?/div>

Modulator

Digital

Filter

HPF

Option

CPUCLK

VREFOUT

2.5V On-Chip

Reference

Clock

Generator

XOUT

XIN

AGND

DGND

Preliminary Product Information

http://www.cirrus.com

This document contains information for a new product.

Cirrus Logic reserves the right to modify this product without notice.

漏

OCT 鈥?4

DS659PP2
