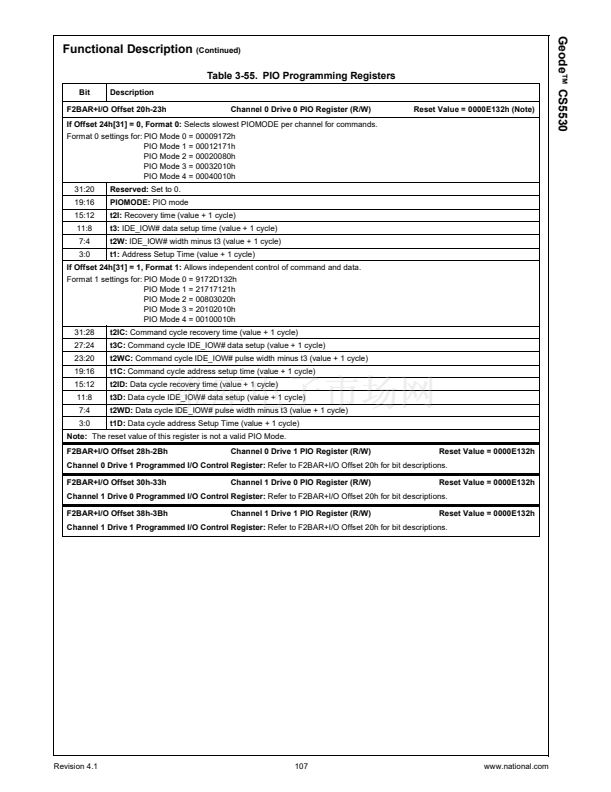

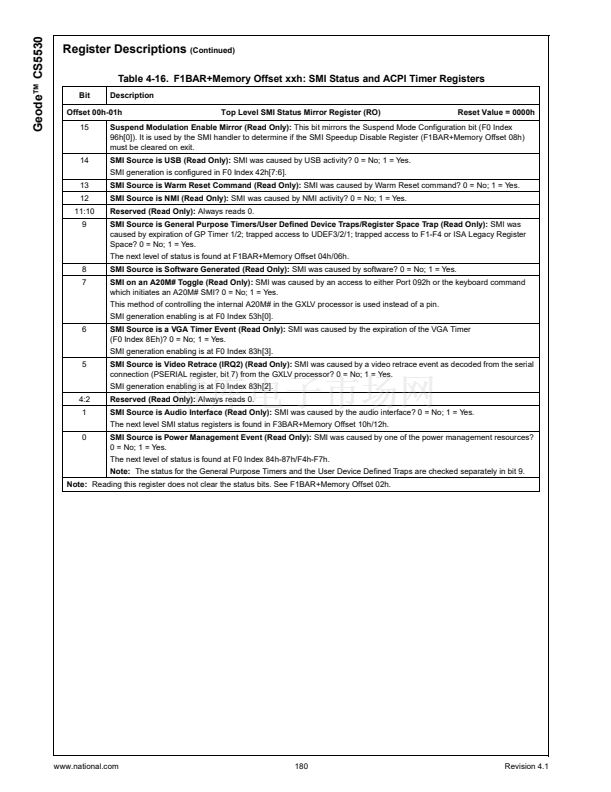

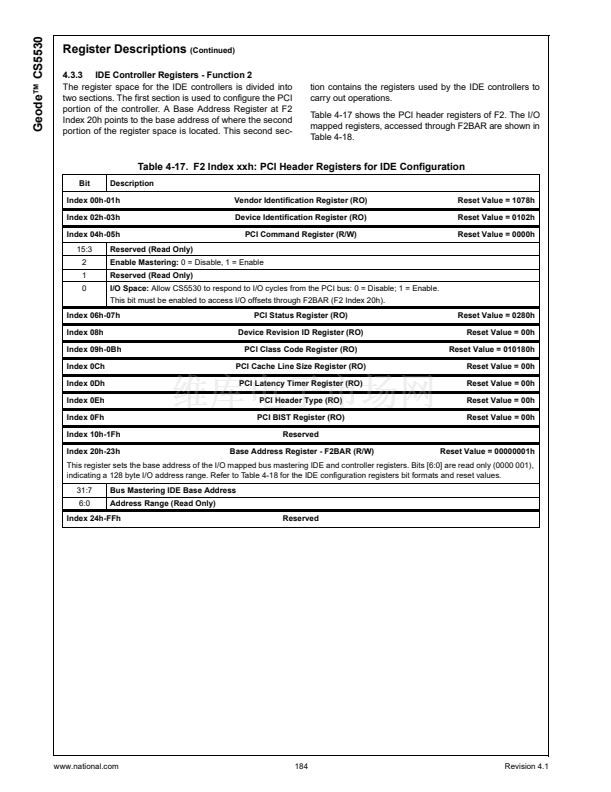

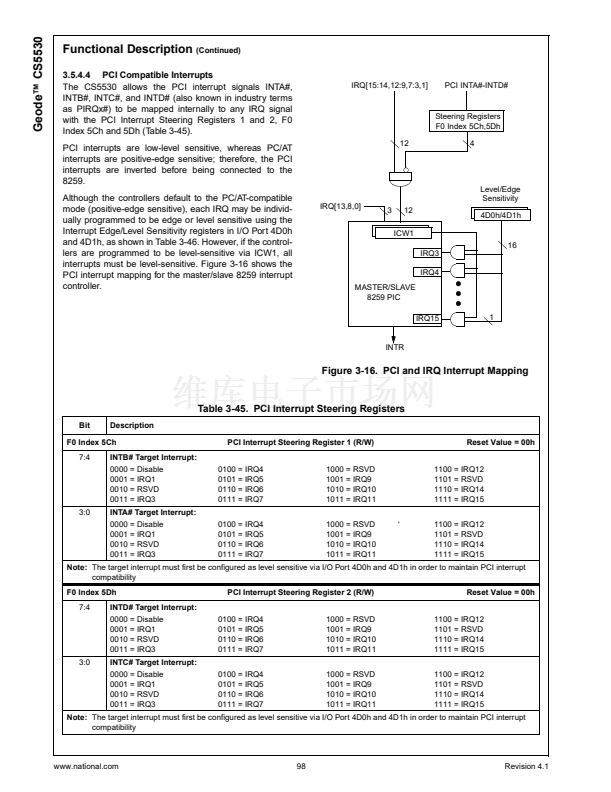

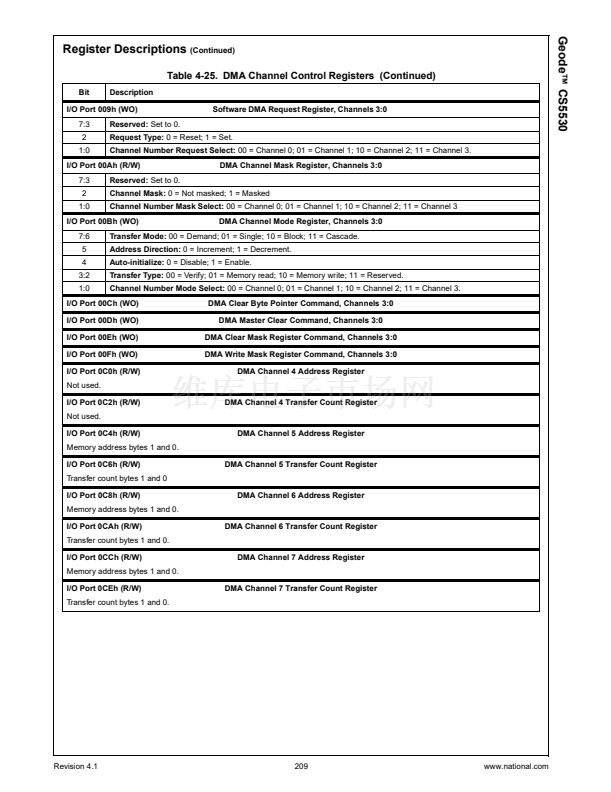

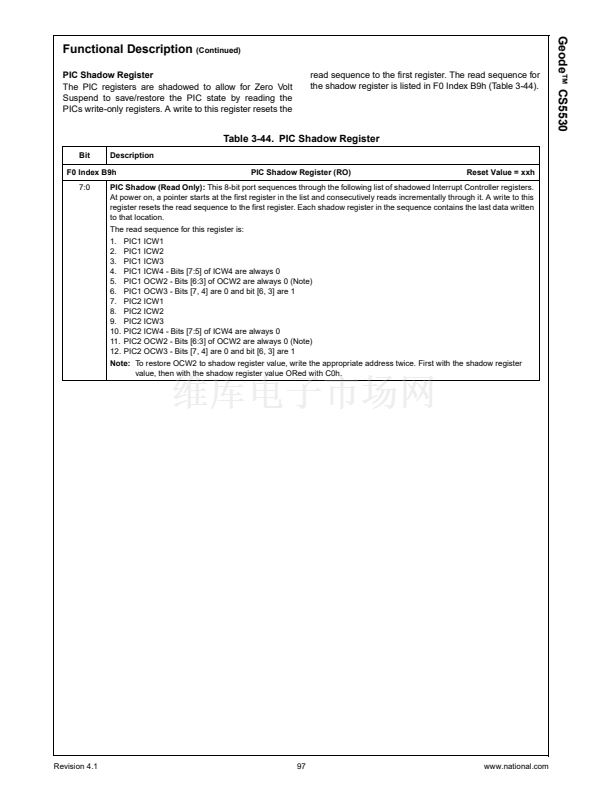

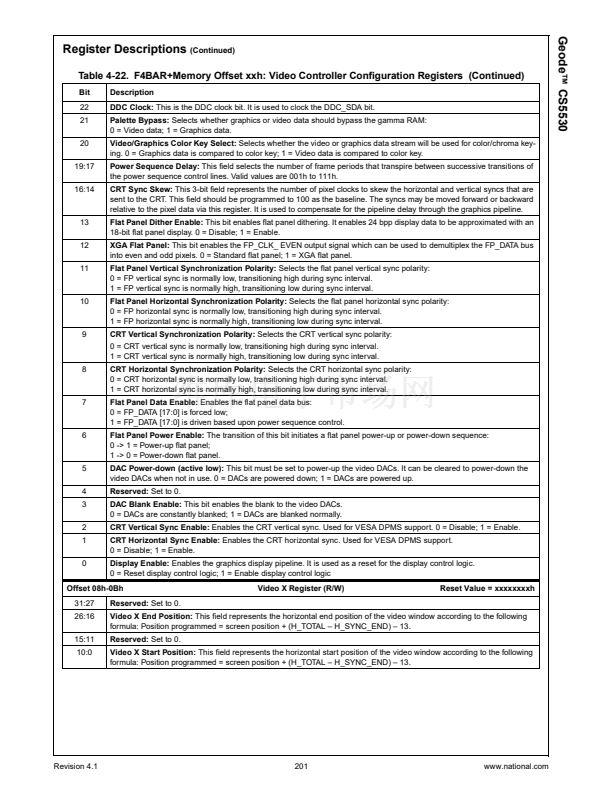

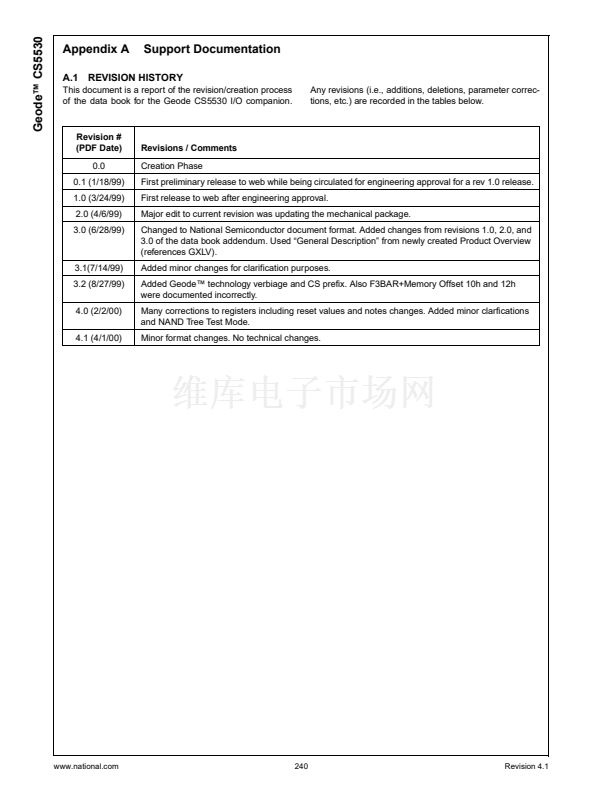

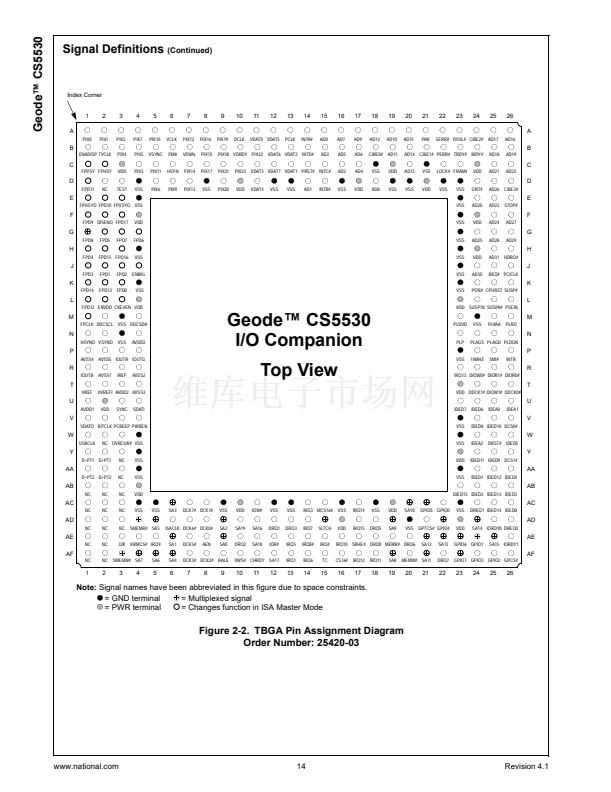

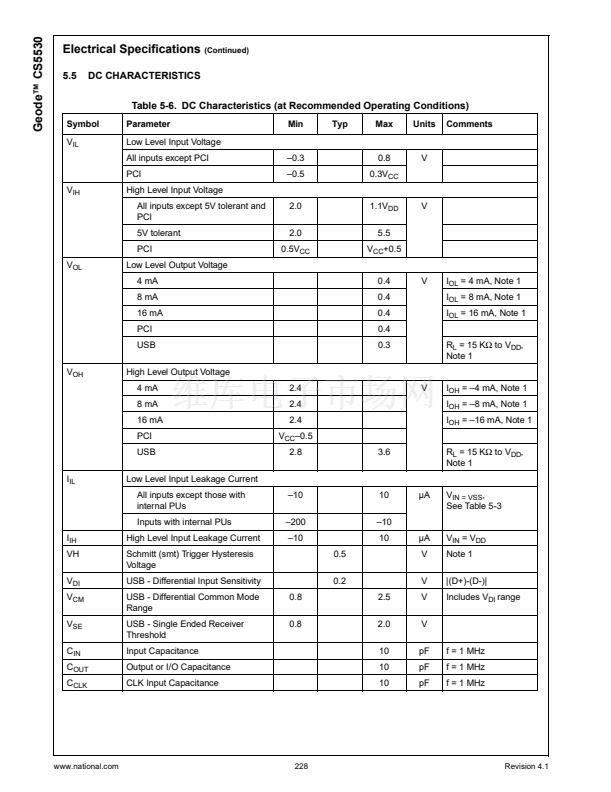

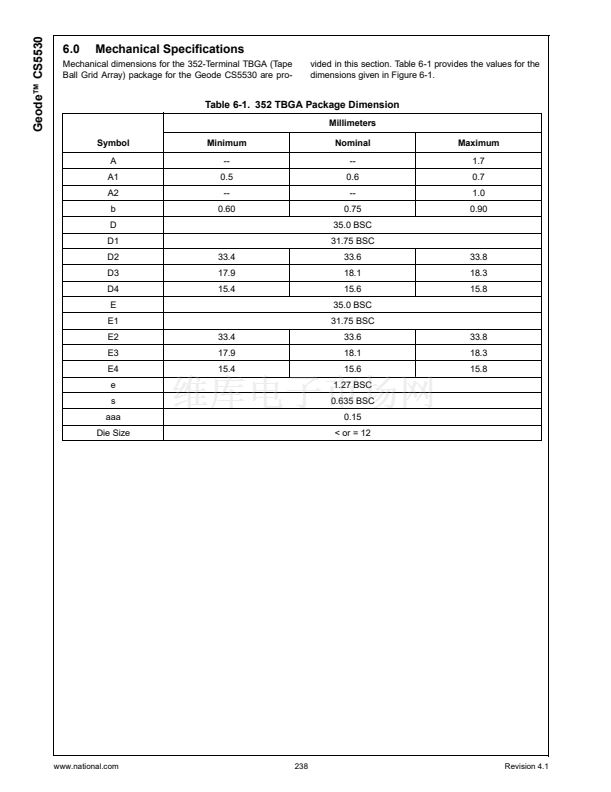

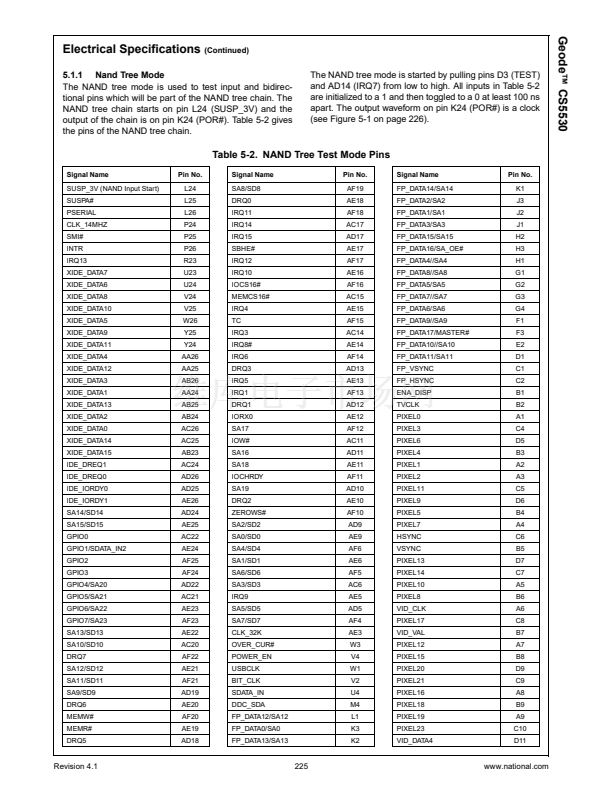

Geode鈩?CS5530 I/O Companion Multi-Function South Bridge
April 2000
Geode鈩?CS5530 I/O Companion
Multi-Function South Bridge
General Description
The CS5530 I/O companion is designed to work in con-
junction with the GXLV and GXm series processors; all
members of the National Semiconductor
庐
Geode鈩?family
of products. Together the Geode processor and CS5530
provide a system-level solution well suited for the high
performance needs of a host of devices such as digital
set-top boxes and thin client devices. Due to the low
power consumption of a GXLV processor, this solution
satisfies the needs of battery powered devices such as
National鈥檚 WebPAD鈩?system, a Geode GXLV proces-
sor/CS5530 based design. Also, thermal design is eased
allowing for fanless system design.

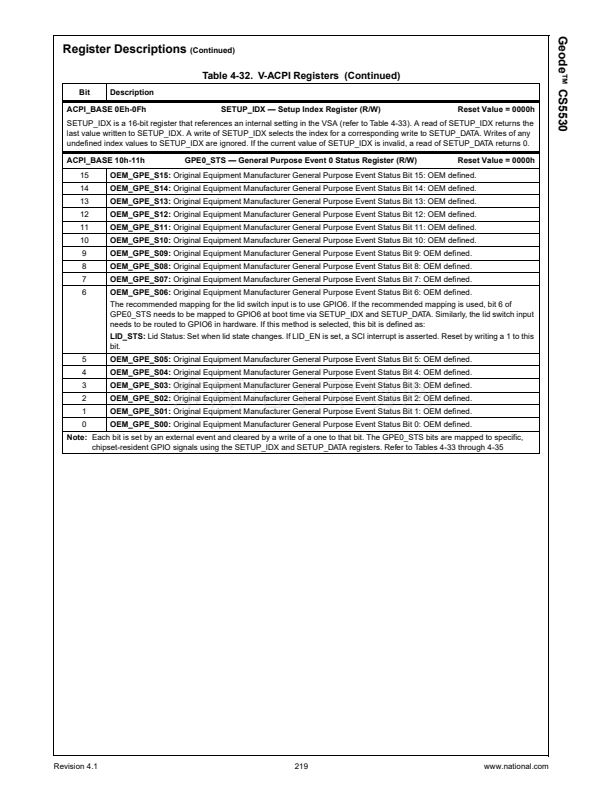

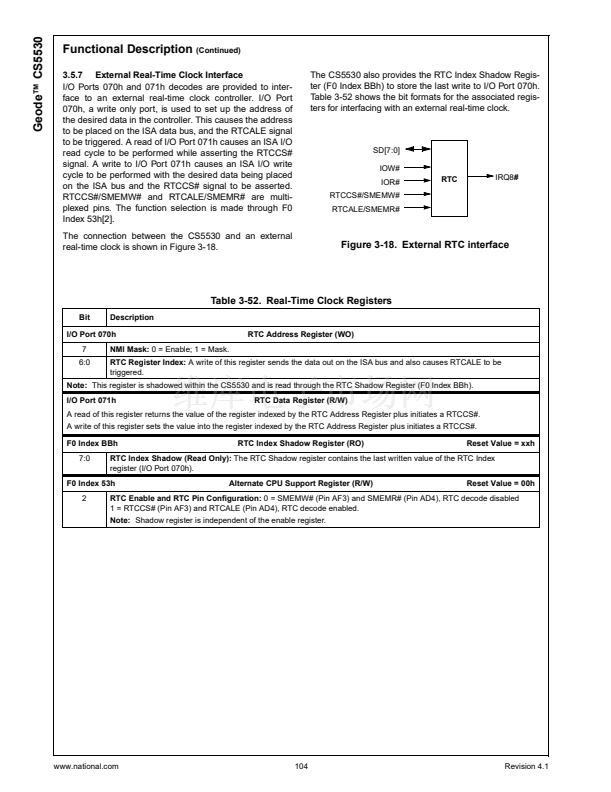

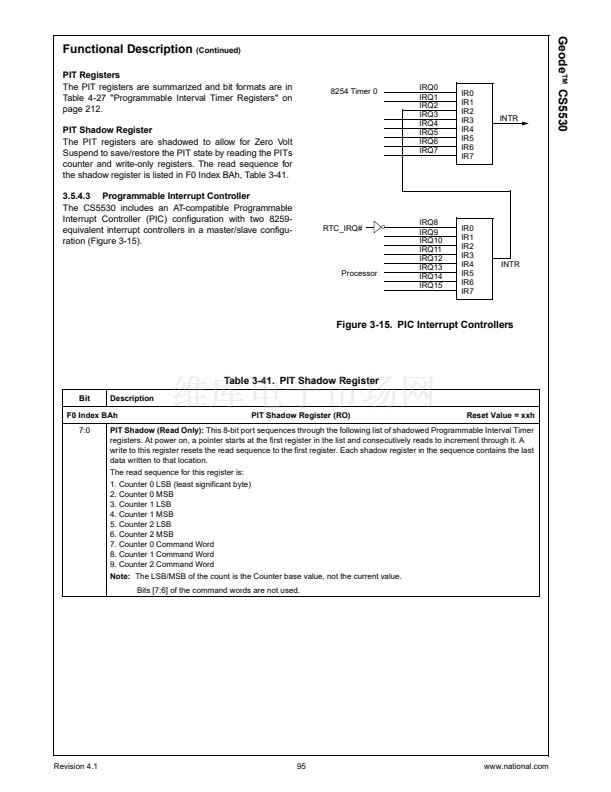

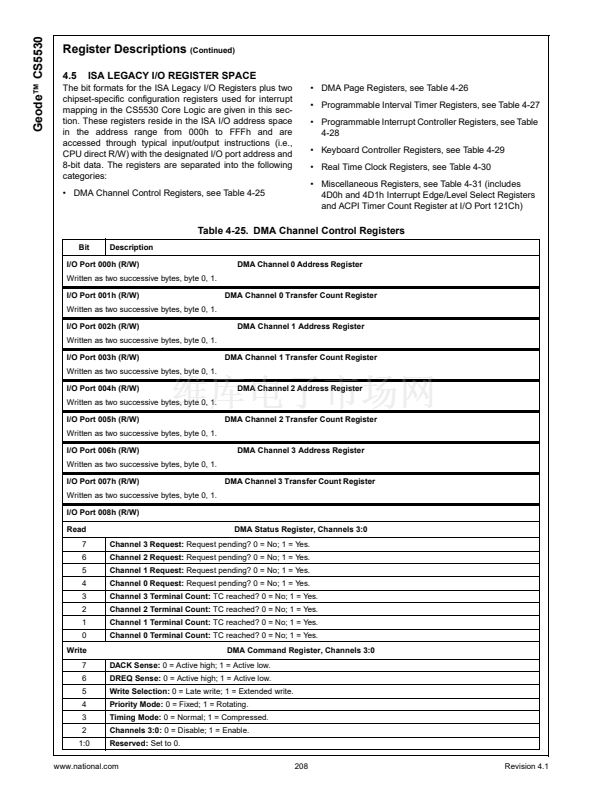

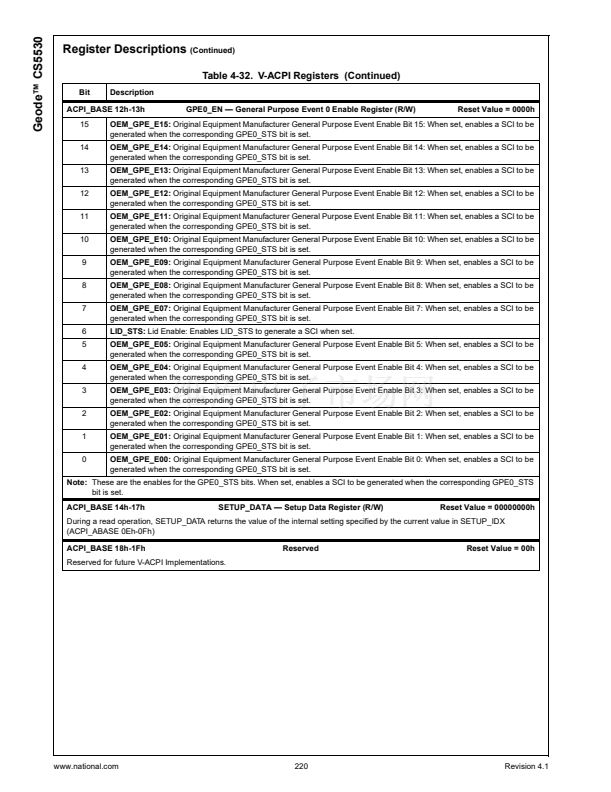

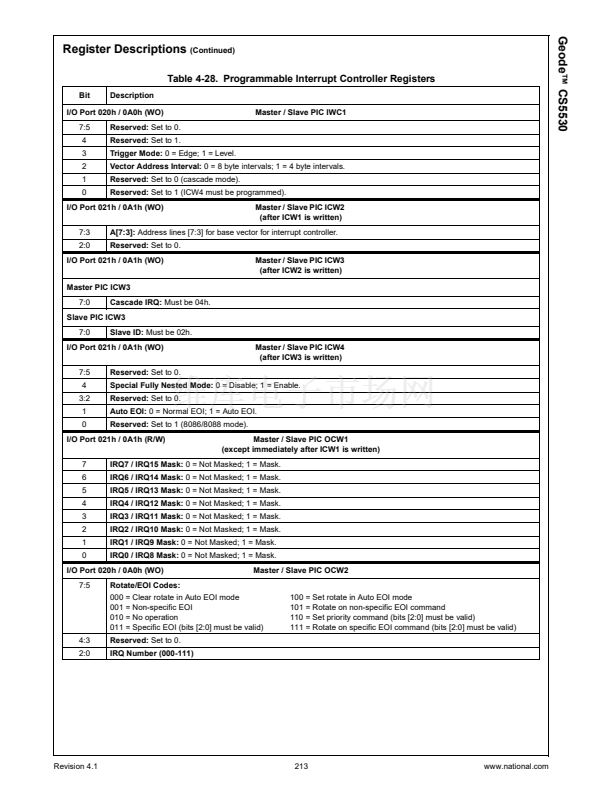

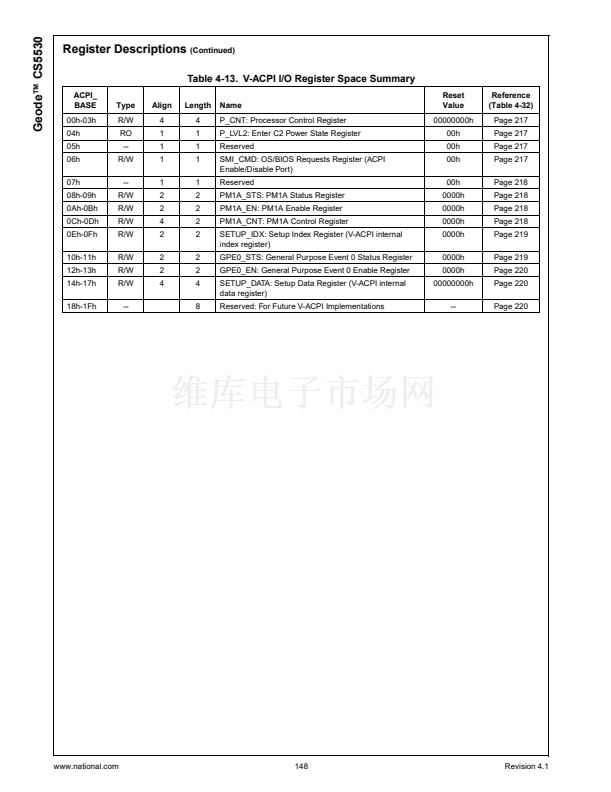

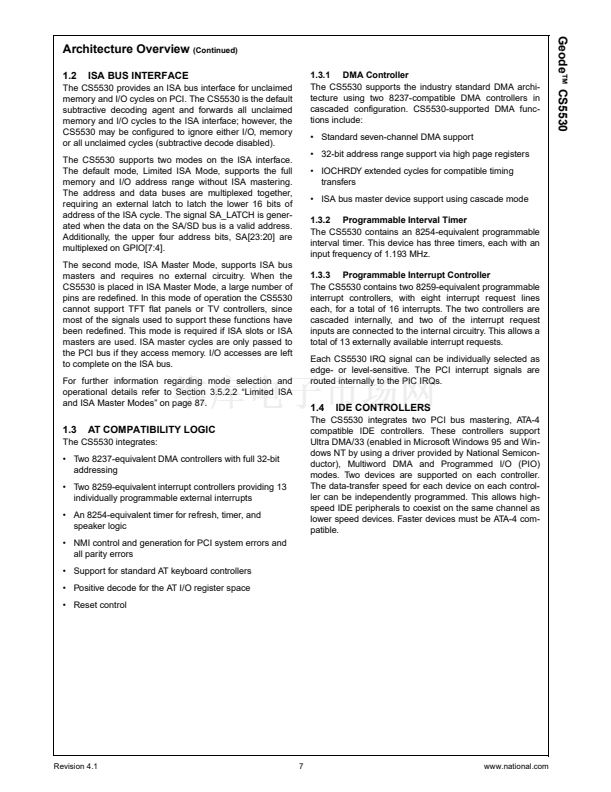

The CS5530 I/O companion is a PCI-to-ISA bridge (South
Bridge), ACPI-compliant chipset that provides AT/ISA
style functionality. To those familiar with PC architecture
this enables a quicker understanding of the CS5530鈥檚

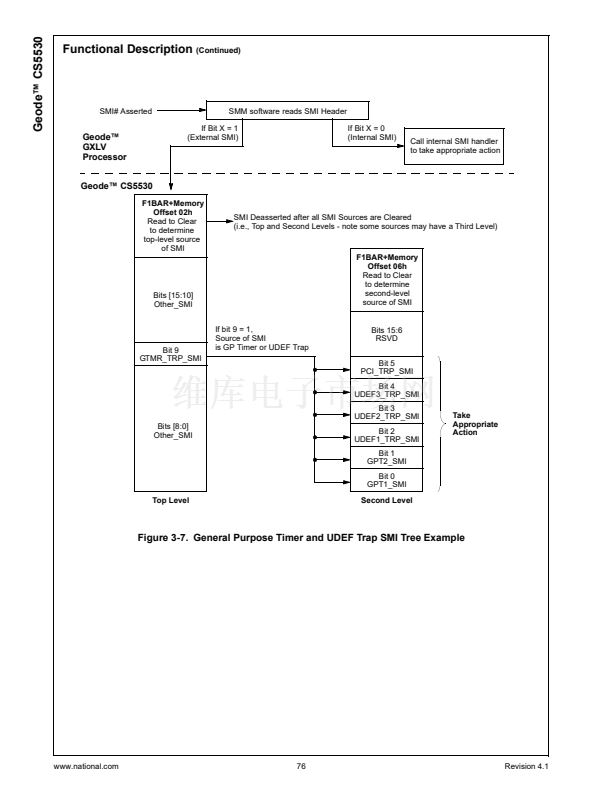

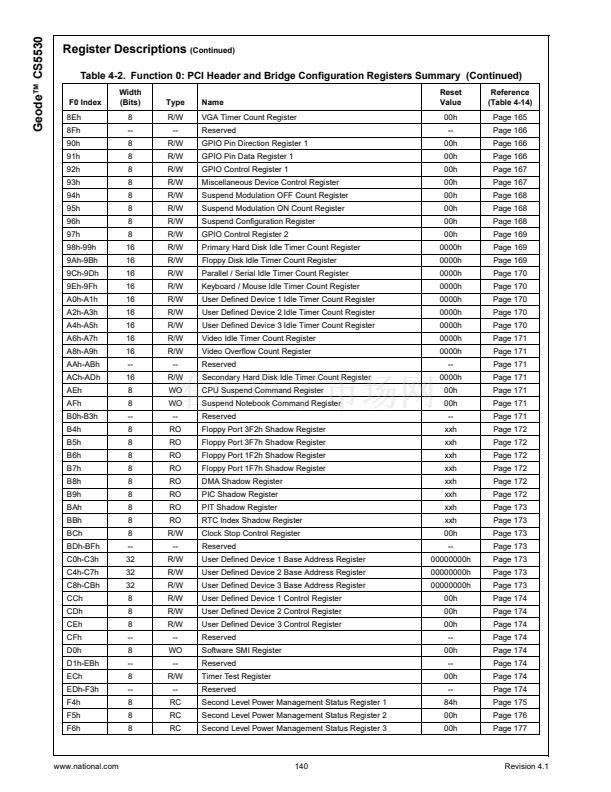

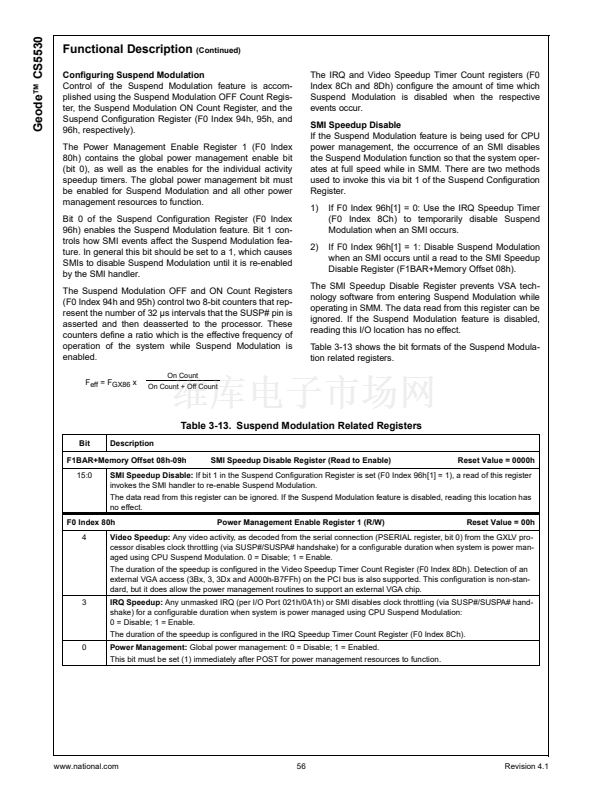

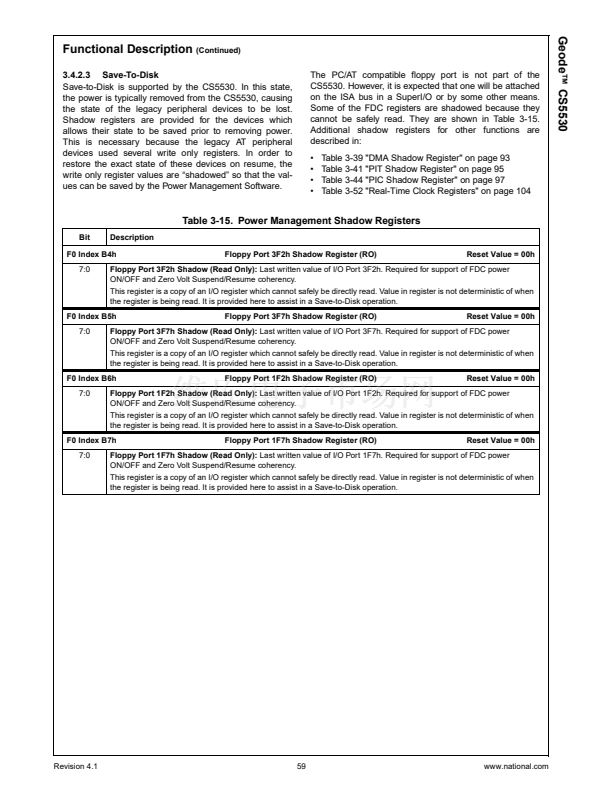

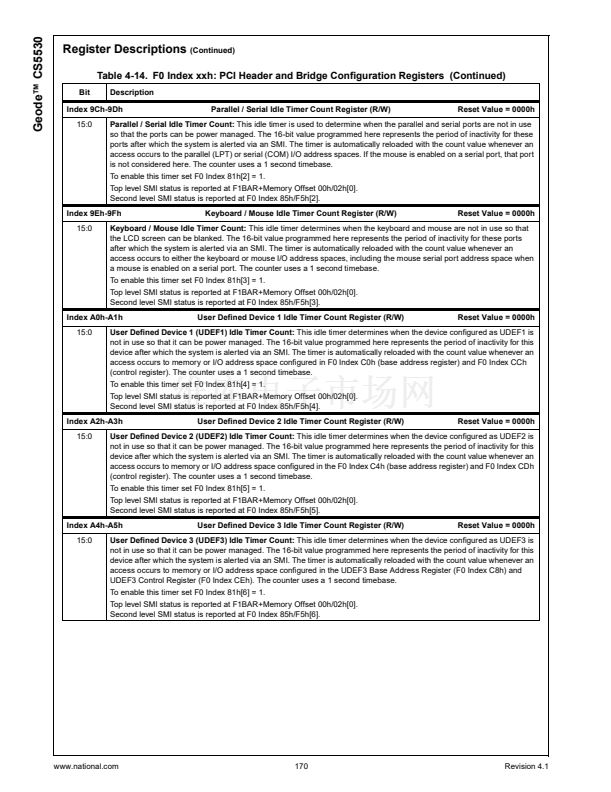

architecture. The device contains state-of-the-art power
management that enables systems, especially battery
powered systems, to significantly reduce power consump-
tion.

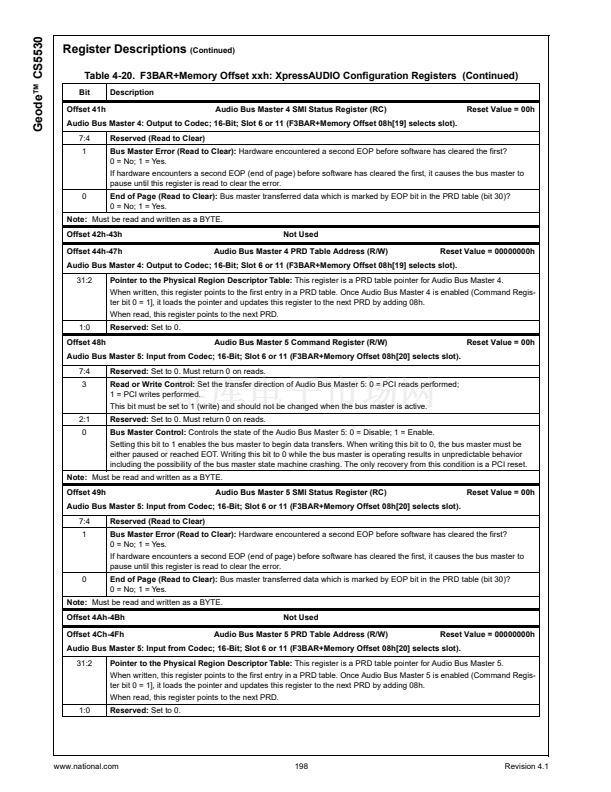

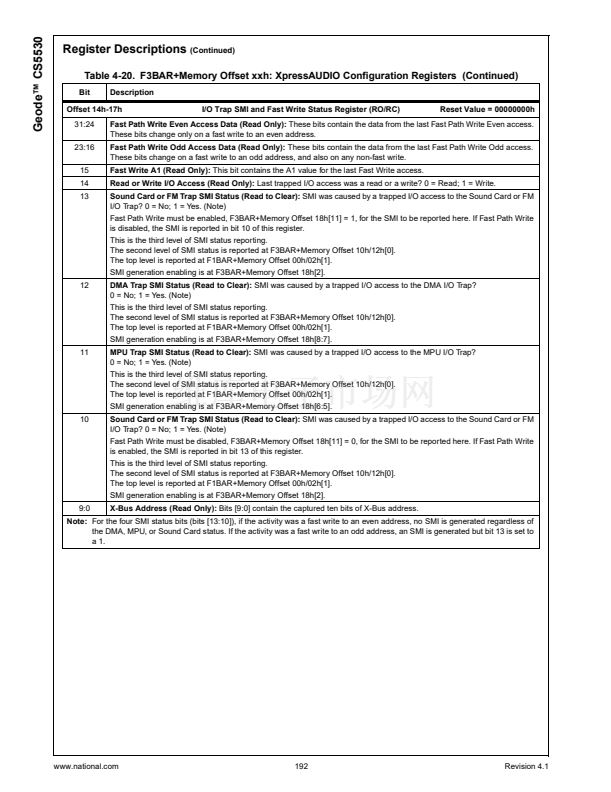

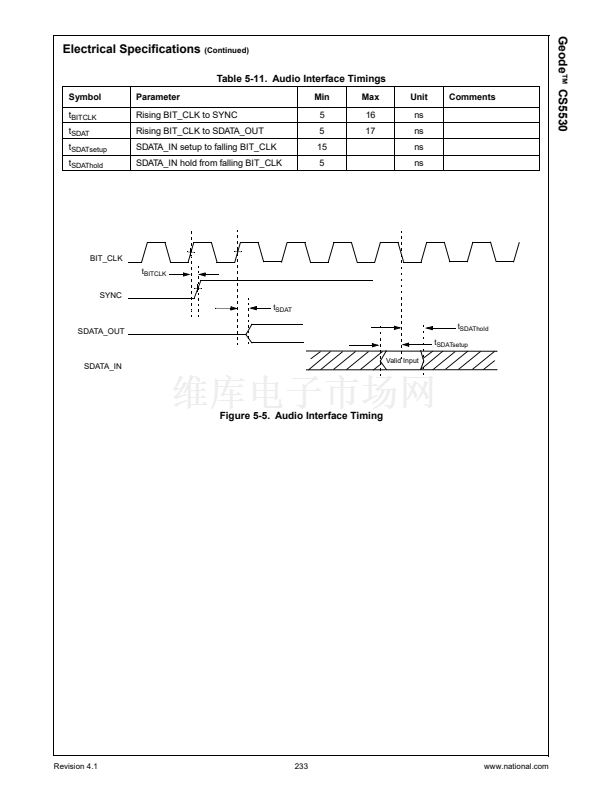

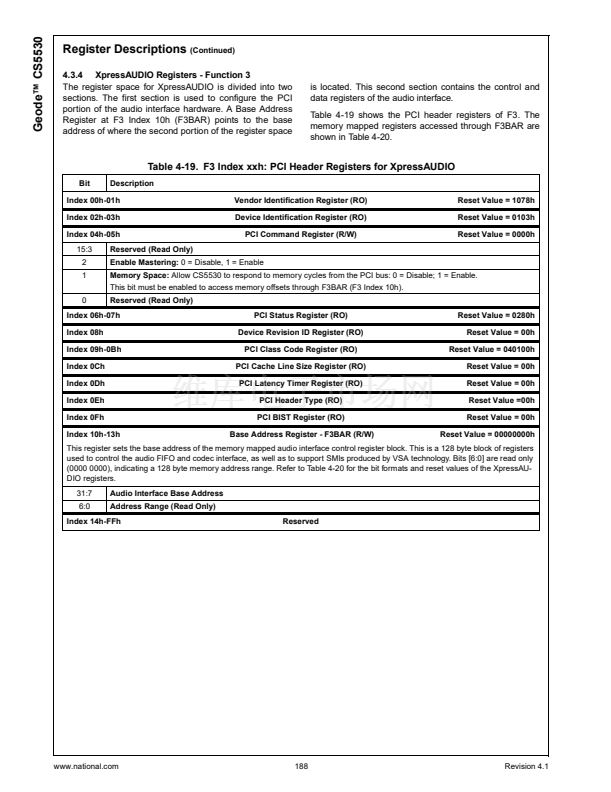

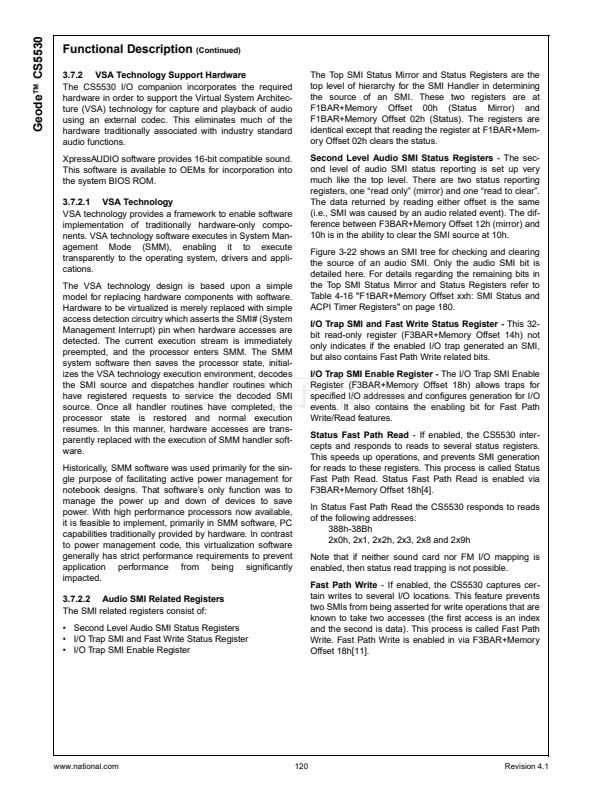

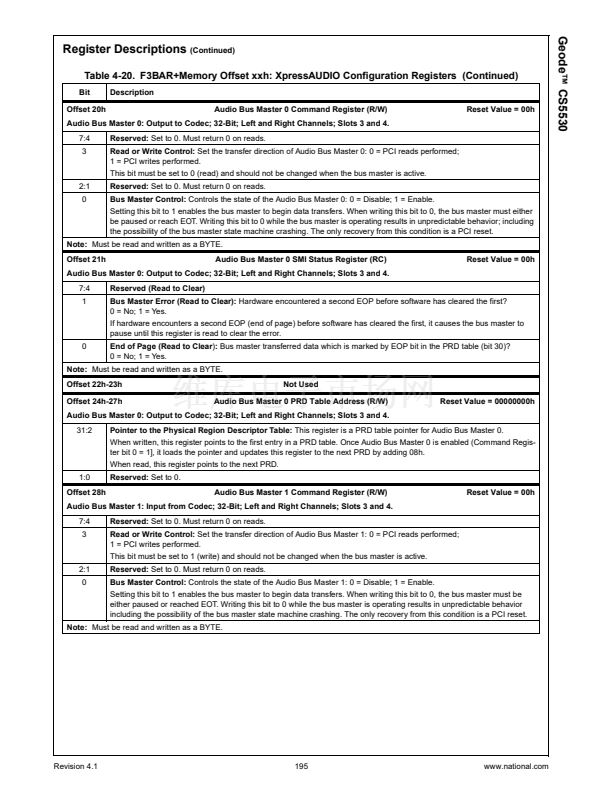

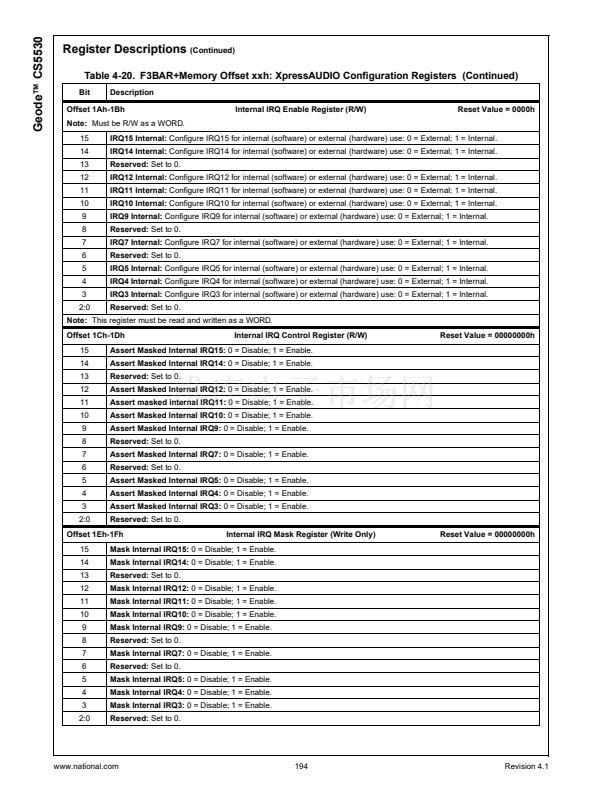

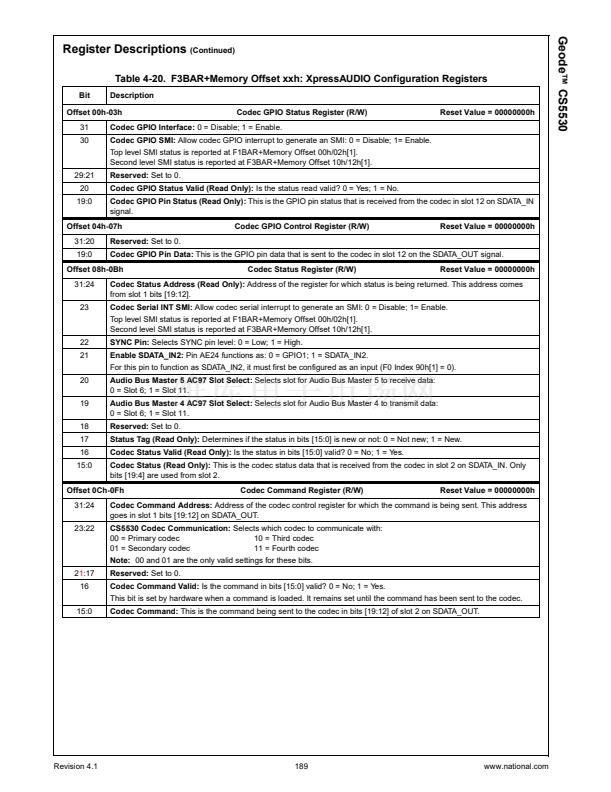

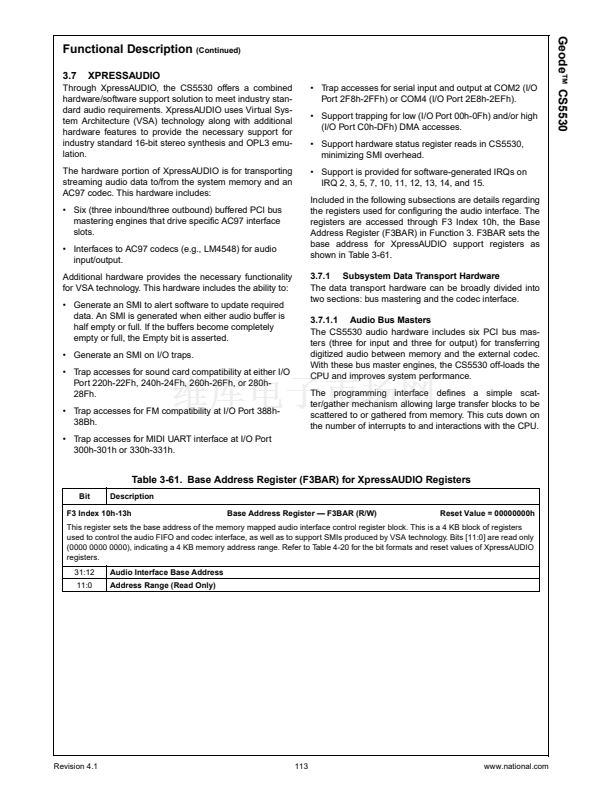

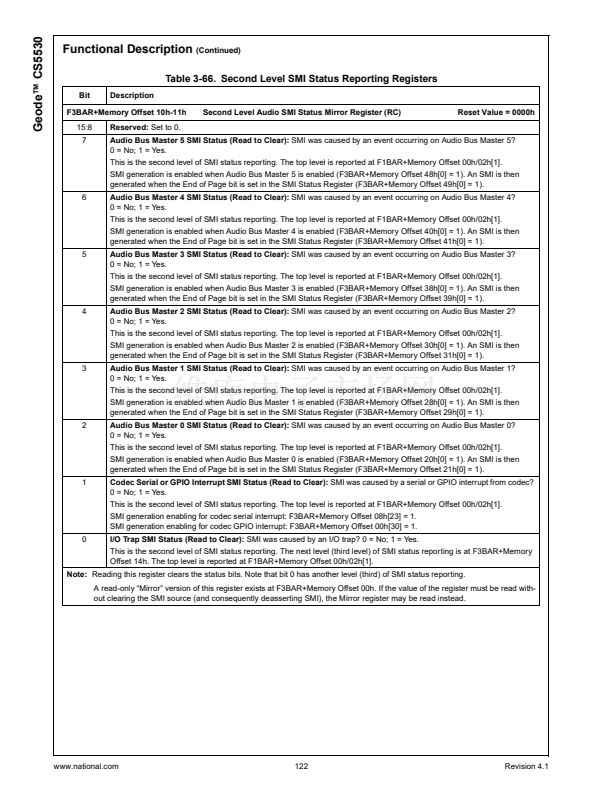

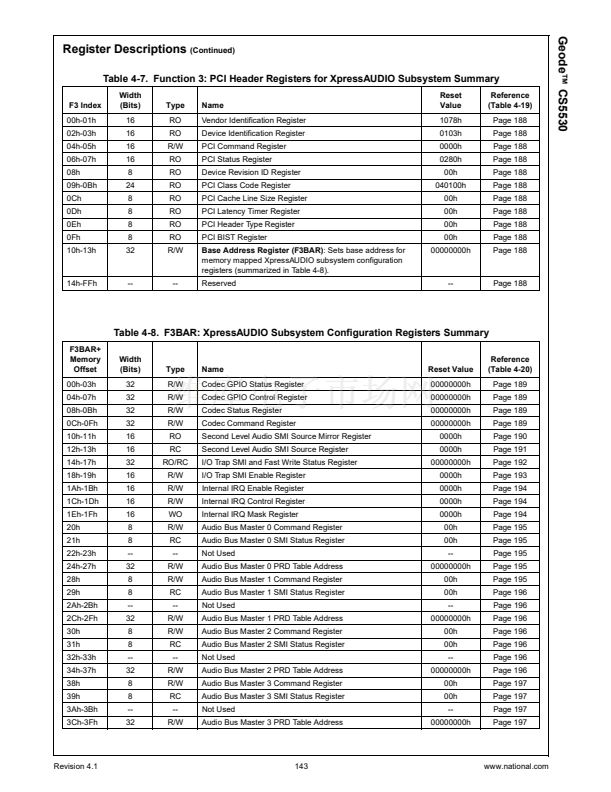

Audio is supported through PCI bus master engines which
connect to an AC97 compatible codec such as the
National Semiconductor LM4548. If industry standard

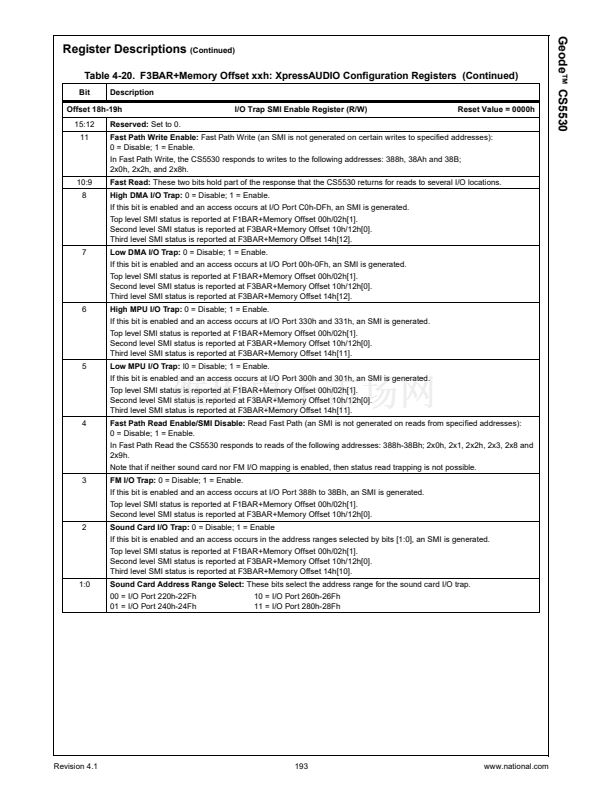

audio is required, a combination of hardware and software
called Virtual System Architecture
庐
(VSA鈩? technology is
provided.

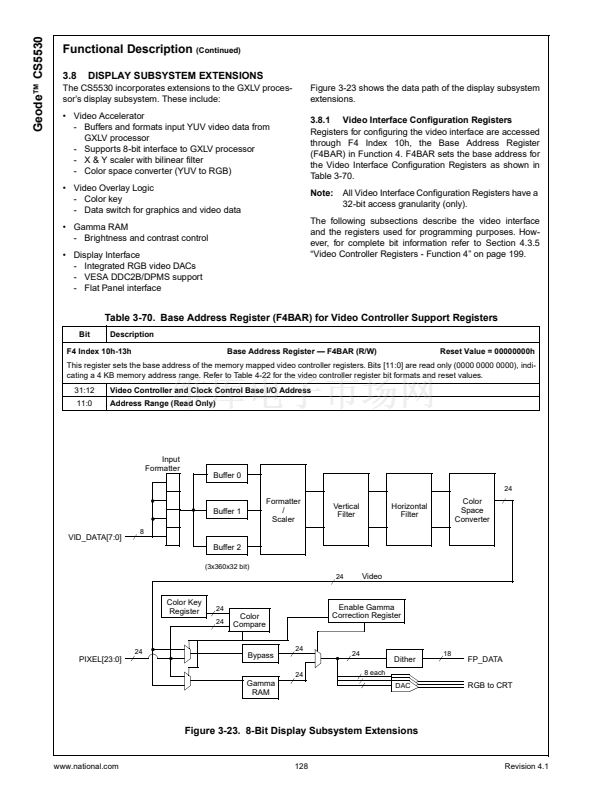

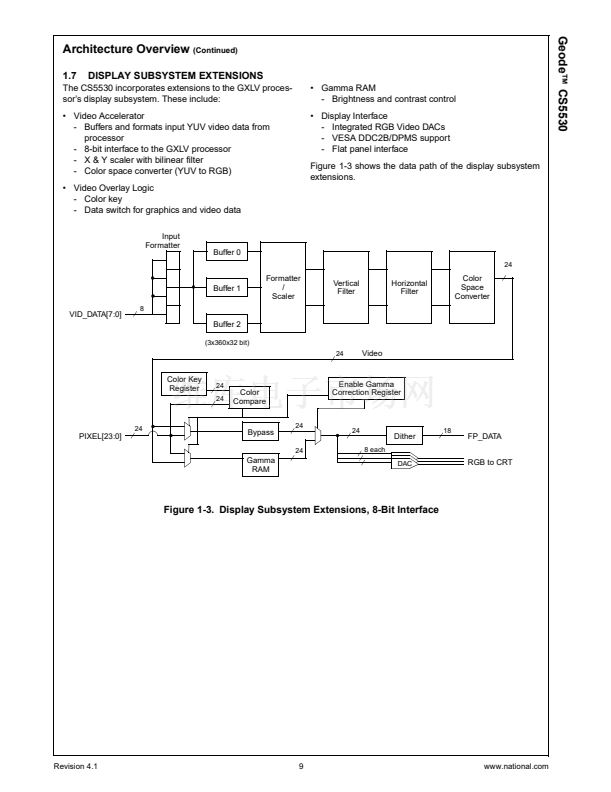

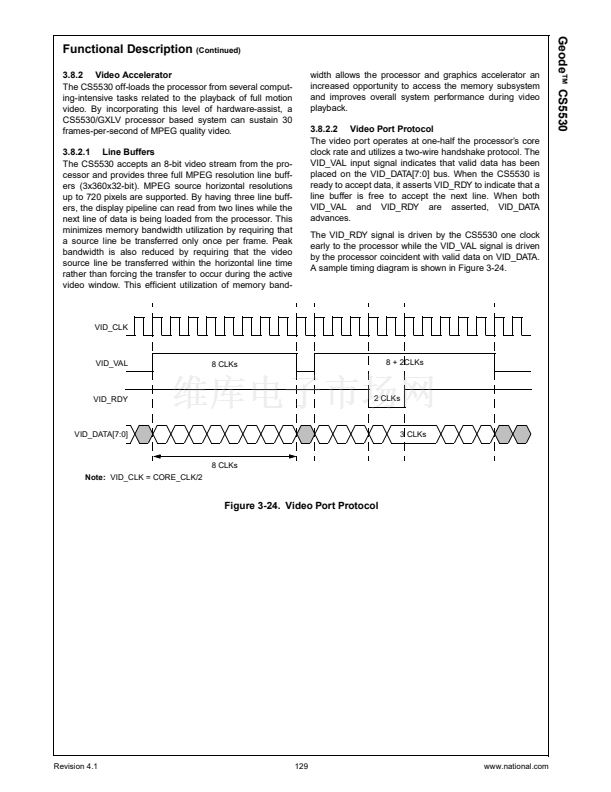

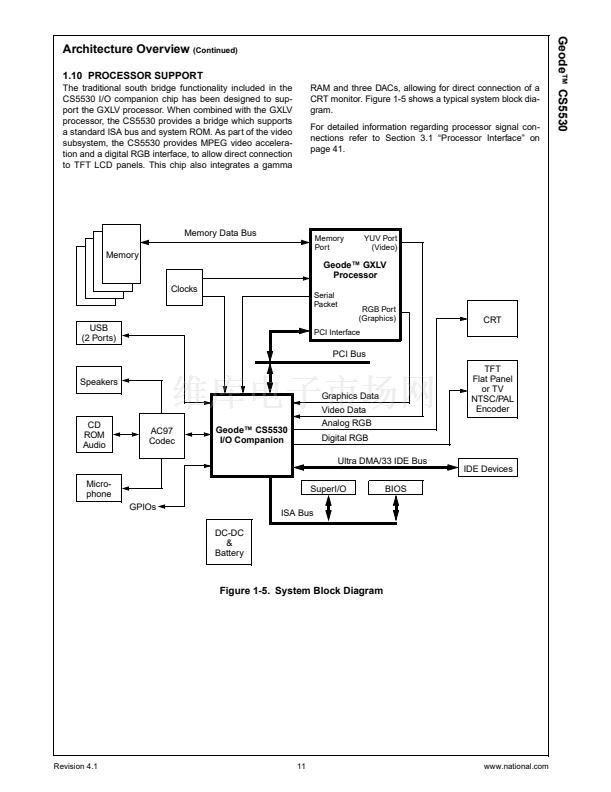

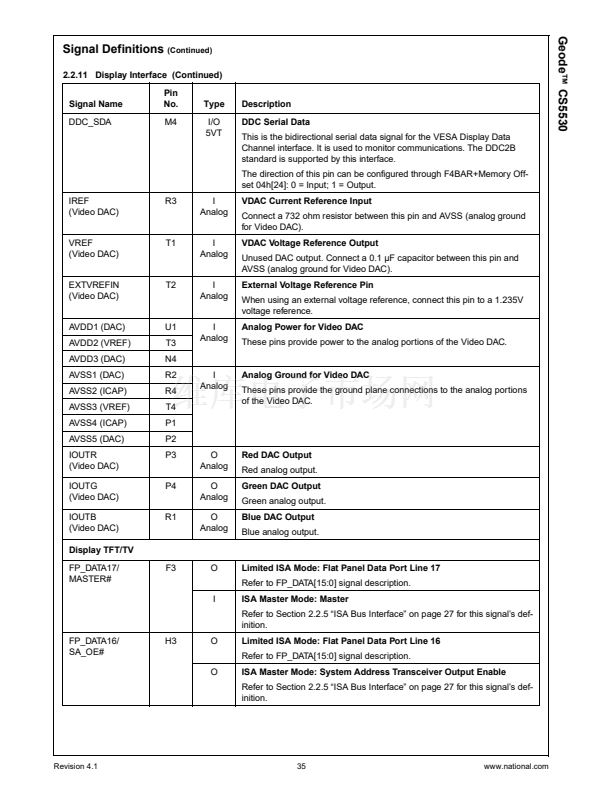

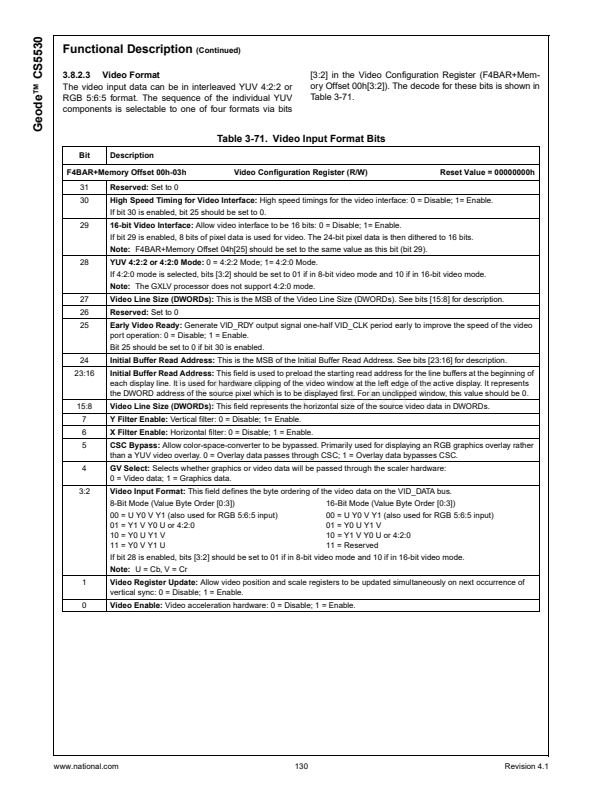

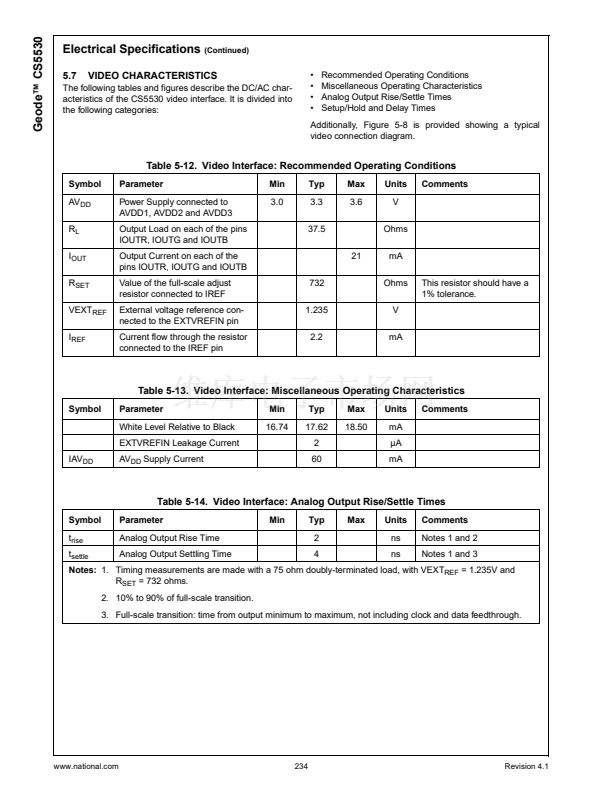

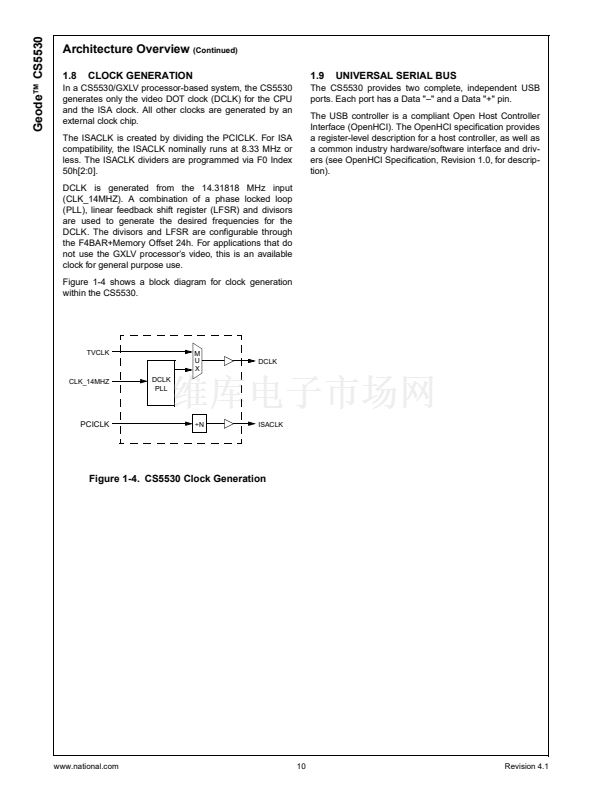

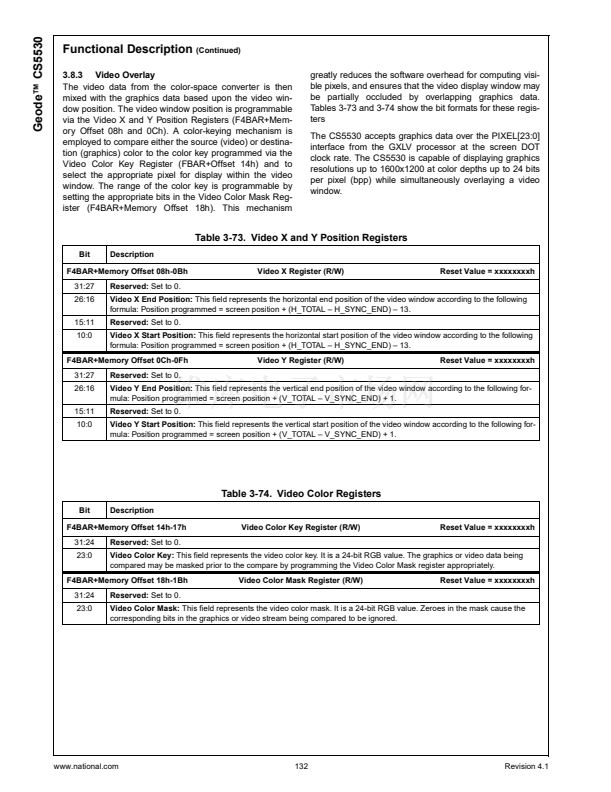

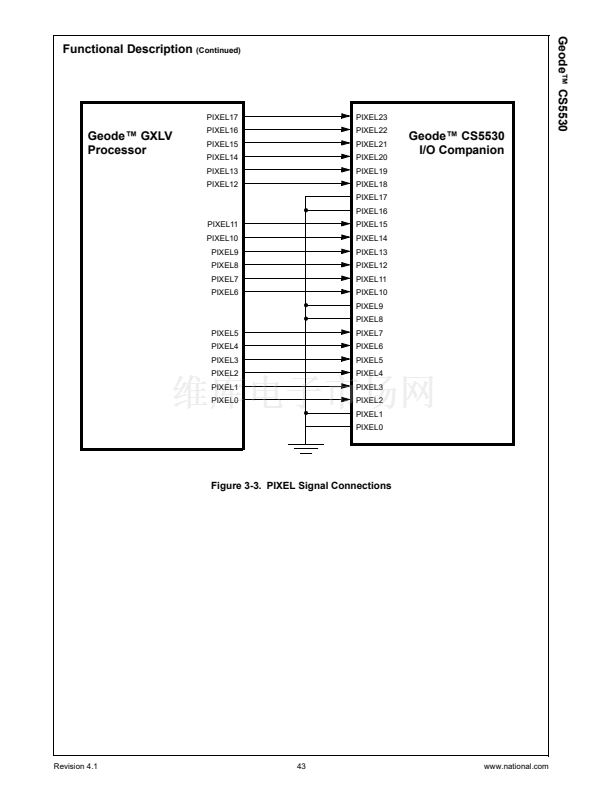

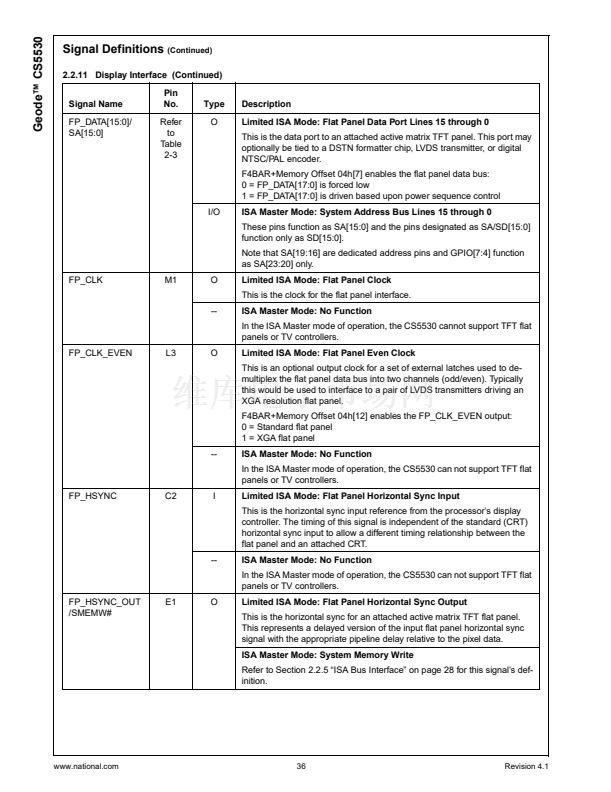

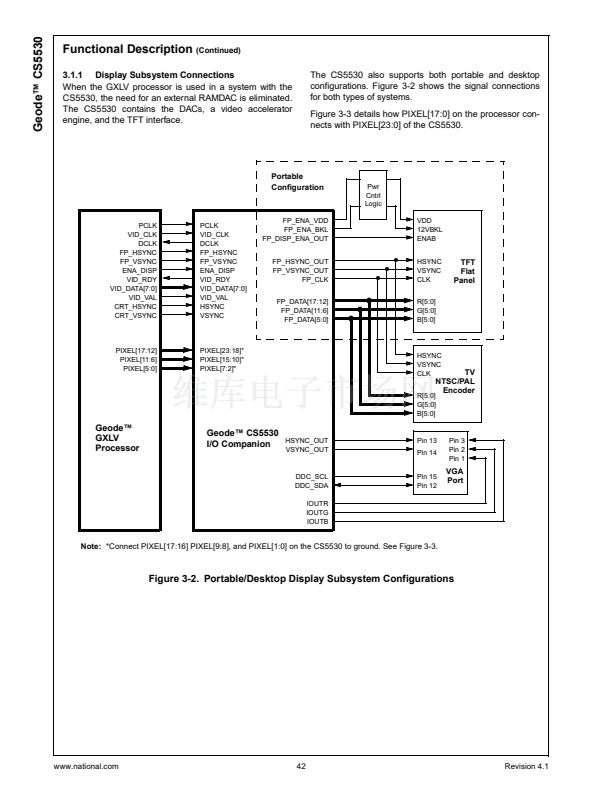

The GXLV processor鈥檚 graphics/video output is connected
to the CS5530. The CS5530 graphics/video support

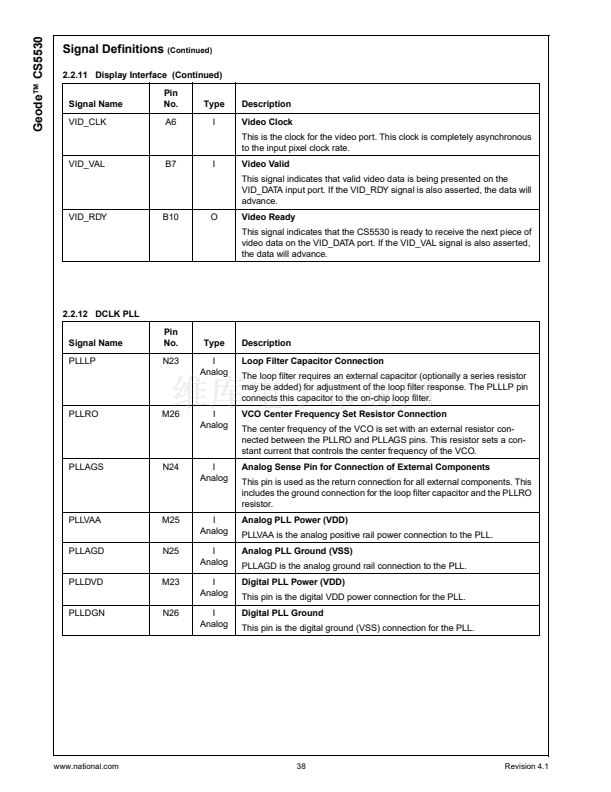

includes a PLL that generates the DOT clock for the GXLV
processor (where the graphics controller is located), video
acceleration hardware, gamma RAM plus three DACs for
RGB output to CRT, and digital RGB that can be directly
connected to TFT panels or NTSC/PAL encoders. The
digital RGB output can also be connected to the National
Semiconductor CS9210 Graphics Companion (a DSTN
Controller) for DSTN panel support. The CS9210 is also a
member of the Geode product family.

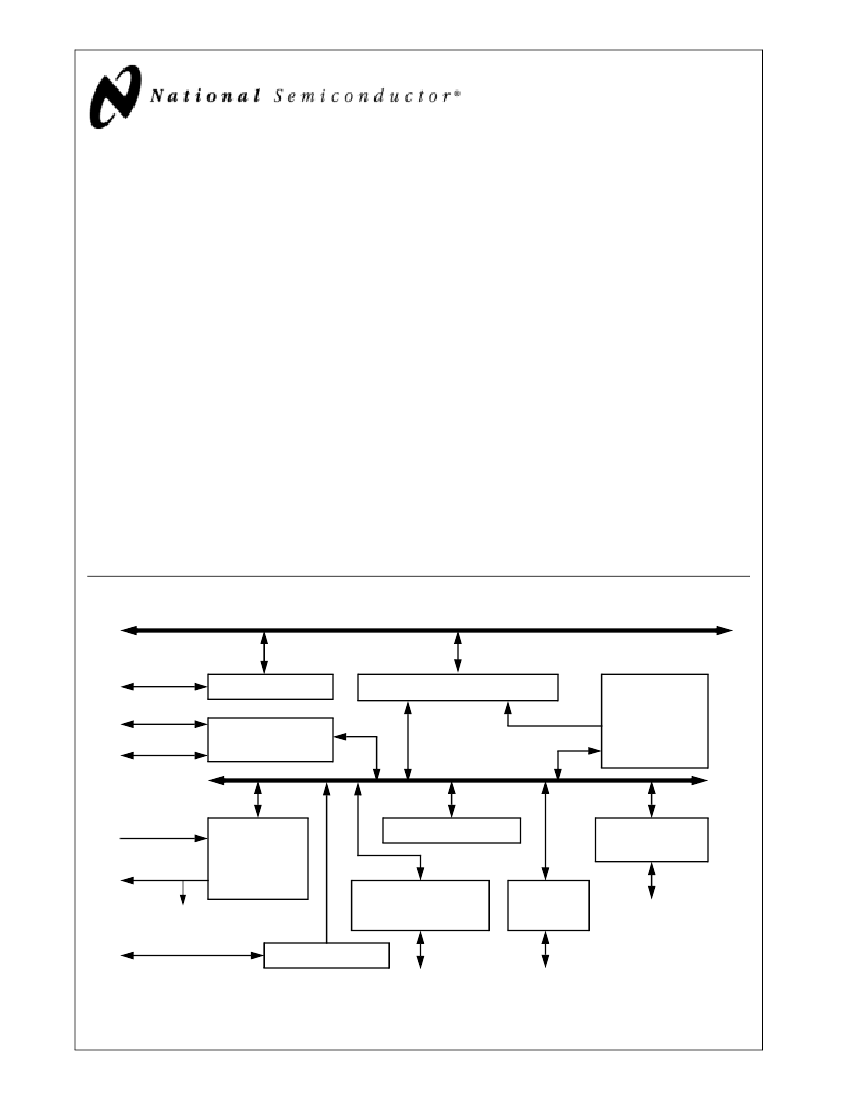

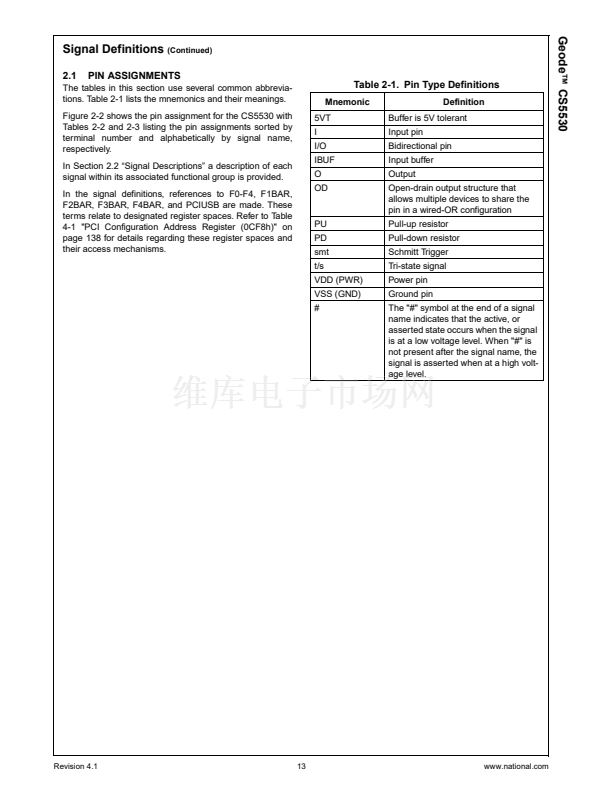

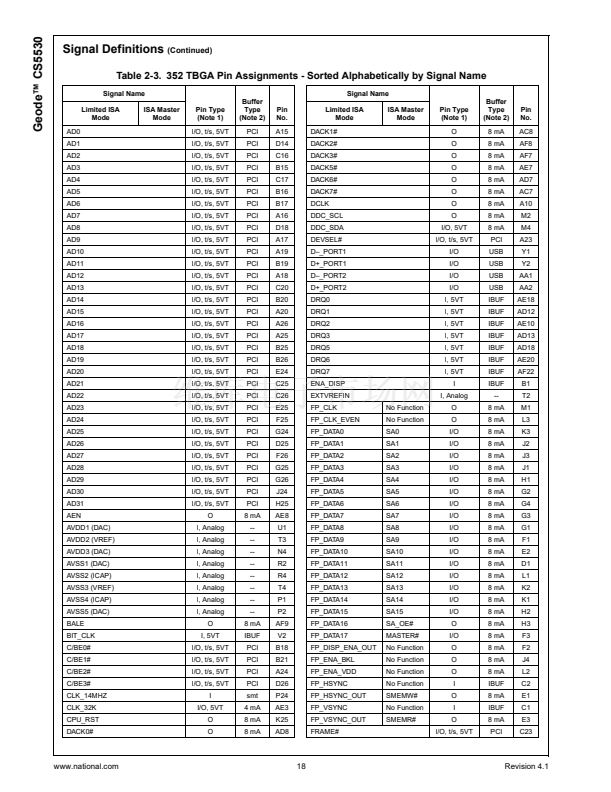

Geode鈩?CS5530 Internal Block Diagram

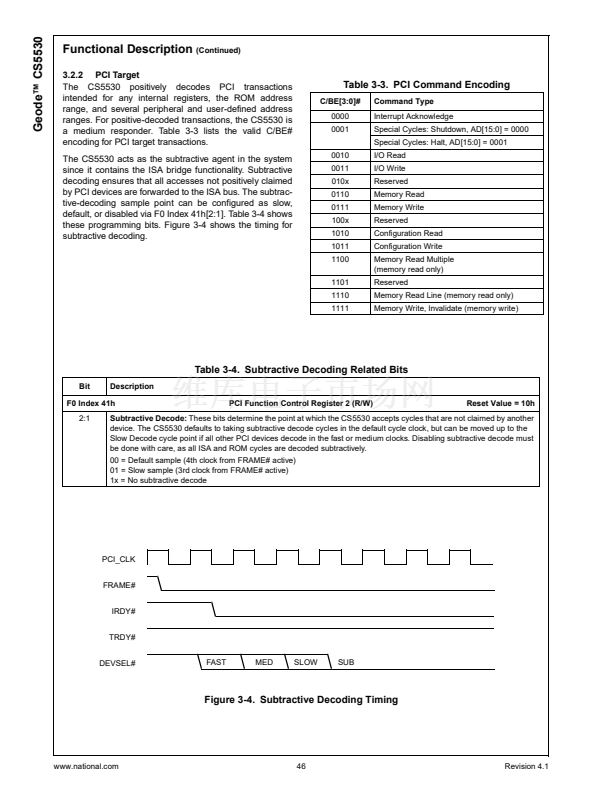

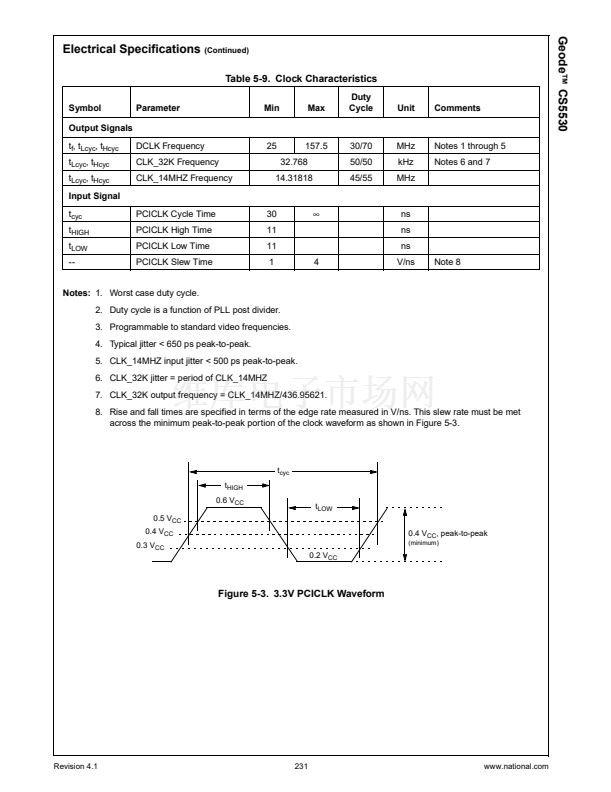

PCI Bus
USB
PCI to USB Macro

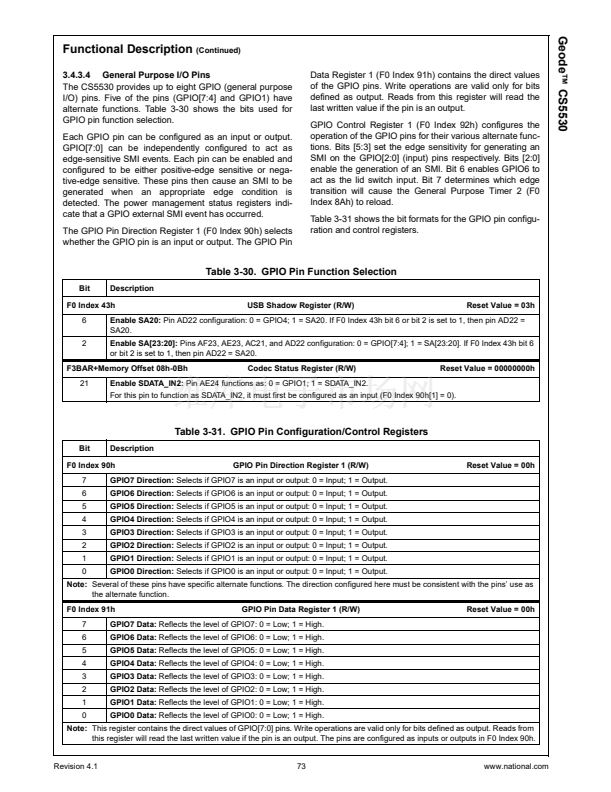

GPIOs
GPCS

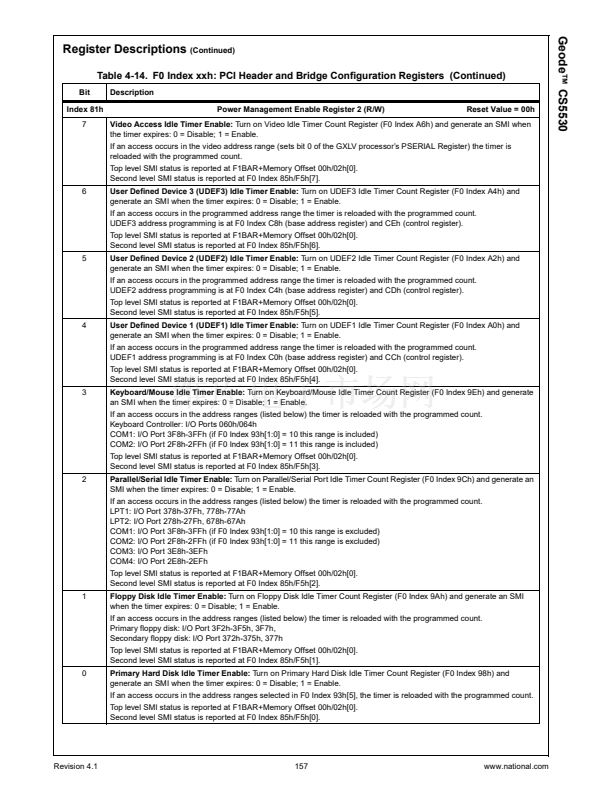

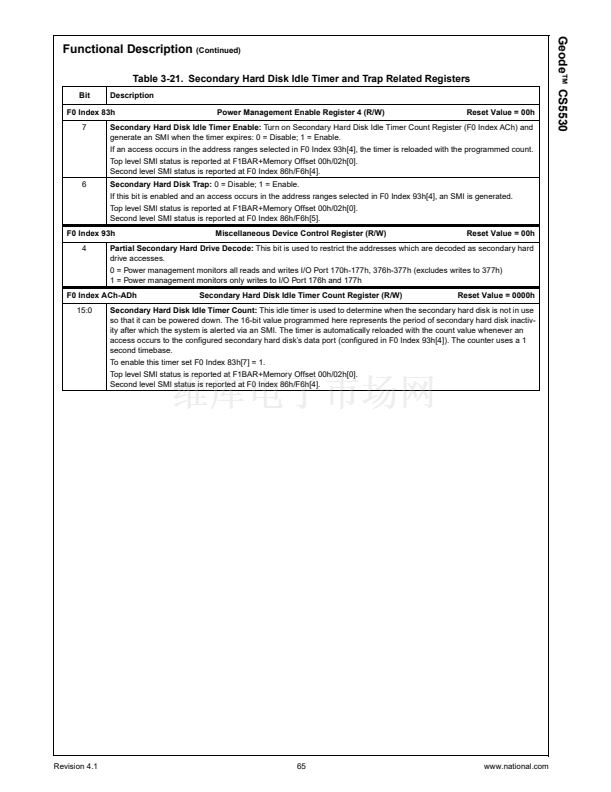

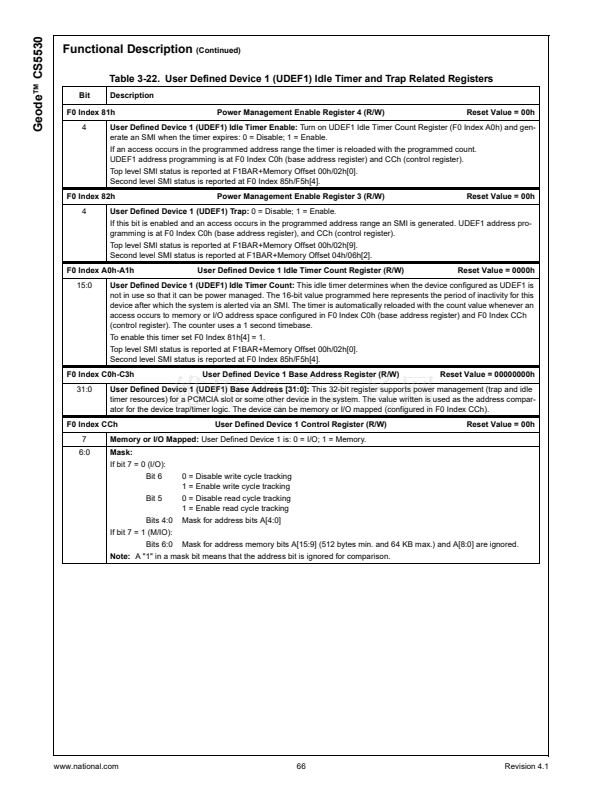

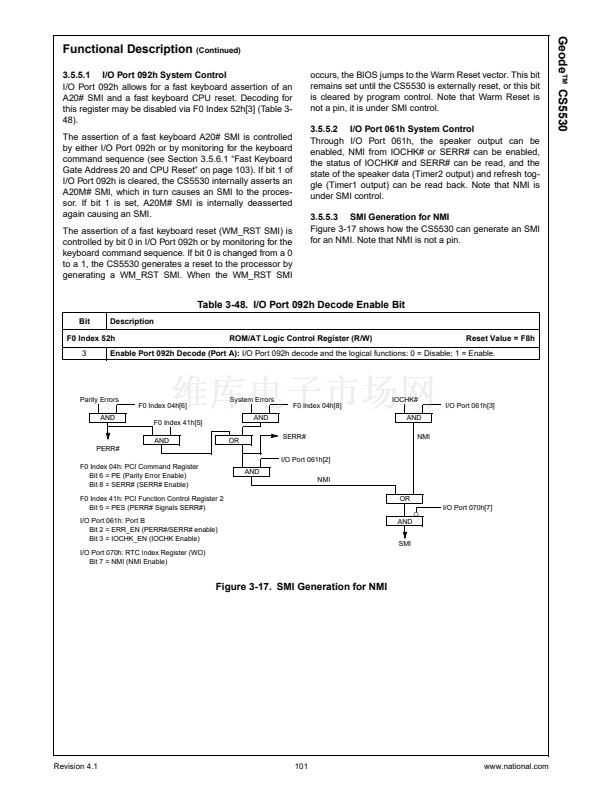

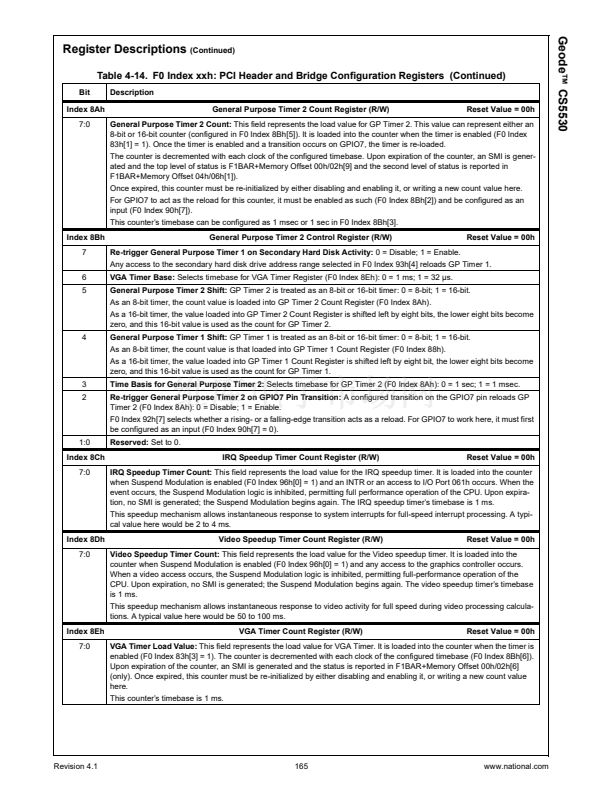

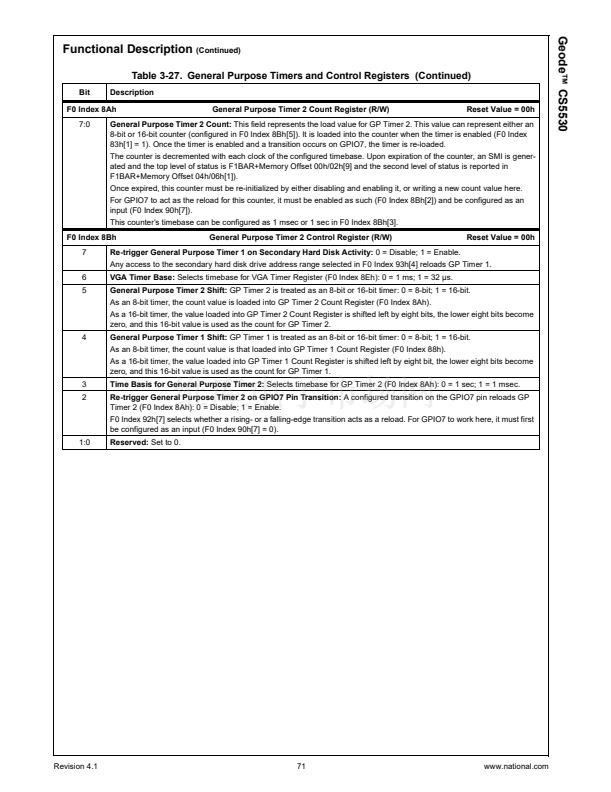

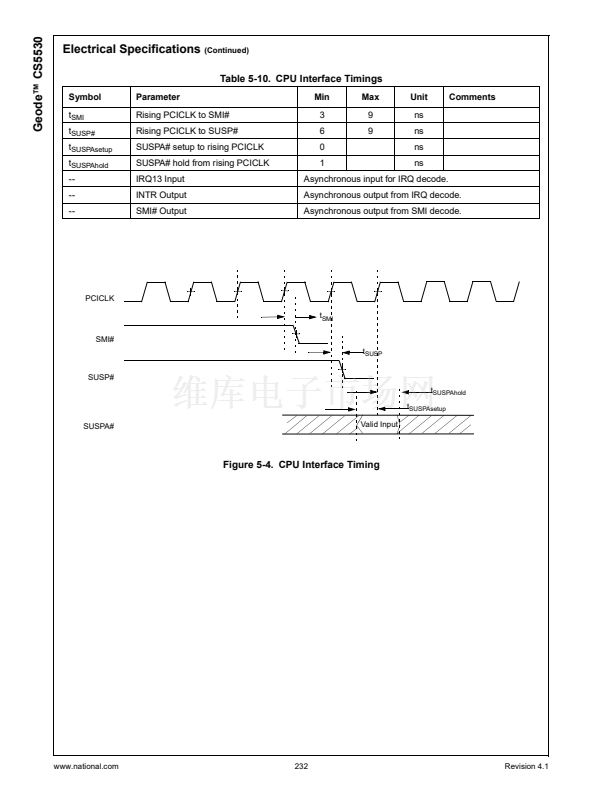

Pwr Mgmt, Traps,
Events, and Timers
PCI to X-Bus / X-Bus to PCI Bridge
CS5530 Support

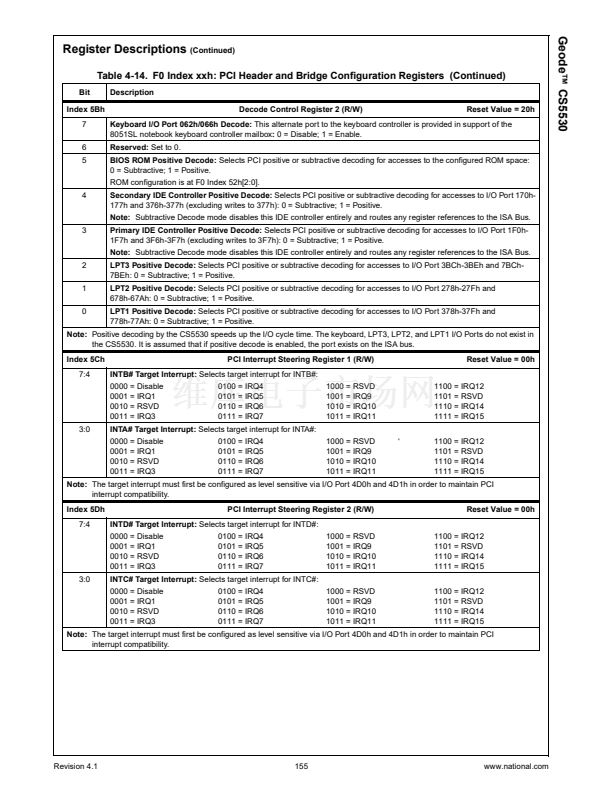

PCI Configuration
Registers
Active Decode
Address Mapper
X-Bus Arbiter
X-Bus

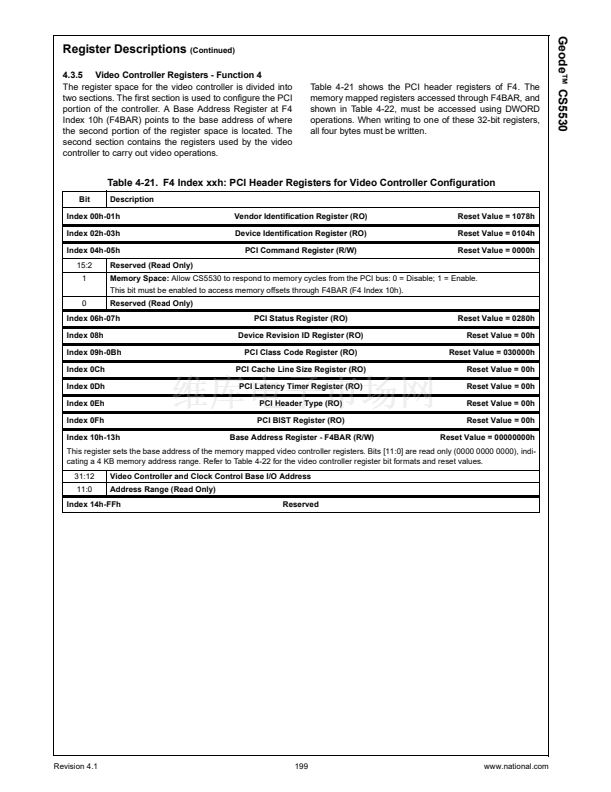

Graphics
and Video
from CPU
Display Interface
MPEG, DOT Clock
CSC and SCL
RGB/FP Interface

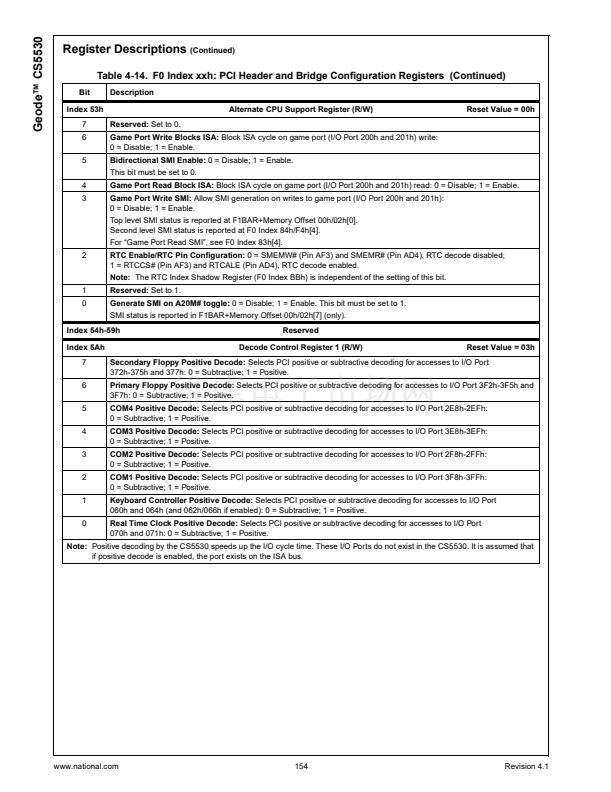

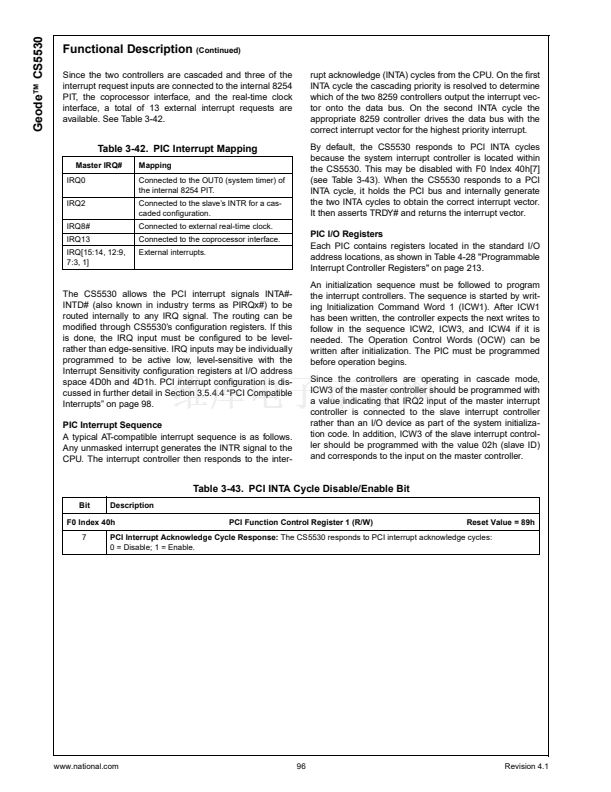

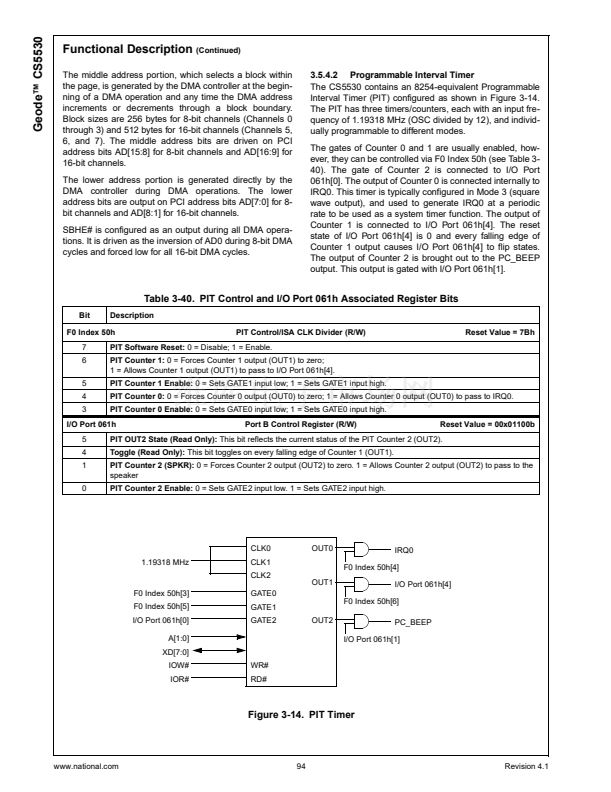

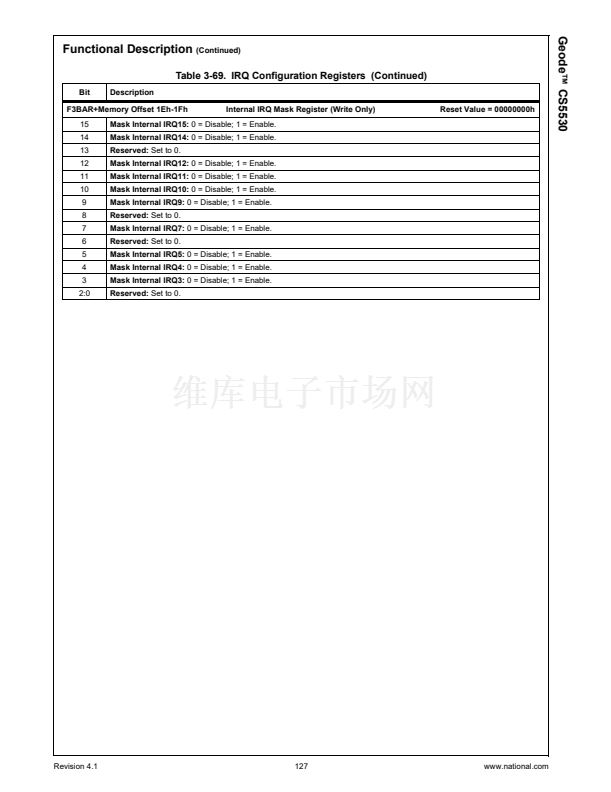

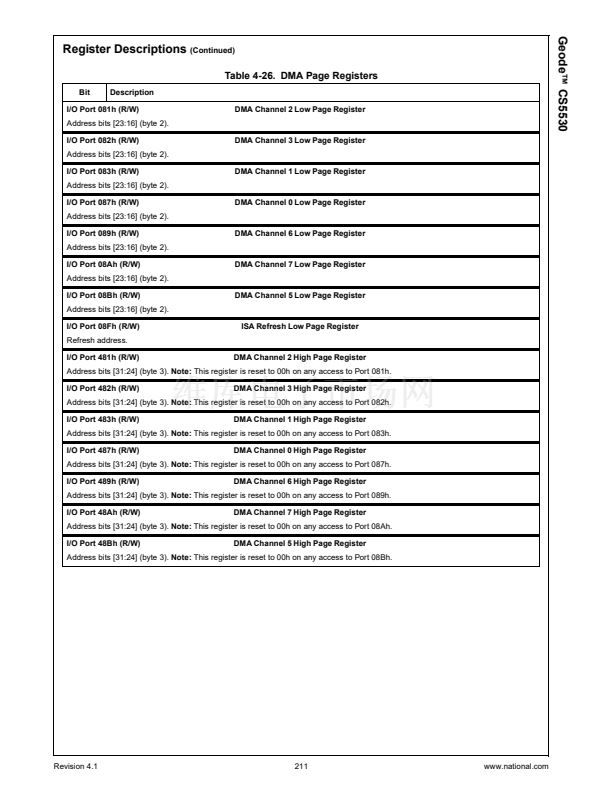

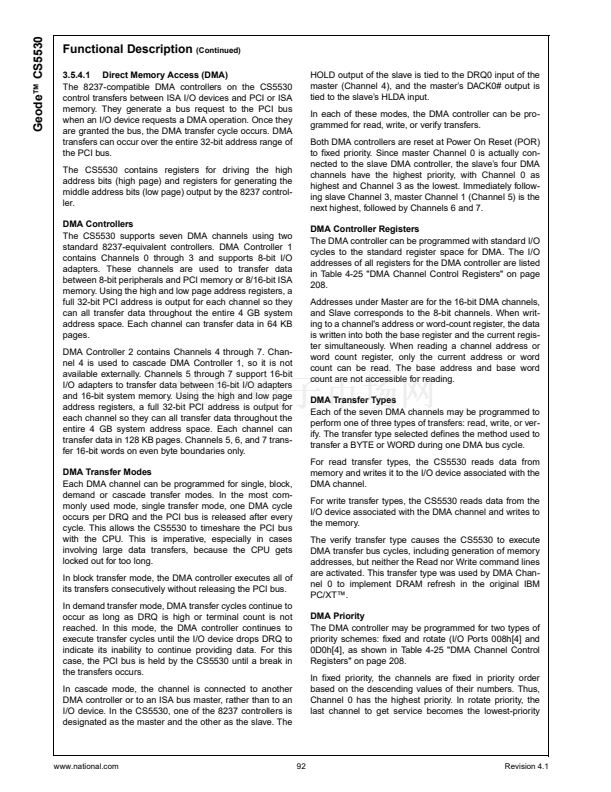

AT Compatibility Logic
Audio/Codec/MPU
Interface
Display
Geode鈩?CS9210
Graphics Companion

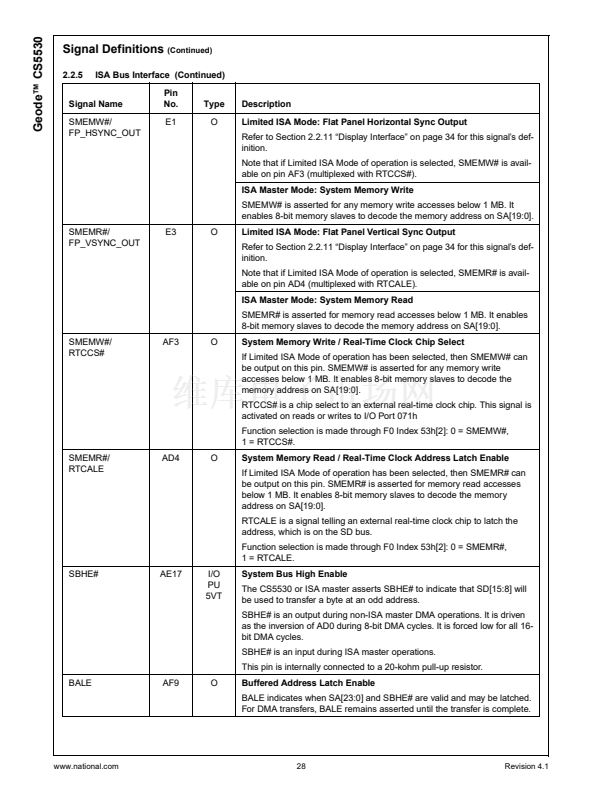

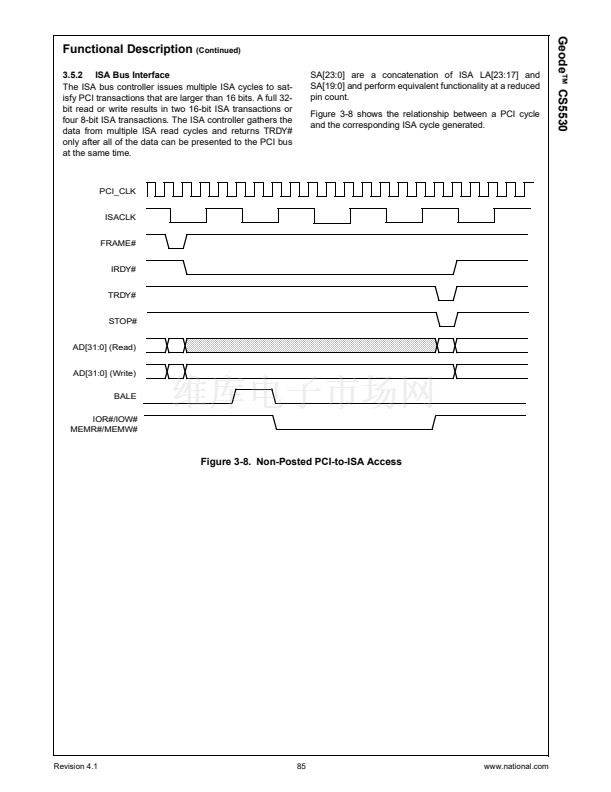

ISA Bus Interface
AT Ports, ISA Megacells

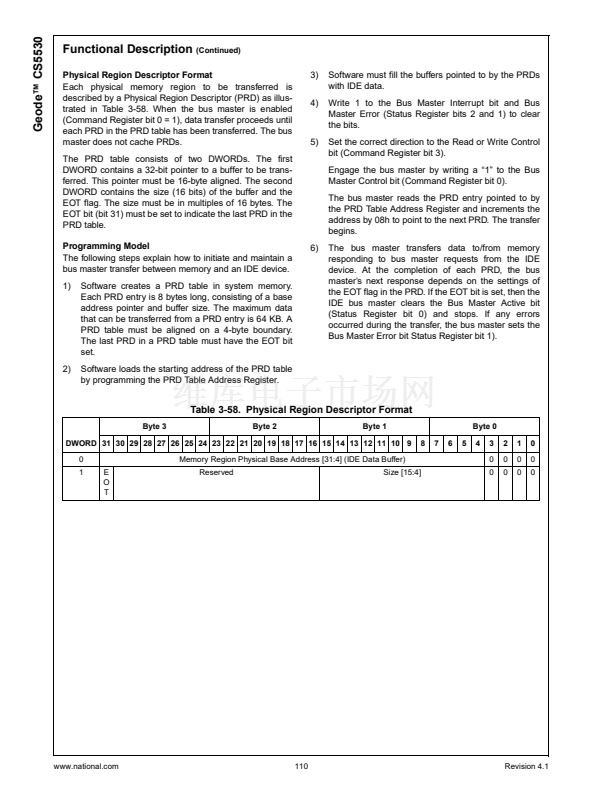

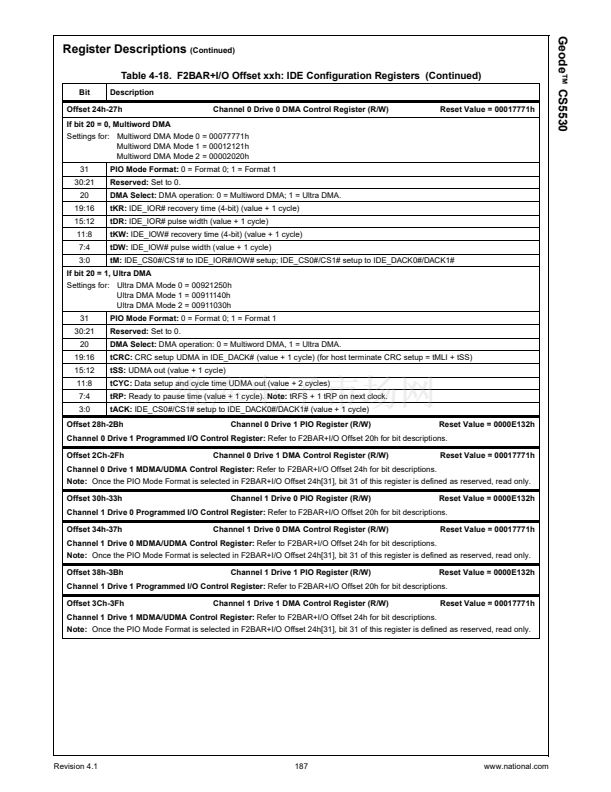

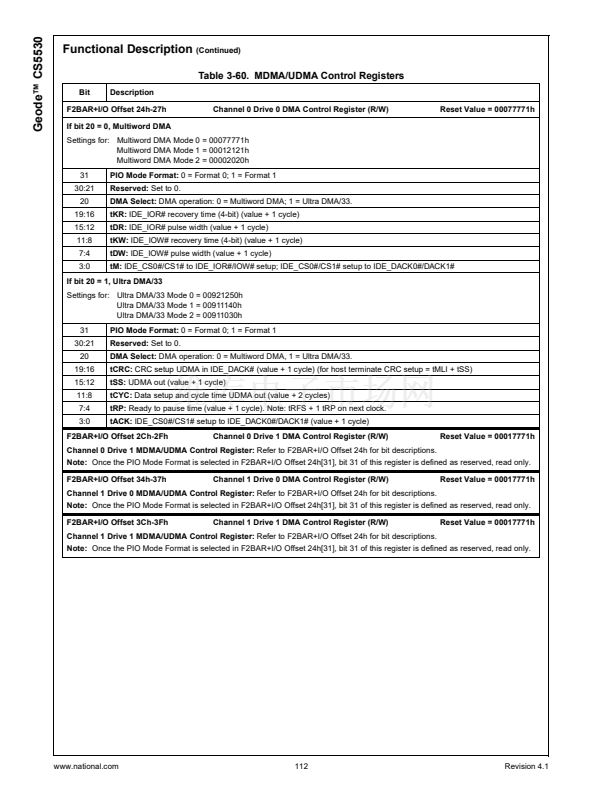

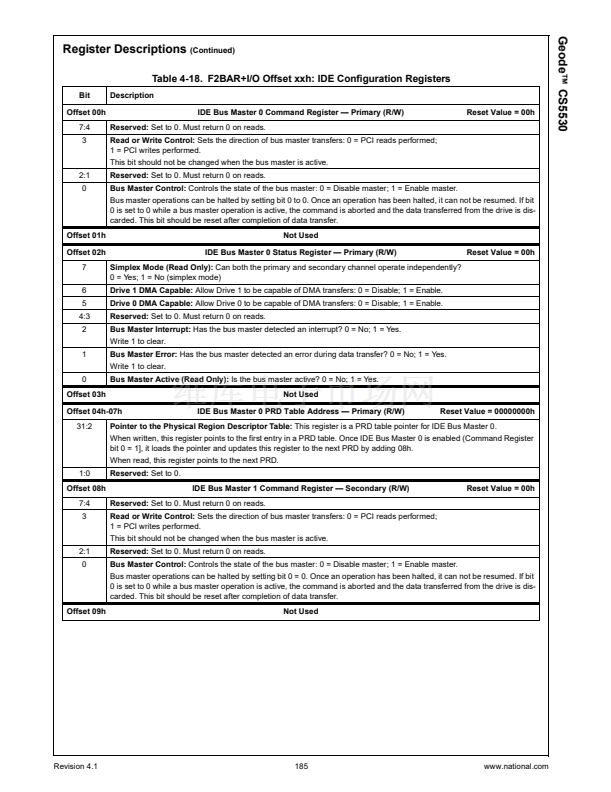

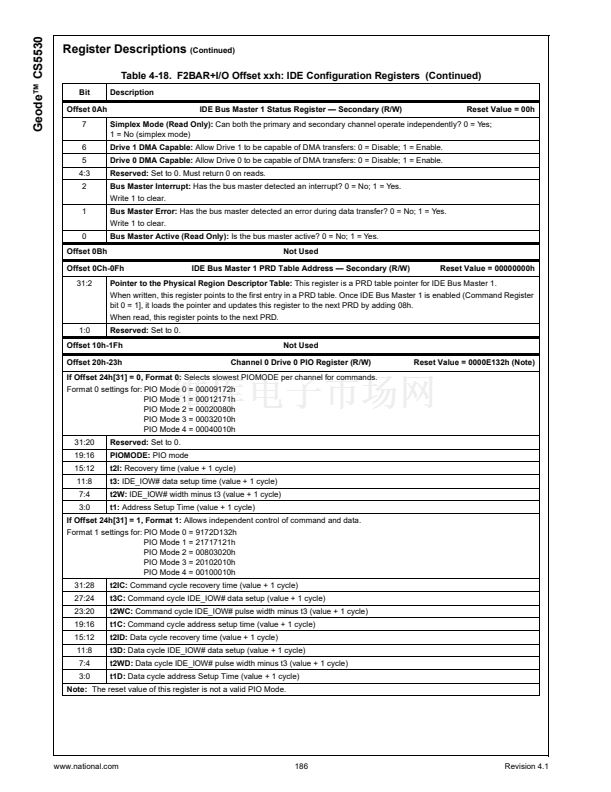

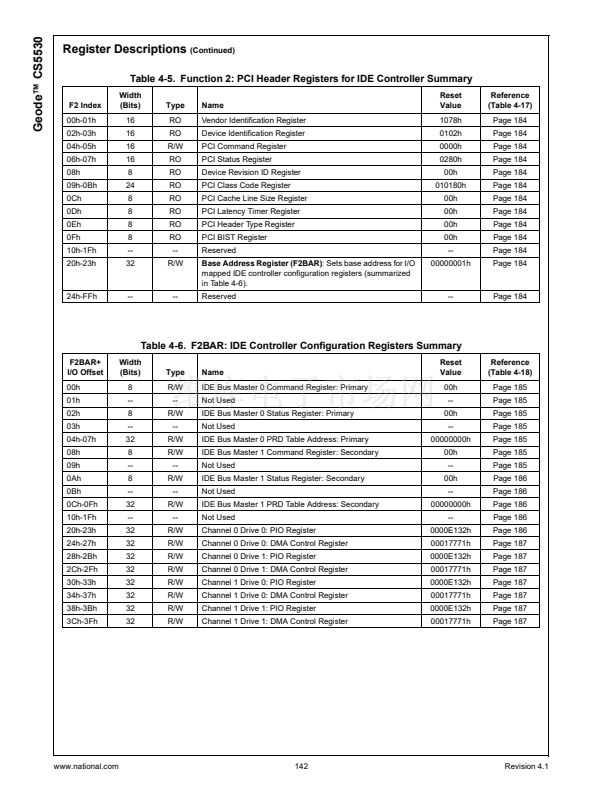

Ultra DMA/33
IDE
Interface
AC97 Codec
(e.g., LM4548)
Joystick
Joystick / Game Port
ISA Bus
PC97317 SIO
IDE

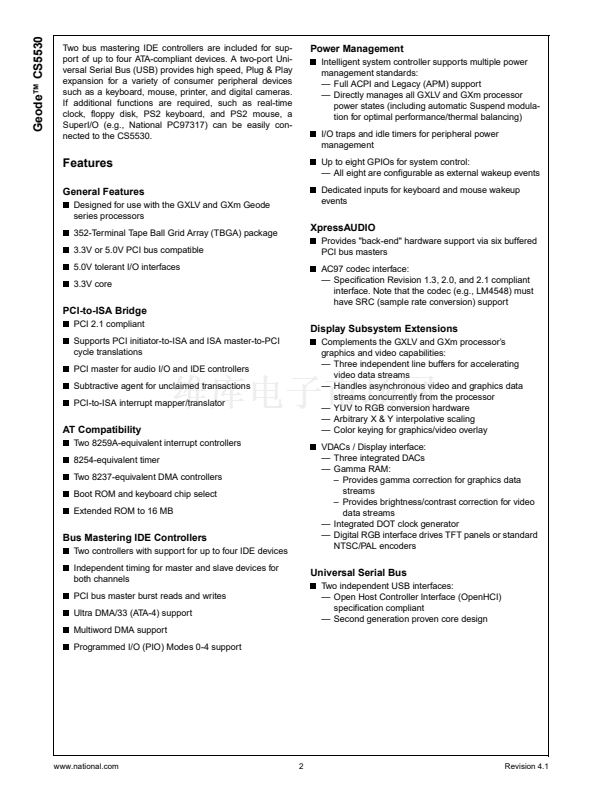

National Semiconductor and Virtual System Architecture are registered trademarks of National Semiconductor Corporation.
Geode, VSA, and WebPAD are trademarks of National Semiconductor Corporation.
For a complete listing of National Semiconductor trademarks, please visit www.national.com/trademarks.
漏 2000 National Semiconductor Corporation
