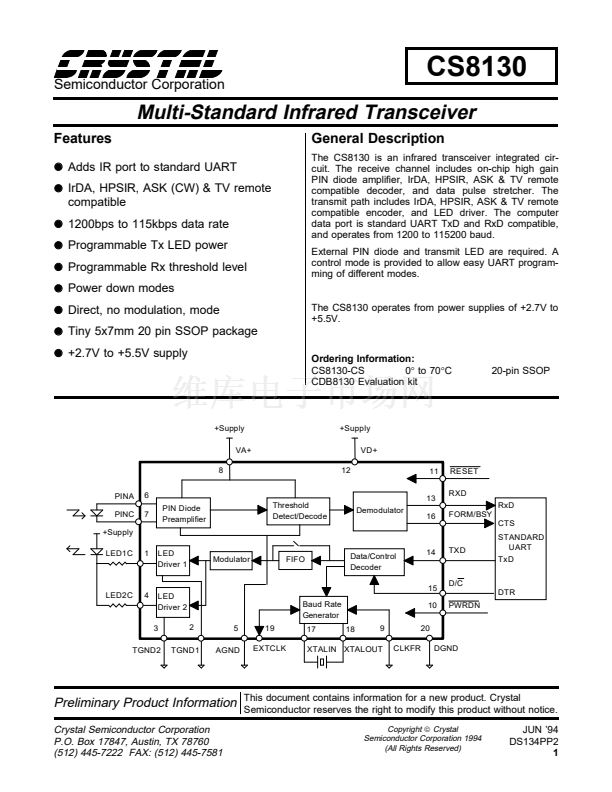

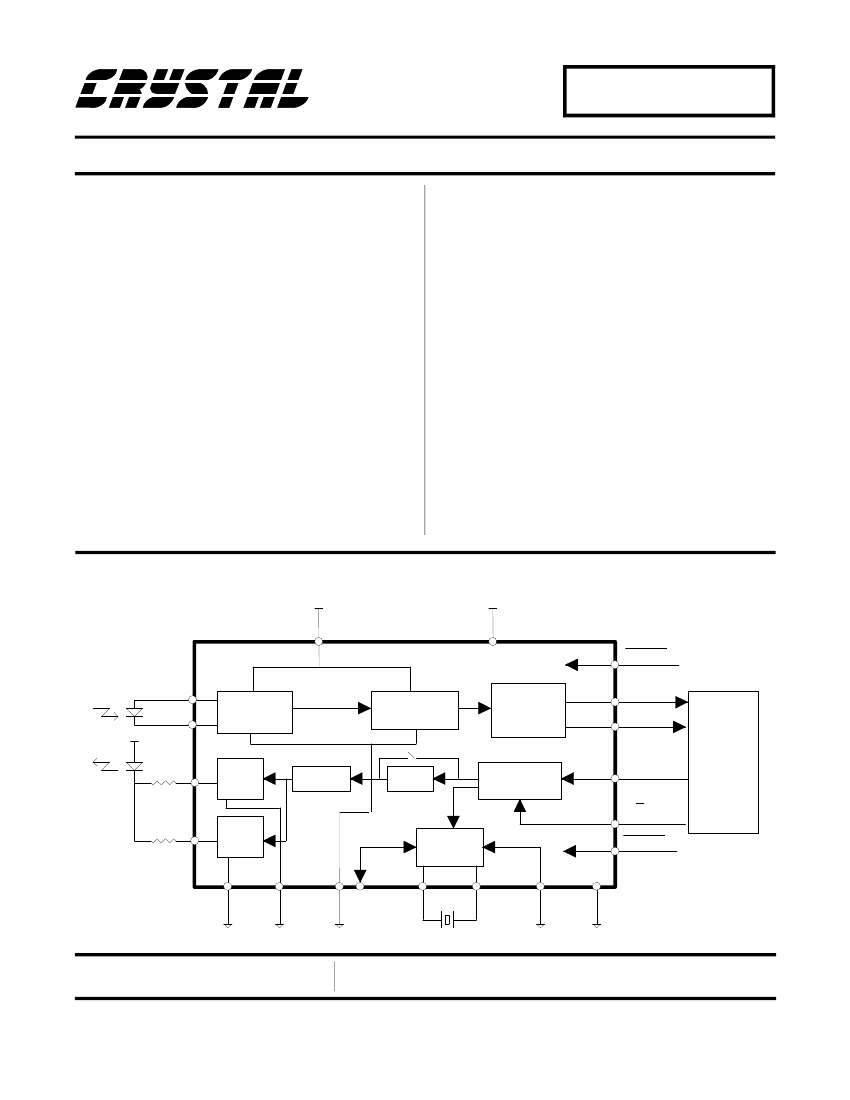

Semiconductor Corporation

CS8130

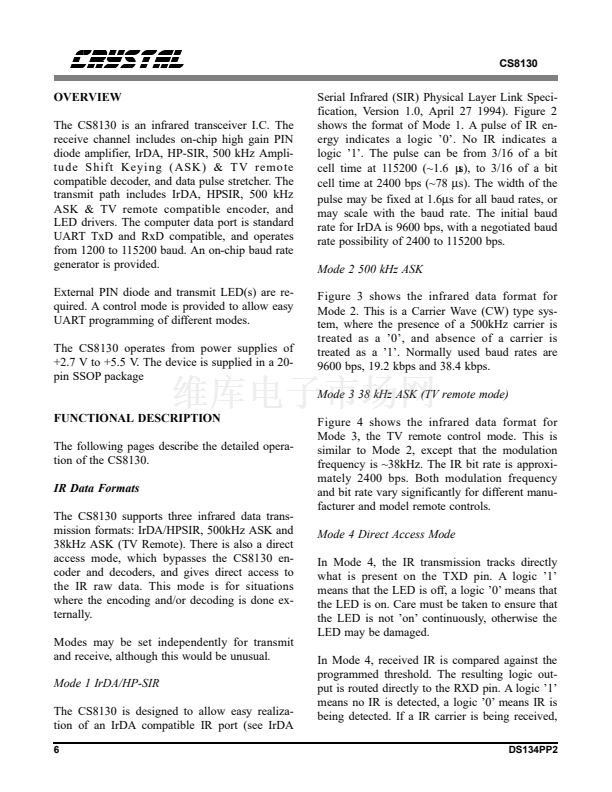

General Description

The CS8130 is an infrared transceiver integrated cir-

cuit. The receive channel includes on-chip high gain

PIN diode amplifier, IrDA, HPSIR, ASK & TV remote

compatible decoder, and data pulse stretcher. The

transmit path includes IrDA, HPSIR, ASK & TV remote

compatible encoder, and LED driver. The computer

data port is standard UART TxD and RxD compatible,

and operates from 1200 to 115200 baud.

External PIN diode and transmit LED are required. A

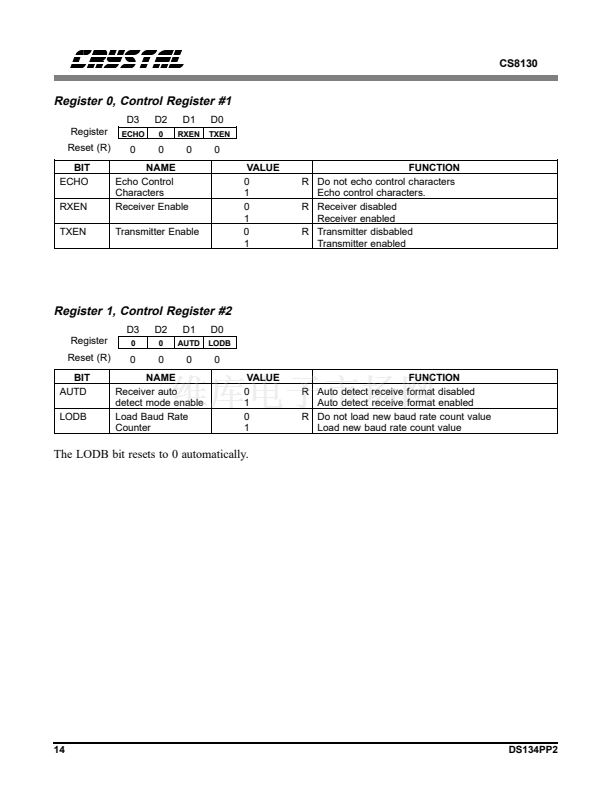

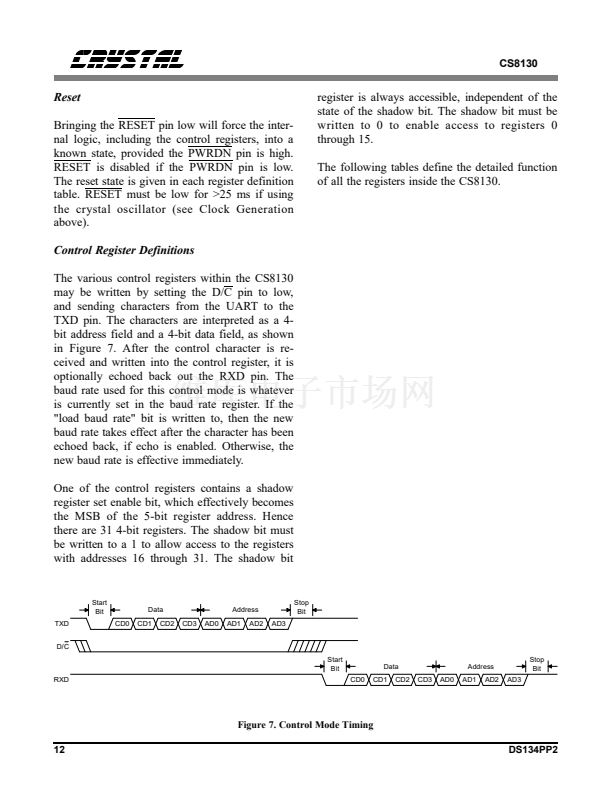

control mode is provided to allow easy UART program-

ming of different modes.

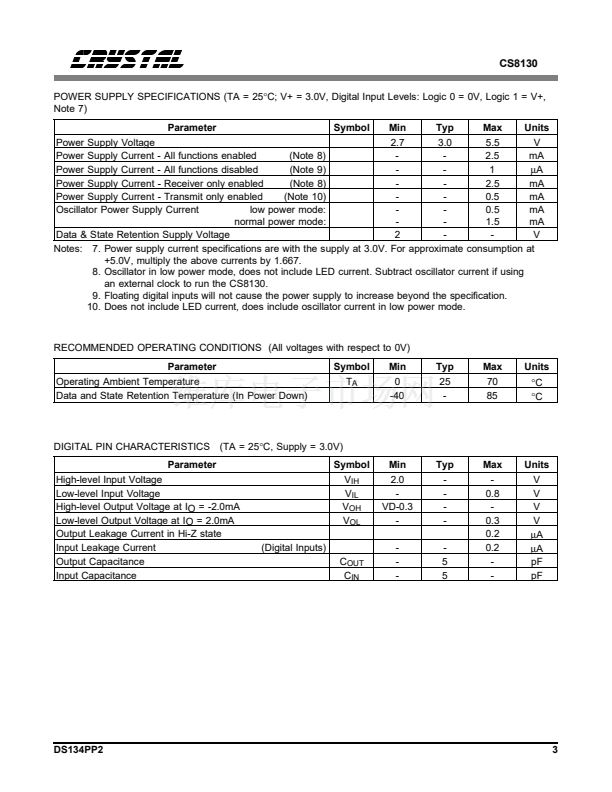

The CS8130 operates from power supplies of +2.7V to

+5.5V.

Multi-Standard Infrared Transceiver

Features

鈥?/div>

Adds IR port to standard UART

鈥?/div>

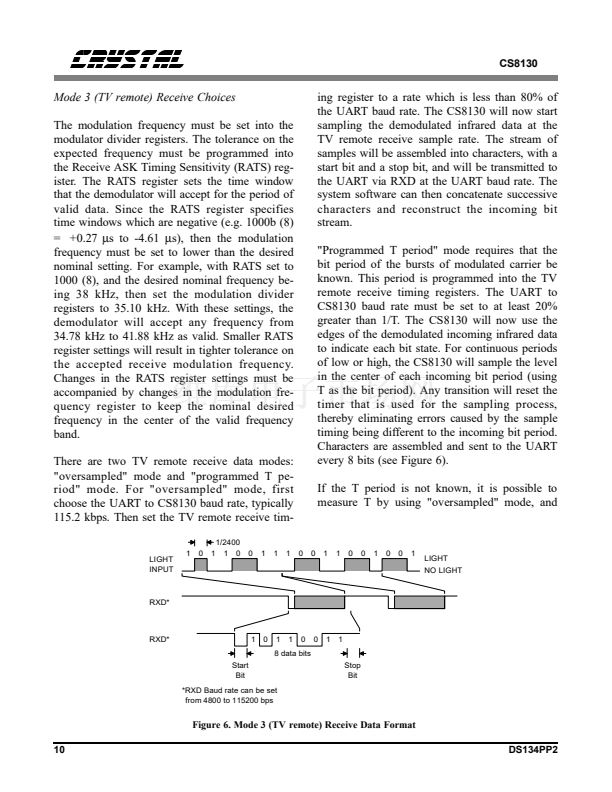

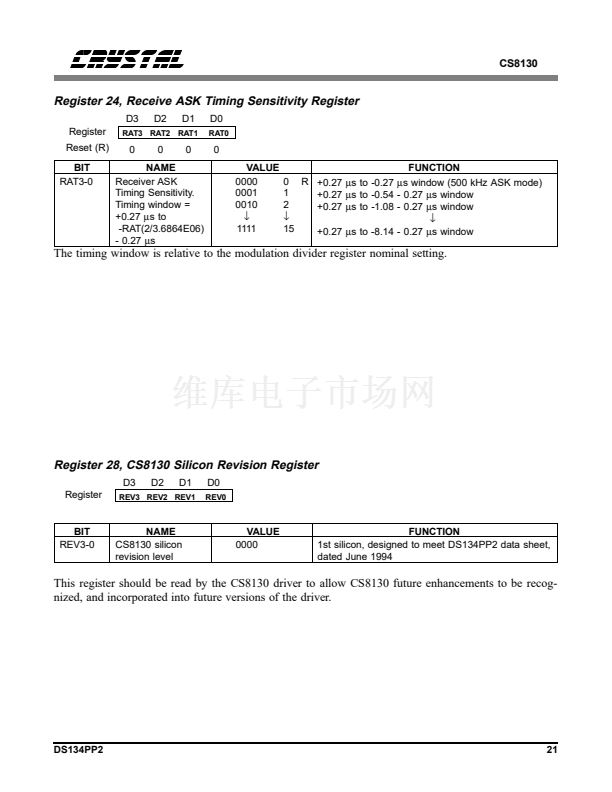

IrDA, HPSIR, ASK (CW) & TV remote

compatible

鈥?/div>

1200bps to 115kbps data rate

鈥?/div>

Programmable Tx LED power

鈥?/div>

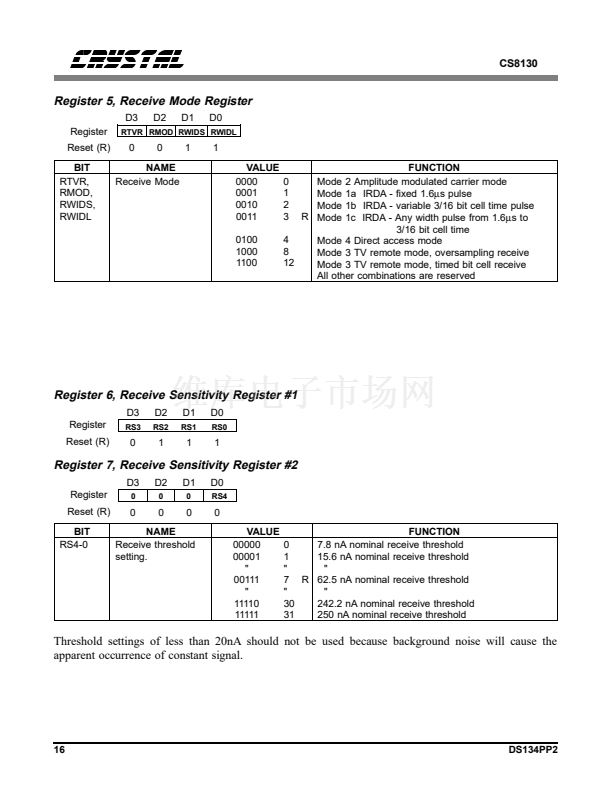

Programmable Rx threshold level

鈥?/div>

Power down modes

鈥?/div>

Direct, no modulation, mode

鈥?/div>

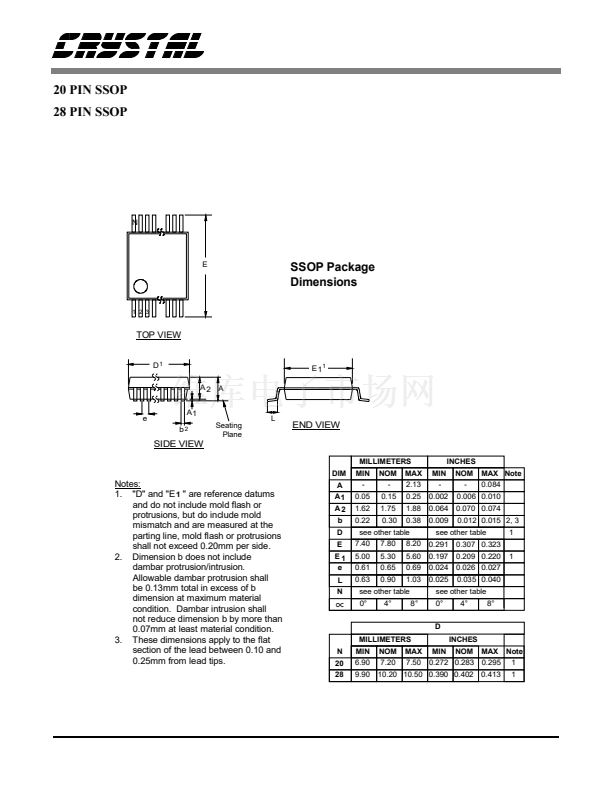

Tiny 5x7mm 20 pin SSOP package

鈥?/div>

+2.7V to +5.5V supply

Ordering Information:

CS8130-CS

0掳 to 70掳C

CDB8130 Evaluation kit

20-pin SSOP

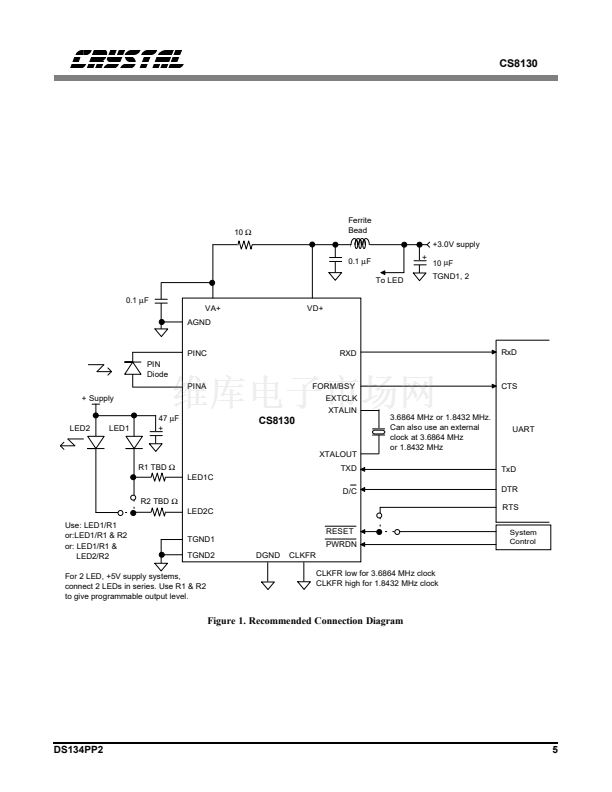

+Supply

VA+

8

PINA

PINC

+Supply

VD+

12

11

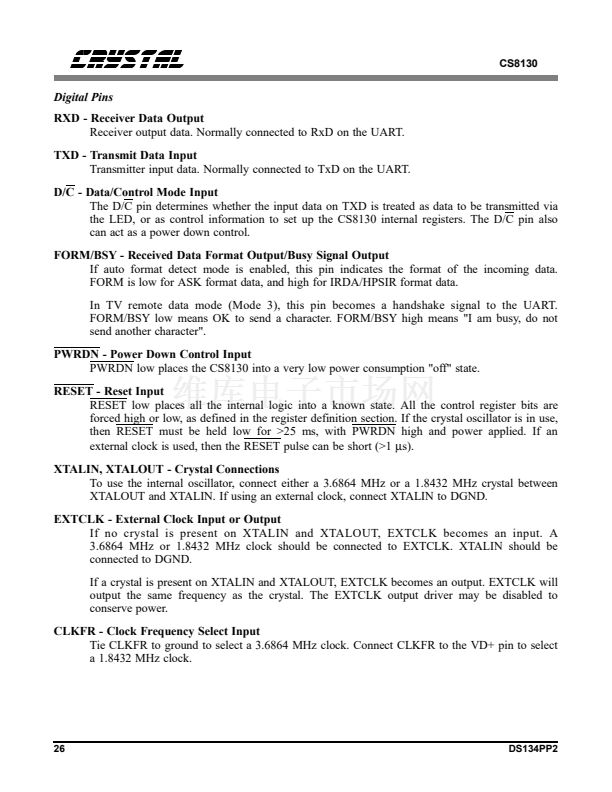

RESET

RXD

RxD

FORM/BSY

CTS

6

7

13

PIN Diode

Preamplifier

Threshold

Detect/Decode

Demodulator

16

+Supply

LED1C

1

LED

Driver 1

Modulator

FIFO

Data/Control

Decoder

14

TXD

STANDARD

UART

TxD

LED2C

15

4

D/C

DTR

PWRDN

LED

Driver 2

3

2

TGND1

5

AGND

19

EXTCLK

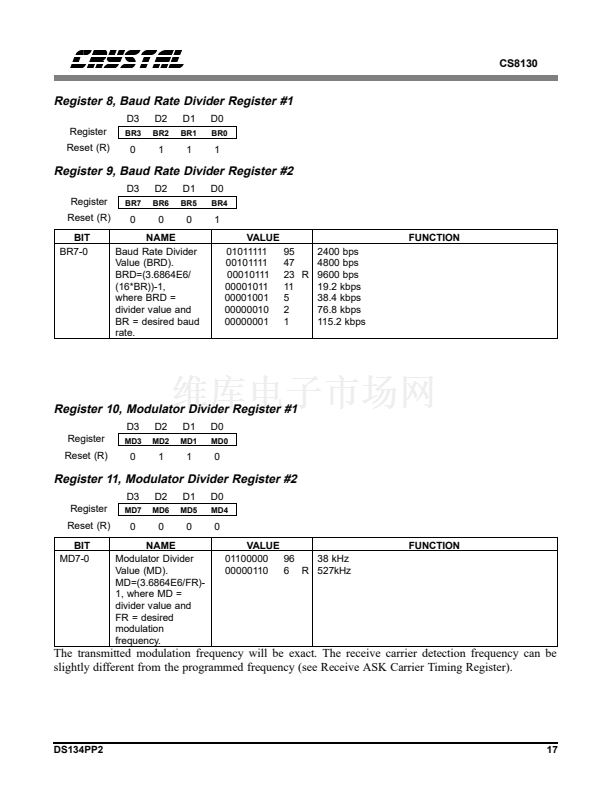

Baud Rate

Generator

17

18

10

9

20

CLKFR

DGND

TGND2

XTALIN XTALOUT

Preliminary Product Information

Crystal Semiconductor Corporation

P.O. Box 17847, Austin, TX 78760

(512) 445-7222 FAX: (512) 445-7581

This document contains information for a new product. Crystal

Semiconductor reserves the right to modify this product without notice.

Copyright

漏

Crystal

Semiconductor Corporation 1994

JUN 鈥?4

DS134PP2

1

标准包装
66
类别
集成电路 (IC)
家庭
接口 - 驱动器，接收器，收发器
系列
-
类型
收发器
驱动器/接收器数
-
规程
-
电源电压
2.7 V ~ 5.5 V
安装类型
表面贴装
封装/外壳
20-SSOP（0.209"，5.30mm 宽）
供应商设备封装
20-SSOP
包装
管件
配用
598-1161-ND - BOARD EVAL FOR CS8130
其它名称
598-1203-5
