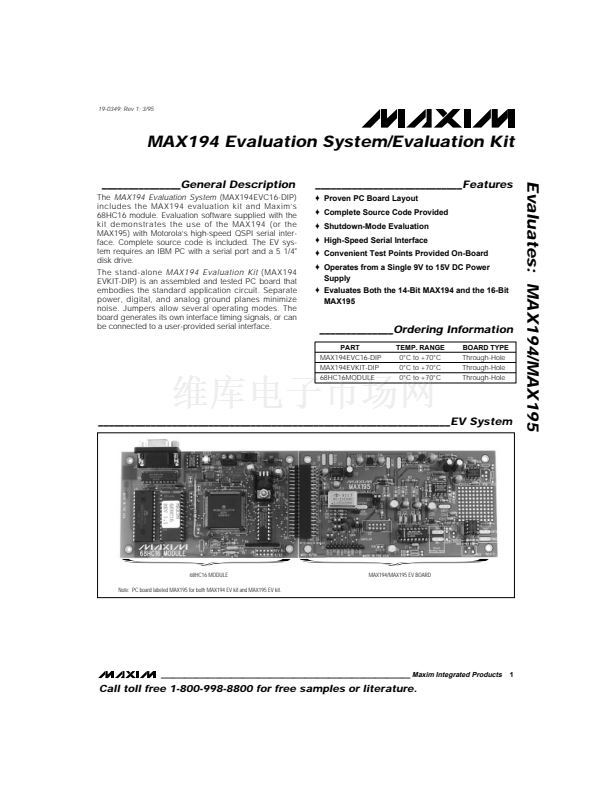

19-0349; Rev 1; 3/95

MAX194 Evaluation System/Evaluation Kit

_______________General Description

The

MAX194 Evaluation System

(MAX194EVC16-DIP)

includes the MAX194 evaluation kit and Maxim鈥檚

68HC16 module. Evaluation software supplied with the

kit demonstrates the use of the MAX194 (or the

MAX195) with Motorola鈥檚 high-speed QSPI serial inter-

face. Complete source code is included. The EV sys-

tem requires an IBM PC with a serial port and a 5 1/4"

disk drive.

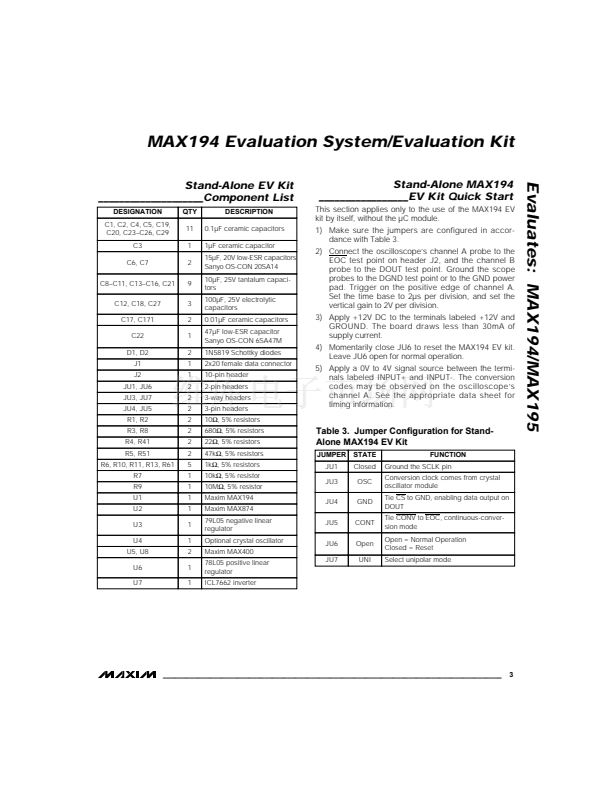

The stand-alone

MAX194 Evaluation Kit

(MAX194

EVKIT-DIP) is an assembled and tested PC board that

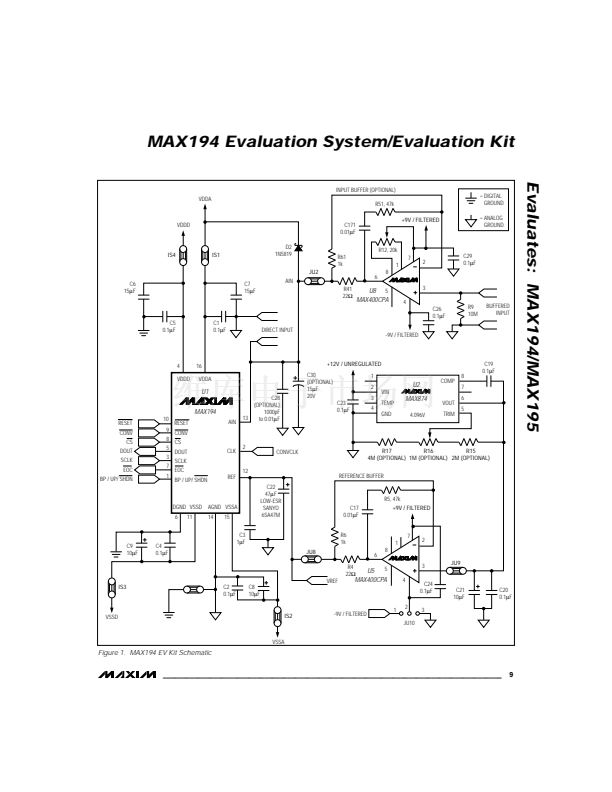

embodies the standard application circuit. Separate

power, digital, and analog ground planes minimize

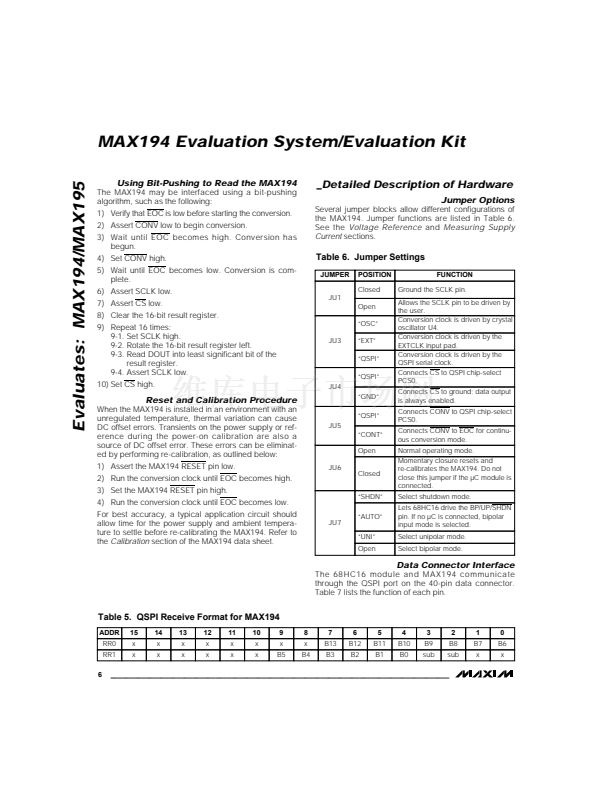

noise. Jumpers allow several operating modes. The

board generates its own interface timing signals, or can

be connected to a user-provided serial interface.

____________________________Features

o

Proven PC Board Layout

o

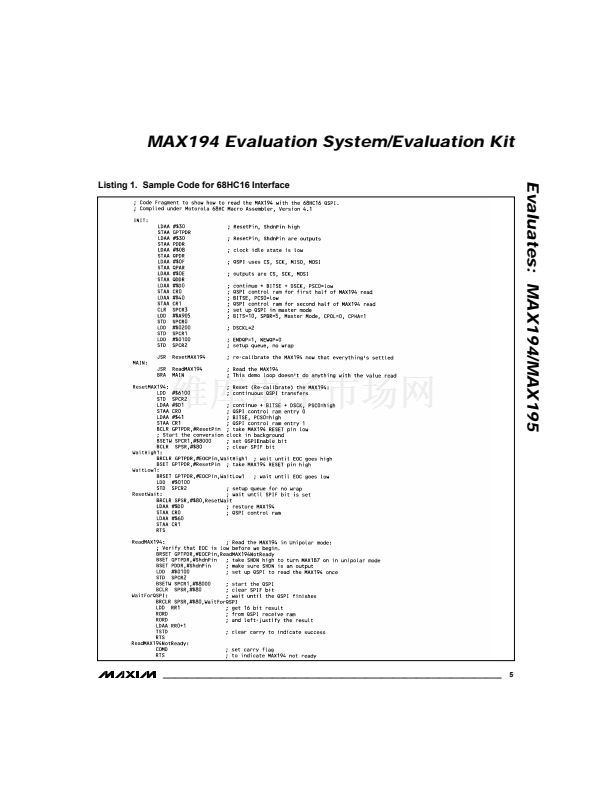

Complete Source Code Provided

o

Shutdown-Mode Evaluation

o

High-Speed Serial Interface

o

Convenient Test Points Provided On-Board

o

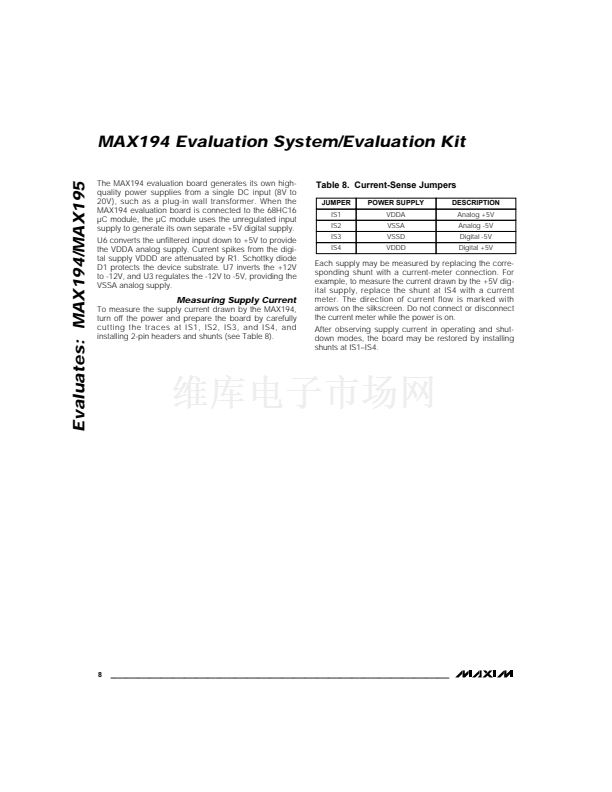

Operates from a Single 9V to 15V DC Power

Supply

o

Evaluates Both the 14-Bit MAX194 and the 16-Bit

MAX195

Evaluates: MAX194/MAX195

______________Ordering Information

PART

MAX194EVC16-DIP

MAX194EVKIT-DIP

68HC16MODULE

TEMP. RANGE

0掳C to +70掳C

BOARD TYPE

Through-Hole

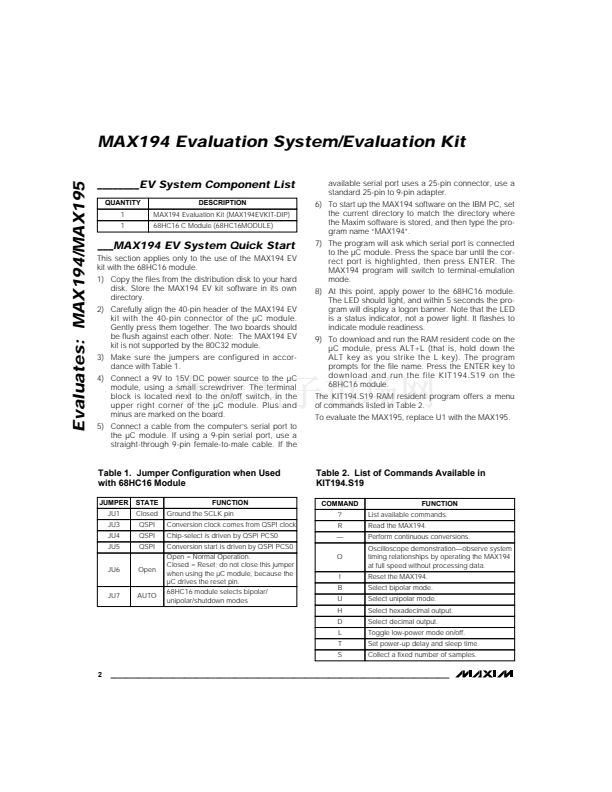

___________________________________________________________________EV System

{

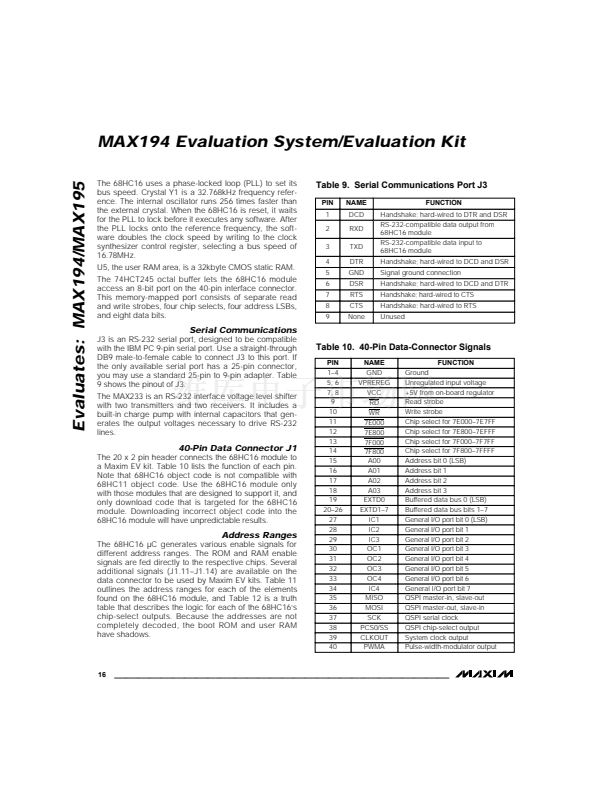

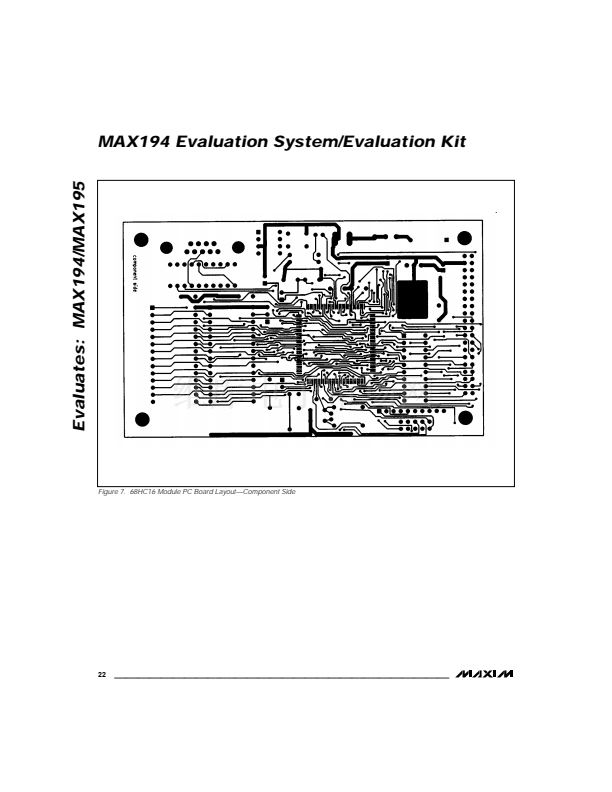

68HC16 MODULE

Note: PC board labeled MAX195 for both MAX194 EV kit and MAX195 EV kit.

________________________________________________________________

Maxim Integrated Products

{

MAX194/MAX195 EV BOARD

1

Call toll free 1-800-998-8800 for free samples or literature.
