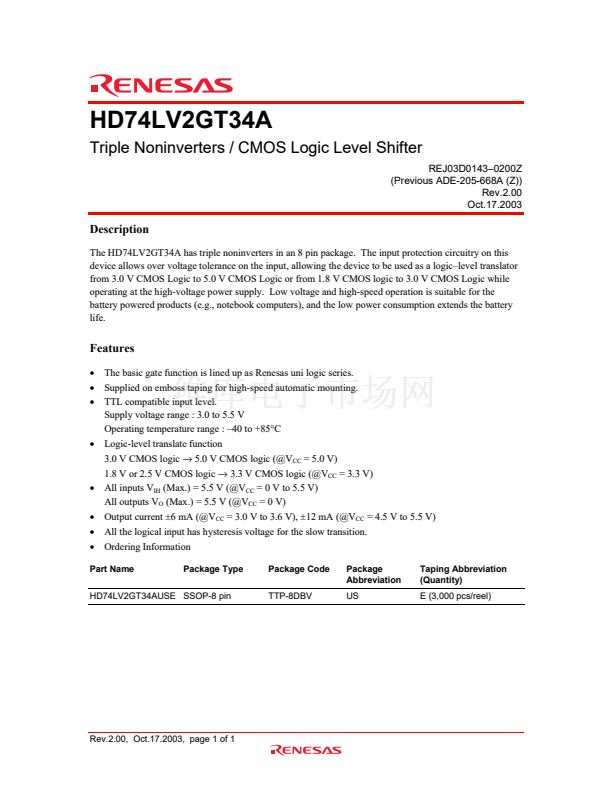

HD74LV2GT34A
Triple Noninverters / CMOS Logic Level Shifter
REJ03D0143鈥?200Z
(Previous ADE-205-668A (Z))
Rev.2.00
Oct.17.2003
Description
The HD74LV2GT34A has triple noninverters in an 8 pin package. The input protection circuitry on this
device allows over voltage tolerance on the input, allowing the device to be used as a logic鈥搇evel translator
from 3.0 V CMOS Logic to 5.0 V CMOS Logic or from 1.8 V CMOS logic to 3.0 V CMOS Logic while
operating at the high-voltage power supply. Low voltage and high-speed operation is suitable for the
battery powered products (e.g., notebook computers), and the low power consumption extends the battery
life.
Features
鈥?/div>
The basic gate function is lined up as Renesas uni logic series.
鈥?/div>
Supplied on emboss taping for high-speed automatic mounting.
鈥?/div>
TTL compatible input level.
Supply voltage range : 3.0 to 5.5 V
Operating temperature range : 鈥?0 to +85掳C
鈥?/div>
Logic-level translate function
3.0 V CMOS logic
鈫?/div>
5.0 V CMOS logic (@V
CC
= 5.0 V)
1.8 V or 2.5 V CMOS logic
鈫?/div>
3.3 V CMOS logic (@V
CC
= 3.3 V)
鈥?/div>
All inputs V
IH
(Max.) = 5.5 V (@V
CC
= 0 V to 5.5 V)
All outputs V
O
(Max.) = 5.5 V (@V
CC
= 0 V)
鈥?/div>
Output current 卤6 mA (@V
CC
= 3.0 V to 3.6 V), 卤12 mA (@V
CC
= 4.5 V to 5.5 V)
鈥?/div>
All the logical input has hysteresis voltage for the slow transition.
鈥?/div>
Ordering Information
Part Name
Package Type
Package Code
TTP-8DBV
Package
Abbreviation
US
Taping Abbreviation
(Quantity)
E (3,000 pcs/reel)
HD74LV2GT34AUSE SSOP-8 pin
Rev.2.00, Oct.17.2003, page 1 of 1
