K9F2808U0C
FLASH MEMORY

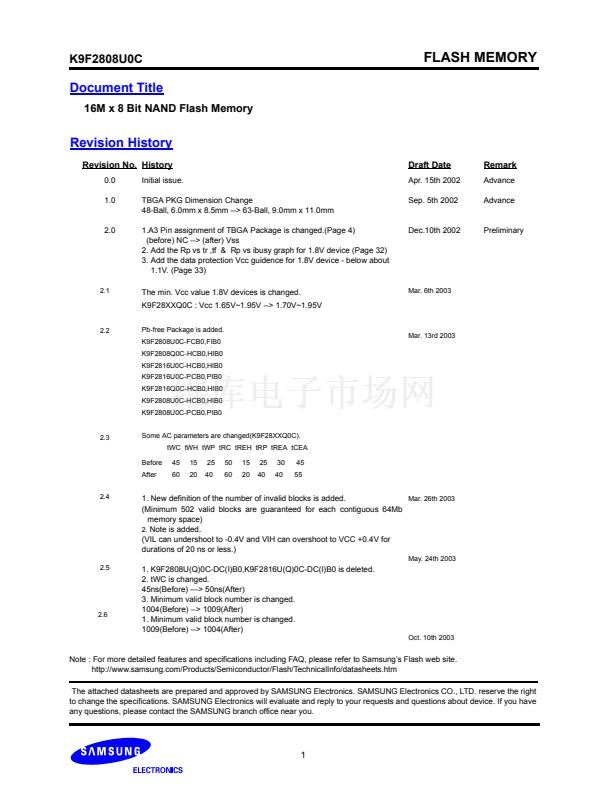

Document Title
16M x 8 Bit NAND Flash Memory
Revision History
Revision No. History
0.0
1.0
Initial issue.
TBGA PKG Dimension Change
48-Ball, 6.0mm x 8.5mm --> 63-Ball, 9.0mm x 11.0mm
1.A3 Pin assignment of TBGA Package is changed.(Page 4)
(before) NC --> (after) Vss
2. Add the Rp vs tr ,tf & Rp vs ibusy graph for 1.8V device (Page 32)
3. Add the data protection Vcc guidence for 1.8V device - below about
1.1V. (Page 33)
The min. Vcc value 1.8V devices is changed.
K9F28XXQ0C : Vcc 1.65V~1.95V --> 1.70V~1.95V
2.2
Pb-free Package is added.
K9F2808U0C-FCB0,FIB0
K9F2808Q0C-HCB0,HIB0
K9F2816U0C-HCB0,HIB0
K9F2816U0C-PCB0,PIB0
K9F2816Q0C-HCB0,HIB0
K9F2808U0C-HCB0,HIB0
K9F2808U0C-PCB0,PIB0
2.3
Some AC parameters are changed(K9F28XXQ0C).
tWC tWH tWP tRC tREH tRP tREA tCEA
Before
After
2.4
45
60
15
20
25
40
50
60
15
20
25
40
30
40
45
55
Draft Date
Apr. 15th 2002
Sep. 5th 2002
Remark
Advance
Advance
2.0
Dec.10th 2002
Preliminary
2.1
Mar. 6th 2003
Mar. 13rd 2003
Mar. 26th 2003
1. New definition of the number of invalid blocks is added.
(Minimum 502 valid blocks are guaranteed for each contiguous 64Mb
memory space)
2.
Note is added.
(VIL can undershoot to -0.4V and VIH can overshoot to VCC +0.4V for
durations of 20 ns or less.)
May. 24th 2003
2.5
2.6
1. K9F2808U(Q)0C-DC(I)B0,K9F2816U(Q)0C-DC(I)B0 is deleted.
2. tWC is changed.
45ns(Before) ---> 50ns(After)
3. Minimum valid block number is changed.
1004(Before) --> 1009(After)
1. Minimum valid block number is changed.
1009(Before) --> 1004(After)
Oct. 10th 2003
Note : For more detailed features and specifications including FAQ, please refer to Samsung鈥檚 Flash web site.
http://www.samsung.com/Products/Semiconductor/Flash/TechnicalInfo/datasheets.htm
The attached datasheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right
to change the specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions about device. If you have
any questions, please contact the SAMSUNG branch office near you.
