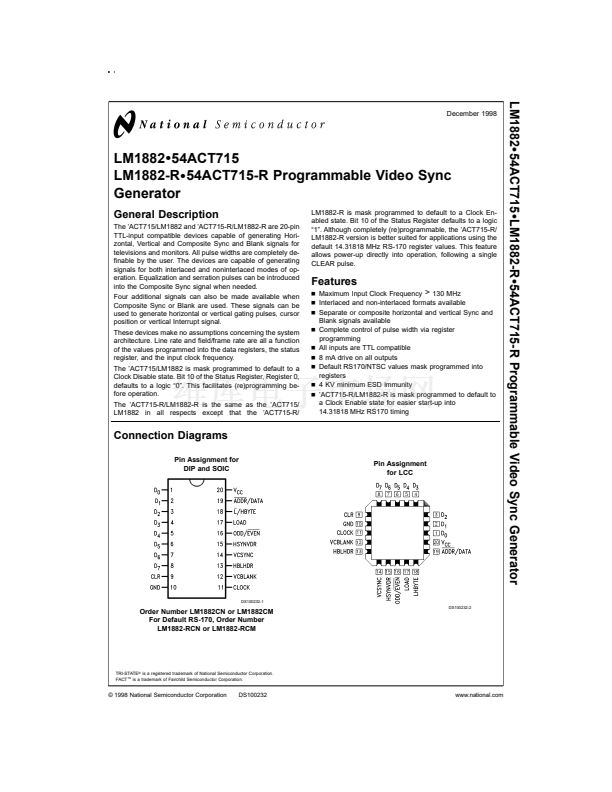

LM1882
鈥?/div>
54ACT715
鈥?/div>
LM1882-R
鈥?/div>
54ACT715-R Programmable Video Sync Generator
December 1998
LM1882
鈥?/div>
54ACT715
LM1882-R
鈥?/div>
54ACT715-R Programmable Video Sync
Generator
General Description
The 鈥橝CT715/LM1882 and 鈥橝CT715-R/LM1882-R are 20-pin
TTL-input compatible devices capable of generating Hori-
zontal, Vertical and Composite Sync and Blank signals for
televisions and monitors. All pulse widths are completely de-
finable by the user. The devices are capable of generating
signals for both interlaced and noninterlaced modes of op-
eration. Equalization and serration pulses can be introduced
into the Composite Sync signal when needed.
Four additional signals can also be made available when
Composite Sync or Blank are used. These signals can be
used to generate horizontal or vertical gating pulses, cursor
position or vertical Interrupt signal.
These devices make no assumptions concerning the system
architecture. Line rate and field/frame rate are all a function
of the values programmed into the data registers, the status
register, and the input clock frequency.
The 鈥橝CT715/LM1882 is mask programmed to default to a
Clock Disable state. Bit 10 of the Status Register, Register 0,
defaults to a logic 鈥?鈥? This facilitates (re)programming be-
fore operation.
The 鈥橝CT715-R/LM1882-R is the same as the 鈥橝CT715/
LM1882 in all respects except that the 鈥橝CT715-R/
LM1882-R is mask programmed to default to a Clock En-
abled state. Bit 10 of the Status Register defaults to a logic
鈥?鈥? Although completely (re)programmable, the 鈥橝CT715-R/
LM1882-R version is better suited for applications using the
default 14.31818 MHz RS-170 register values. This feature
allows power-up directly into operation, following a single
CLEAR pulse.
Features
n
Maximum Input Clock Frequency
>
130 MHz
n
Interlaced and non-interlaced formats available
n
Separate or composite horizontal and vertical Sync and
Blank signals available
n
Complete control of pulse width via register
programming
n
All inputs are TTL compatible
n
8 mA drive on all outputs
n
Default RS170/NTSC values mask programmed into
registers
n
4 KV minimum ESD immunity
n
鈥橝CT715-R/LM1882-R is mask programmed to default to
a Clock Enable state for easier start-up into
14.31818 MHz RS170 timing
Connection Diagrams
Pin Assignment for
DIP and SOIC
Pin Assignment
for LCC
DS100232-1
Order Number LM1882CN or LM1882CM
For Default RS-170, Order Number
LM1882-RCN or LM1882-RCM
DS100232-2
TRI-STATE
庐
is a registered trademark of National Semiconductor Corporation.
FACT
鈩?/div>
is a trademark of Fairchild Semiconductor Corporation.
漏 1998 National Semiconductor Corporation
DS100232
www.national.com
