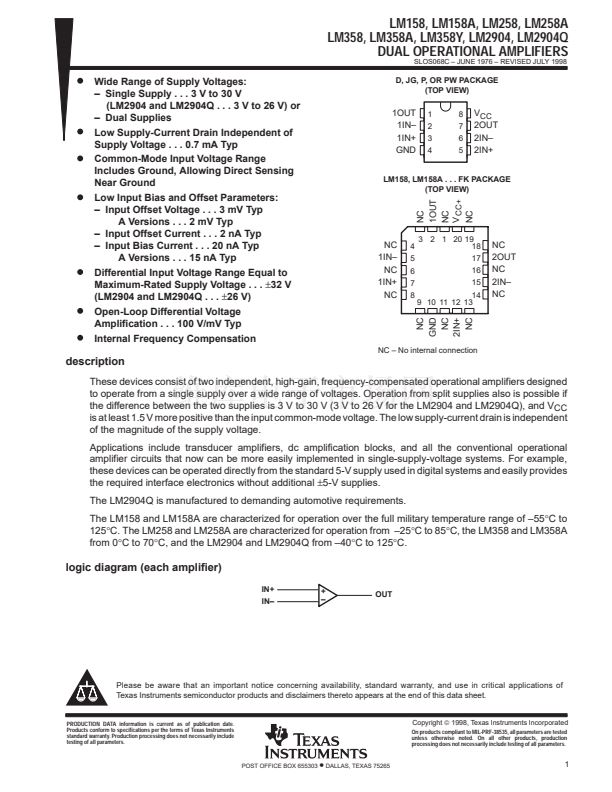

LM158, LM158A, LM258, LM258A
LM358, LM358A, LM358Y, LM2904, LM2904Q
DUAL OPERATIONAL AMPLIFIERS
SLOS068C 鈥?JUNE 1976 鈥?REVISED JULY 1998
D
D
D
D
D
D
D
Wide Range of Supply Voltages:
鈥?Single Supply . . . 3 V to 30 V
(LM2904 and LM2904Q . . . 3 V to 26 V) or
鈥?Dual Supplies
Low Supply-Current Drain Independent of
Supply Voltage . . . 0.7 mA Typ
Common-Mode Input Voltage Range
Includes Ground, Allowing Direct Sensing
Near Ground
Low Input Bias and Offset Parameters:
鈥?Input Offset Voltage . . . 3 mV Typ
A Versions . . . 2 mV Typ
鈥?Input Offset Current . . . 2 nA Typ
鈥?Input Bias Current . . . 20 nA Typ
A Versions . . . 15 nA Typ
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . .
卤32
V
(LM2904 and LM2904Q . . .
卤26
V)
Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
D, JG, P, OR PW PACKAGE
(TOP VIEW)
1OUT
1IN鈥?/div>
1IN+
GND
1
2
3
4
8
7
6
5
V
CC
2OUT
2IN鈥?/div>
2IN+
LM158, LM158A . . . FK PACKAGE
(TOP VIEW)
NC
1OUT
NC
V
CC+
NC
NC
1IN鈥?/div>
NC
1IN+
NC
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
NC
2OUT
NC
2IN鈥?/div>
NC
NC 鈥?No internal connection
description
These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed
to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if
the difference between the two supplies is 3 V to 30 V (3 V to 26 V for the LM2904 and LM2904Q), and V
CC
is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent
of the magnitude of the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For example,
these devices can be operated directly from the standard 5-V supply used in digital systems and easily provides
the required interface electronics without additional
卤5-V
supplies.
The LM2904Q is manufactured to demanding automotive requirements.
The LM158 and LM158A are characterized for operation over the full military temperature range of 鈥?5掳C to
125掳C. The LM258 and LM258A are characterized for operation from 鈥?5掳C to 85掳C, the LM358 and LM358A
from 0掳C to 70掳C, and the LM2904 and LM2904Q from 鈥?0掳C to 125掳C.
logic diagram (each amplifier)
IN+
IN鈥?/div>
+
鈥?/div>
OUT

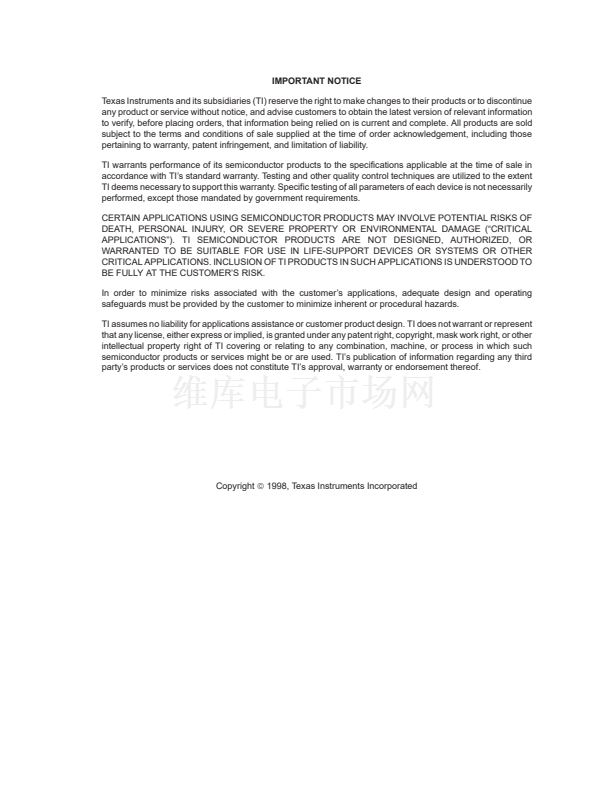

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright
漏
1998, Texas Instruments Incorporated
On products compliant to MIL-PRF-38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
NC
GND
NC
2IN+
NC
1
