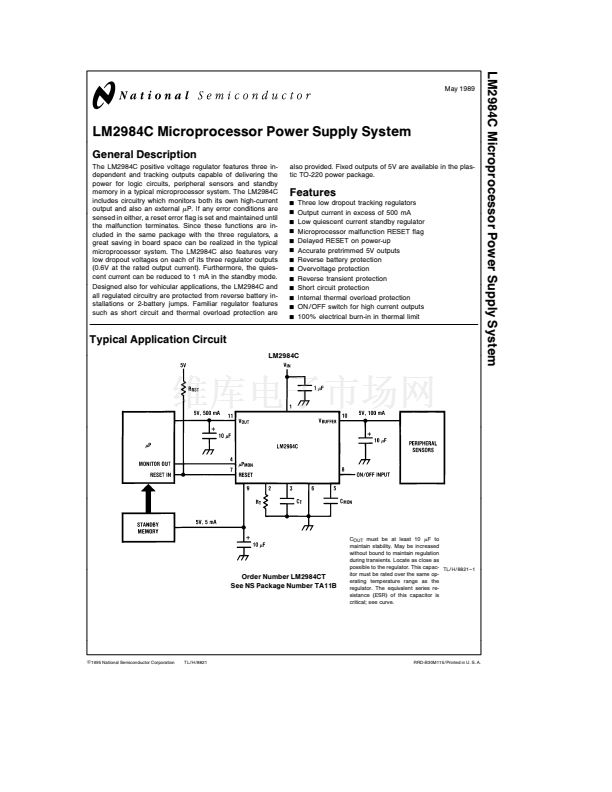

LM2984C Microprocessor Power Supply System
May 1989
LM2984C Microprocessor Power Supply System
General Description
The LM2984C positive voltage regulator features three in-
dependent and tracking outputs capable of delivering the
power for logic circuits peripheral sensors and standby
memory in a typical microprocessor system The LM2984C
includes circuitry which monitors both its own high-current
output and also an external
mP
If any error conditions are
sensed in either a reset error flag is set and maintained until
the malfunction terminates Since these functions are in-
cluded in the same package with the three regulators a
great saving in board space can be realized in the typical
microprocessor system The LM2984C also features very
low dropout voltages on each of its three regulator outputs
(0 6V at the rated output current) Furthermore the quies-
cent current can be reduced to 1 mA in the standby mode
Designed also for vehicular applications the LM2984C and
all regulated circuitry are protected from reverse battery in-
stallations or 2-battery jumps Familiar regulator features
such as short circuit and thermal overload protection are
also provided Fixed outputs of 5V are available in the plas-
tic TO-220 power package
Features
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Three low dropout tracking regulators
Output current in excess of 500 mA
Low quiescent current standby regulator
Microprocessor malfunction RESET flag
Delayed RESET on power-up
Accurate pretrimmed 5V outputs
Reverse battery protection
Overvoltage protection
Reverse transient protection
Short circuit protection
Internal thermal overload protection
ON OFF switch for high current outputs
100% electrical burn-in in thermal limit

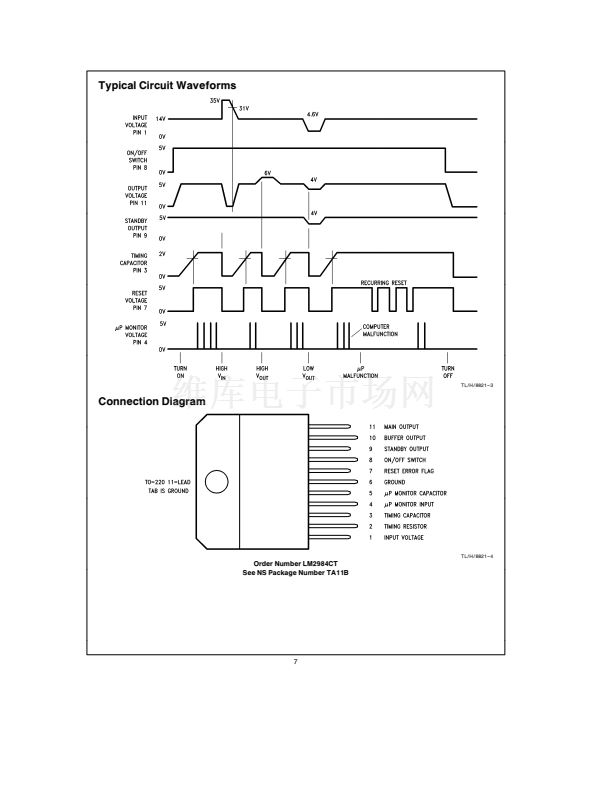

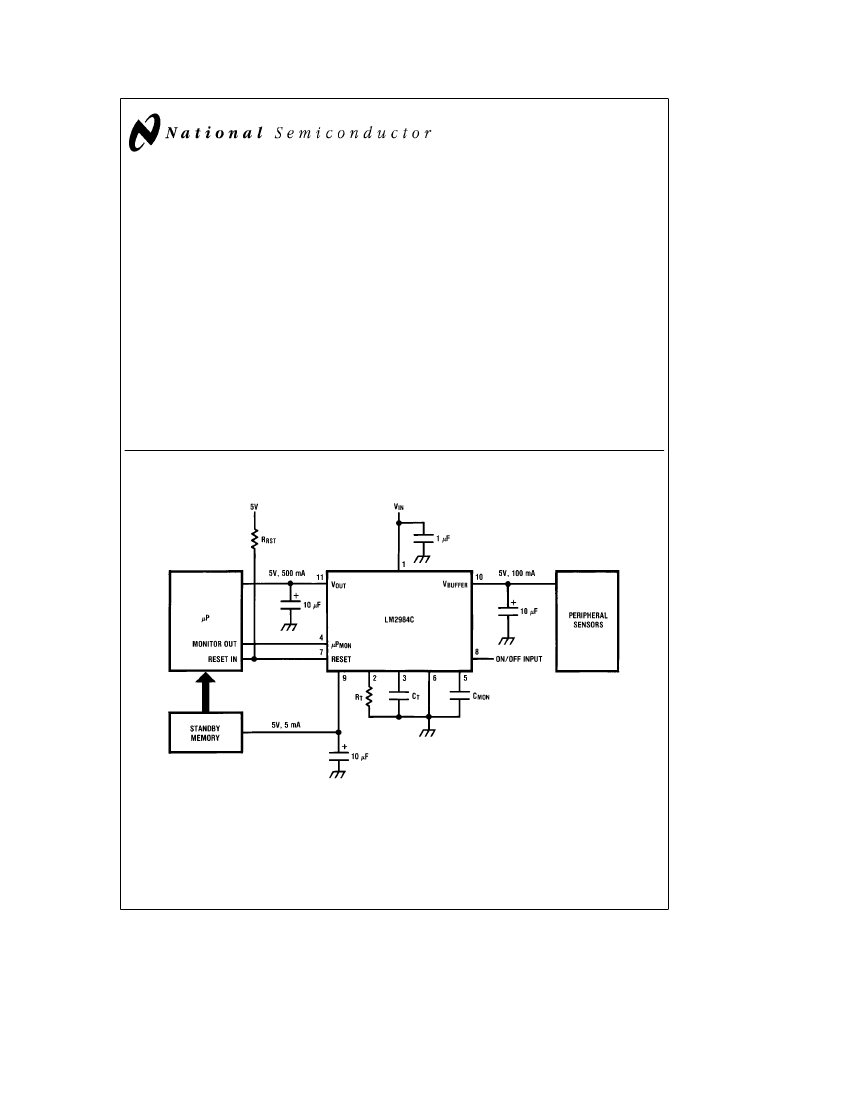

Typical Application Circuit
LM2984C
Order Number LM2984CT

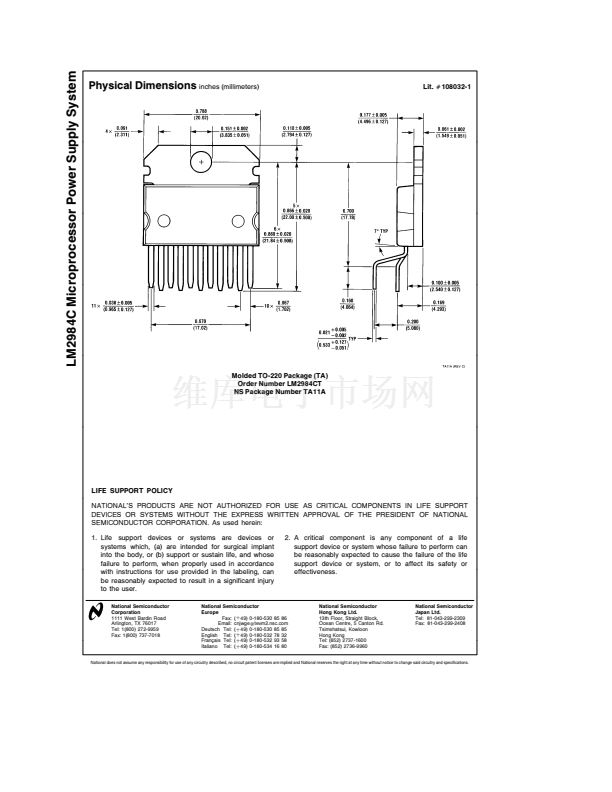

See NS Package Number TA11B
C
OUT
must be at least 10
mF
to
maintain stability May be increased
without bound to maintain regulation
during transients Locate as close as
possible to the regulator This capac-
TL H 8821 鈥?1
itor must be rated over the same op-
erating temperature range as the
regulator The equivalent series re-
sistance (ESR) of this capacitor is

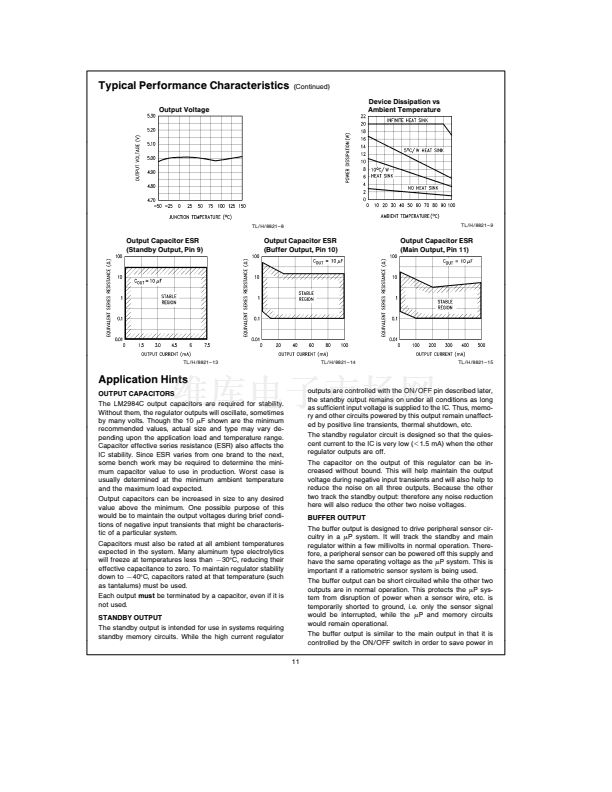

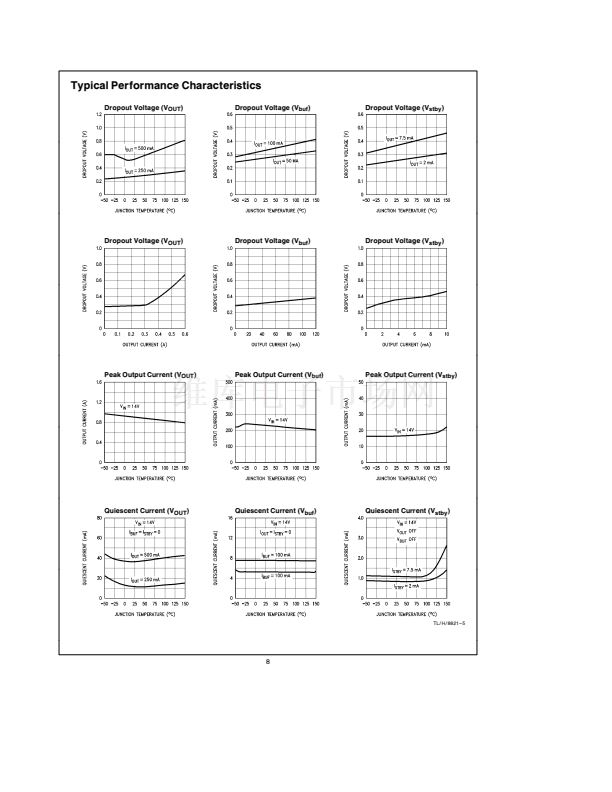

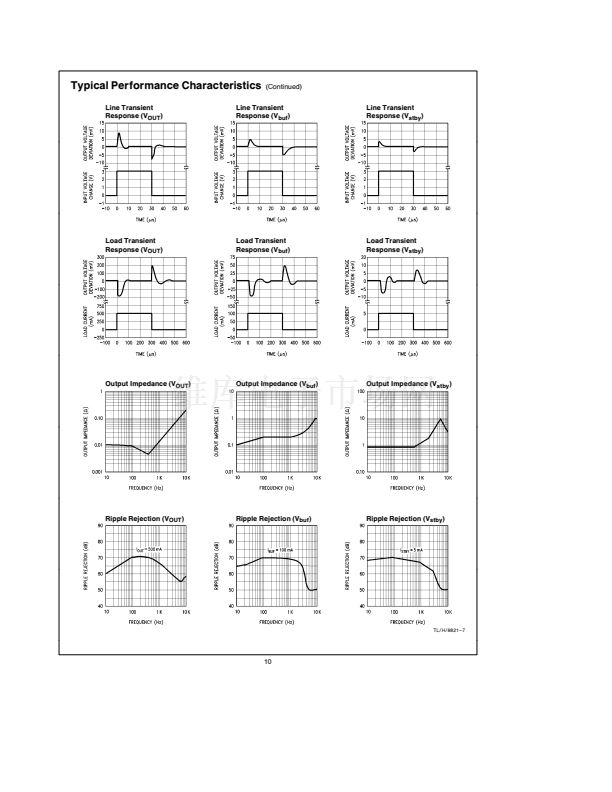

critical see curve
C
1995 National Semiconductor Corporation
TL H 8821
RRD-B30M115 Printed in U S A

LM2984CT 产品属性

  • National Semiconductor (TI)

  • 26 V

  • 5 V

  • 0.6 V at 250 mA, 1 V at 0.5A

  • 0.5 A

  • 50 mV

  • 1

  • Fixed

  • + 125 C

  • Through Hole

  • TO-220

  • 50 mV

  • 0 C

  • Tube

  • 20
