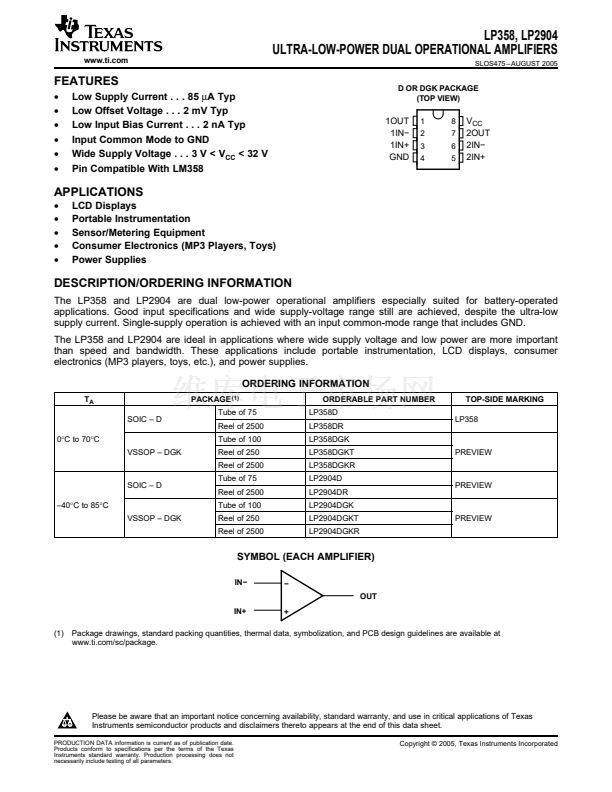

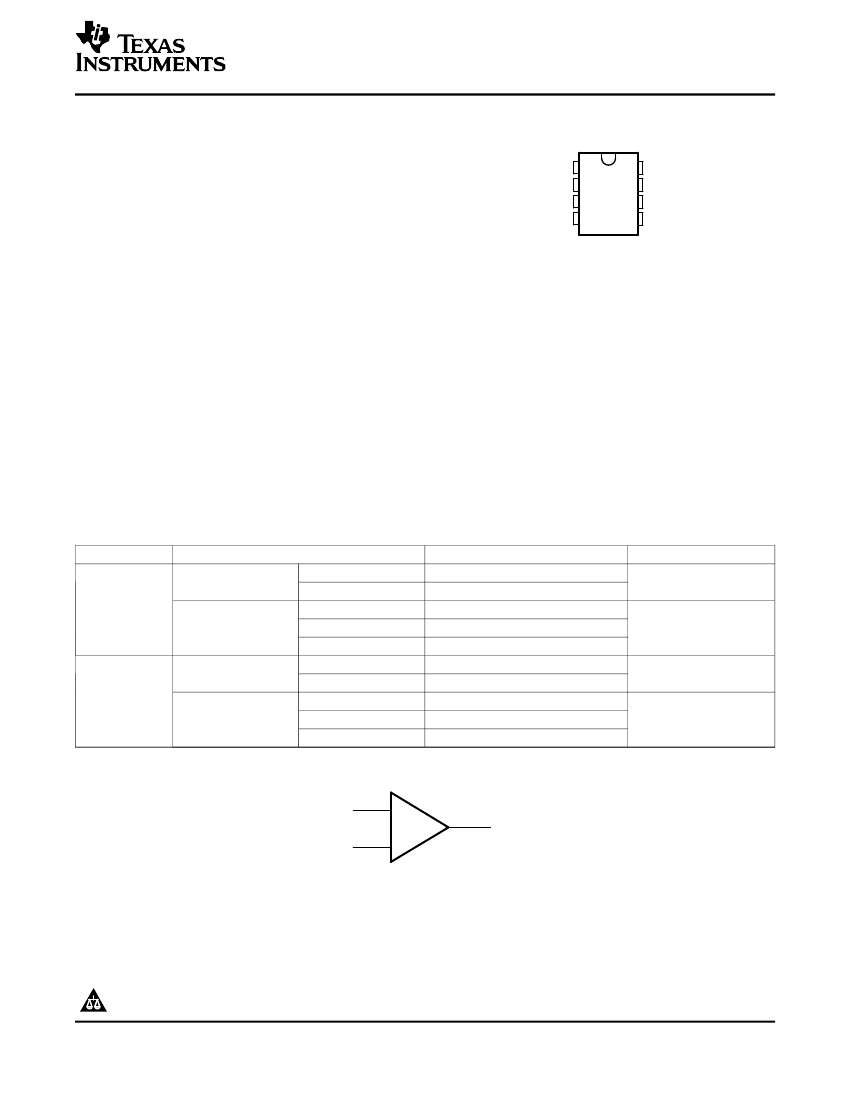

LP358, LP2904
ULTRA-LOW-POWER DUAL OPERATIONAL AMPLIFIERS
www.ti.com
SLOS475 鈥?AUGUST 2005
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Supply Current . . . 85
碌A
Typ
Low Offset Voltage . . . 2 mV Typ
Low Input Bias Current . . . 2 nA Typ
Input Common Mode to GND
Wide Supply Voltage . . . 3 V < V
CC
< 32 V
Pin Compatible With LM358
D OR DGK PACKAGE
(TOP VIEW)
1OUT
1IN鈭?/div>
1IN+
GND
1
2
3
4
8
7
6
5
V
CC
2OUT
2IN鈭?/div>
2IN+
APPLICATIONS
LCD Displays
Portable Instrumentation
Sensor/Metering Equipment
Consumer Electronics (MP3 Players, Toys)
Power Supplies
DESCRIPTION/ORDERING INFORMATION
The LP358 and LP2904 are dual low-power operational amplifiers especially suited for battery-operated
applications. Good input specifications and wide supply-voltage range still are achieved, despite the ultra-low
supply current. Single-supply operation is achieved with an input common-mode range that includes GND.
The LP358 and LP2904 are ideal in applications where wide supply voltage and low power are more important
than speed and bandwidth. These applications include portable instrumentation, LCD displays, consumer
electronics (MP3 players, toys, etc.), and power supplies.

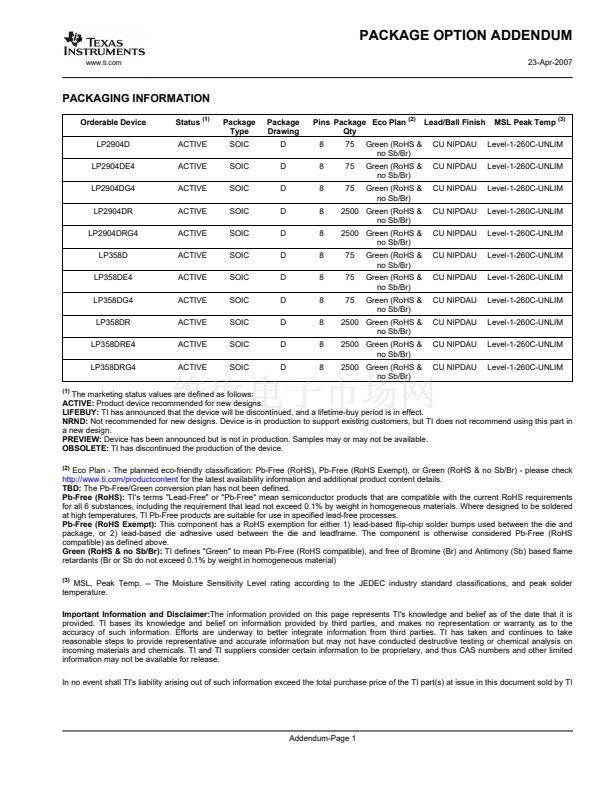

ORDERING INFORMATION
T
A
SOIC 鈥?D
0掳C to 70掳C
VSSOP 鈥?DGK
PACKAGE
(1)
Tube of 75
Reel of 2500
Tube of 100
Reel of 250
Reel of 2500
SOIC 鈥?D
鈥?0掳C to 85掳C
VSSOP 鈥?DGK
Tube of 75
Reel of 2500
Tube of 100
Reel of 250
Reel of 2500
ORDERABLE PART NUMBER
LP358D
LP358DR
LP358DGK
LP358DGKT
LP358DGKR
LP2904D
LP2904DR
LP2904DGK
LP2904DGKT
LP2904DGKR
PREVIEW
PREVIEW
PREVIEW
TOP-SIDE MARKING
LP358

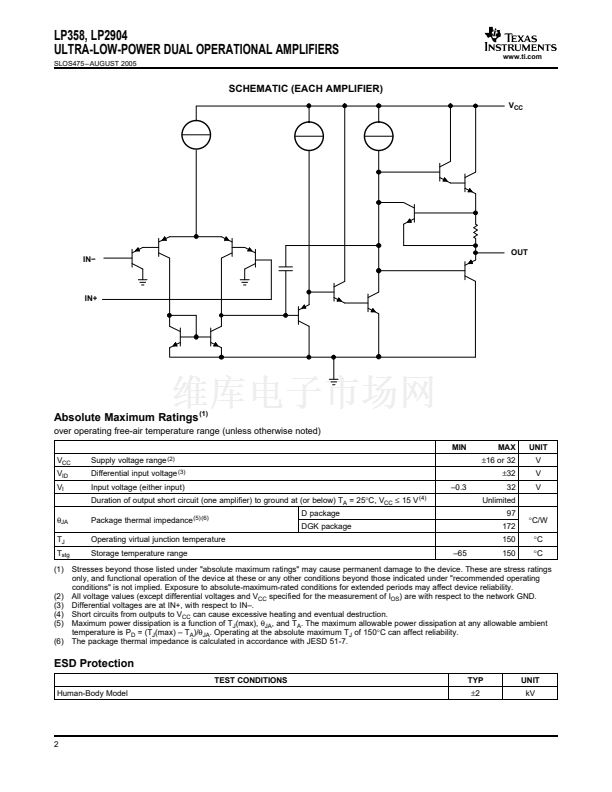

SYMBOL (EACH AMPLIFIER)
鈭?/div>
OUT
IN+
+
Copyright 漏 2005, Texas Instruments Incorporated
IN鈭?/div>
(1)

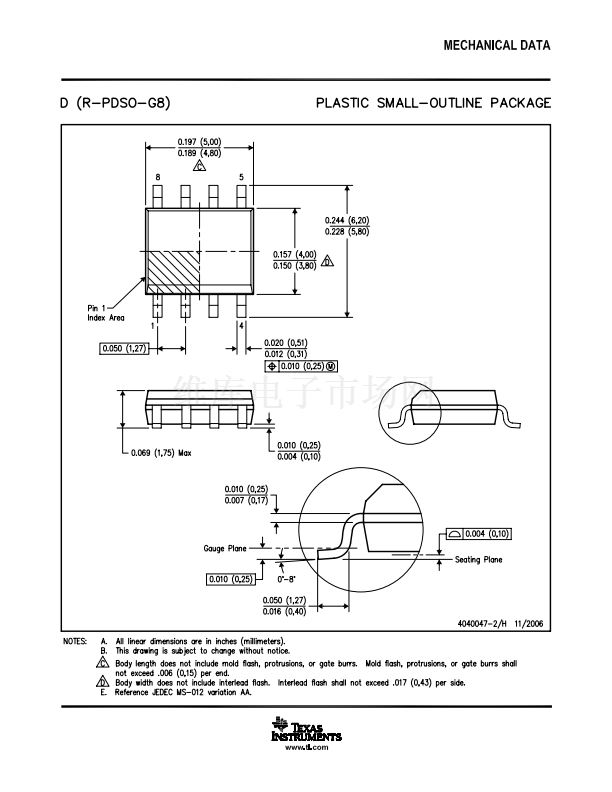

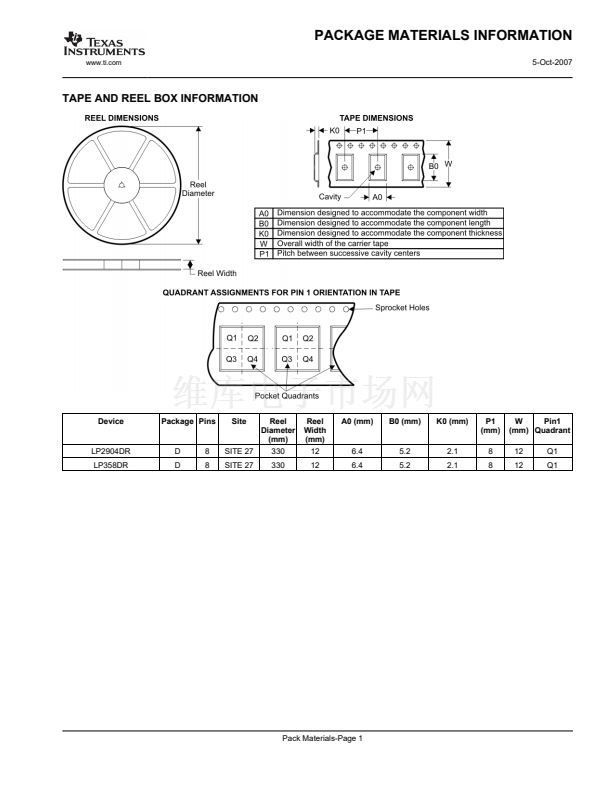

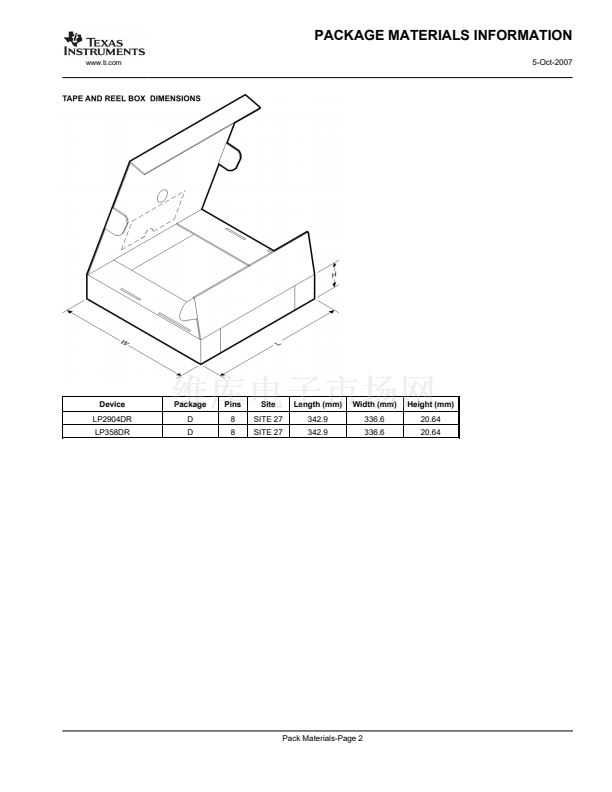

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.

LP358DG4 产品属性

  • 75

  • 集成电路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 通用

  • 2

  • -

  • 0.05 V/µs

  • 100kHz

  • -

  • 2nA

  • 2000µV

  • 85µA

  • 10mA

  • 3 V ~ 32 V，±1.5 V ~ 16 V

  • 0°C ~ 70°C

  • 表面贴装

  • 8-SOIC（0.154"，3.90mm 宽）

  • 8-SOIC

  • 管件

LP358DG4相关型号PDF文件下载

  • 型号
    版本
    描述
    厂商
