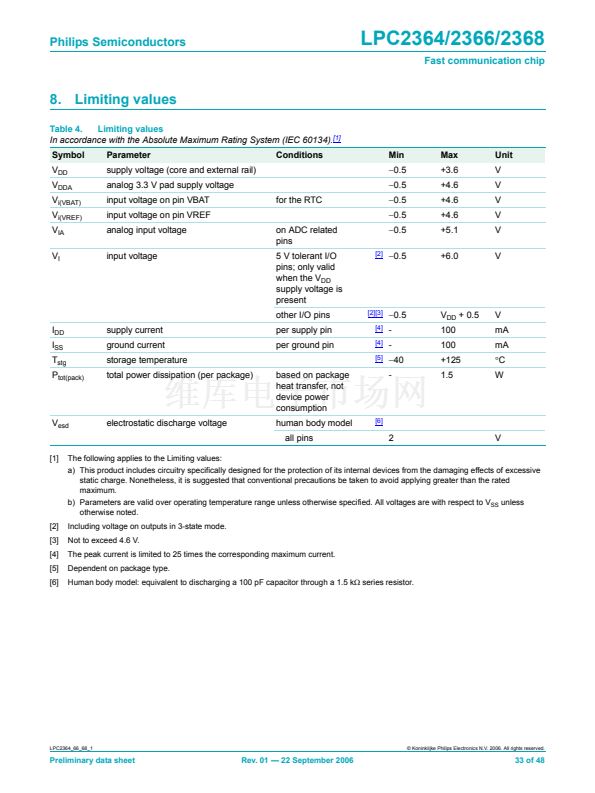

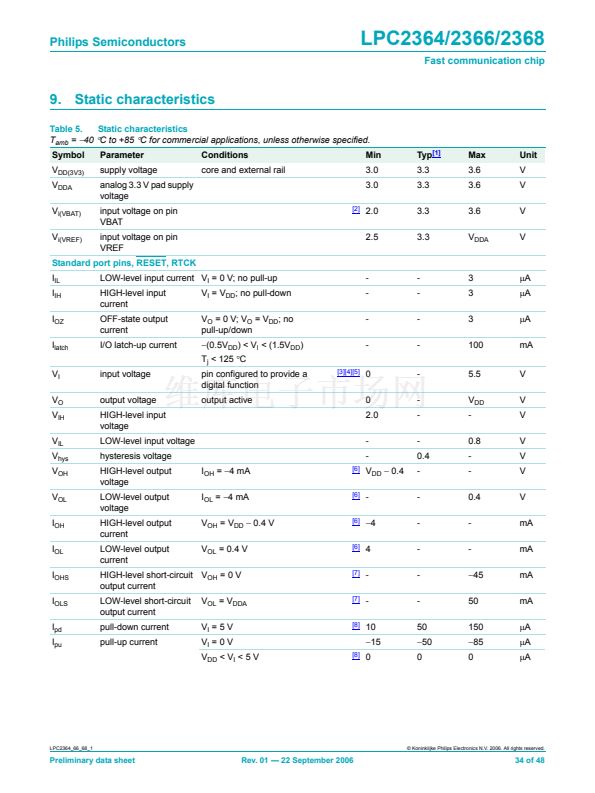

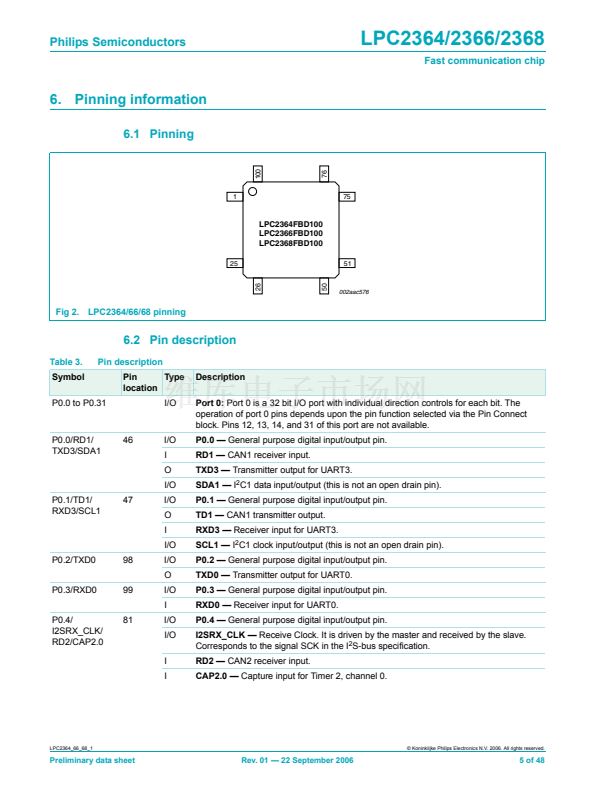

LPC2364/66/68
Single-chip 16-bit/32-bit microcontrollers; up to 512 kB flash
with ISP/IAP, Ethernet, USB 2.0, CAN, and 10-bit ADC/DAC
Rev. 01 鈥?22 September 2006
Preliminary data sheet
1. General description
The LPC2364/66/68 microcontrollers are based on a 16-bit/32-bit ARM7TDMI-S CPU with
real-time emulation that combines the microcontroller with up to 512 kB of embedded
high-speed flash memory. A 128-bit wide memory interface and a unique accelerator
architecture enable 32-bit code execution at the maximum clock rate. For critical
performance in interrupt service routines and DSP algorithms, this increases performance
up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit
Thumb mode reduces code by more than 30 % with minimal performance penalty.
The LPC2364/66/68 are ideal for multi-purpose serial communication applications. They
incorporate a 10/100 Ethernet Media Access Controller (MAC), USB full speed device

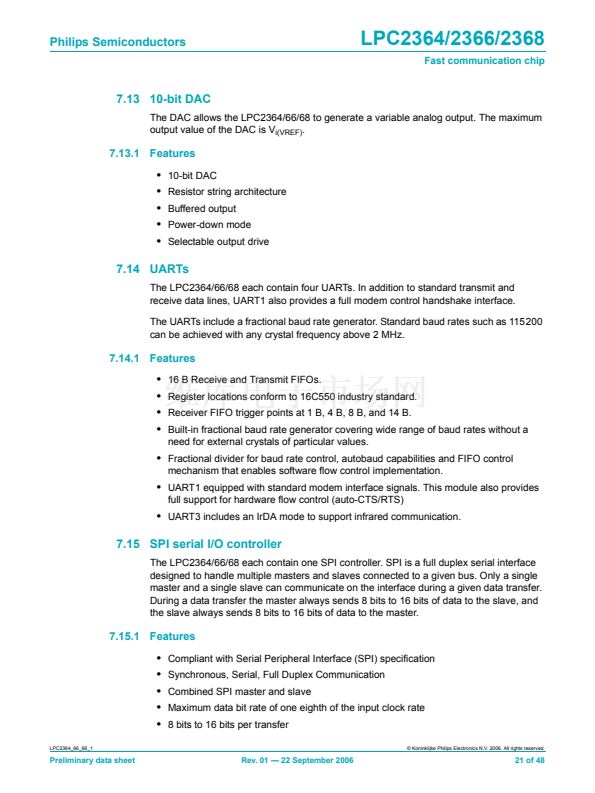

with 4 kB Endpoint RAM, four UARTs, two CAN channels, an SPI interface, two
Synchronous Serial Ports (SSP), three I
2
C interfaces, and an I
2
S interface. This blend of

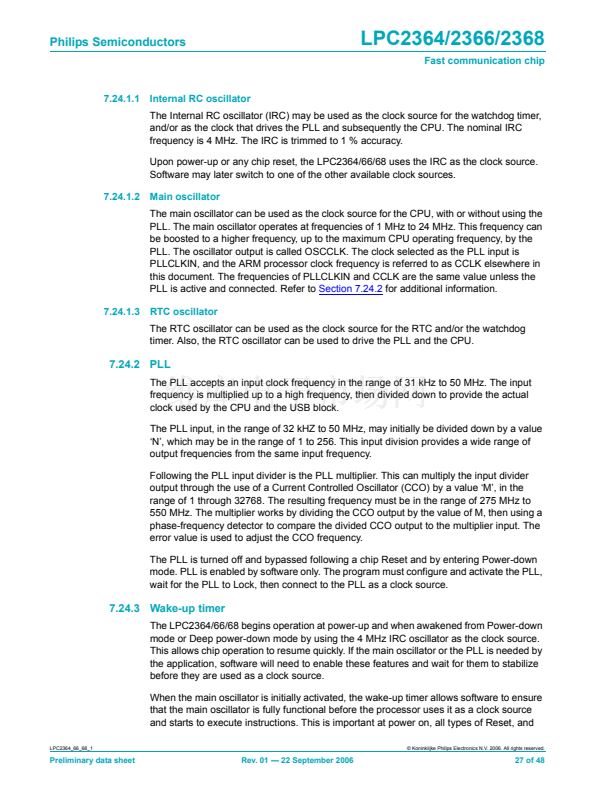

serial communications interfaces combined with an on-chip 4 MHz internal oscillator,
SRAM of up to 32 kB, 16 kB SRAM for Ethernet, 8 kB SRAM for USB and general
purpose use, together with 2 kB battery powered SRAM make these devices very well

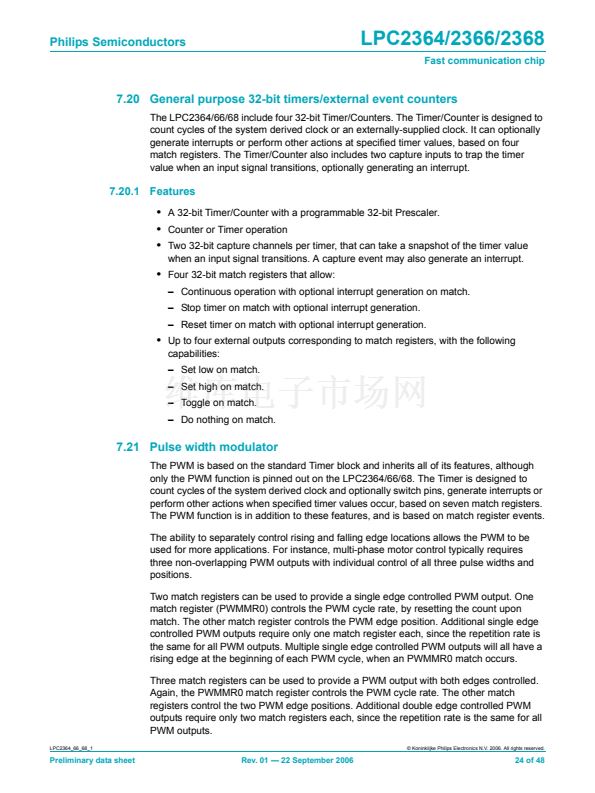

suited for communication gateways and protocol converters. Various 32-bit timers, an
improved 10-bit ADC, 10-bit DAC, one PWM unit, a CAN control unit, and up to 70 fast
GPIO lines with up to 12 edge or level sensitive external interrupt pins make these
microcontrollers particularly suitable for industrial control and medical systems.
2. Features
ARM7TDMI-S processor, running at up to 72 MHz.
Up to 512 kB on-chip Flash Program Memory with In-System Programming (ISP) and
In-Application Programming (IAP) capabilities. Flash program memory is on the ARM
local bus for high performance CPU access.
8/32 kB of SRAM on the ARM local bus for high performance CPU access.
16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM.
8 kB SRAM for general purpose DMA use also accessible by the USB.

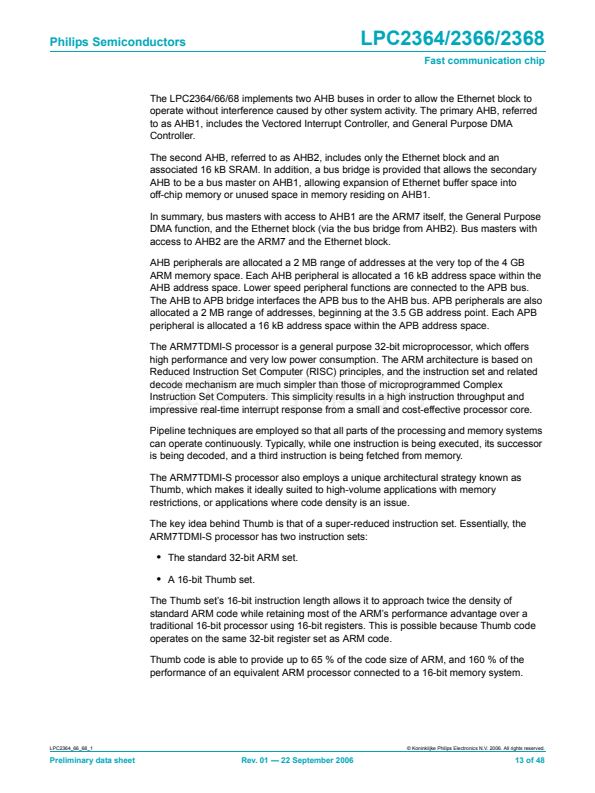

Dual AHB system that provides for simultaneous Ethernet DMA, USB DMA, and
program execution from on-chip Flash with no contention between those functions. A
bus bridge allows the Ethernet DMA to access the other AHB subsystem.

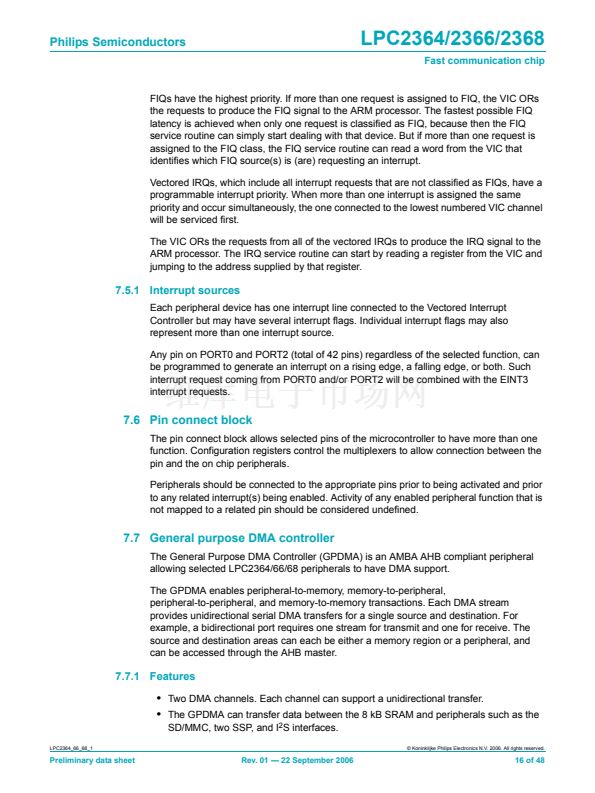

Advanced Vectored Interrupt Controller, supporting up to 32 vectored interrupts.
General Purpose AHB DMA controller (GPDMA) that can be used with the SSP serial
interfaces, the I
2
S port, and the SD/MMC card port, as well as for memory-to-memory
transfers.
Serial Interfaces:
