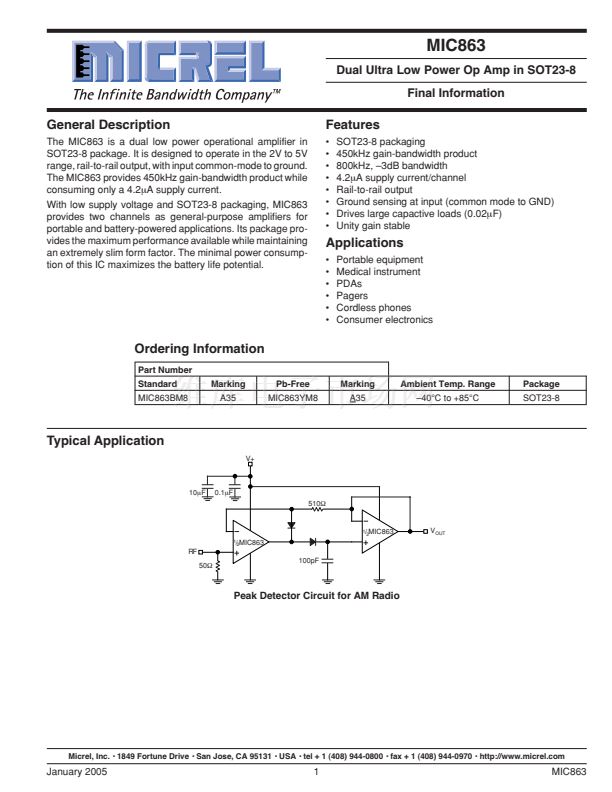

MIC863
Micrel
MIC863
Dual Ultra Low Power Op Amp in SOT23-8
Final Information
General Description
The MIC863 is a dual low power operational amplifier in
SOT23-8 package. It is designed to operate in the 2V to 5V
range, rail-to-rail output, with input common-mode to ground.
The MIC863 provides 450kHz gain-bandwidth product while
consuming only a 4.2碌A supply current.
With low supply voltage and SOT23-8 packaging, MIC863
provides two channels as general-purpose amplifiers for
portable and battery-powered applications. Its package pro-
vides the maximum performance available while maintaining
an extremely slim form factor. The minimal power consump-
tion of this IC maximizes the battery life potential.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SOT23-8 packaging
450kHz gain-bandwidth product
800kHz, 鈥?dB bandwidth
4.2碌A supply current/channel
Rail-to-rail output
Ground sensing at input (common mode to GND)
Drives large capactive loads (0.02碌F)
Unity gain stable
Portable equipment
Medical instrument
PDAs
Pagers
Cordless phones
Consumer electronics
Applications
Ordering Information
Part Number
Standard
MIC863BM8
Marking
A35
Pb-Free
MIC863YM8
Marking
A35
Ambient Temp. Range
鈥?0掳C to +85掳C
Package
SOT23-8
Typical Application
V+
10碌F
0.1碌F
510鈩?/div>
1
/ MIC863
2
1
/ MIC863
2
V
OUT
RF
50鈩?/div>
100pF
Peak Detector Circuit for AM Radio
Micrel, Inc. 鈥?1849 Fortune Drive 鈥?San Jose, CA 95131 鈥?USA 鈥?tel + 1 (408) 944-0800 鈥?fax + 1 (408) 944-0970 鈥?http://www.micrel.com
January 2005
1
MIC863
