Features and Benefits
Small package (SOIC20)
Short-circuit protection
Diagnostic features
Current limitation
Low-power consumption
Over-temperature protection
Direct micro controller compatible
Integrated free wheel diodes
聽
聽
聽
聽
聽
聽
聽
聽
聽
聽
聽
Applications
Automotive climate Control
Dashboard
Industrial Actuator control
Ordering Information
Part No.
MLX10410
Temperature Suffix
E (-40掳C to 85掳C)
Package Code
DF (SOIC-20)
Option code
CA

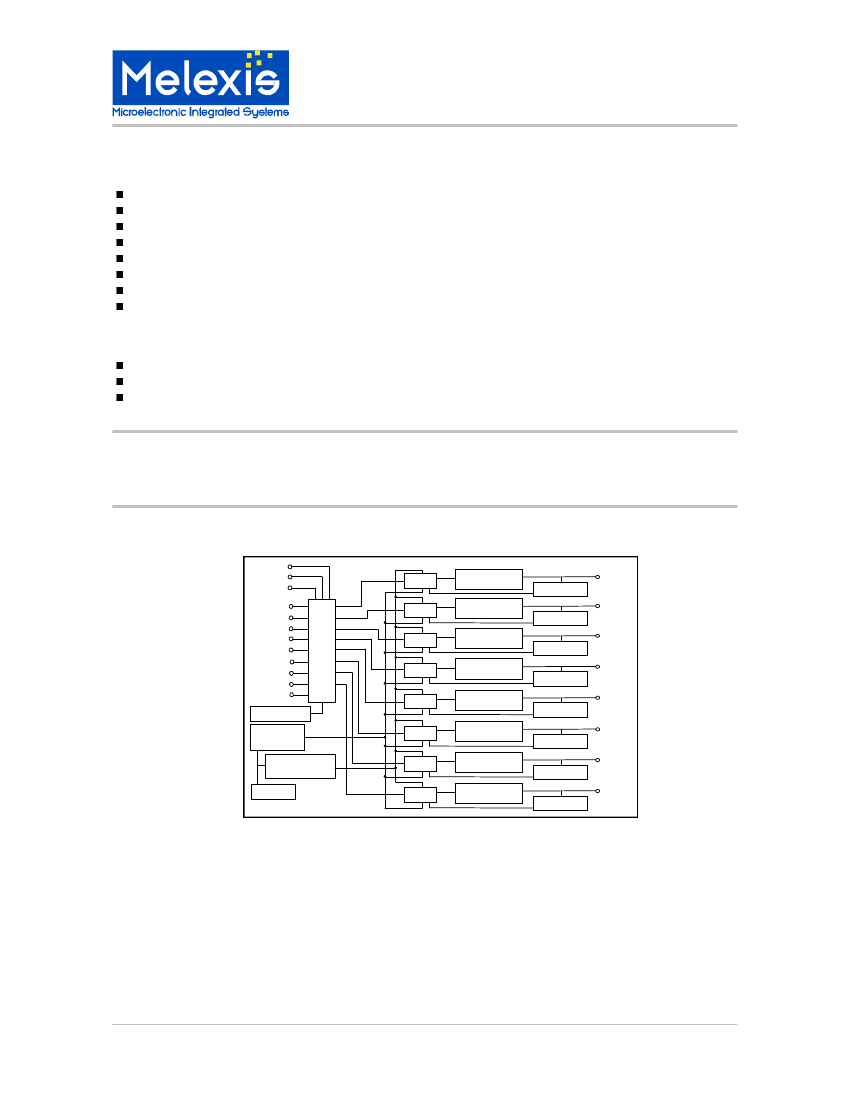

Functional Diagram
VDD
VCC1
VCC2
ADR2
ADR1
ADR0
CEN
STROBE
DATAI
DATAO
OTB
GND
OSCILLATOR
OVER-TEMP
PROTECT
BG OVER-VOLT
PROTECT
STAND-BY
LOGIC
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
LOGIC
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
OUTPUT
CURRENT LIMIT
OUT7
DETECT C.C.
OUT6
DETECT C.C.
OUT5
DETECT C.C.
OUT4
DETECT C.C.
OUT3
DETECT C.C.
OUT2
DETECT C.C.
OUT1
DETECT C.C.
OUT0
DETECT C.C.
LOGIC
LOGIC
LOGIC
LOGIC
LOGIC
LOGIC
Figure 1
Description
The 10410 is a high-side driver for automotive applications. It can drive small lamps, relays, coils etc. The output current
can be up to 250mA per driver (current limit at minimum 250mA).

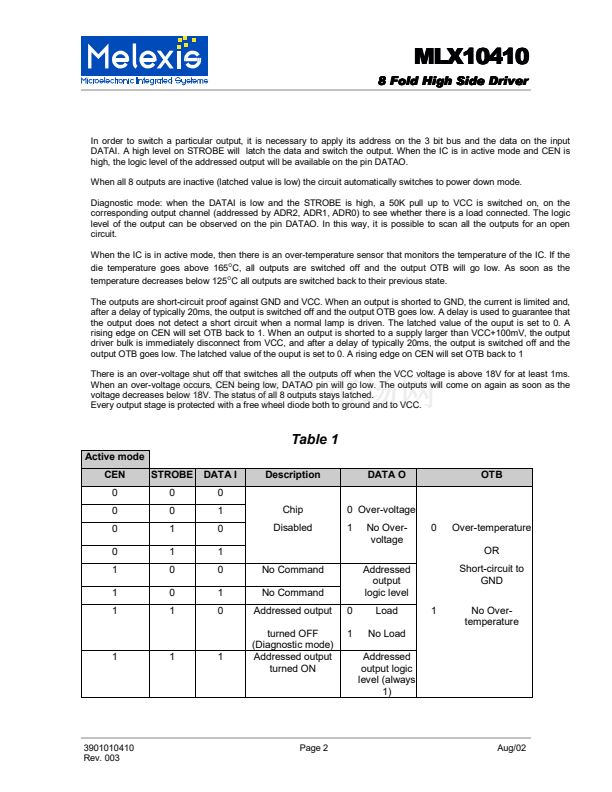

The IC will only react to commands on the bus if the CEN (chip enable) signal is high. The CEN signal has nothing to do
with the power down mode, the IC will react to the micro controller commands if CEN is high.
