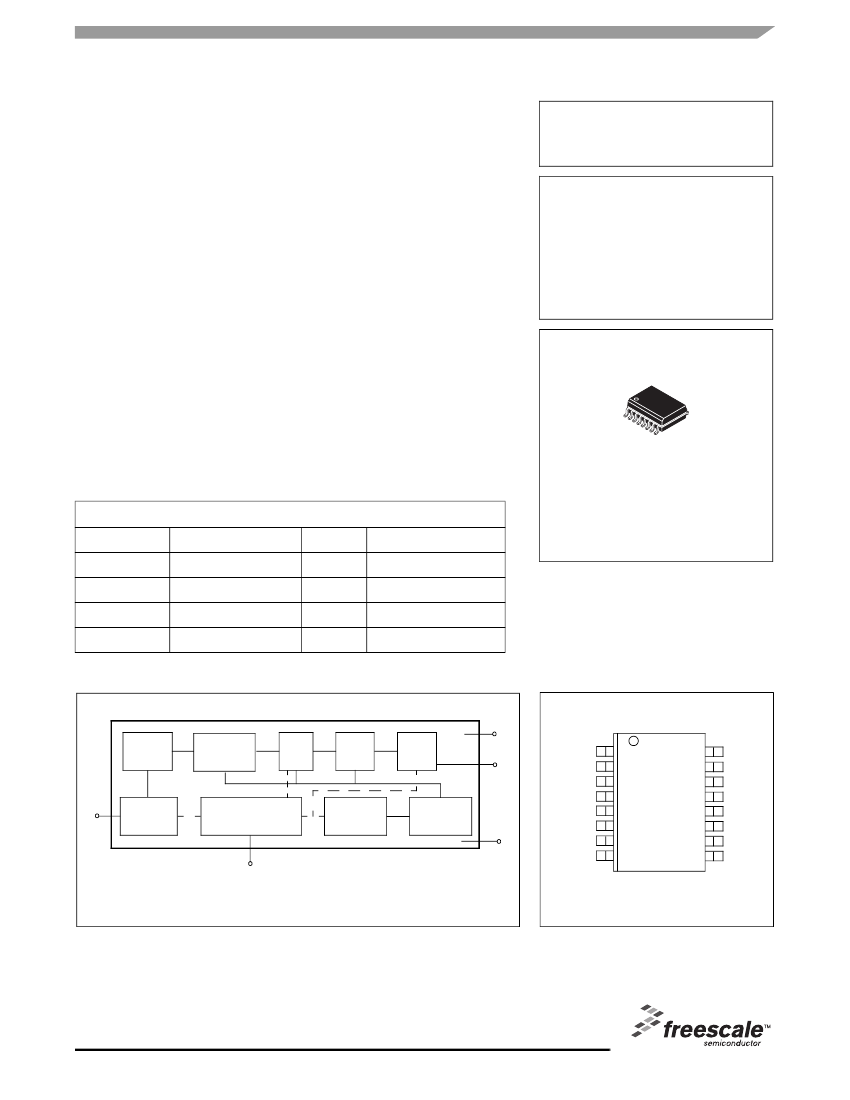

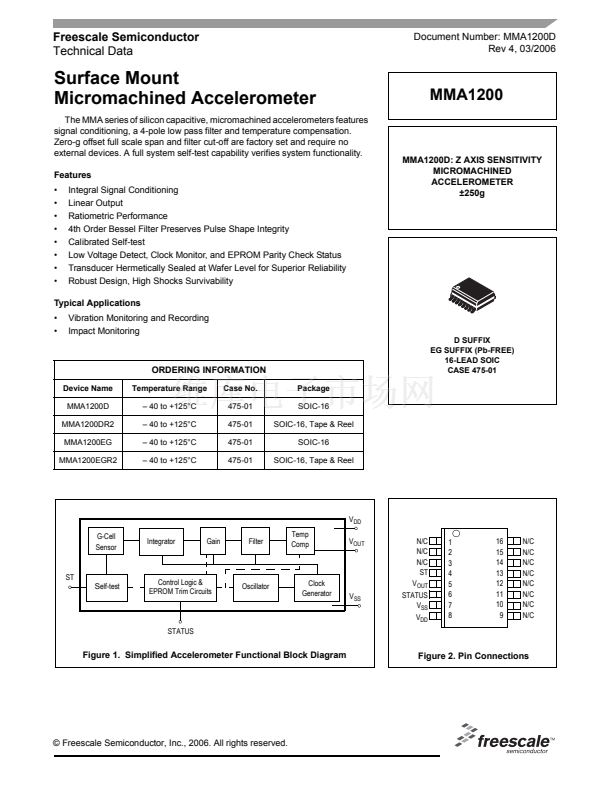

Freescale Semiconductor
Technical Data
Document Number: MMA1200D
Rev 4, 03/2006
Surface Mount
Micromachined Accelerometer
The MMA series of silicon capacitive, micromachined accelerometers features
signal conditioning, a 4-pole low pass filter and temperature compensation.
Zero-g offset full scale span and filter cut-off are factory set and require no
external devices. A full system self-test capability verifies system functionality.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Integral Signal Conditioning
Linear Output
Ratiometric Performance
4th Order Bessel Filter Preserves Pulse Shape Integrity
Calibrated Self-test
Low Voltage Detect, Clock Monitor, and EPROM Parity Check Status
Transducer Hermetically Sealed at Wafer Level for Superior Reliability
Robust Design, High Shocks Survivability
MMA1200
MMA1200D: Z AXIS SENSITIVITY
MICROMACHINED
ACCELEROMETER
卤250g
Typical Applications
鈥?/div>
鈥?/div>
Vibration Monitoring and Recording
Impact Monitoring
D SUFFIX
EG SUFFIX (Pb-FREE)
16-LEAD SOIC
CASE 475-01
Package
SOIC-16
SOIC-16, Tape & Reel
SOIC-16
SOIC-16, Tape & Reel
ORDERING INFORMATION
Device Name
MMA1200D
MMA1200DR2
MMA1200EG
MMA1200EGR2
Temperature Range
鈥?40 to +125掳C
鈥?40 to +125掳C
鈥?40 to +125掳C
鈥?40 to +125掳C
Case No.
475-01
475-01
475-01
475-01
V
DD
G-Cell
Sensor
Integrator
Gain
Filter
Temp
Comp
V
OUT
N/C
N/C
N/C
ST
V
OUT
STATUS
V
SS
V
DD
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
ST
Self-test
Control Logic &
EPROM Trim Circuits
Oscillator
Clock
Generator
V
SS
STATUS
Figure 1. Simplified Accelerometer Functional Block Diagram
Figure 2. Pin Connections
漏 Freescale Semiconductor, Inc., 2006. All rights reserved.
