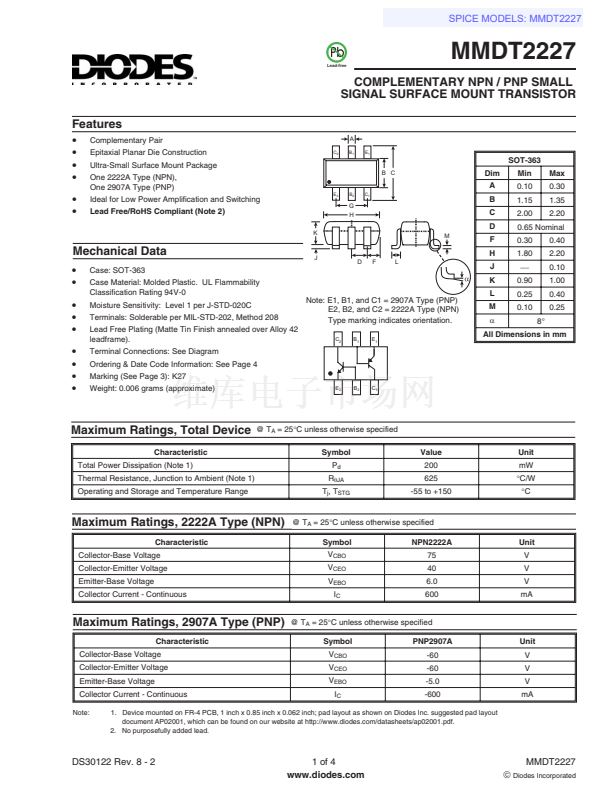

SPICE MODELS: MMDT2227
MMDT2227
Lead-free
COMPLEMENTARY NPN / PNP SMALL
SIGNAL SURFACE MOUNT TRANSISTOR
Features
路
路
路
路
路
路
Complementary Pair
Epitaxial Planar Die Construction
Ultra-Small Surface Mount Package
One 2222A Type (NPN),
One 2907A Type (PNP)
Ideal for Low Power Amplification and Switching
Lead Free/RoHS Compliant (Note 2)
K
C
2
A
B
1
E
1
SOT-363
B C
E
2
B
2
C
1
Dim
A
B
C
D
M
Min
0.10
1.15
2.00
0.30
1.80
戮
0.90
0.25
0.10
8掳
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
G
H
0.65 Nominal
F
H
J
K
L
M
a
Mechanical Data
路
路
路
路
路
路
路
路
路
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Terminal Connections: See Diagram
Ordering & Date Code Information: See Page 4
Marking (See Page 3): K27
Weight: 0.006 grams (approximate)
J
D
F
L
Note: E1, B1, and C1 = 2907A Type (PNP)
E2, B2, and C2 = 2222A Type (NPN)
Type marking indicates orientation.
C
2
B
1
E
1
All Dimensions in mm
E
2
B
2
C
1
Maximum Ratings, Total Device
Characteristic
Total Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient (Note 1)
Operating and Storage and Temperature Range
@ T
A
= 25掳C unless otherwise specified
Symbol
P
d
R
qJA
T
j
, T
STG
Value
200
625
-55 to +150
Unit
mW
掳C/W
掳C
Maximum Ratings, 2222A Type (NPN)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
@ T
A
= 25掳C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
NPN2222A
75
40
6.0
600
Unit
V
V
V
mA
Maximum Ratings, 2907A Type (PNP)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
Note:
@ T
A
= 25掳C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
PNP2907A
-60
-60
-5.0
-600
Unit
V
V
V
mA
1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout
document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead.
DS30122 Rev. 8 - 2
1 of 4
www.diodes.com
