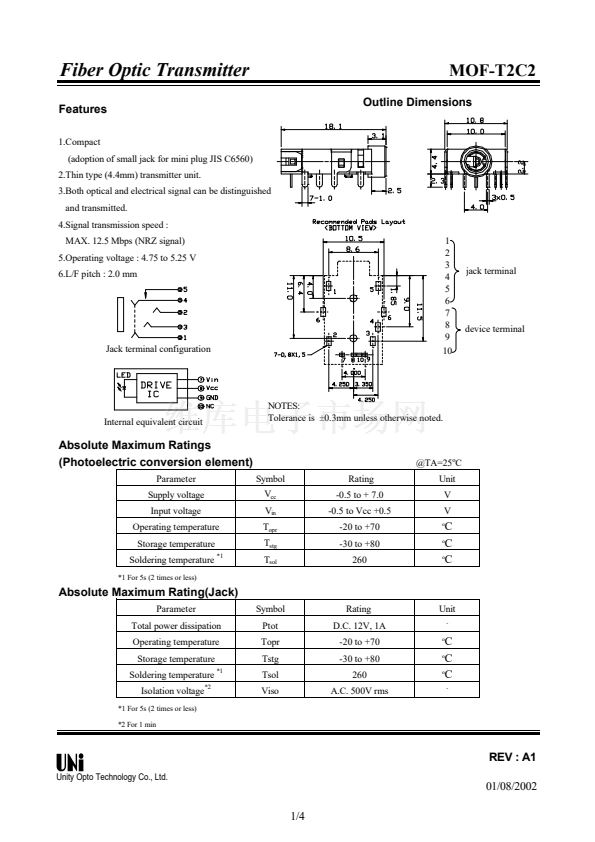

Fiber Optic Transmitter
Features
1.Compact
(adoption of small jack for mini plug JIS C6560)
2.Thin type (4.4mm) transmitter unit.
3.Both optical and electrical signal can be distinguished
and transmitted.
4.Signal transmission speed :
MAX. 12.5 Mbps (NRZ signal)
5.Operating voltage : 4.75 to 5.25 V
6.L/F pitch : 2.0 mm
MOF-T2C2

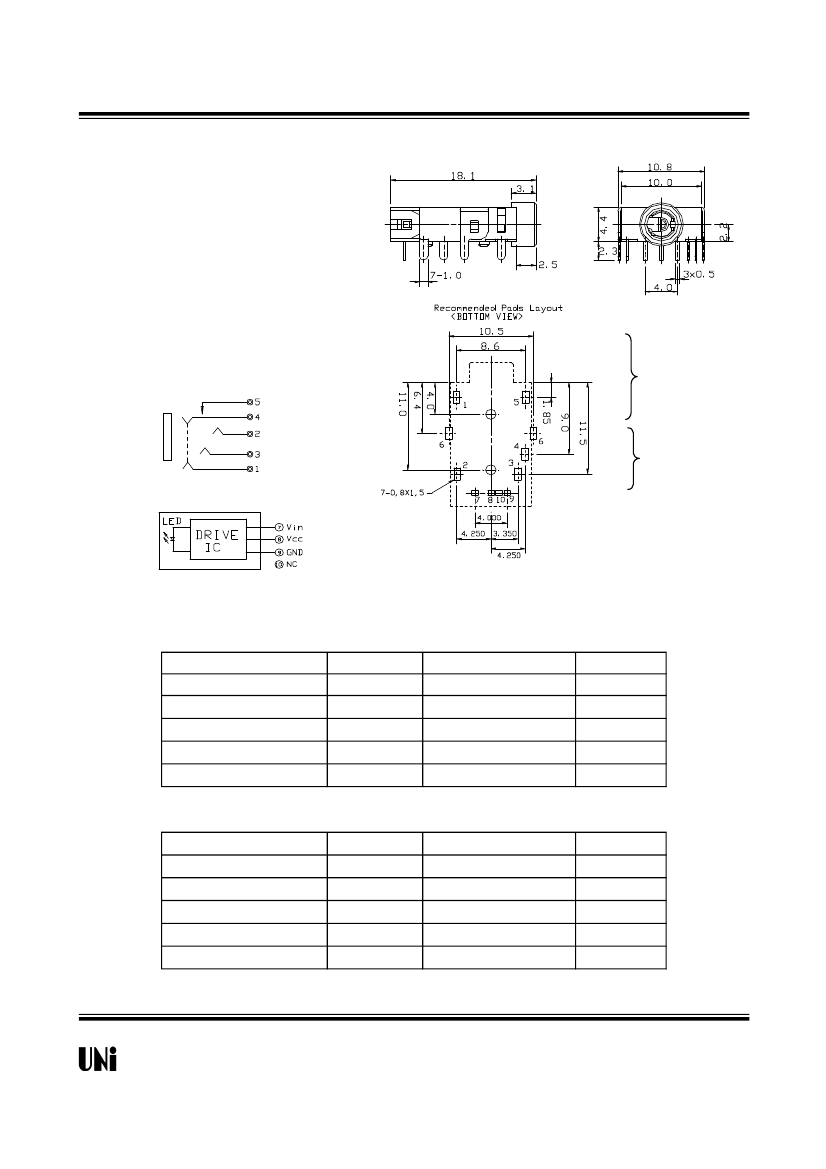

Outline Dimensions
Jack terminal configuration
1
2
3
4
5
6
7
8
9
10
jack terminal
device terminal
Internal equivalent circuit
NOTES:
Tolerance is 卤0.3mm unless otherwise noted.
Absolute Maximum Ratings
(Photoelectric conversion element)
Parameter
Supply voltage
Input voltage
Operating temperature
Storage temperature
Soldering temperature
*1
*1 For 5s (2 times or less)
@TA=25 C
Symbol
V
cc
V
in
T
opr
T
stg
T
sol
Rating
-0.5 to + 7.0
-0.5 to Vcc +0.5
-20 to +70
-30 to +80
260
Unit
V
V
o
C
o
C
o
C
o
Absolute Maximum Rating(Jack)
Parameter
Total power dissipation
Operating temperature
Storage temperature
Soldering temperature
Isolation voltage
*1 For 5s (2 times or less)
*2 For 1 min
*2
*1
Symbol
Ptot
Topr
Tstg
Tsol
Viso
Rating
D.C. 12V, 1A
-20 to +70
-30 to +80
260
A.C. 500V rms
Unit
-
C
o
C
o
C
o
-
REV : A1
Unity Opto Technology Co., Ltd.
01/08/2002
1/4
