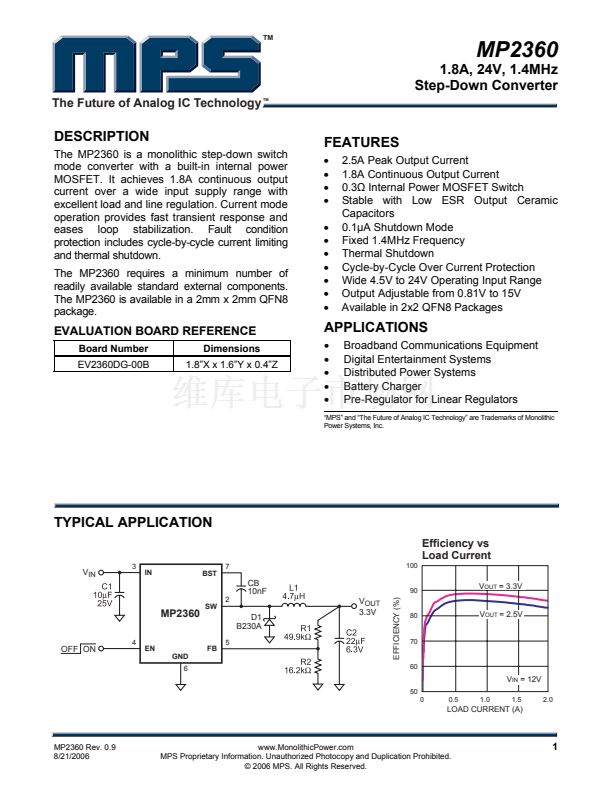

MP2360

1.8A, 24V, 1.4MHz

Step-Down Converter

The Future of Analog IC Technology

TM

DESCRIPTION

The MP2360 is a monolithic step-down switch

mode converter with a built-in internal power

MOSFET. It achieves 1.8A continuous output

current over a wide input supply range with

excellent load and line regulation. Current mode

operation provides fast transient response and

eases loop stabilization. Fault condition

protection includes cycle-by-cycle current limiting

and thermal shutdown.

The MP2360 requires a minimum number of

readily available standard external components.

The MP2360 is available in a 2mm x 2mm QFN8

package.

FEATURES

鈥?/div>

2.5A Peak Output Current

1.8A Continuous Output Current

0.3鈩?Internal Power MOSFET Switch

Stable with Low ESR Output Ceramic

Capacitors

0.1碌A Shutdown Mode

Fixed 1.4MHz Frequency

Thermal Shutdown

Cycle-by-Cycle Over Current Protection

Wide 4.5V to 24V Operating Input Range

Output Adjustable from 0.81V to 15V

Available in 2x2 QFN8 Packages

Broadband Communications Equipment

Digital Entertainment Systems

Distributed Power Systems

Battery Charger

Pre-Regulator for Linear Regulators

EVALUATION BOARD REFERENCE

Board Number

EV2360DG-00B

Dimensions

1.8鈥漍 x 1.6鈥漎 x 0.4鈥漐

APPLICATIONS

鈥淢PS鈥?and 鈥淭he Future of Analog IC Technology鈥?are Trademarks of Monolithic

Power Systems, Inc.

TYPICAL APPLICATION

Efficiency vs

Load Current

V

IN

3

IN

BST

7

100

MP2360

OFF ON

4

EN

SW

EFFICIENCY (%)

2

CB

10nF

D1

B230A

V

OUT

3.3V

90

80

70

60

V

OUT

= 3.3V

V

OUT

= 2.5V

GND

6

FB

5

V

IN

= 12V

50

0

0.5

1.0

1.5

2.0

LOAD CURRENT (A)

MP2360 Rev. 0.9

8/21/2006

www.MonolithicPower.com

MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.

1
