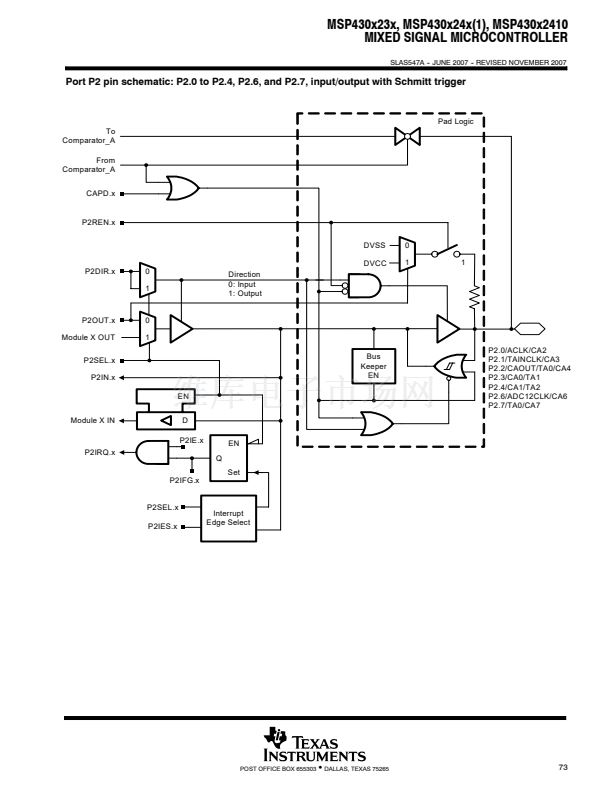

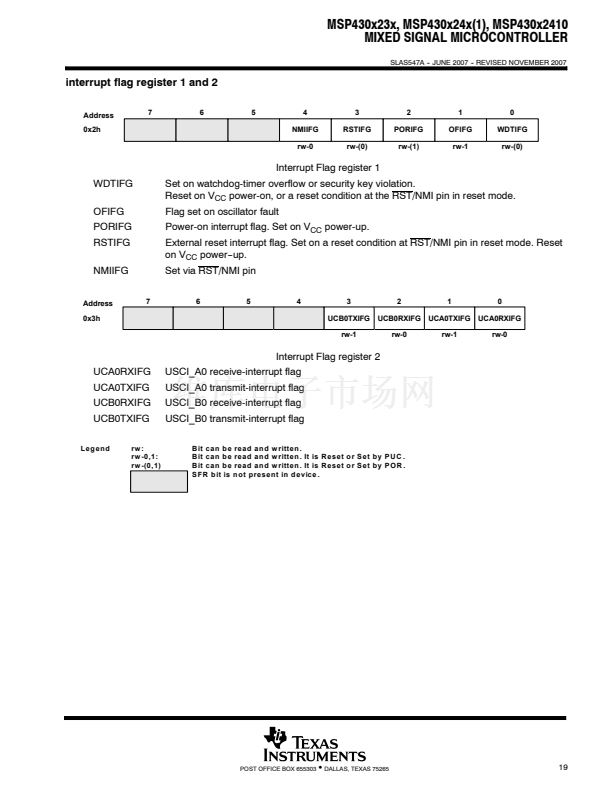

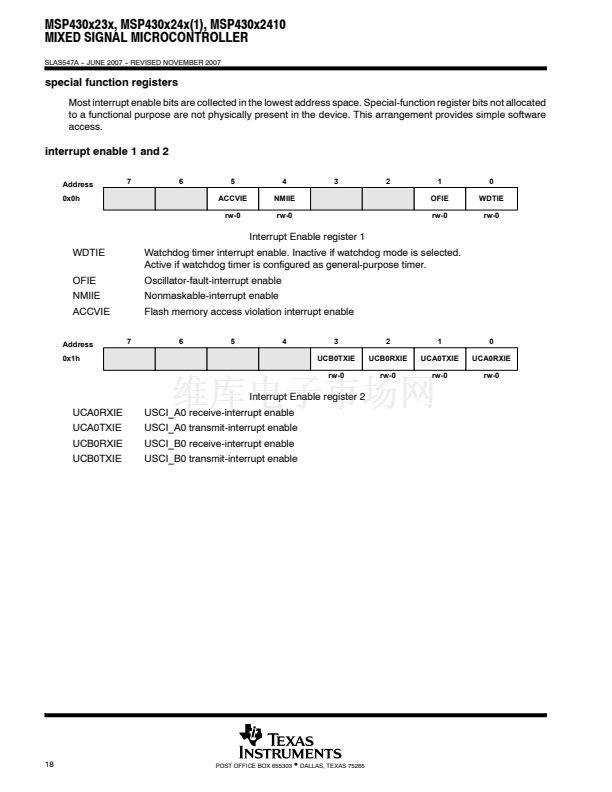

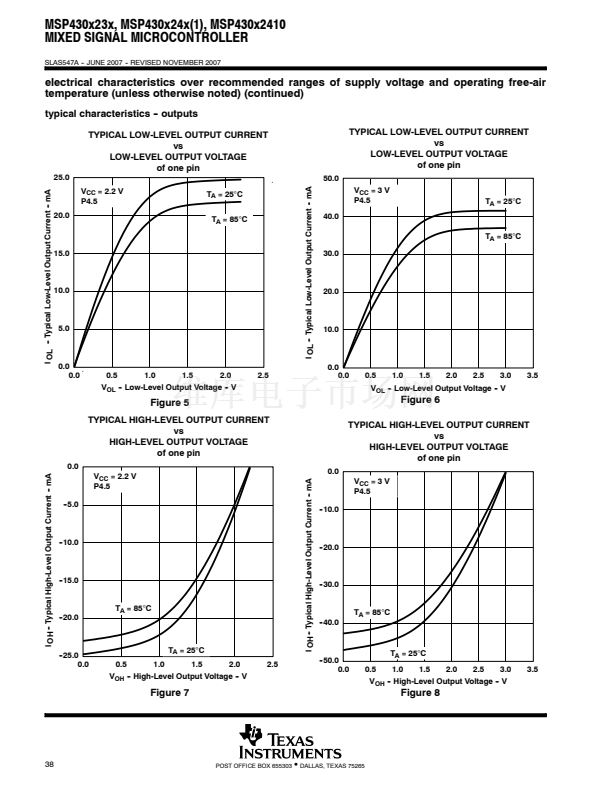

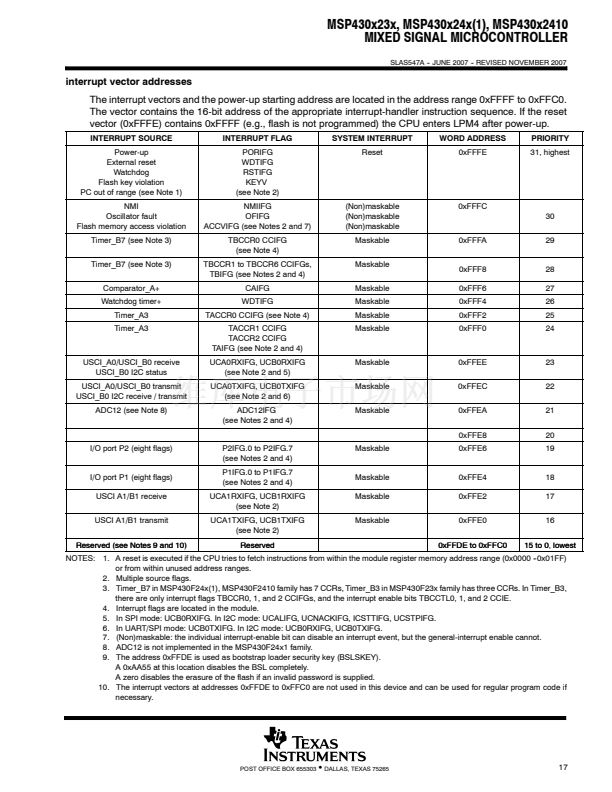

MSP430x23x, MSP430x24x(1), MSP430x2410
MIXED SIGNAL MICROCONTROLLER
SLAS547A -- JUNE 2007 -- REVISED NOVEMBER 2007
D

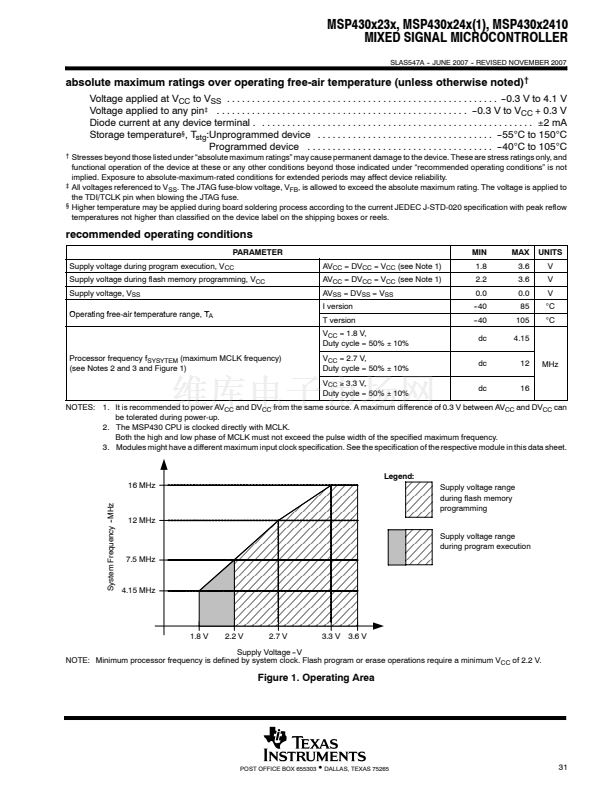

Low Supply-Voltage Range, 1.8 V to 3.6 V
D
Ultra-Low Power Consumption:
D
D
D
D
D
D
D
- Active Mode: 270
渭A
at 1 MHz, 2.2 V
-
- Standby Mode (VLO): 0.3
渭A
-
- Off Mode (RAM Retention): 0.1
渭A
-
Ultra-Fast Wake-Up From Standby Mode in
Less Than 1
渭s

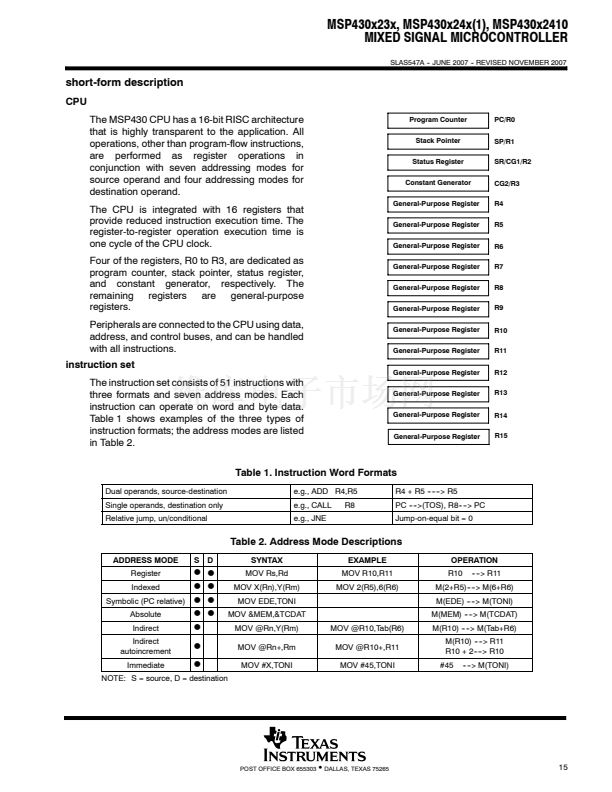

16-Bit RISC Architecture, 62.5-ns
Instruction Cycle Time
Basic Clock Module Configurations:
- Internal Frequencies up to 16 MHz
-
- Internal Very Low Power LF Oscillator
-

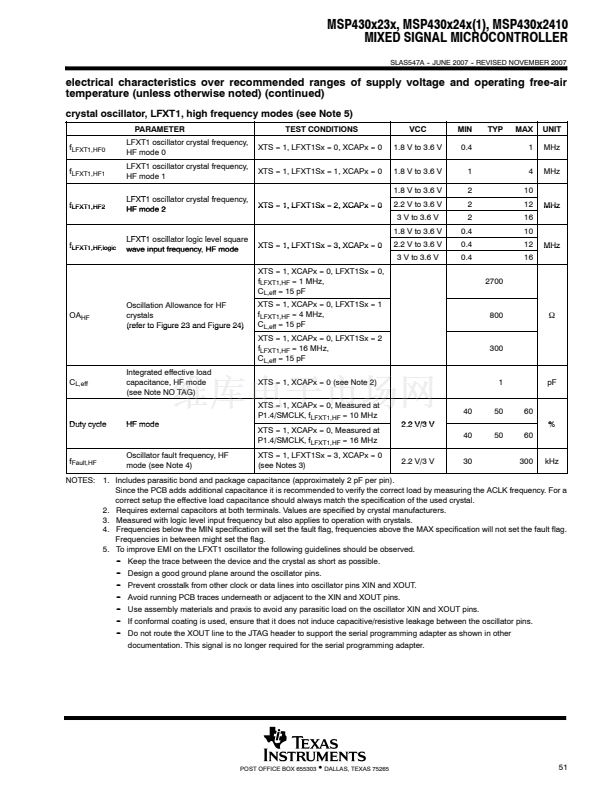

- 32-kHz Crystal
-

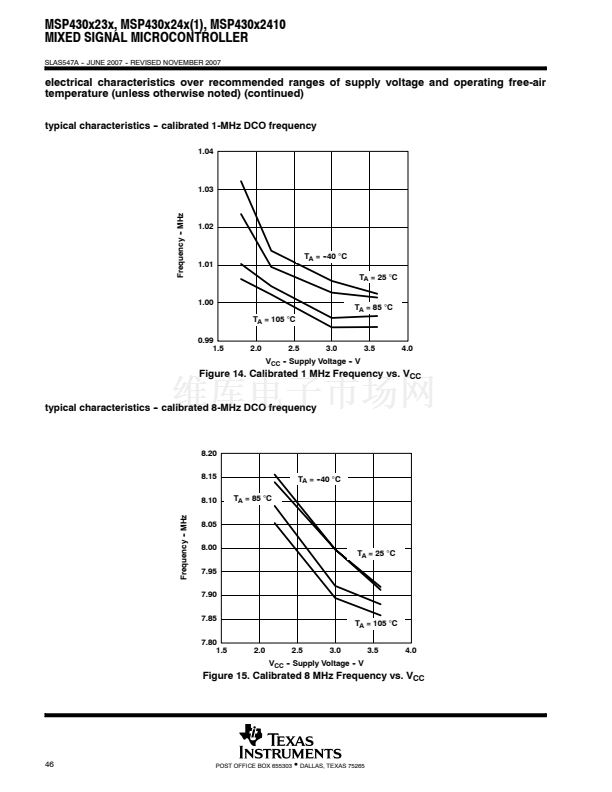

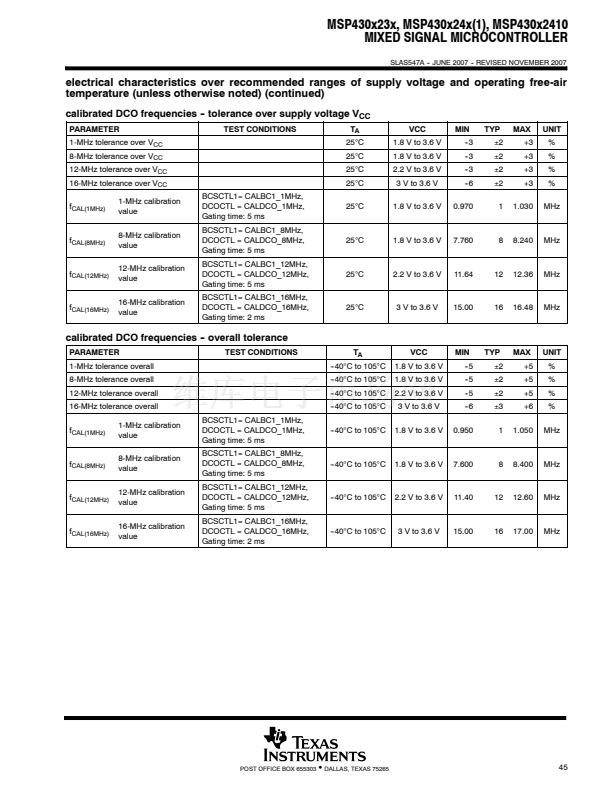

- Internal Frequencies up to 16 MHz With
-
Four Calibrated Frequencies to
卤1%
- Resonator
-
- External Digital Clock Source
-
- External Resistor
-

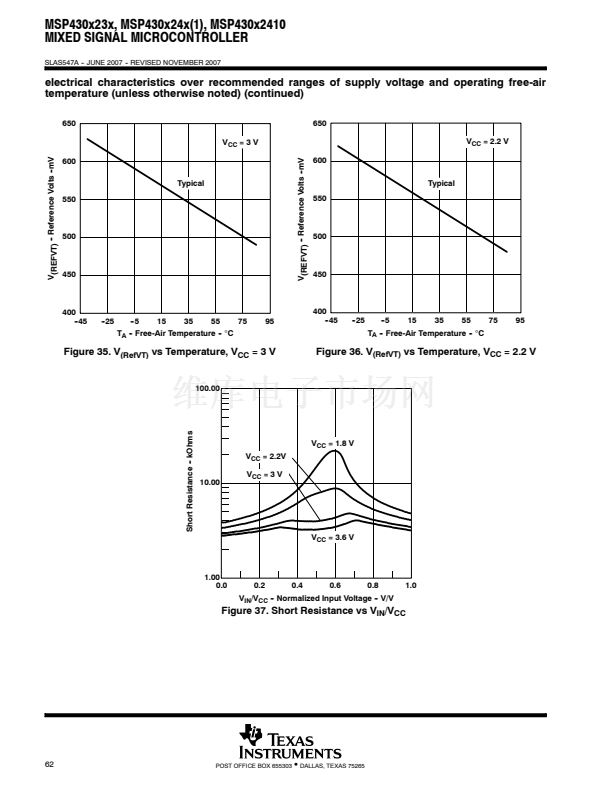

12-Bit Analog-to-Digital (A/D) Converter
With Internal Reference, Sample-and-Hold,
and Autoscan Feature

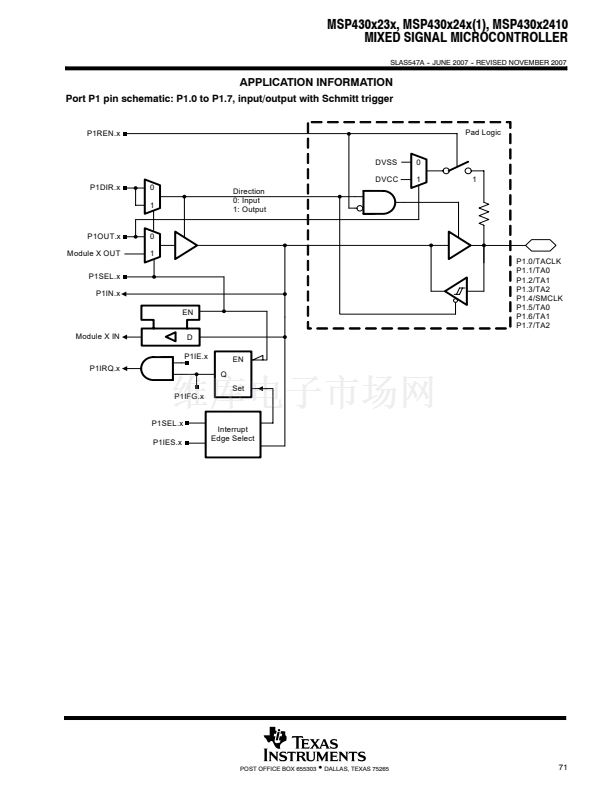

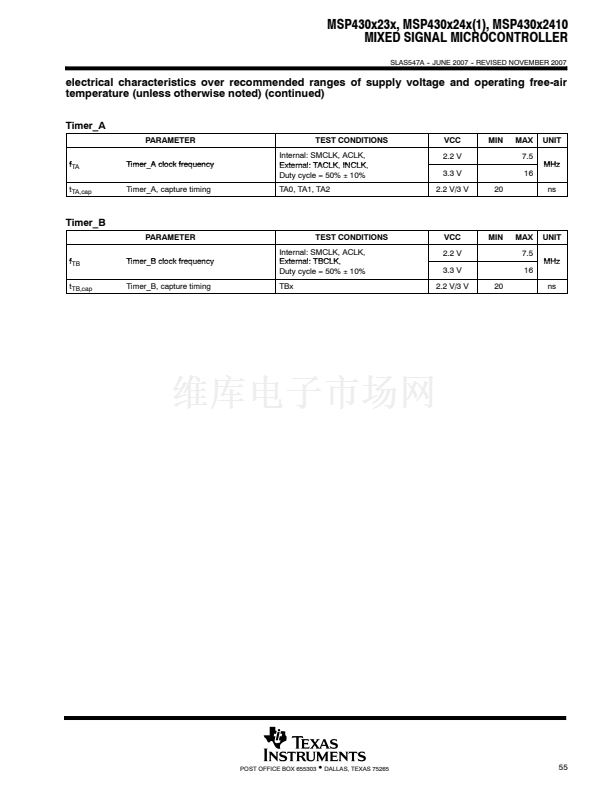

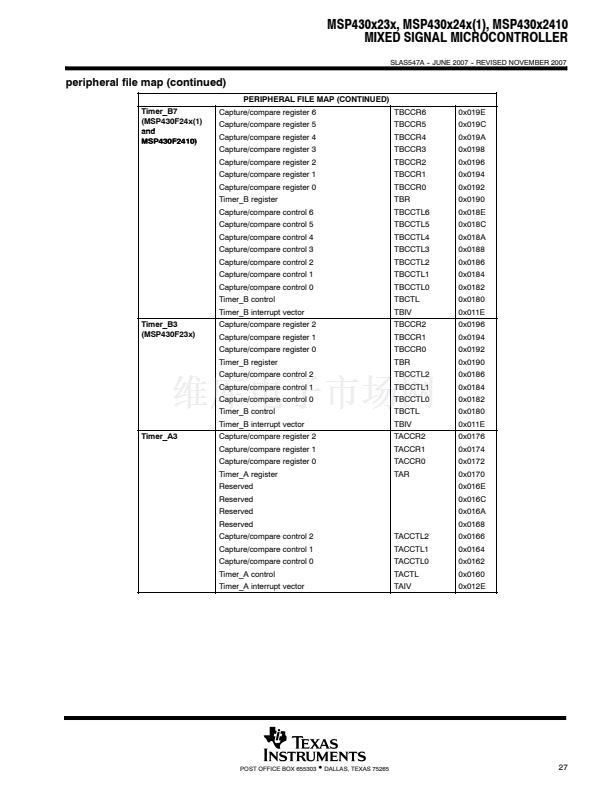

16-Bit Timer_A With Three
Capture/Compare Registers

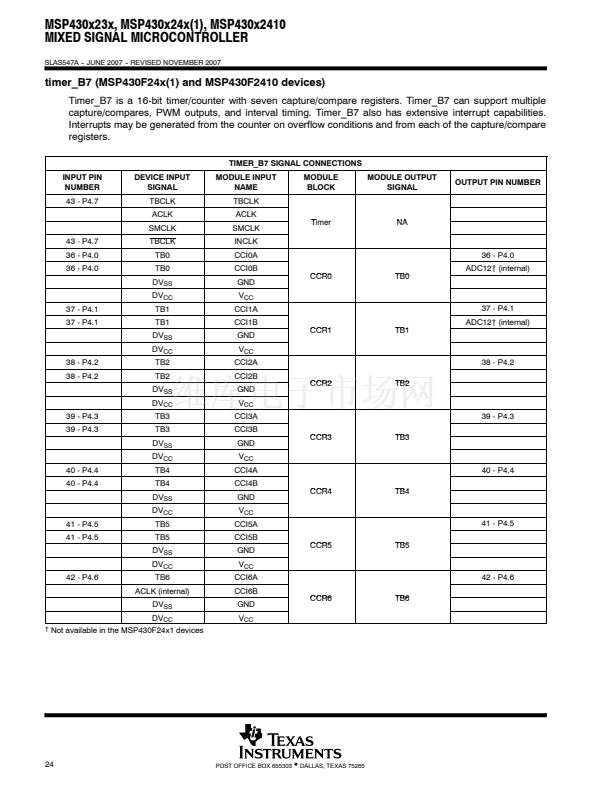

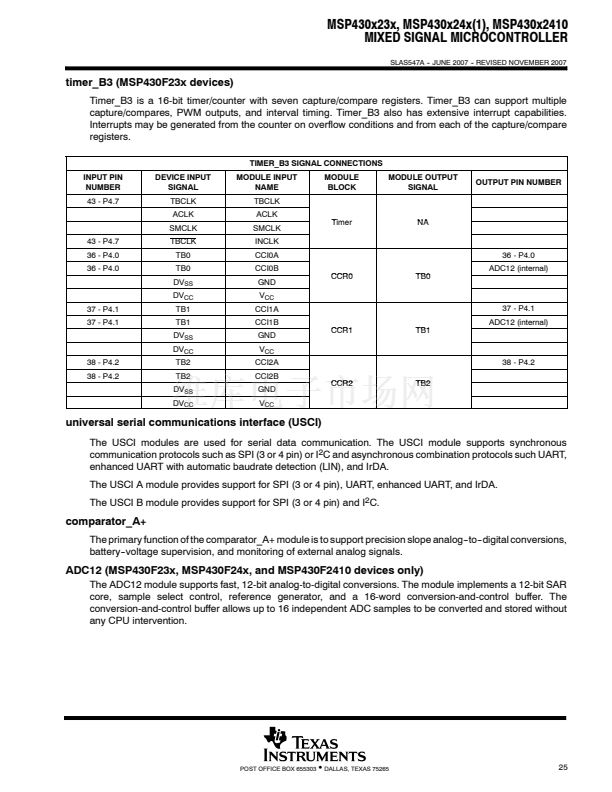

16-Bit Timer_B With Seven
Capture/Compare-With-Shadow Registers

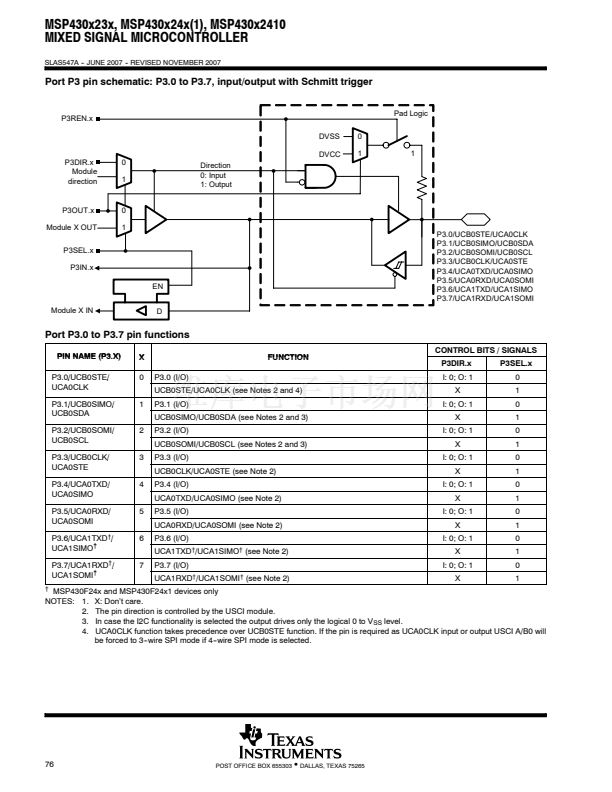

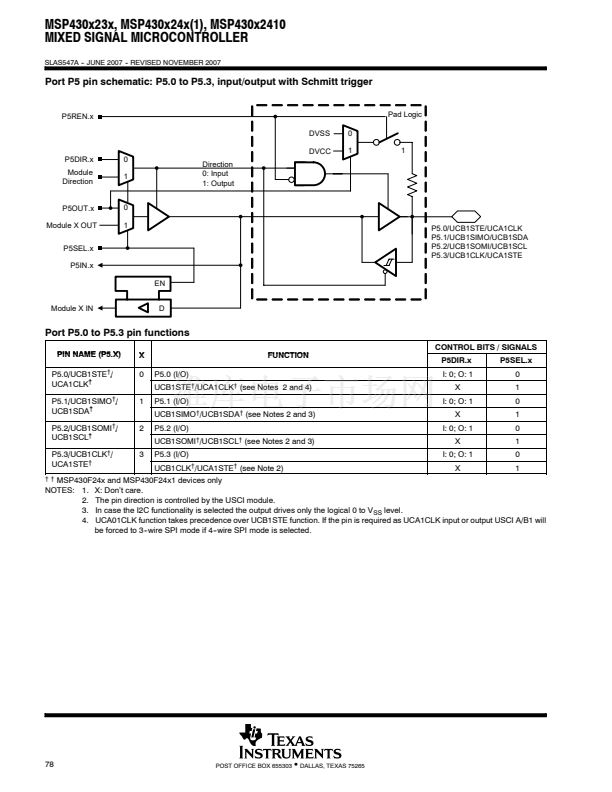

Four Universal Serial Communication
Interfaces (USCI)
- USCI_A0 and USCI_A1
-
- Enhanced UART Supporting
-
Auto-Baudrate Detection
- IrDA Encoder and Decoder
-

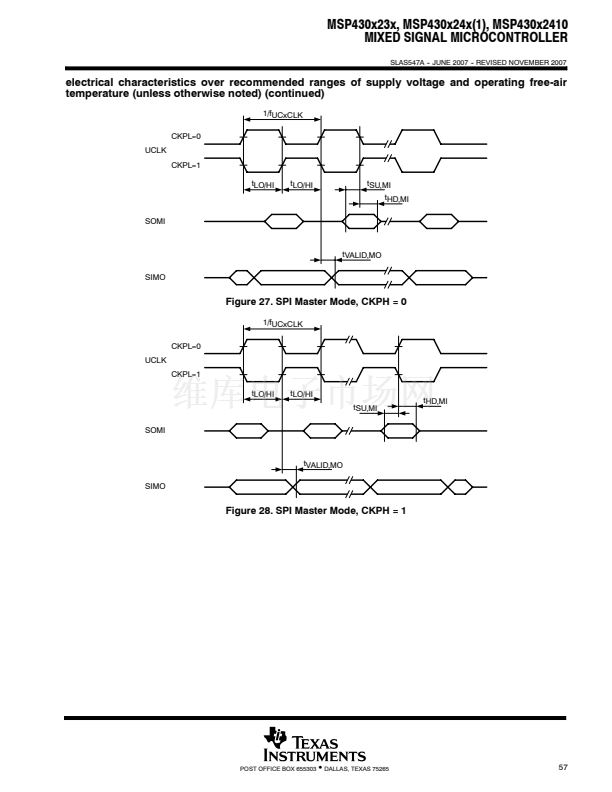

- Synchronous SPI
-
- USCI_B0 and USCI_B1
-
- I
2
Ct
-
- Synchronous SPI
-
D

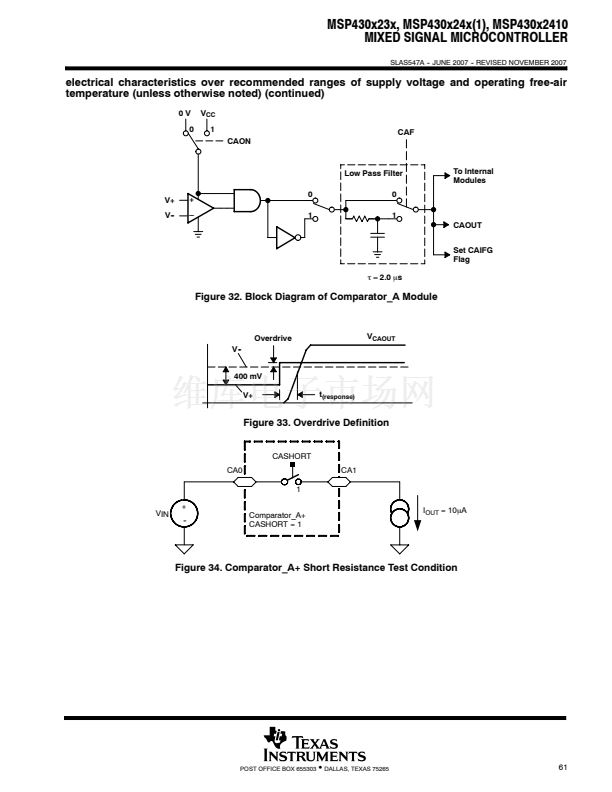

On-Chip Comparator
D
Supply Voltage Supervisor/Monitor With
D
D
D
D
D
D
鈥?/div>
Programmable Level Detection

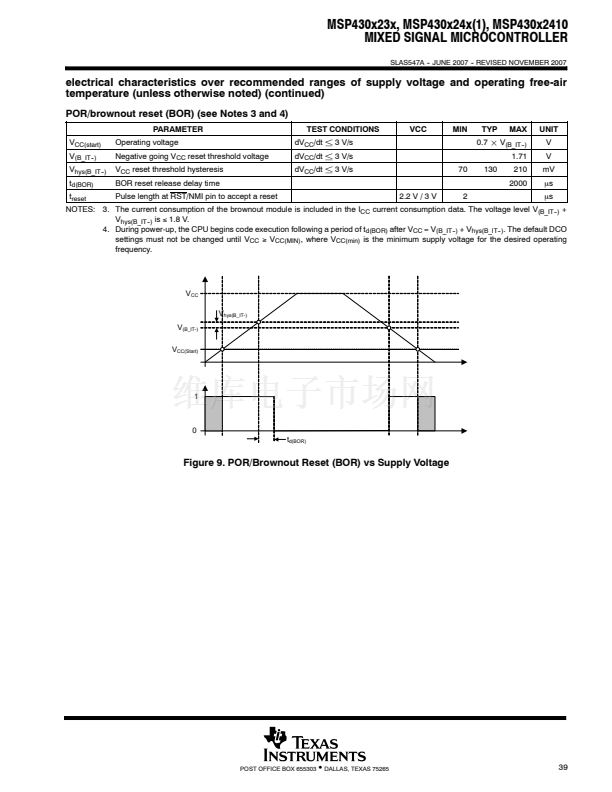

Brownout Detector
Bootstrap Loader
Serial Onboard Programming,
No External Programming Voltage Needed,
Programmable Code Protection by Security
Fuse

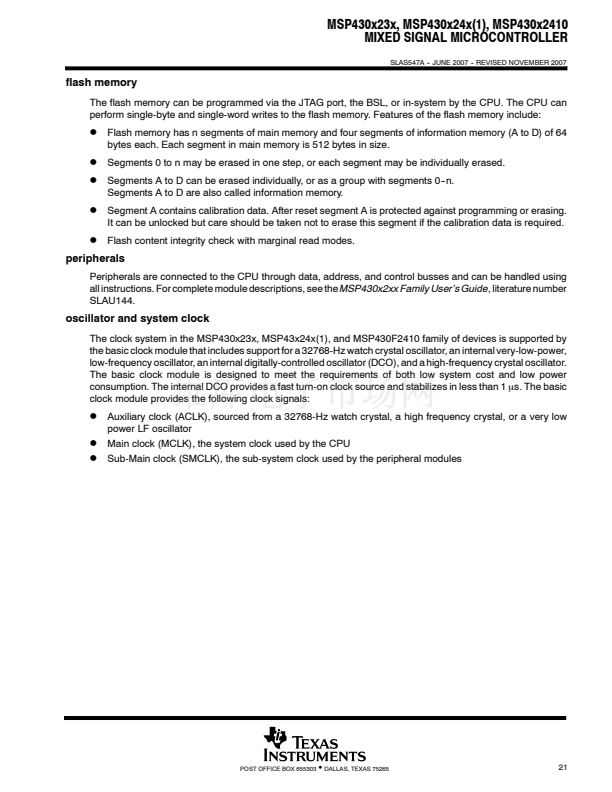

Family Members Include:
- MSP430F233
-
8KB+256B Flash Memory, 1KB RAM
- MSP430F235
-
16KB+256B Flash Memory, 2KB RAM
- MSP430F247, MSP430F2471
鈥?/div>
-
32KB+256B Flash Memory, 4KB RAM
- MSP430F248, MSP430F2481
鈥?/div>
-
48KB+256B Flash Memory, 4KB RAM
- MSP430F249, MSP430F2491
鈥?/div>
-
60KB+256B Flash Memory, 2KB RAM
- MSP430F2410
-
56KB+256B Flash Memory, 4KB RAM

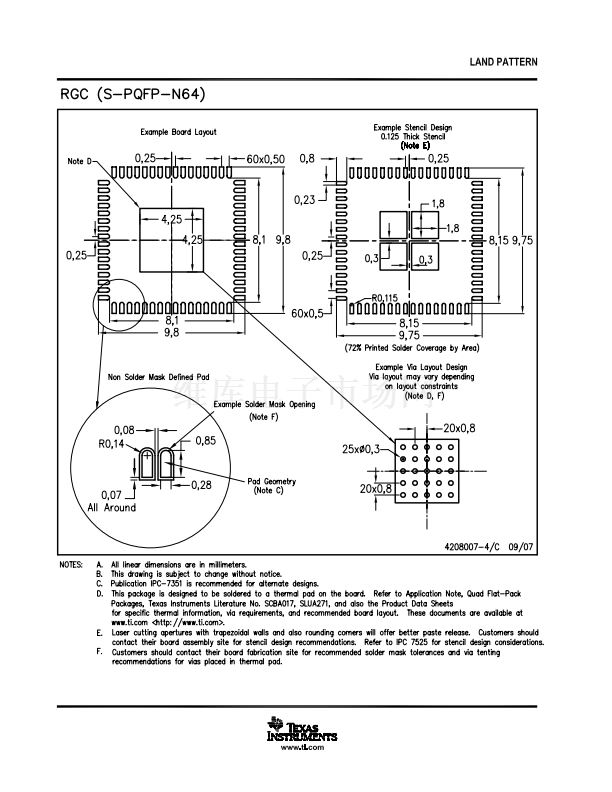

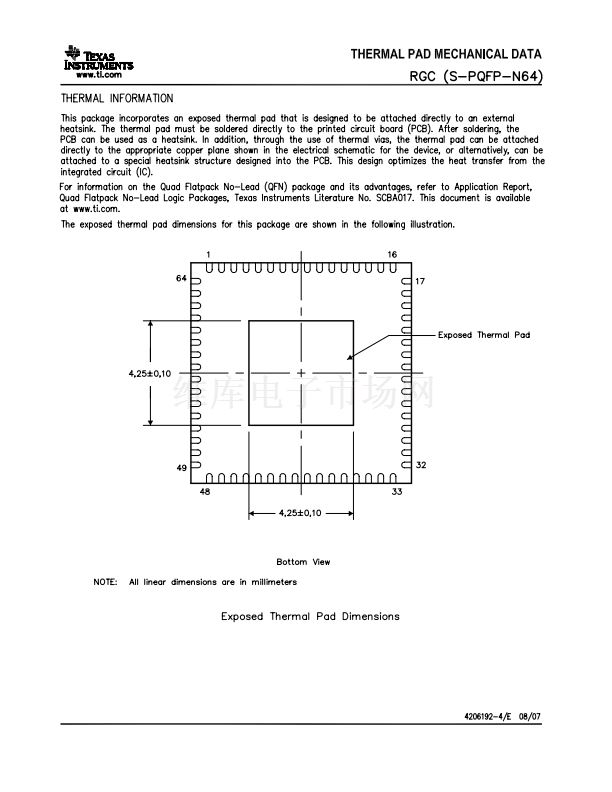

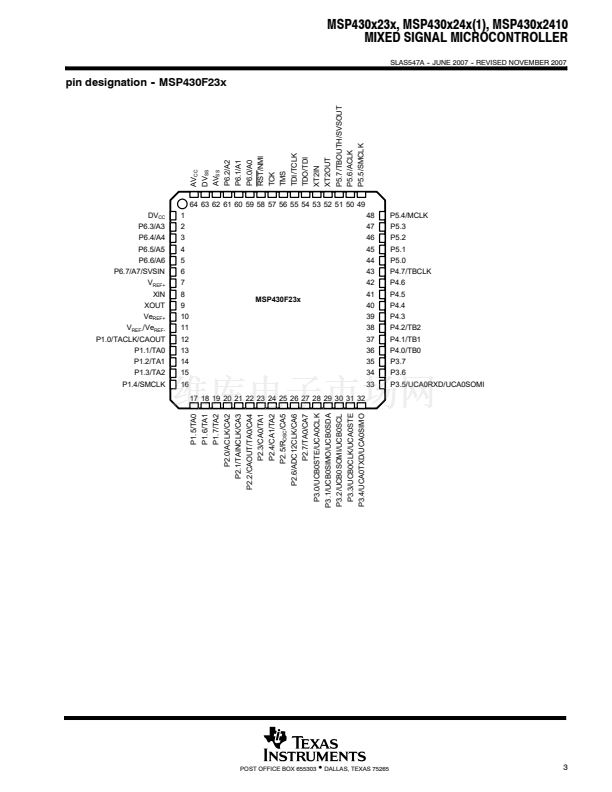

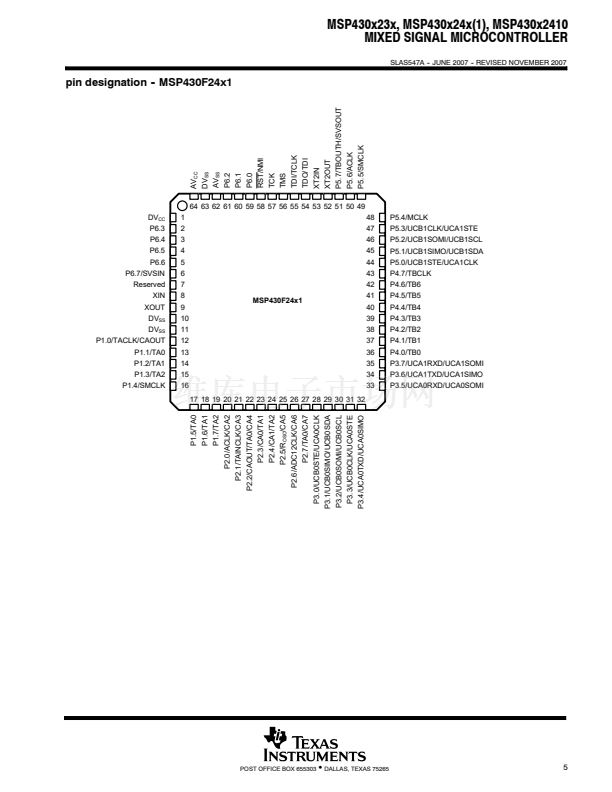

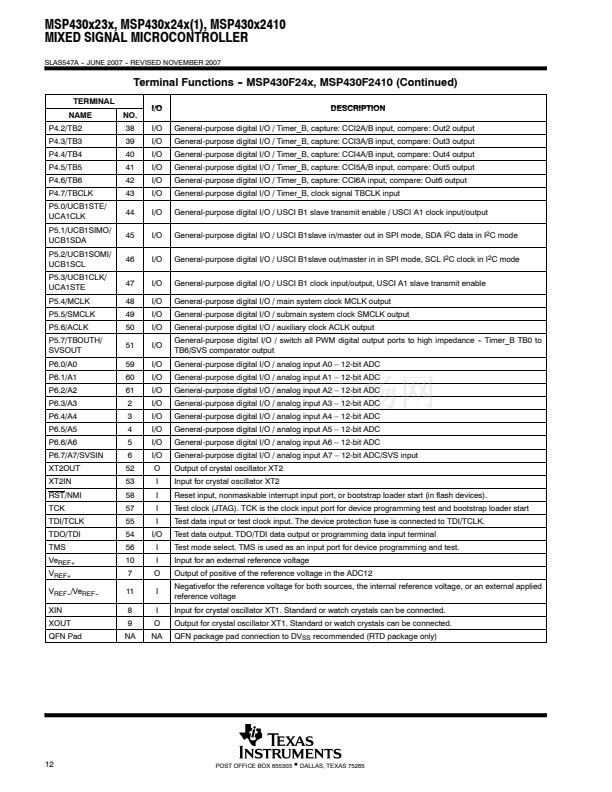

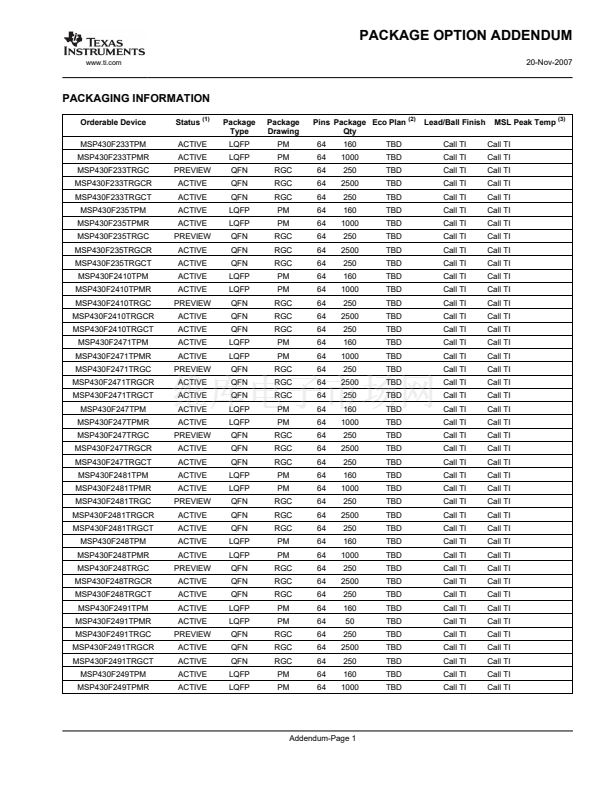

Available in 64-Pin QFP and 64-Pin QFN
Packages (See Available Options)
For Complete Module Descriptions, See
MSP430x2xx Family User鈥檚 Guide,
Literature Number SLAU144
The MSP430F24x1 devices are identical to the MSP430F24x
devices, with the exception that the ADC12 module is not
implemented.

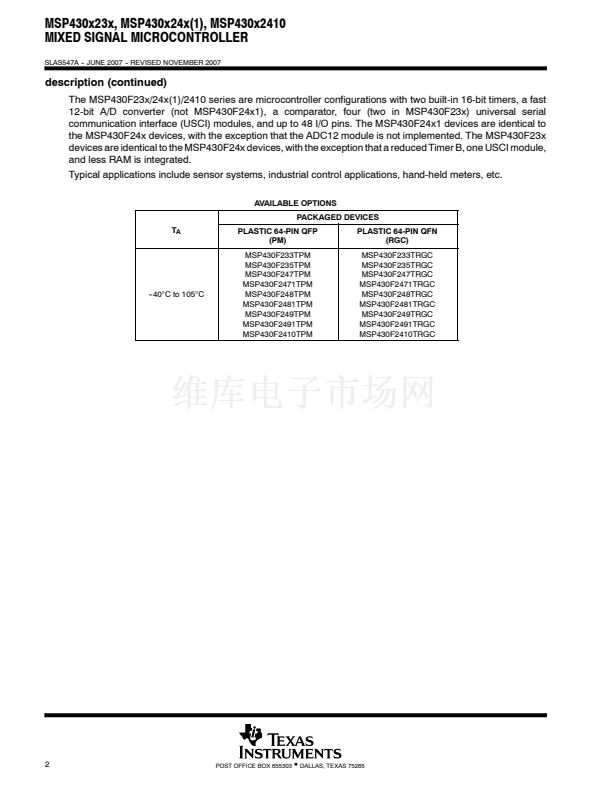

description
The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low-power
modes, is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active
mode in less than 1
渭s.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
I
2
C is a registered trademark of NXP Semiconductors.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
2007, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
