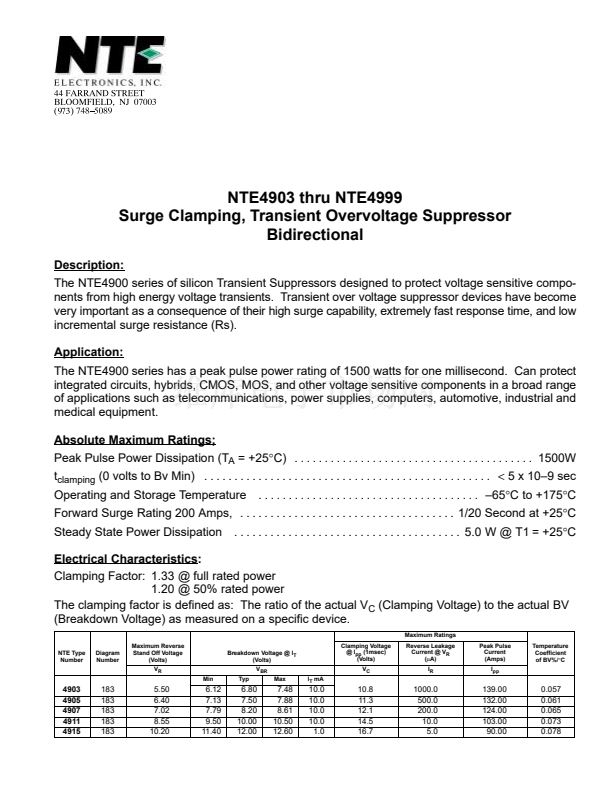

NTE4903 thru NTE4999
Surge Clamping, Transient Overvoltage Suppressor
Bidirectional
Description:
The NTE4900 series of silicon Transient Suppressors designed to protect voltage sensitive compo-
nents from high energy voltage transients. Transient over voltage suppressor devices have become
very important as a consequence of their high surge capability, extremely fast response time, and low
incremental surge resistance (Rs).
Application:
The NTE4900 series has a peak pulse power rating of 1500 watts for one millisecond. Can protect
integrated circuits, hybrids, CMOS, MOS, and other voltage sensitive components in a broad range
of applications such as telecommunications, power supplies, computers, automotive, industrial and
medical equipment.
Absolute Maximum Ratings;
Peak Pulse Power Dissipation (T
A
= +25掳C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500W
t
clamping
(0 volts to Bv Min) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
<
5 x 10鈥? sec
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5掳C to +175掳C
Forward Surge Rating 200 Amps, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/20 Second at +25掳C
Steady State Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 W @ T1 = +25掳C

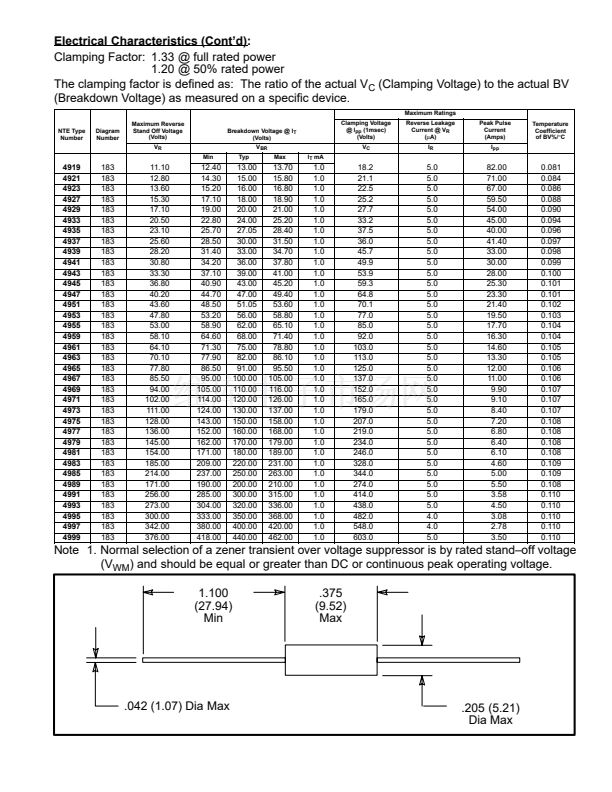

Electrical Characteristics:
Clamping Factor: 1.33 @ full rated power
1.20 @ 50% rated power
The clamping factor is defined as: The ratio of the actual V
C
(Clamping Voltage) to the actual BV
(Breakdown Voltage) as measured on a specific device.
Maximum Ratings
NTE Type
Number
Diagram
Number
Maximum Reverse
Stand Off Voltage
(Volts)
V
R
Min
Typ
Breakdown Voltage @ I
T
(Volts)
V
BR
Max
I
T
mA
Clamping Voltage
@ I
pp
(1msec)
(Volts)
V
C
Reverse Leakage
Current @ V
R
(碌A)
I
R
Peak Pulse
Current
(Amps)
I
pp
Temperature
Coefficient
of BV%/掳C
4903
4905
4907
4911
4915
183
183
183
183
183
5.50
6.40
7.02
8.55
10.20
6.12
7.13
7.79
9.50
11.40
6.80
7.50
8.20
10.00
12.00
7.48
7.88
8.61
10.50
12.60
10.0
10.0
10.0
10.0
1.0
10.8
11.3
12.1
14.5
16.7
1000.0
500.0
200.0
10.0
5.0
139.00
132.00
124.00
103.00
90.00
0.057
0.061
0.065
0.073
0.078
1
2
