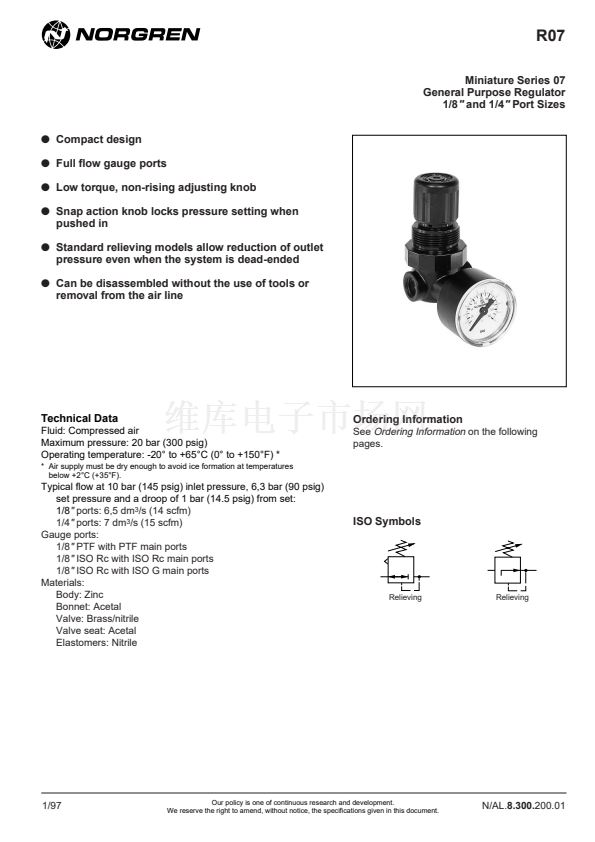

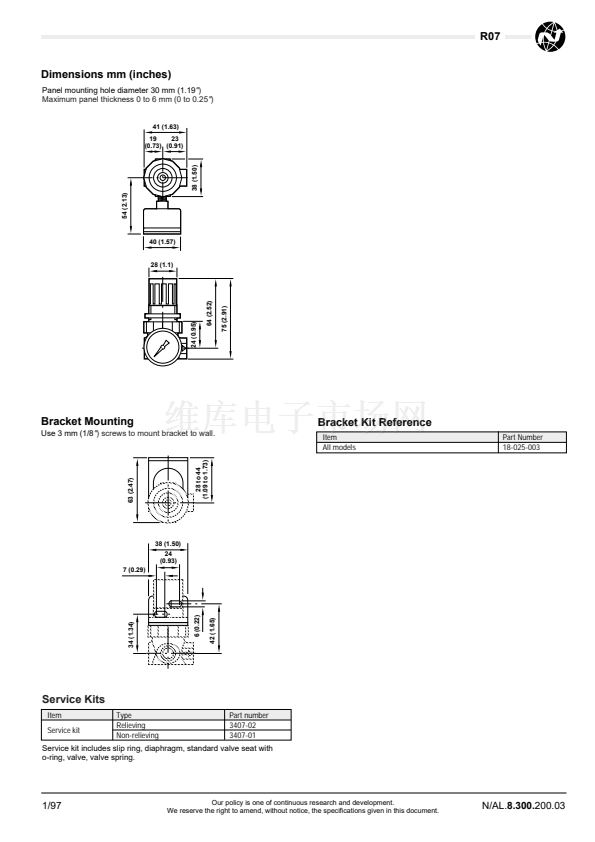

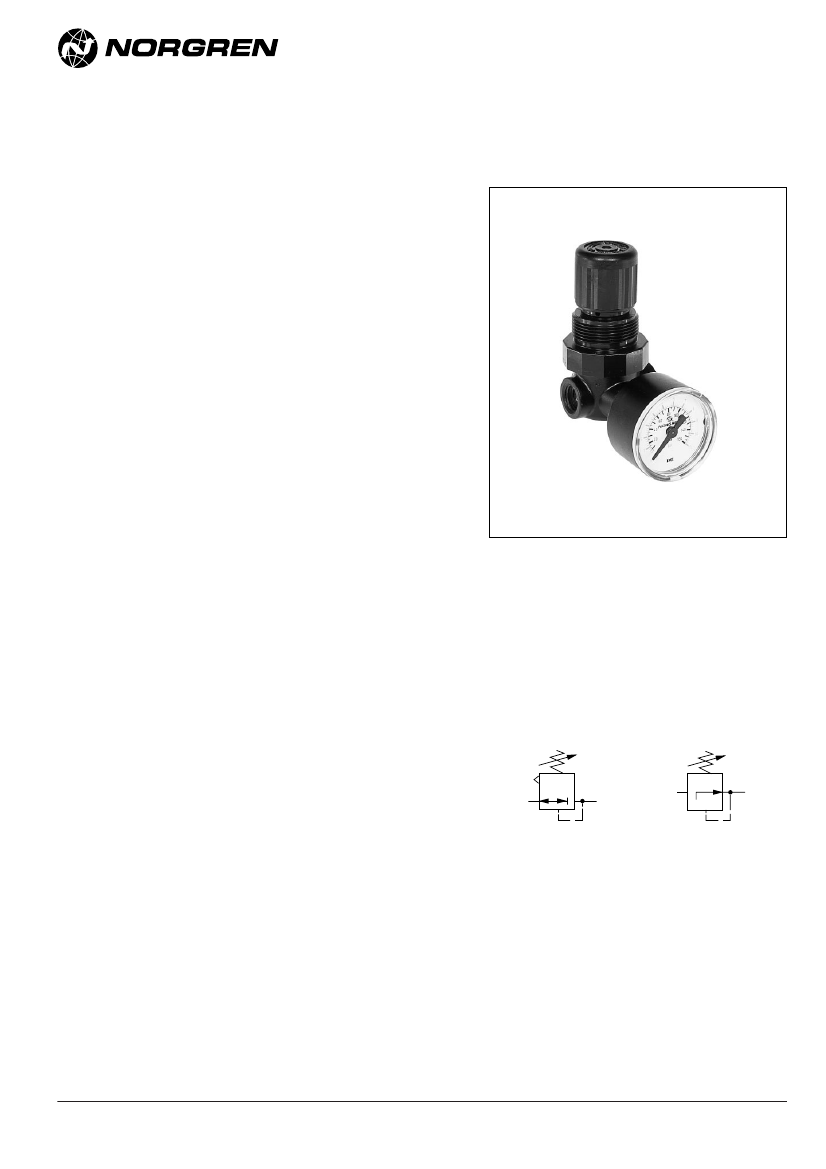

R07
Miniature Series 07
General Purpose Regulator
1/8" and 1/4" Port Sizes
q
Compact design
q
Full flow gauge ports
q
Low torque, non-rising adjusting knob
q
Snap action knob locks pressure setting when
pushed in
q
Standard relieving models allow reduction of outlet
pressure even when the system is dead-ended
q
Can be disassembled without the use of tools or
removal from the air line
Technical Data
Fluid: Compressed air
Maximum pressure: 20 bar (300 psig)
Operating temperature: -20掳 to +65掳C (0掳 to +150掳F) *
* Air supply must be dry enough to avoid ice formation at temperatures
below +2掳C (+35掳F).
Ordering Information
See

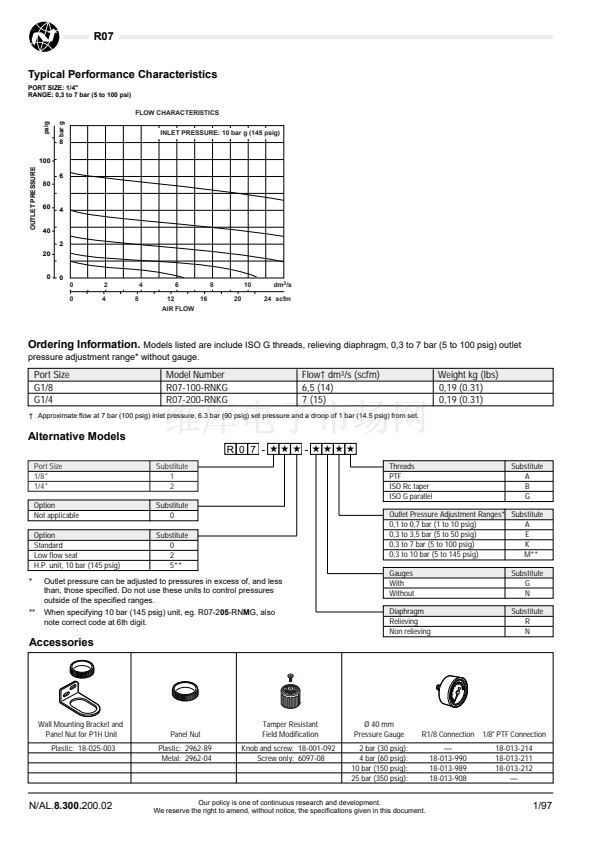

Ordering Information
on the following
pages.
Typical flow at 10 bar (145 psig) inlet pressure, 6,3 bar (90 psig)
set pressure and a droop of 1 bar (14.5 psig) from set:
1/8"
ports: 6,5 dm
3
/s (14 scfm)
1/4" ports: 7 dm
3
/s (15 scfm)
Gauge ports:
1/8" PTF with PTF main ports
1/8" ISO Rc with ISO Rc main ports
1/8" ISO Rc with ISO G main ports
Materials:
Body: Zinc
Bonnet: Acetal
Valve: Brass/nitrile
Valve seat: Acetal
Elastomers: Nitrile
ISO Symbols
Relieving
Relieving
1/97
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
N/AL.8.300.200.01
