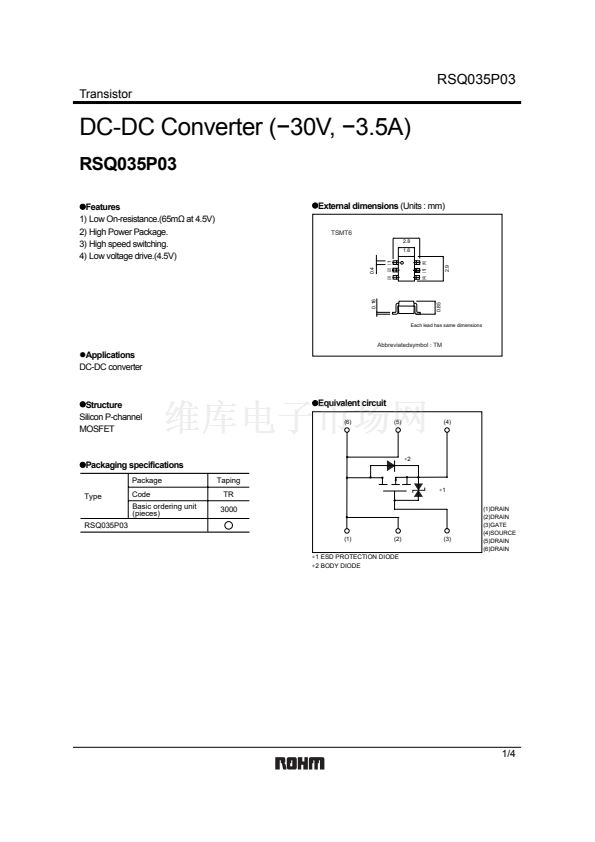

RSQ035P03

Transistor

DC-DC Converter (鈭?0V,

鈭?.5A)

RSQ035P03

Features

1) Low On-resistance.(65m鈩?at 4.5V)

2) High Power Package.

3) High speed switching.

4) Low voltage drive.(4.5V)

External dimensions

(Units : mm)

TSMT6

2.8

1.6

(3) (2) (1)

(4) (5) (6)

0.16

0.4

Each lead has same dimensions

Abbreviatedsymbol : TM

Applications

DC-DC converter

Structure

Silicon P-channel

MOSFET

Equivalent circuit

(6)

(5)

(4)

Packaging specifications

Package

Type

Code

Basic ordering unit

(pieces)

RSQ035P03

(1)

(2)

鈭?

Taping

TR

3000

鈭?

(1)DRAIN

(2)DRAIN

(3)GATE

(4)SOURCE

(5)DRAIN

(6)DRAIN

0.85

(3)

鈭?

ESD PROTECTION DIODE

鈭?

BODY DIODE

2.9

1/4
