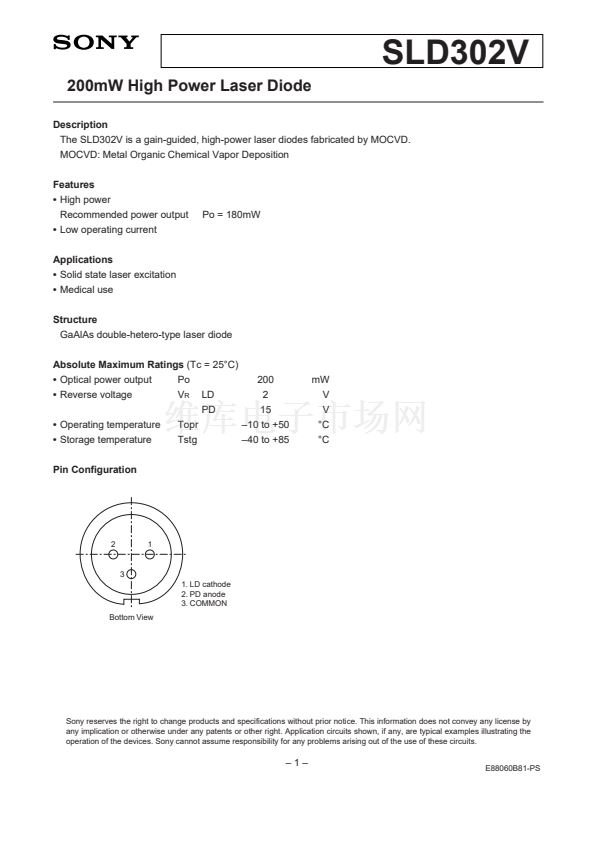

SLD302V
200mW High Power Laser Diode
Description
The SLD302V is a gain-guided, high-power laser diodes fabricated by MOCVD.
MOCVD: Metal Organic Chemical Vapor Deposition
Features
鈥?/div>
High power
Recommended power output
鈥?/div>
Low operating current
Applications
鈥?/div>
Solid state laser excitation
鈥?/div>
Medical use
Structure
GaAlAs double-hetero-type laser diode
Absolute Maximum Ratings
(Tc = 25掳C)
鈥?/div>
Optical power output
Po
200
鈥?/div>
Reverse voltage
V
R
LD
2
PD
15
鈥?/div>
Operating temperature
Topr
鈥?0 to +50
鈥?/div>
Storage temperature
Tstg
鈥?0 to +85
Pin Configuration
Po = 180mW
mW
V
V
掳C
掳C
2
1
3
1. LD cathode
2. PD anode
3. COMMON
Bottom View
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E88060B81-PS
