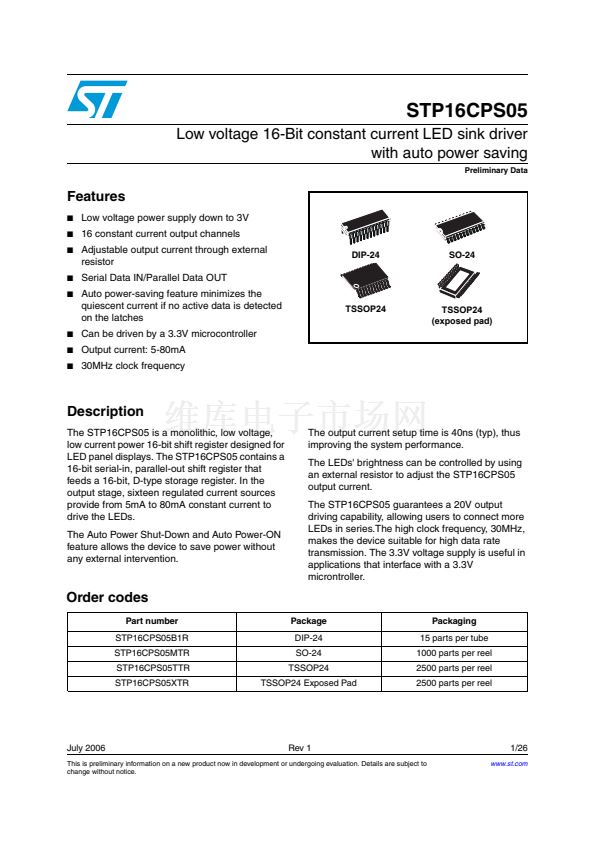

STP16CPS05
Low voltage 16-Bit constant current LED sink driver
with auto power saving
Preliminary Data
Features
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>

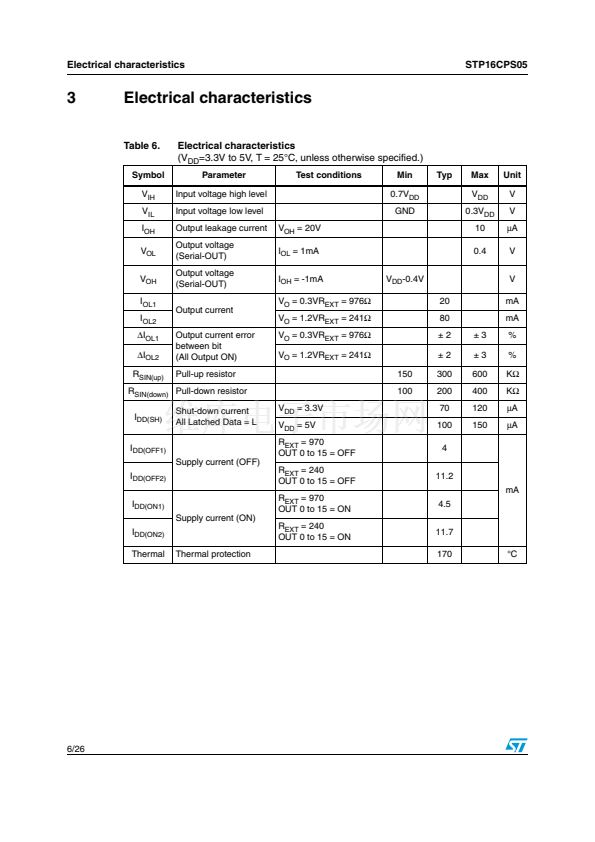

Low voltage power supply down to 3V
16 constant current output channels

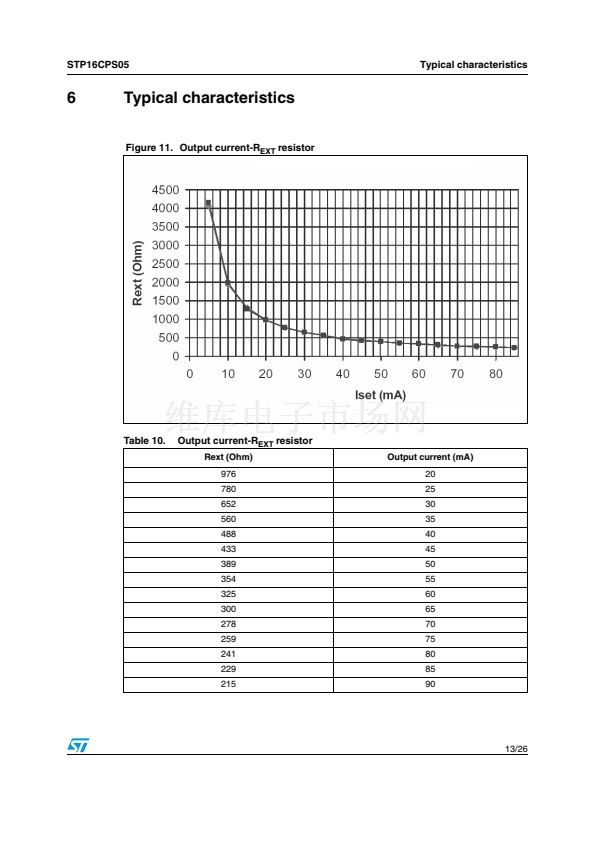

Adjustable output current through external
resistor
Serial Data IN/Parallel Data OUT
Auto power-saving feature minimizes the
quiescent current if no active data is detected
on the latches
Can be driven by a 3.3V microcontroller
Output current: 5-80mA
30MHz clock frequency

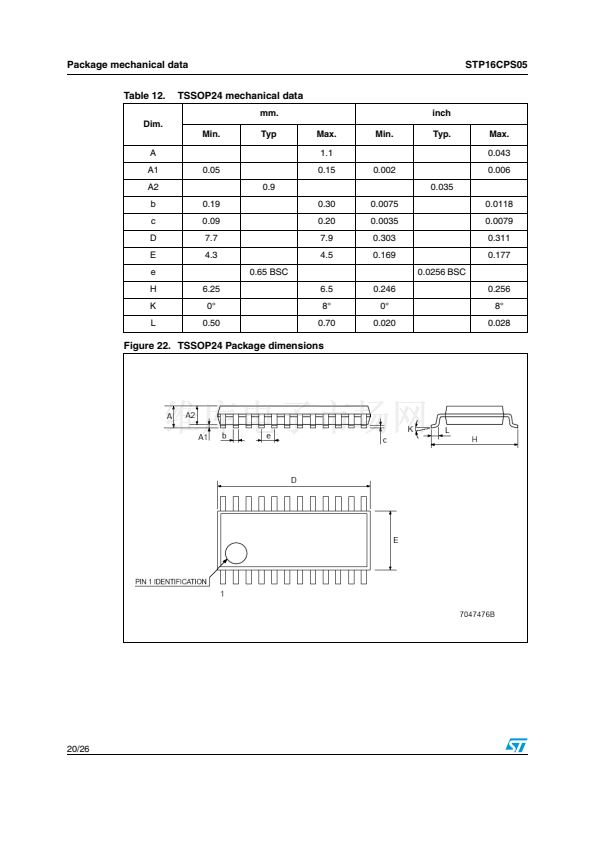

TSSOP24

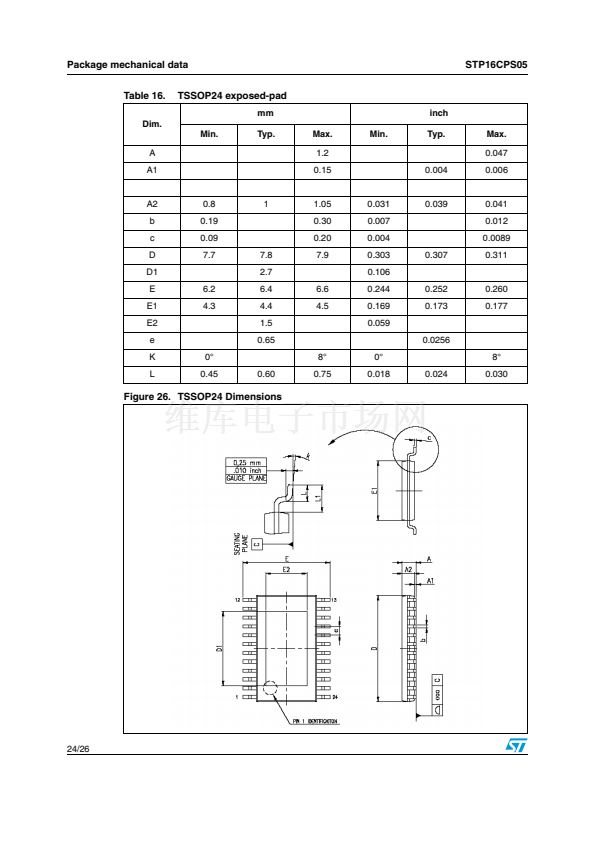

TSSOP24
(exposed pad)

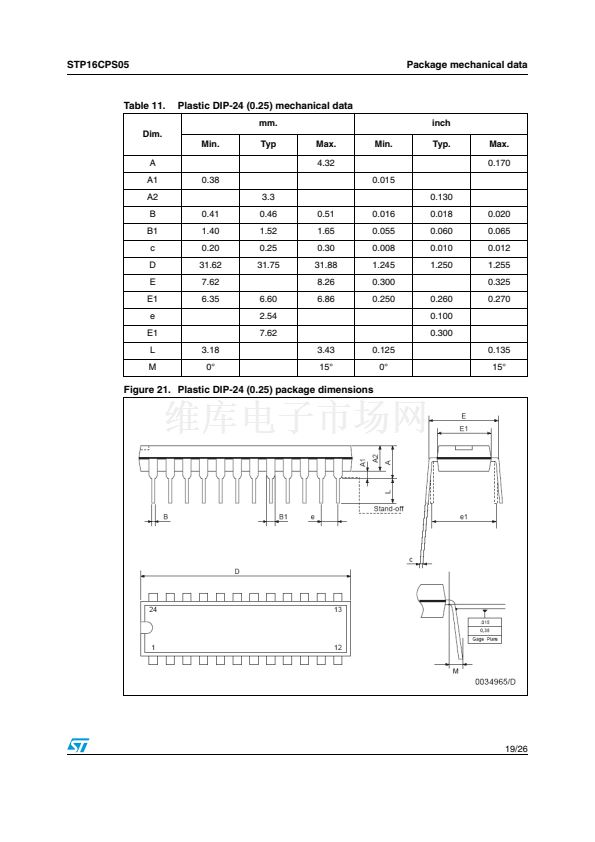

DIP-24

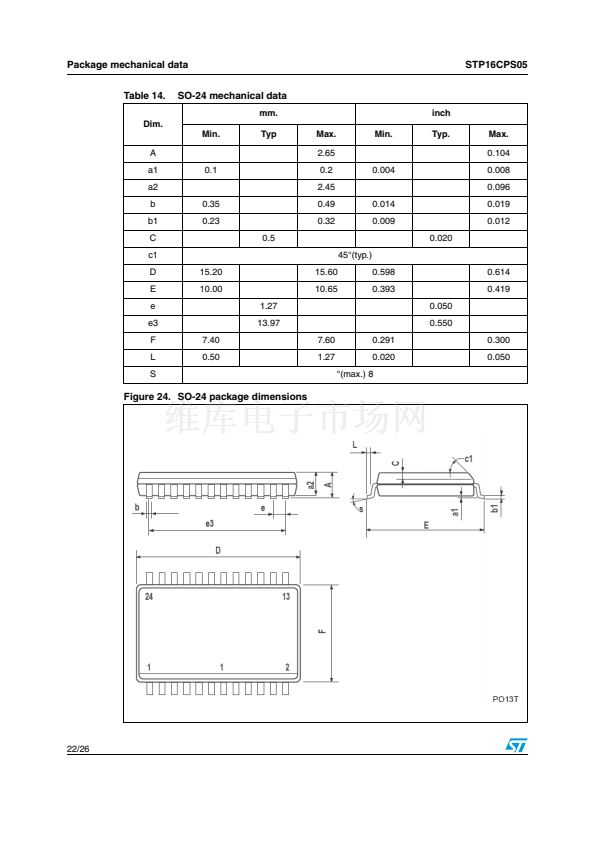

SO-24
鈻?/div>
鈻?/div>
鈻?/div>

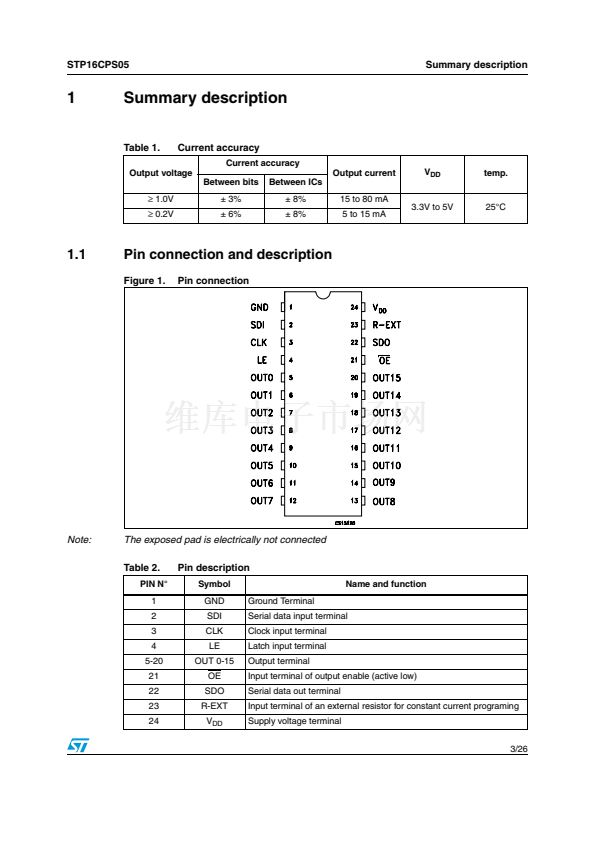

Description

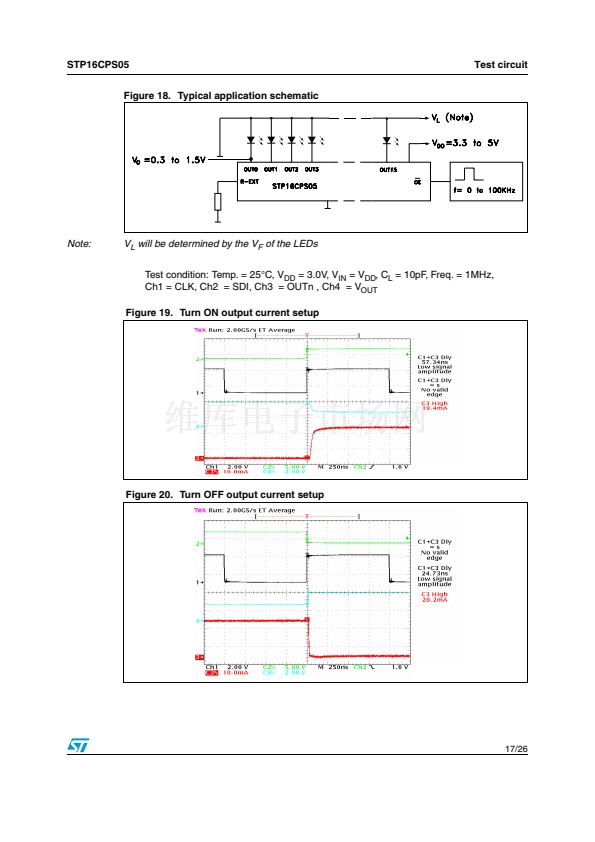

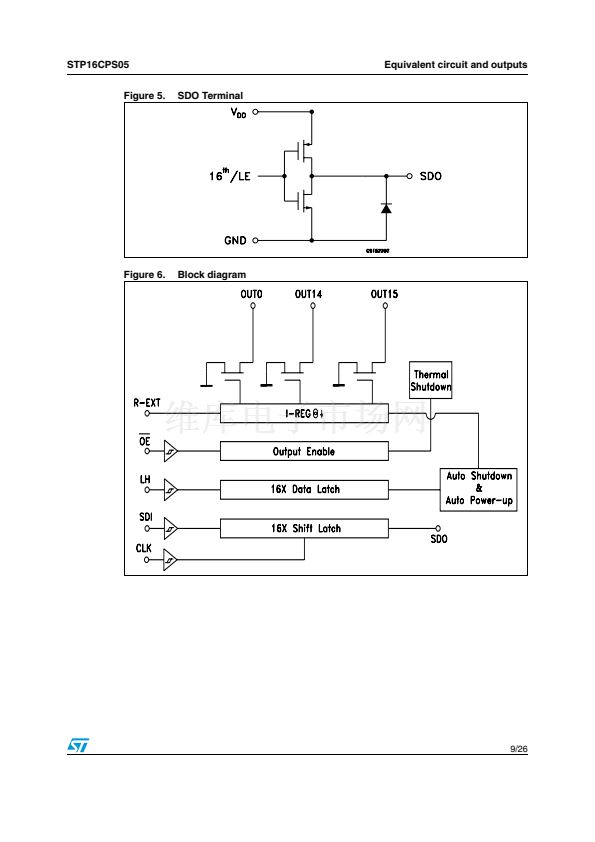

The STP16CPS05 is a monolithic, low voltage,
low current power 16-bit shift register designed for
LED panel displays. The STP16CPS05 contains a
16-bit serial-in, parallel-out shift register that
feeds a 16-bit, D-type storage register. In the
output stage, sixteen regulated current sources
provide from 5mA to 80mA constant current to
drive the LEDs.

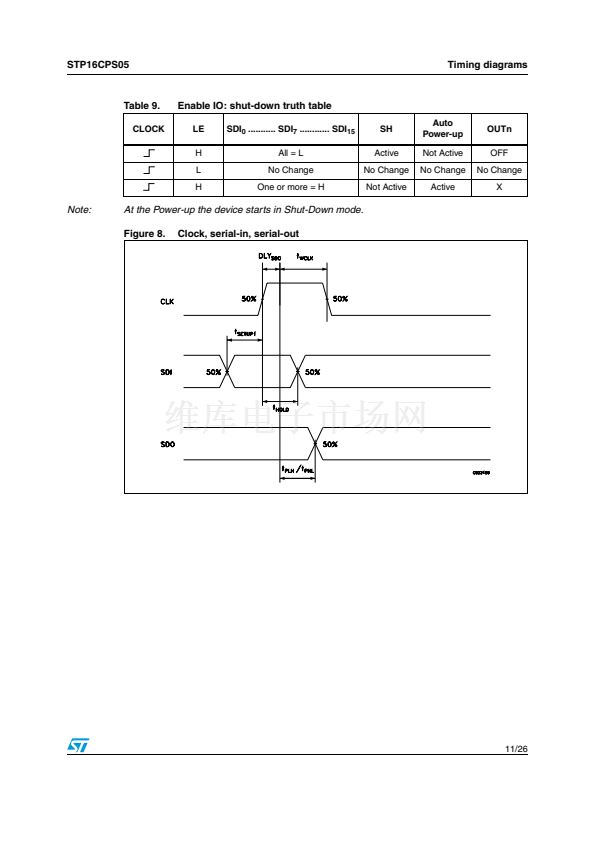

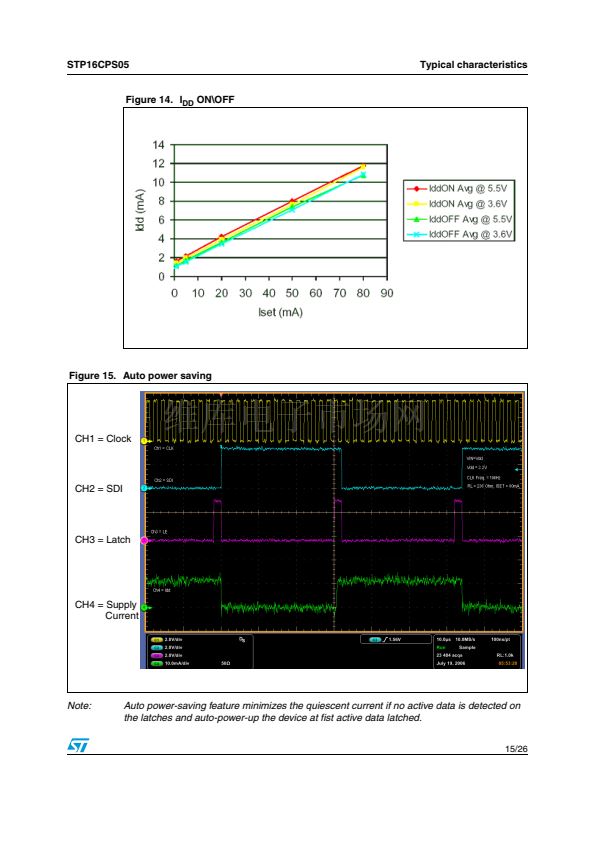

The Auto Power Shut-Down and Auto Power-ON
feature allows the device to save power without
any external intervention.

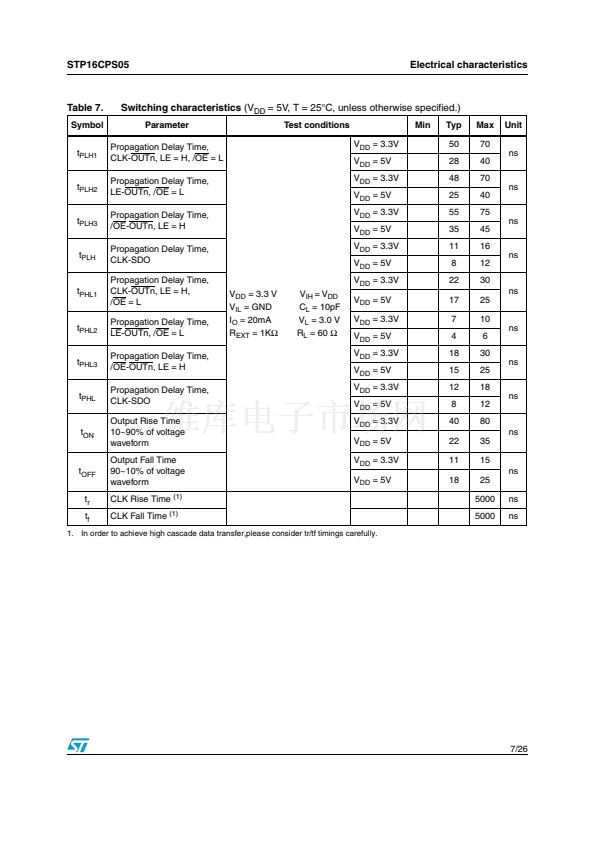

The output current setup time is 40ns (typ), thus
improving the system performance.

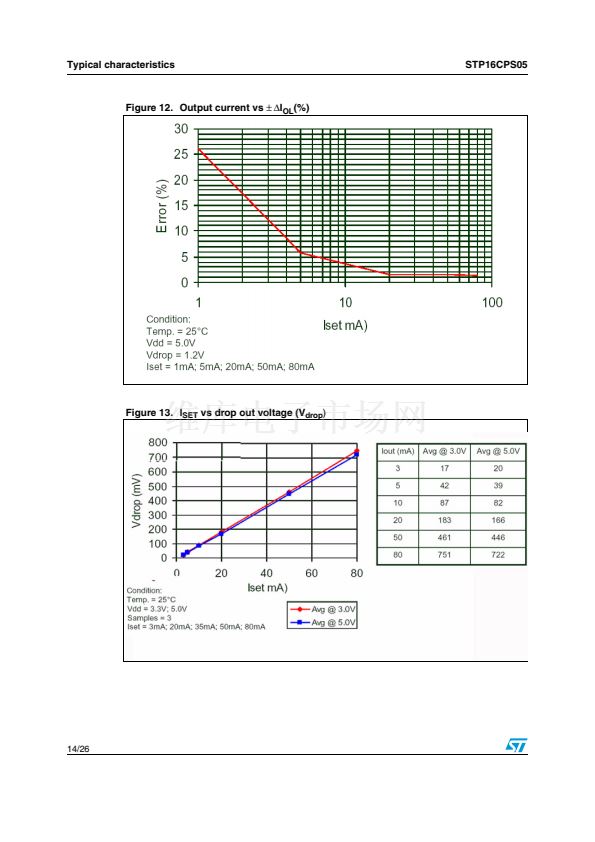

The LEDs' brightness can be controlled by using
an external resistor to adjust the STP16CPS05
output current.
The STP16CPS05 guarantees a 20V output
driving capability, allowing users to connect more
LEDs in series.The high clock frequency, 30MHz,
makes the device suitable for high data rate
transmission. The 3.3V voltage supply is useful in
applications that interface with a 3.3V
microntroller.
Order codes
Part number
STP16CPS05B1R
STP16CPS05MTR
STP16CPS05TTR
STP16CPS05XTR
Package
DIP-24
SO-24
TSSOP24
TSSOP24 Exposed Pad

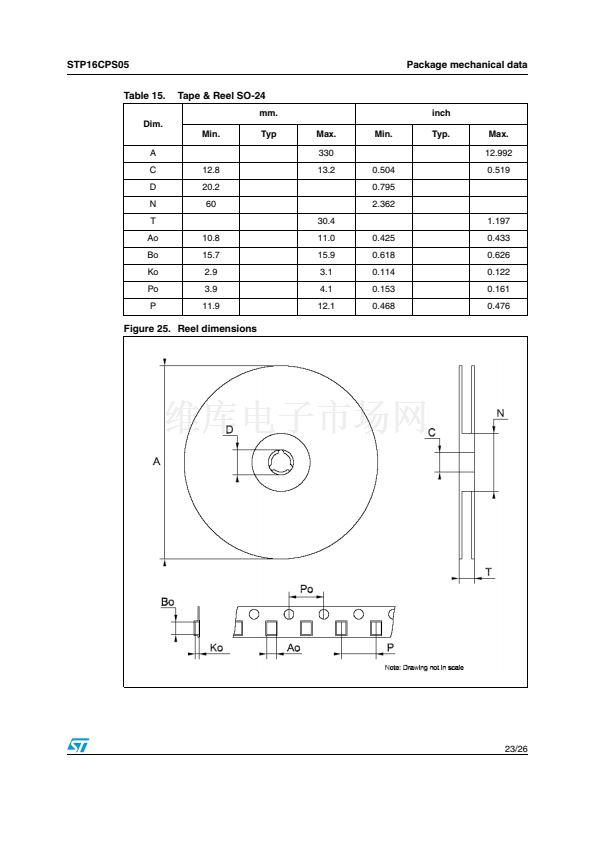

Packaging
15 parts per tube
1000 parts per reel
2500 parts per reel
2500 parts per reel
July 2006
Rev 1
1/26
www.st.com
26
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.

STP16CPS05MTR 产品属性

  • STP16CPS05 View All Specifications

  • 1

  • 集成电路 (IC)

  • PMIC - LED 驱动器

  • -

  • 是

  • -

  • 线性，高端

  • 16

  • 是

  • LED 照明显示器，标牌，汽车

  • -

  • 30MHz

  • 3 V ~ 5.5 V

  • 20V

  • 表面贴装

  • 24-SOIC（0.295"，7.50mm 宽）

  • 24-SOP

  • Digi-Reel®

  • -40°C ~ 125°C

  • 497-5746-6
