1.25Gbps PIN-TIA Receiver Module-Receptacle
(5pin-out, 3.3V)
T-11-1250M-R3-XXX-XX
Features
鈥?InGaAs/InP PIN Photodiode with transimpedance ampli铿乪r
鈥?High sensitivity with AGC*
鈥?Differential ended output
鈥?Single +3.3V operation
鈥?-40~85
潞
C operating temperature
Packaging
鈥?FC/ST/SC receptacle packaged
Application
鈥?1.25Gbps SDH/SONET/ATM receivers
鈥?RoHS Compliant available
Absolute Maximum Ratings (Tc=25潞C)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Symbol
V
CC
T
opr
T
stg
Value
4.5
-40 ~ 85
-40 ~ 85
Unit
V
潞C
潞C
DC Electrical Characteristics (Tc=25潞C)
Parameter
Power Supply
Differential Ouptput Voltage
Supply Current (no load)
Symbol
V
CC
V
d
I
cc
Min.
3.0
185
-
Typ.
3.3
250
26
Max.
3.6
415
50
Unit
V
mV
mA
(Operating at Vcc=3.3V , Tc=25潞C ,
位=1310nm
, 9/125碌m SM 铿乥er, 50/125碌m MM 铿乥er)
AC/Optical and Electrical Characteristics (Tc=25潞C)
Parameter
Detection Range
Gain@10Mbps Differential
Bandwidth (to -3dB point)
Saturation Power
Sensitivity
Output Resistance
Symbol
-
Min
1100
1.92
700
-3
-
48
Typ
1310
2.5
920
0
-26
50
Max
1650
3.4
1100
-
-23
62
Unit
nm
V/mW
MHz
dBm
dBm
ohm
Test Conditions
-
Measure differentially with 30uAp-p
signal
-
BER<10
-12
@1.25Gbps,
PRBS 2
7
-1, Er=10dB
BER<10
-12
@1.25Gbps,
PRBS 2
7
-1, Er=10dB
-
G
BW
P
sat
Sens
Rout

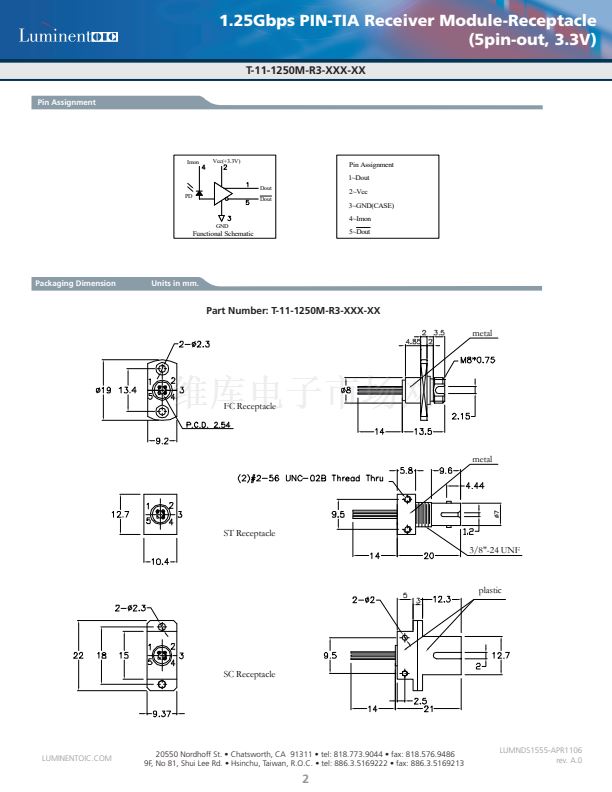

Note: 1. Pin assignment can be customized.
2. Speci铿乧ations subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. 鈥?Chatsworth, CA 91311 鈥?tel: 818.773.9044 鈥?fax: 818.576.9486
9F, No 81, Shui Lee Rd. 鈥?Hsinchu, Taiwan, R.O.C. 鈥?tel: 886.3.5169222 鈥?fax: 886.3.5169213
LUMNDS1555-APR1106
rev. A.0
