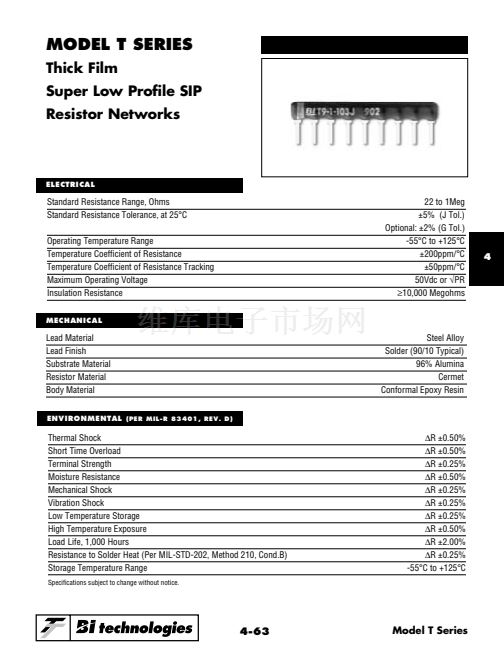

MODEL T SERIES
Thick Film
Super Low Pro铿乴e SIP
Resistor Networks
ELECTRICAL
Standard Resistance Range, Ohms
Standard Resistance Tolerance, at 25掳C
Operating Temperature Range
Temperature Coef铿乧ient of Resistance
Temperature Coef铿乧ient of Resistance Tracking
Maximum Operating Voltage
Insulation Resistance
MECHANICAL
22 to 1Meg
卤5% (J Tol.)
Optional: 卤2% (G Tol.)
-55掳C to +125掳C
卤200ppm/掳C
卤50ppm/掳C
50Vdc or
鈭歅R
鈮?0,000
Megohms
4
Lead Material
Lead Finish
Substrate Material
Resistor Material
Body Material
ENVIRONMENTAL
(PER MIL-R 83401, REV. D)
Steel Alloy
Solder (90/10 Typical)
96% Alumina
Cermet
Conformal Epoxy Resin
Thermal Shock
Short Time Overload
Terminal Strength
Moisture Resistance
Mechanical Shock
Vibration Shock
Low Temperature Storage
High Temperature Exposure
Load Life, 1,000 Hours
Resistance to Solder Heat (Per MIL-STD-202, Method 210, Cond.B)
Storage Temperature Range
Speci铿乧ations subject to change without notice.
鈭哛
卤0.50%
鈭哛
卤0.50%
鈭哛
卤0.25%
鈭哛
卤0.50%
鈭哛
卤0.25%
鈭哛
卤0.25%
鈭哛
卤0.25%
鈭哛
卤0.50%
鈭哛
卤2.00%
鈭哛
卤0.25%
-55掳C to +125掳C
4-63
Model T Series
1
2
3
4
