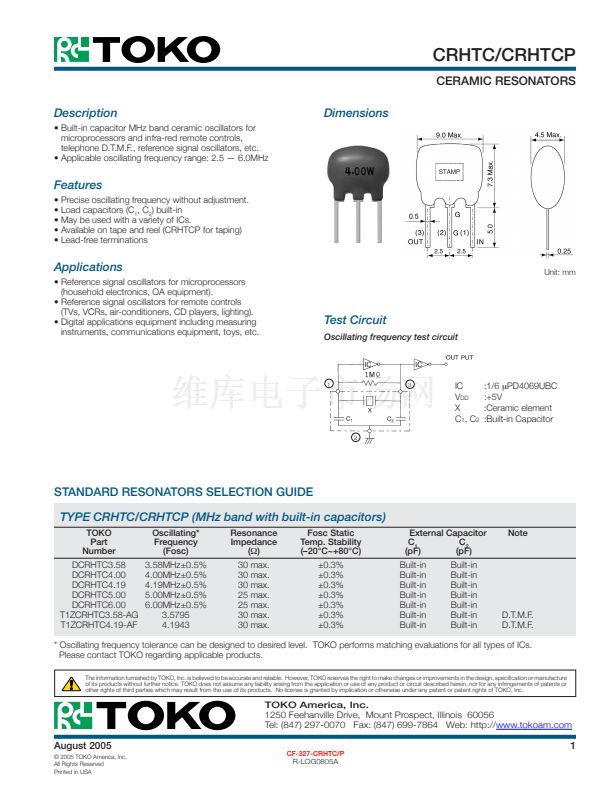

CRHTC/CRHTCP
CERAMIC RESONATORS
Description
鈥?Built-in capacitor MHz band ceramic oscillators for
microprocessors and infra-red remote controls,
telephone D.T.M.F., reference signal oscillators, etc.
鈥?Applicable oscillating frequency range: 2.5 鈥?6.0MHz
Dimensions
Features
鈥?Precise oscillating frequency without adjustment.
鈥?Load capacitors (C
1
, C
2
) built-in
鈥?May be used with a variety of ICs.
鈥?Available on tape and reel (CRHTCP for taping)
鈥?Lead-free terminations
Applications
鈥?Reference signal oscillators for microprocessors
(household electronics, OA equipment).
鈥?Reference signal oscillators for remote controls
(TVs, VCRs, air-conditioners, CD players, lighting).
鈥?Digital applications equipment including measuring
instruments, communications equipment, toys, etc.
Unit: mm
Test Circuit
Oscillating frequency test circuit
1
3
IC
V
DD
X
C
1
, C
2
:1/6
渭PD4069UBC
:+5V
:Ceramic element
:Built-in Capacitor
2
STANDARD RESONATORS SELECTION GUIDE
TYPE CRHTC/CRHTCP (MHz band with built-in capacitors)
TOKO
Part
Number
DCRHTC3.58
DCRHTC4.00
DCRHTC4.19
DCRHTC5.00
DCRHTC6.00
T1ZCRHTC3.58-AG
T1ZCRHTC4.19-AF
Oscillating*
Frequency
(Fosc)
3.58MHz卤0.5%
4.00MHz卤0.5%
4.19MHz卤0.5%
5.00MHz卤0.5%
6.00MHz卤0.5%
3.5795
4.1943
Resonance
Impedance
(惟)
30 max.
30 max.
30 max.
25 max.
25 max.
30 max.
30 max.
Fosc Static
Temp. Stability
(鈥?0掳C~+80掳C)
卤0.3%
卤0.3%
卤0.3%
卤0.3%
卤0.3%
卤0.3%
卤0.3%
External Capacitor
C
1
C
2
(pF)
(pF)
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Note
D.T.M.F.
D.T.M.F.
* Oscillating frequency tolerance can be designed to desired level. TOKO performs matching evaluations for all types of ICs.
Please contact TOKO regarding applicable products.
