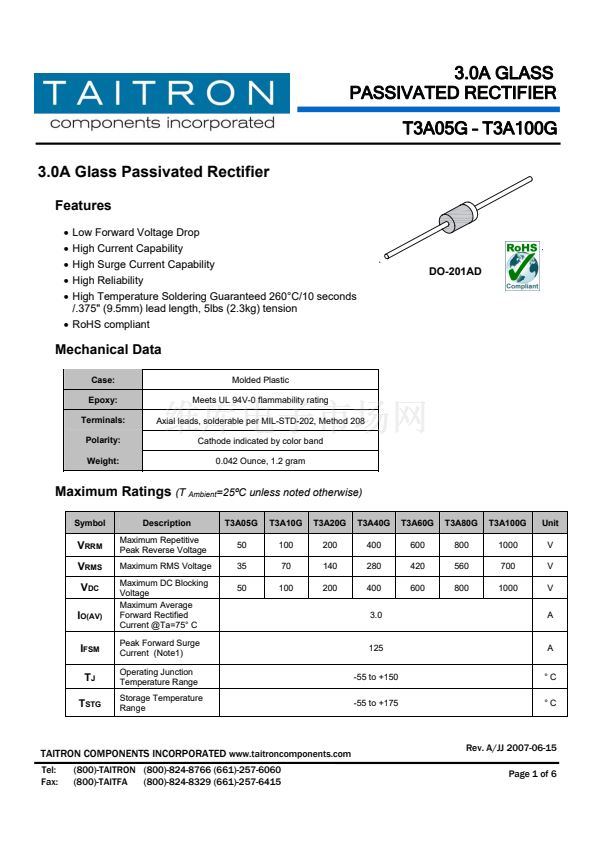

3.0A GLASS

PASSIVATED RECTIFIER

T3A05G 鈥?T3A100G

3.0A Glass Passivated Rectifier

Features

鈥?/div>

Low Forward Voltage Drop

High Current Capability

High Surge Current Capability

High Reliability

DO-201AD

鈥?/div>

High Temperature Soldering Guaranteed 260掳C/10 seconds

/.375" (9.5mm) lead length, 5lbs (2.3kg) tension

鈥?/div>

RoHS compliant

Mechanical Data

Case:

Epoxy:

Terminals:

Polarity:

Weight:

Molded Plastic

Meets UL 94V-0 flammability rating

Axial leads, solderable per MIL-STD-202, Method 208

Cathode indicated by color band

0.042 Ounce, 1.2 gram

Maximum Ratings

(T

Ambient

=25潞C unless noted otherwise)

Symbol

Description

Maximum Repetitive

Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking

Voltage

Maximum Average

Forward Rectified

Current @Ta=75掳 C

Peak Forward Surge

Current (Note1)

Operating Junction

Temperature Range

Storage Temperature

Range

T3A05G

50

35

50

T3A10G

100

70

100

T3A20G

200

140

200

T3A40G

400

280

400

3.0

T3A60G

600

420

600

T3A80G

800

560

800

T3A100G

1000

700

1000

Unit

V

A

V

RRM

V

RMS

V

DC

I

O(AV)

I

FSM

T

J

T

STG

125

-55 to +150

-55 to +175

A

掳C

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel:

Fax:

(800)-TAITRON (800)-824-8766 (661)-257-6060

(800)-TAITFA

(800)-824-8329 (661)-257-6415

Rev. A/JJ 2007-06-15

Page 1 of 6
