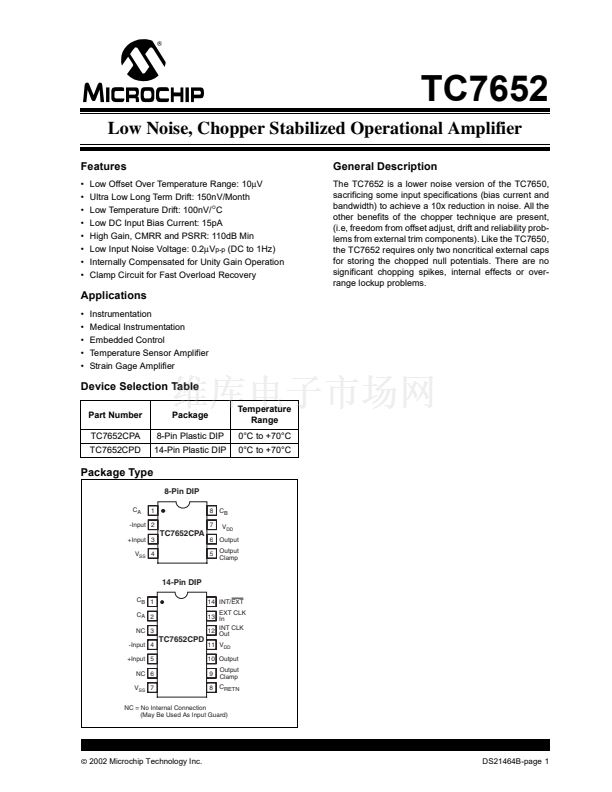

TC7652
Low Noise, Chopper Stabilized Operational Amplifier
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Offset Over Temperature Range: 10碌V
Ultra Low Long Term Drift: 150nV/Month
Low Temperature Drift: 100nV/
掳
C
Low DC Input Bias Current: 15pA
High Gain, CMRR and PSRR: 110dB Min
Low Input Noise Voltage: 0.2碌V
p-p
(DC to 1Hz)
Internally Compensated for Unity Gain Operation
Clamp Circuit for Fast Overload Recovery
General Description
The TC7652 is a lower noise version of the TC7650,
sacrificing some input specifications (bias current and
bandwidth) to achieve a 10x reduction in noise. All the
other benefits of the chopper technique are present,
(i.e, freedom from offset adjust, drift and reliability prob-
lems from external trim components). Like the TC7650,
the TC7652 requires only two noncritical external caps
for storing the chopped null potentials. There are no
significant chopping spikes, internal effects or over-
range lockup problems.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Instrumentation
Medical Instrumentation
Embedded Control
Temperature Sensor Amplifier
Strain Gage Amplifier
Device Selection Table
Part Number
TC7652CPA
TC7652CPD
Package
8-Pin Plastic DIP
14-Pin Plastic DIP
Temperature
Range
0掳C to +70掳C
0掳C to +70掳C
Package Type
8-Pin DIP
C
A
1
8 C
B
7
-Input 2
+Input 3
V
SS
4
TC7652CPA
V
DD
6 Output
5 Output
Clamp
14-Pin DIP
C
B
1
C
A
2
NC 3
-Input 4
+Input 5
NC 6
V
SS
7
14 INT/EXT
EXT CLK
13 In
12 INT CLK
Out
11 V
DD
10 Output
9
8
Output
Clamp
C
RETN
TC7652CPD
NC = No Internal Connection
(May Be Used As Input Guard)
2002 Microchip Technology Inc.
DS21464B-page 1
