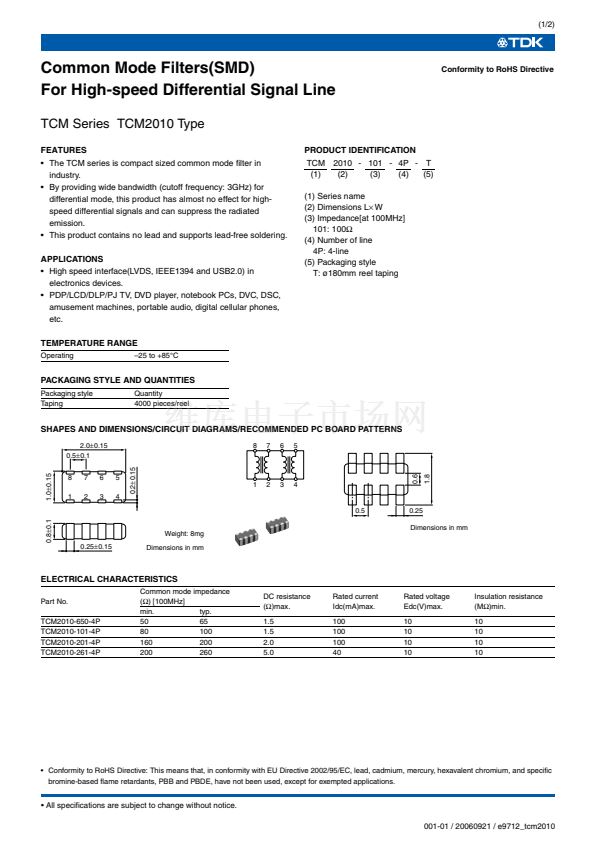

(1/2)
Common Mode Filters(SMD)
For High-speed Differential Signal Line
TCM Series TCM2010 Type
FEATURES
鈥?The TCM series is compact sized common mode filter in
industry.
鈥?By providing wide bandwidth (cutoff frequency: 3GHz) for
differential mode, this product has almost no effect for high-
speed differential signals and can suppress the radiated
emission.
鈥?This product contains no lead and supports lead-free soldering.
APPLICATIONS
鈥?High speed interface(LVDS, IEEE1394 and USB2.0) in
electronics devices.
鈥?PDP/LCD/DLP/PJ TV, DVD player, notebook PCs, DVC, DSC,
amusement machines, portable audio, digital cellular phones,
etc.
TEMPERATURE RANGE
Operating
鈥?5 to +85掳C
Conformity to RoHS Directive
PRODUCT IDENTIFICATION
TCM 2010 - 101 - 4P - T
(1)
(2)
(3)
(4)
(5)
(1) Series name
(2) Dimensions L脳 W
(3) Impedance[at 100MHz]
101: 100鈩?/div>
(4) Number of line
4P: 4-line
(5) Packaging style
T: 酶180mm reel taping
PACKAGING STYLE AND QUANTITIES
Packaging style
Taping
Quantity
4000 pieces/reel
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAMS/RECOMMENDED PC BOARD PATTERNS
2.0卤0.15
0.5卤0.1
1.0卤0.15
0.2卤0.15
8
1
7
2
6
3
5
4
8
7
6
5
0.6
0.5
0.25
1
2
3
4
0.8卤0.1
Weight: 8mg
0.25卤0.15
Dimensions in mm
Dimensions in mm
ELECTRICAL CHARACTERISTICS
Part No.
TCM2010-650-4P
TCM2010-101-4P
TCM2010-201-4P
TCM2010-261-4P
Common mode impedance
(鈩? [100MHz]
min.
typ.
50
65
80
100
160
200
200
260
DC resistance
(鈩?max.
1.5
1.5
2.0
5.0
Rated current
Idc(mA)max.
100
100
100
40
Rated voltage
Edc(V)max.
10
10
10
10
Insulation resistance
(M鈩?min.
10
10
10
10
鈥?Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
鈥?All specifications are subject to change without notice.
001-01 / 20060921 / e9712_tcm2010.fm
1.8
1
2
