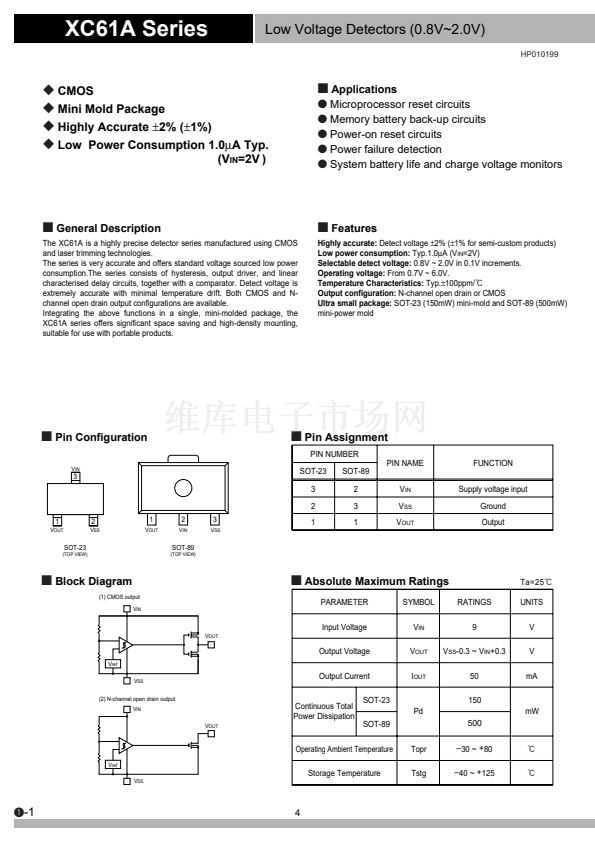

XC61A Series
Low Voltage Detectors (0.8V~2.0V)
HP010199
x
CMOS
x
Mini Mold Package
x
Highly Accurate
卤2%
(卤1%)
x
Low Power Consumption 1.0碌A Typ.
(V
IN
=2V )
s
Applications
q
Microprocessor reset circuits
q
Memory battery back-up circuits
q
Power-on reset circuits
q
Power failure detection
q
System battery life and charge voltage monitors
s
General Description
The XC61A is a highly precise detector series manufactured using CMOS
and laser trimming technologies.
The series is very accurate and offers standard voltage sourced low power
consumption.The series consists of hysteresis, output driver, and linear
characterised delay circuits, together with a comparator. Detect voltage is
extremely accurate with minimal temperature drift. Both CMOS and N-
channel open drain output configurations are available.
Integrating the above functions in a single, mini-molded package, the
XC61A series offers significant space saving and high-density mounting,
suitable for use with portable products.
s
Features
Highly accurate:
Detect voltage
卤2%
(卤1% for semi-custom products)
Low power consumption:
Typ.1.0碌A (V
IN
=2V)
Selectable detect voltage:
0.8V ~ 2.0V in 0.1V increments.
Operating voltage:
From 0.7V ~ 6.0V.
Temperature Characteristics:
Typ.卤100ppm/:
Output configuration:
N-channel open drain or CMOS
Ultra small package:
SOT-23 (150mW) mini-mold and SOT-89 (500mW)
mini-power mold
s
Pin Configuration
V
IN
s
Pin Assignment
PIN NUMBER
PIN NAME
SOT-23
3
2
SOT-89
2
3
1
V
IN
V
SS
V
OUT
Supply voltage input
Ground
Output
FUNCTION
3
1
V
OUT
2
V
SS
1
V
OUT
2
V
IN
3
V
SS
1
SOT-23
(TOP VIEW)
SOT-89
(TOP VIEW)
s
Block Diagram
(1) CMOS output
V
IN
s
Absolute Maximum Ratings
PARAMETER
Input Voltage
V
OUT
Ta=25:
RATINGS
9
UNITS
V
V
mA
SYMBOL
V
IN
V
OUT
I
OUT
Output Voltage
V
ref
V
SS
(2) N-channel open drain output
V
IN
V
OUT
V
SS
-0.3 ~ V
IN
+0.3
50
150
Output Current
SOT-23
Continuous Total
Power Dissipation
Pd
SOT-89
500
Topr
Tstg
鈥?0 ~ +80
鈥?0 ~ +125
mW
Operating Ambient Temperature
V
ref
:
:
Storage Temperature
V
SS
