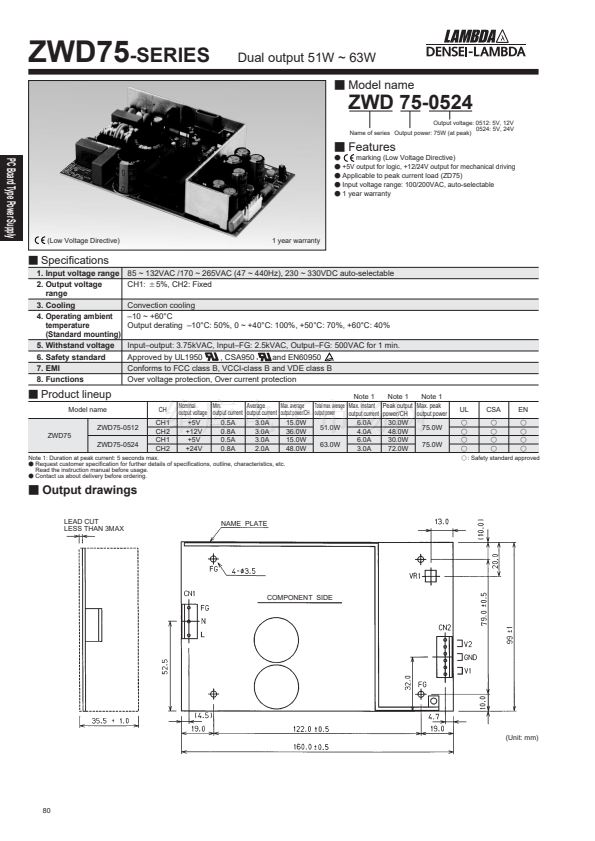

ZWD75
-SERIES
Dual output 51W ~ 63W
Model name
ZWD 75-0524
Name of series Output power: 75W (at peak)
Output voltage: 0512: 5V, 12V
0524: 5V, 24V
Features
marking (Low Voltage Directive)
+5V output for logic, +12/24V output for mechanical driving
Applicable to peak current load (ZD75)
Input voltage range: 100/200VAC, auto-selectable
1 year warranty
PC Board Type Power Supply
(Low Voltage Directive)
1 year warranty
Specifications
1. Input voltage range
2. Output voltage
range
3. Cooling
4. Operating ambient
temperature
(Standard mounting)
5. Withstand voltage
6. Safety standard
7. EMI
8. Functions
85 ~ 132VAC /170 ~ 265VAC (47 ~ 440Hz), 230 ~ 330VDC auto-selectable
CH1: 5%, CH2: Fixed
Convection cooling
鈥?0 ~ +60掳C
Output derating 鈥?0掳C: 50%, 0 ~ +40掳C: 100%, +50掳C: 70%, +60掳C: 40%
Input鈥搊utput: 3.75kVAC, Input鈥揊G: 2.5kVAC, Output鈥揊G: 500VAC for 1 min.
Approved by UL1950
, CSA950
and EN60950
Conforms to FCC class B, VCCI-class B and VDE class B
Over voltage protection, Over current protection
Note 1
Note 1
Note 1
Nominal
Min.
Average
Max. average
Total max. average Max. instant Peak output Max. peak
output voltage output current output current output power/CH output power
output current power/CH output power
+5V
0.5A
3.0A
15.0W
6.0A
30.0W
51.0W
75.0W
+12V
0.8A
3.0A
36.0W
4.0A
48.0W
+5V
0.5A
3.0A
15.0W
6.0A
30.0W
63.0W
75.0W
+24V
0.8A
2.0A
48.0W
3.0A
72.0W
Product lineup
Model name
ZWD75-0512
ZWD75
ZWD75-0524
CH
CH1
CH2
CH1
CH2
UL
CSA
EN
Note 1: Duration at peak current: 5 seconds max.
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
: Safety standard approved
Output drawings
LEAD CUT
LESS THAN 3MAX
NAME PLATE
COMPONENT SIDE
(Unit: mm)
80
1
