ZY6V2GP......ZY200GP

2 W Glass Passivated Zener Diode

Dimensions in mm.

DO-15

(Plastic)

Voltage

6.2 to 200 V.

Power

2.0 W

庐

6.35

卤 0.2

58.5

卤 0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 掳C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

鈥?/div>

Glass passivated junction

鈥?/div>

The plastic material carries

U/L recognition 94 V-0

鈥?/div>

Terminals: Axial Leads

鈥?/div>

Polarity: Color band denotes cathode

Maximum Ratings, according to IEC publication No. 134

tot

ZSM

stg

Power dissipation at Tamb = 25 潞C

Non repetitive peak zener dissipation

(t = 10 ms)

Operating temperature range

Storage temperature range

60 W

鈥?65 to + 175 掳C

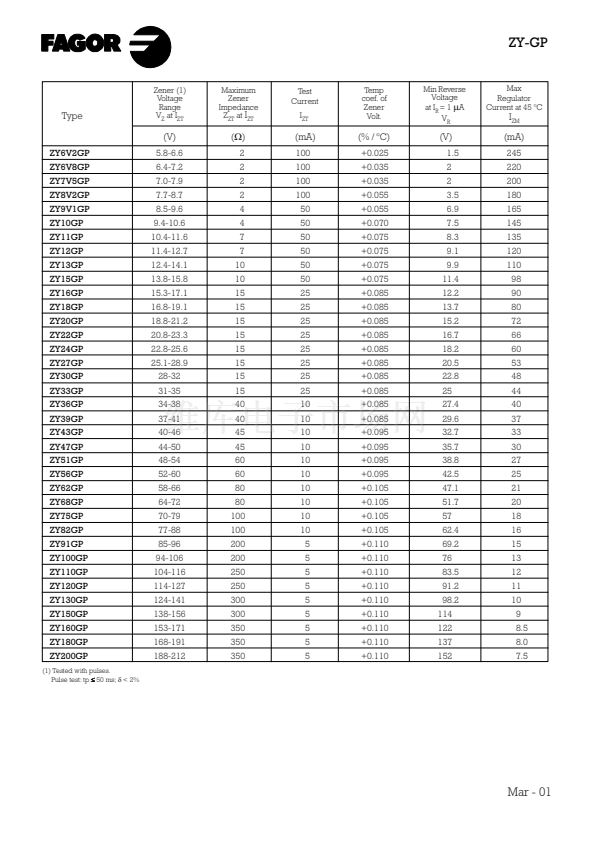

Electrical Characteristics at Tamb = 25 掳C

thj-a

Max. thermal resistance at:

10 mm. lead length

60 掳C/W

Mar - 01
