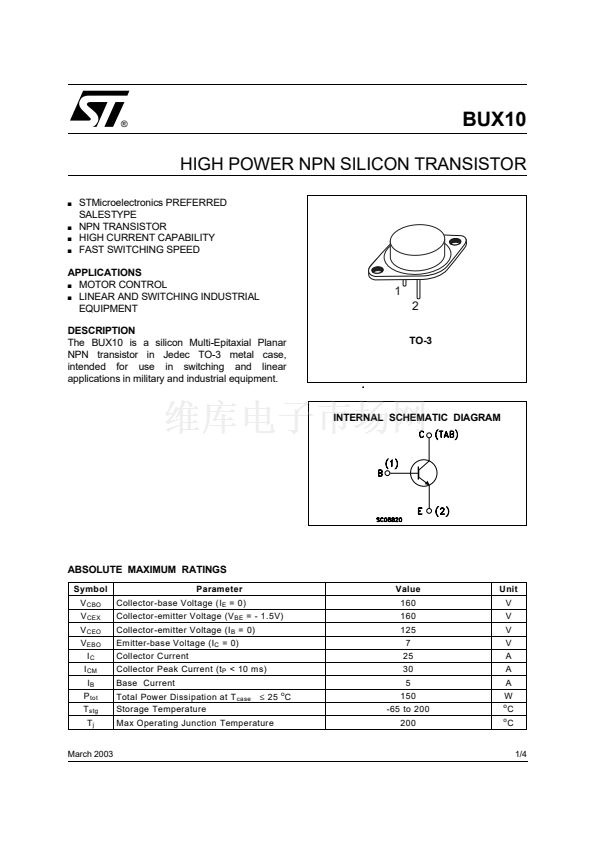

BUX10
HIGH POWER NPN SILICON TRANSISTOR
s
s
s
s
STMicroelectronics PREFERRED
SALESTYPE
NPN TRANSISTOR
HIGH CURRENT CAPABILITY
FAST SWITCHING SPEED
APPLICATIONS
s
MOTOR CONTROL
s
LINEAR AND SWITCHING INDUSTRIAL
EQUIPMENT
DESCRIPTION
The BUX10 is a silicon Multi-Epitaxial Planar
NPN transistor in Jedec TO-3 metal case,
intended for use in switching and linear
applications in military and industrial equipment.
1
2
TO-3
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CBO
V
CEX
V
CEO
V
EBO
I
C
I
CM
I
B
P
tot
T
stg
T
j
Parameter
Collector-base Voltage (I
E
= 0)
Collector-emitter Voltage (V
BE
= - 1.5V)
Collector-emitter Voltage (I
B
= 0)
Emitter-base Voltage (I
C
= 0)
Collector Current
Collector Peak Current (t
P
< 10 ms)
Base Current
Total Power Dissipation at T
case
Storage Temperature
鈮?/div>
25 C
o
Value
160
160
125
7
25
30
5
150
-65 to 200
200
Unit
V
V
V
V
A
A
A
W
o
o
C
C
Max Operating Junction Temperature
