CS5381 Datasheet

  • CS5381

  • 120 dB, 192 kHz, Multi-Bit Audio A/D Converter

  • 616.00KB

  • 25页

  • CIRRUS

阅览下载 纠错 0

扫码查看芯片数据手册

上传产品规格书

PDF预览

CS5381
120 dB, 192 kHz, Multi-Bit Audio A/D Converter
Features
!
Advanced Multi-bit Delta-Sigma Architecture
!
24-bit Conversion
!
120 dB Dynamic Range
!

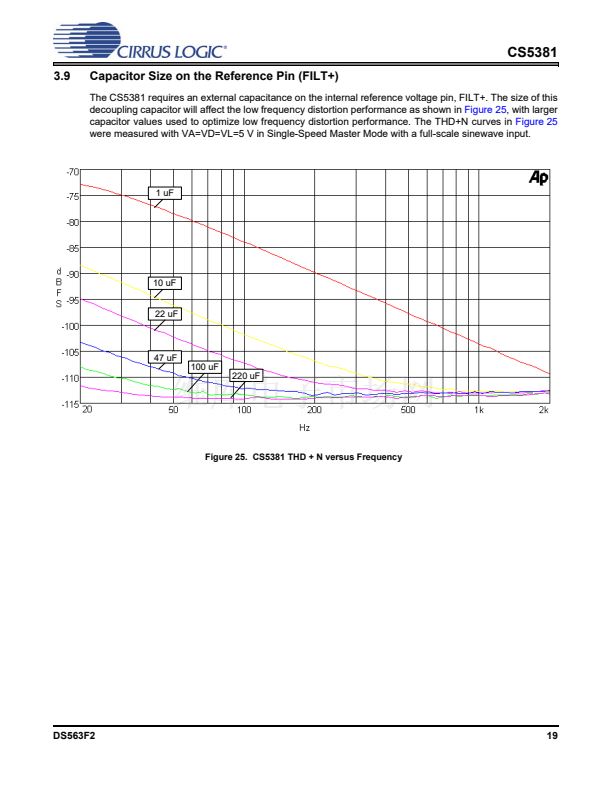

-110 dB THD+N
!
Supports All Audio Sample Rates Including
General Description

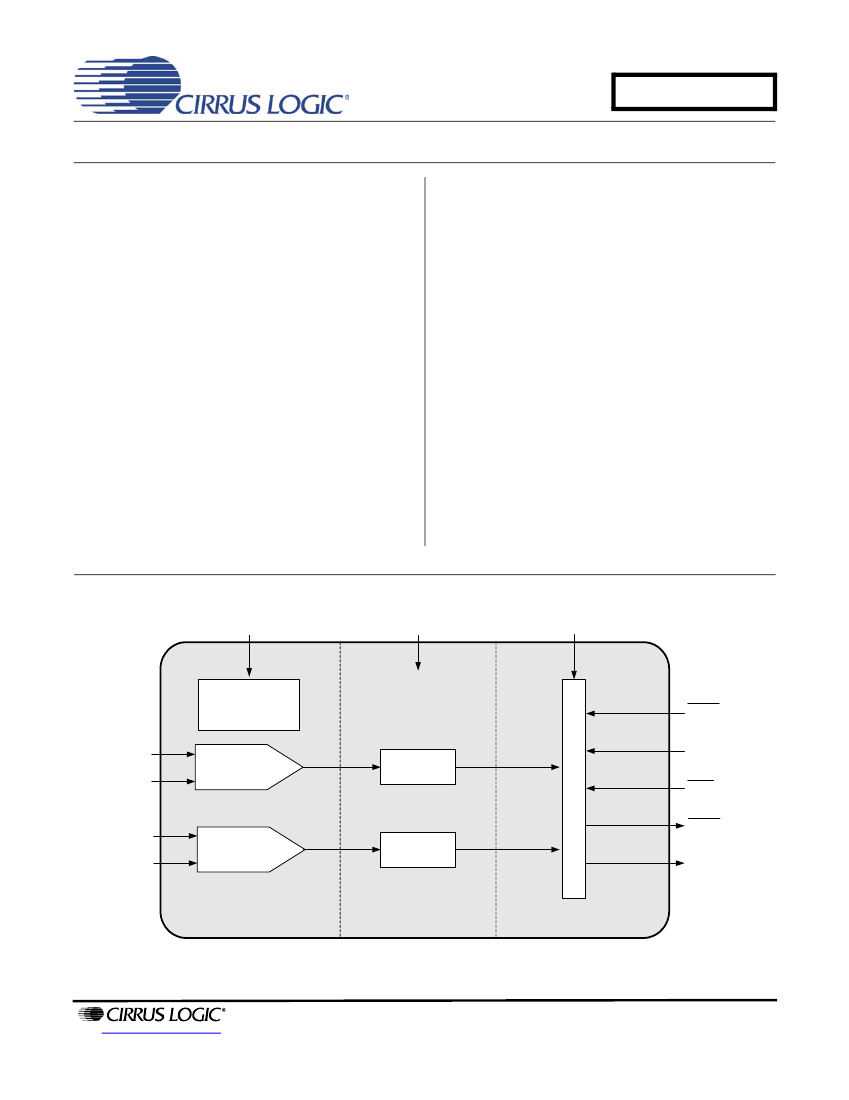

The CS5381 is a complete analog-to-digital converter
for digital audio systems. It performs sampling, analog-
to-digital conversion, and anti-alias filtering - generating
24-bit values for both left and right inputs in serial form
at sample rates up to 216 kHz per channel.
The CS5381 uses a 5th-order, multi-bit delta-sigma
modulator followed by digital filtering and decimation,
which removes the need for an external anti-alias filter.
The ADC uses a differential architecture which provides
excellent noise rejection.

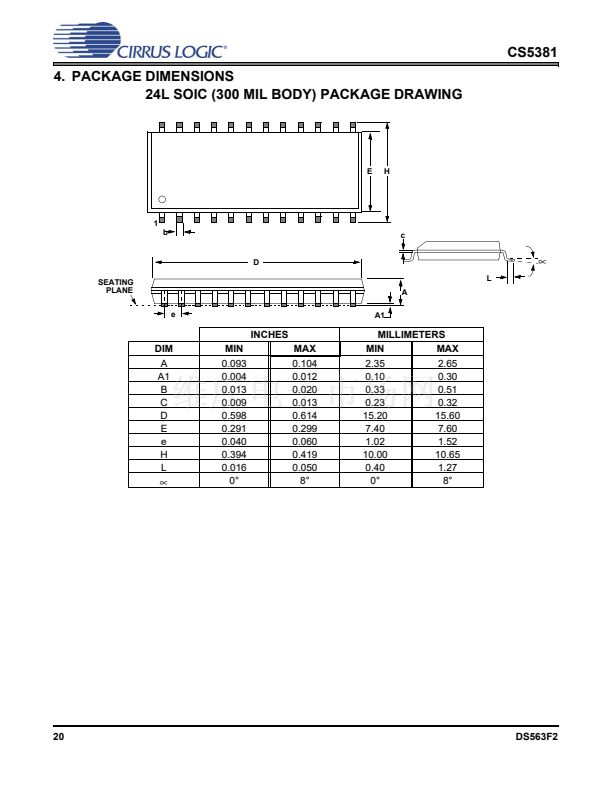

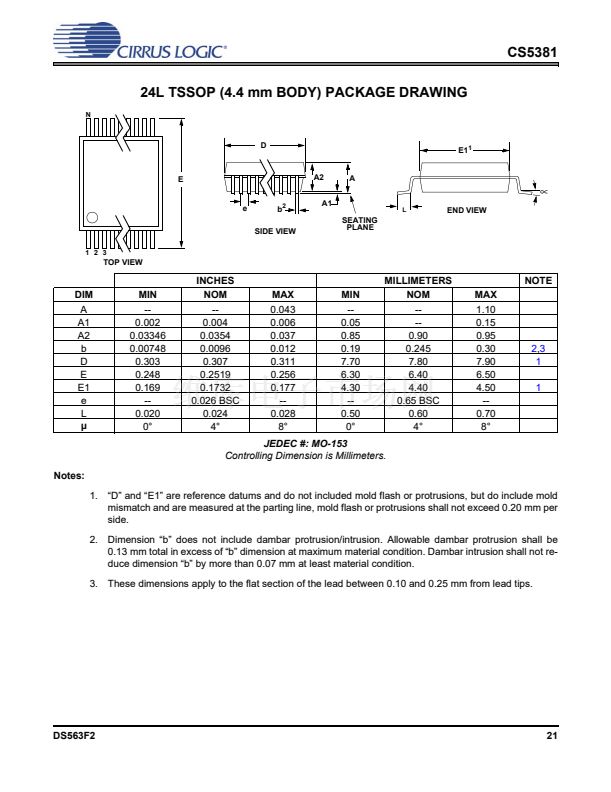

The CS5381 is available in 24-pin TSSOP and SOIC
packages for Commercial grade (-10掳 to +70掳 C). The
CDB5381 Customer Demonstration board is also avail-
able for device evaluation and implementation
suggestions. Please refer to the

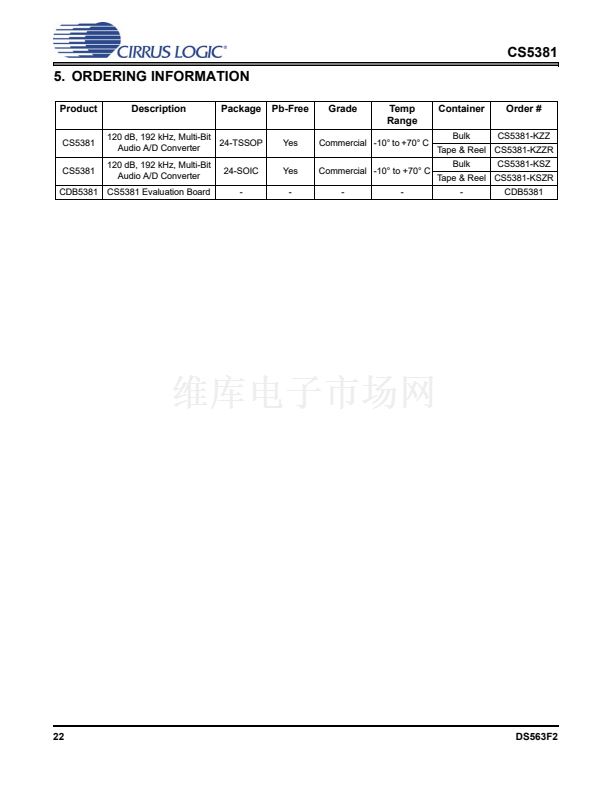

鈥淥rdering Information鈥?/span>
on page 22.
The CS5381 is ideal for audio systems requiring wide
dynamic range, negligible distortion, and low noise -
such as A/V receivers, DVD-R, CD-R, digital mixing
consoles, and effects processors.
192 kHz
!

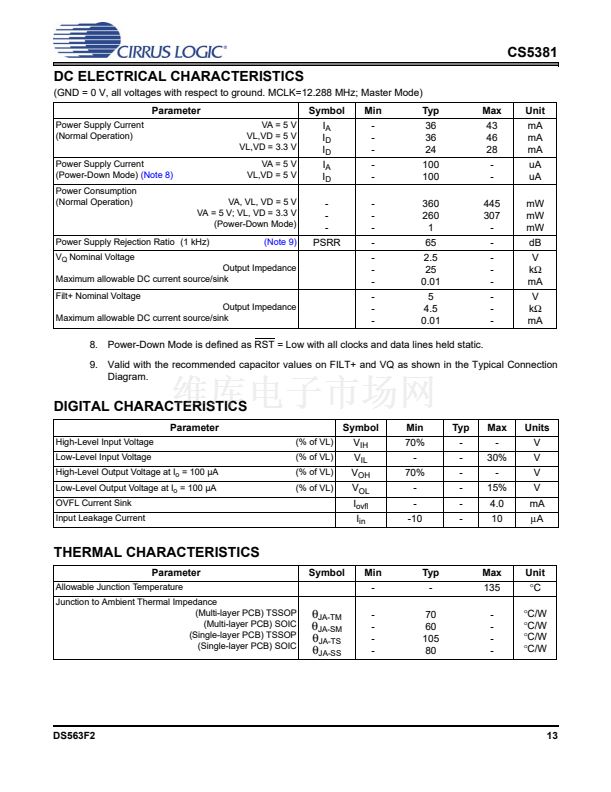

260 mW Power Consumption
!
High-Pass Filter or DC Offset Calibration
!
Supports Logic Levels between 5 and 2.5 V
!
Differential Analog Architecture
!
Low-Latency Digital Filtering
!

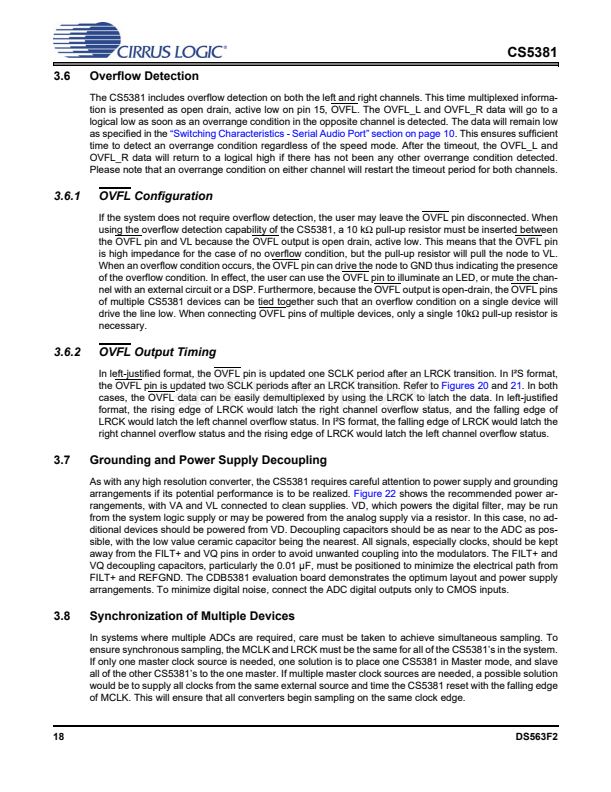

Overflow Detection
!
Pin-Compatible with the CS5361
Analog Supply
5V
Digital Supply
3.3 V to 5 V
Interface Supply
2.5 V to 5 V
Internal Voltage
Reference
Level Translator
Reset
Mode
Configuration
HPF
OVFL

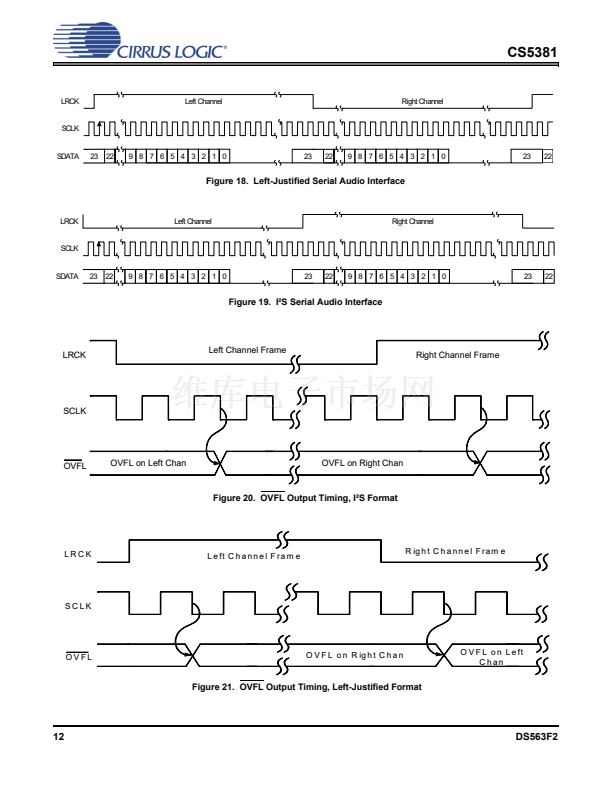

PCM Serial
Audio Output
Differential
Inputs
Switch-Cap
ADC
Digital
Filters
Differential
Inputs
Switch-Cap
ADC
Digital
Filters
http://www.cirrus.com
Copyright
漏
Cirrus Logic, Inc. 2005
(All Rights Reserved)
JULY '05
DS563F2
