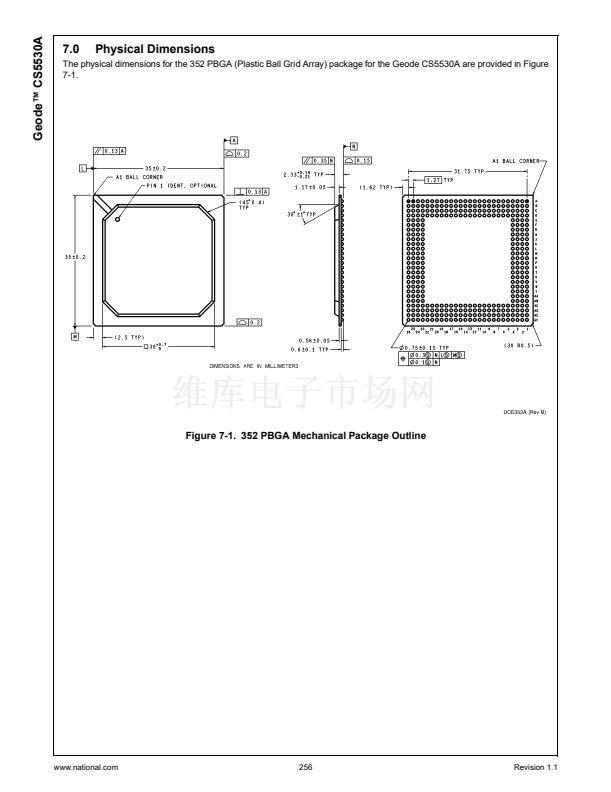

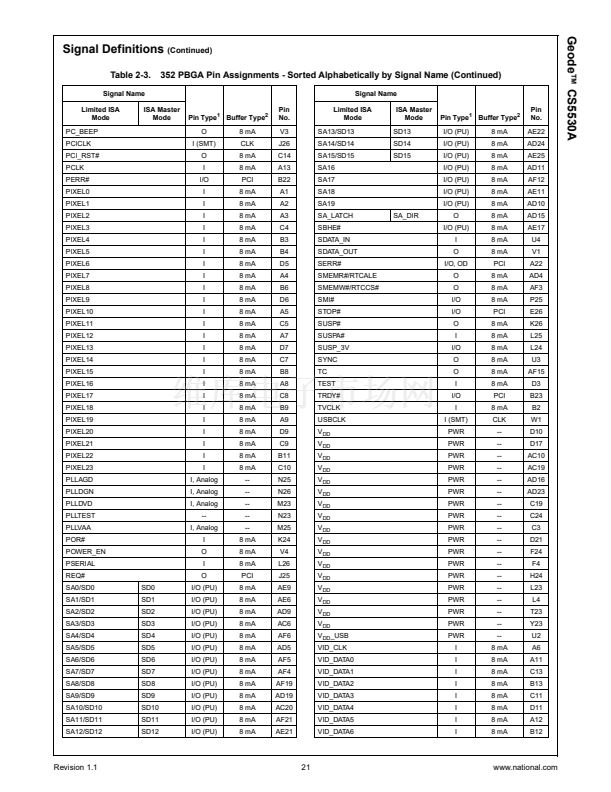

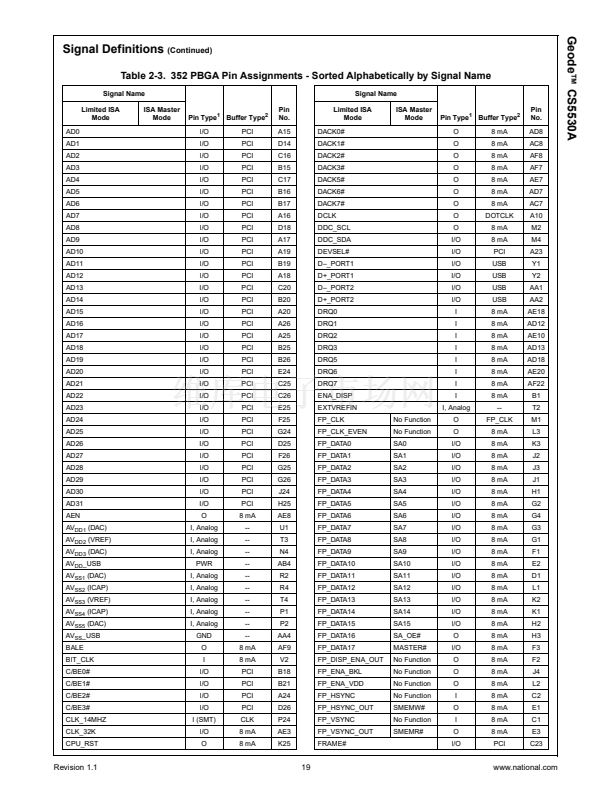

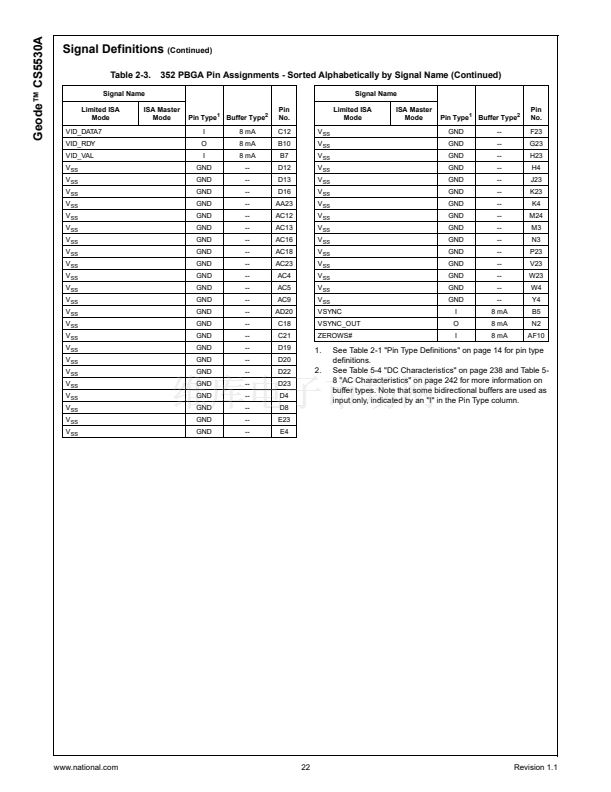

Geode鈩?CS5530A I/O Companion Multi-Function South Bridge
May 2001
Revision 1.1

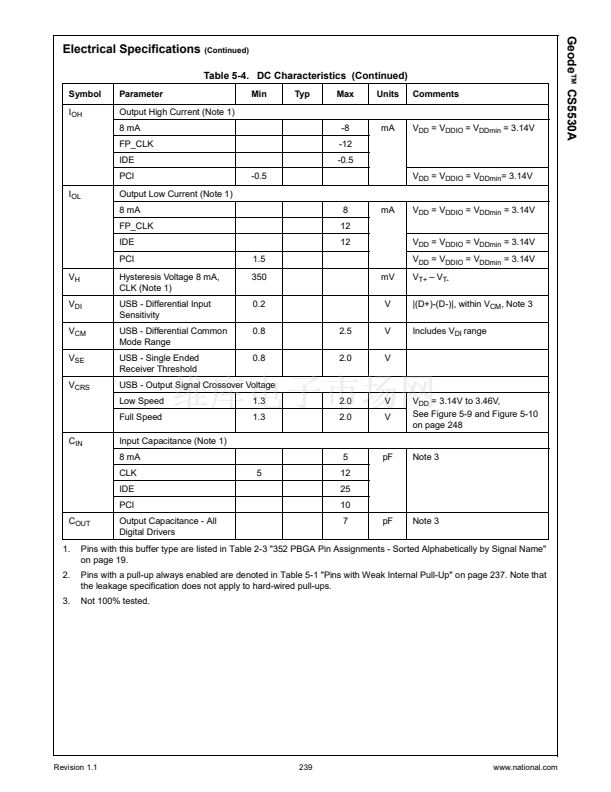

Geode鈩?CS5530A I/O Companion
Multi-Function South Bridge
General Description

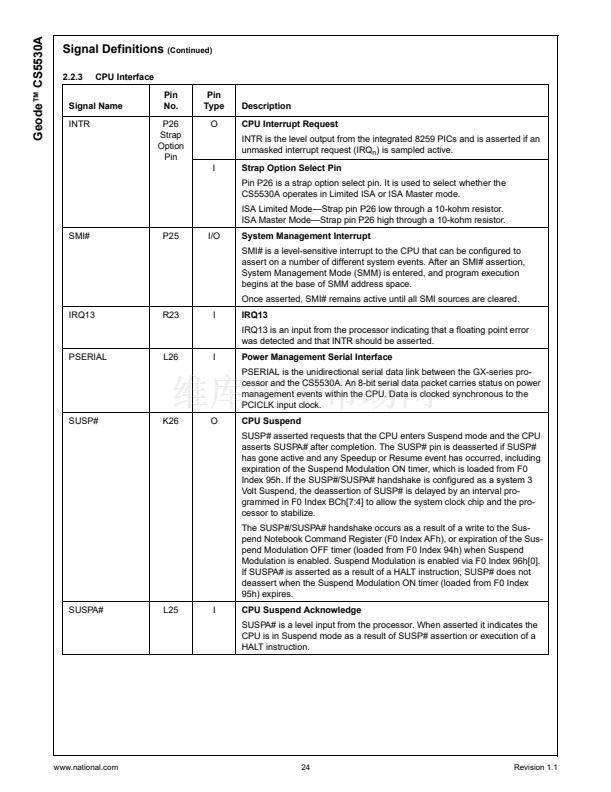

The CS5530A I/O companion is designed to work in con-
junction with a GX-series processor (i.e., GX1, GXLV,
GXm); all members of the National Semiconductor
庐
Geode鈩?family of products. Together, the Geode proces-
sor and CS5530A provide a system-level solution well
suited for the high performance needs of a host of devices
which include digital set-top boxes and thin client devices.
Due to the low power consumption of the GX-series pro-
cessors, this solution satisfies the needs of battery pow-
ered devices such as National鈥檚 WebPAD鈩?system, and
thermal design is eased allowing for fanless system
design.

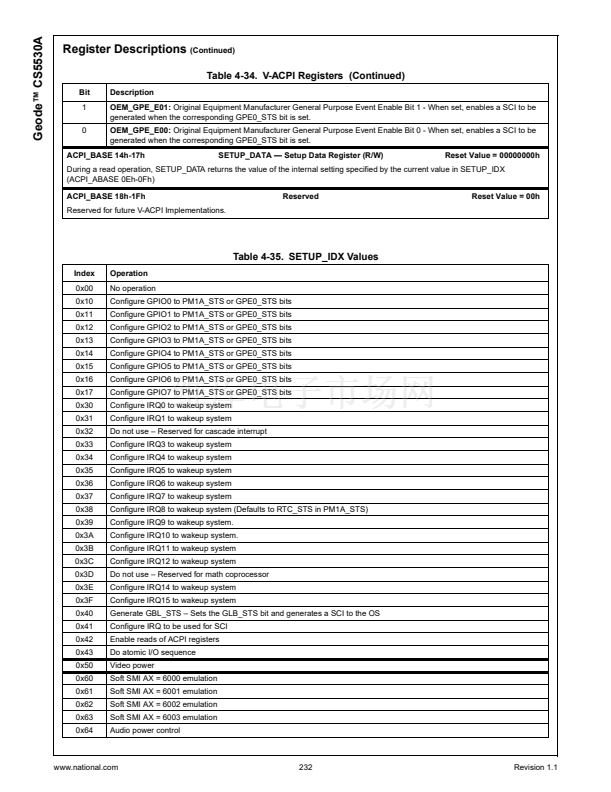

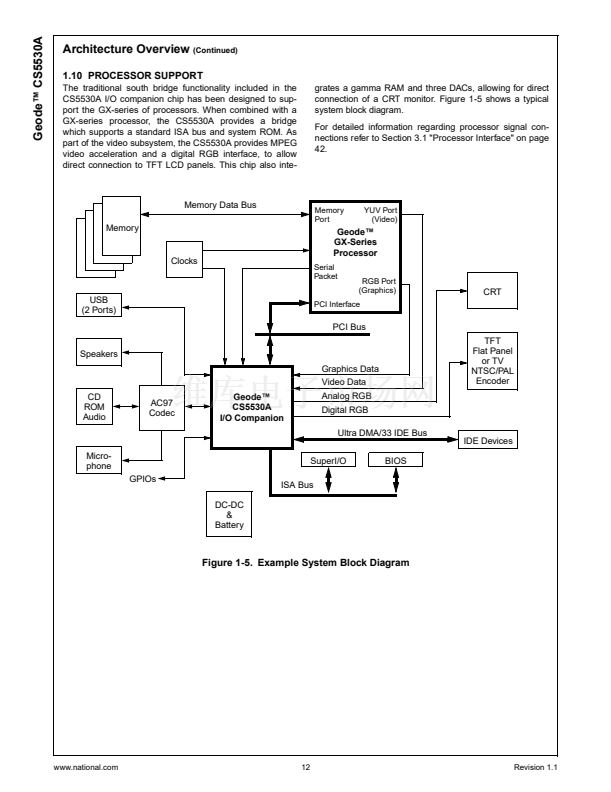

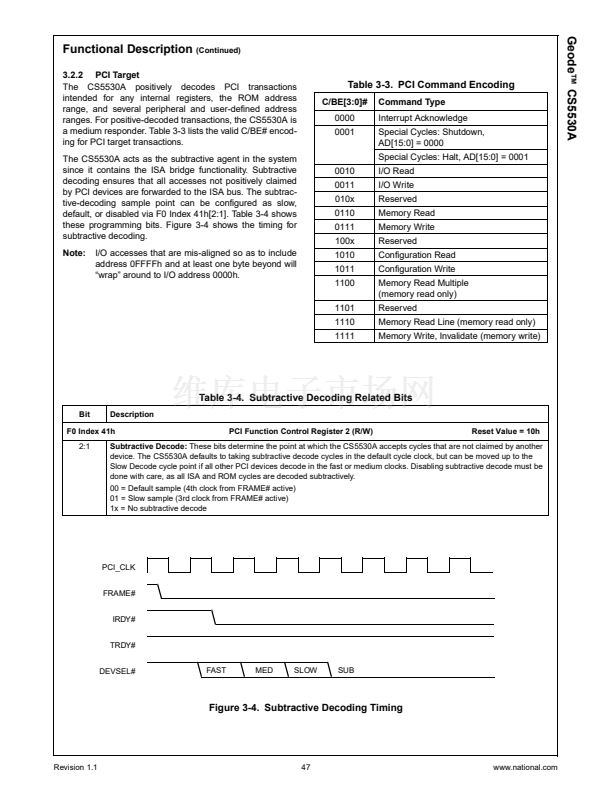

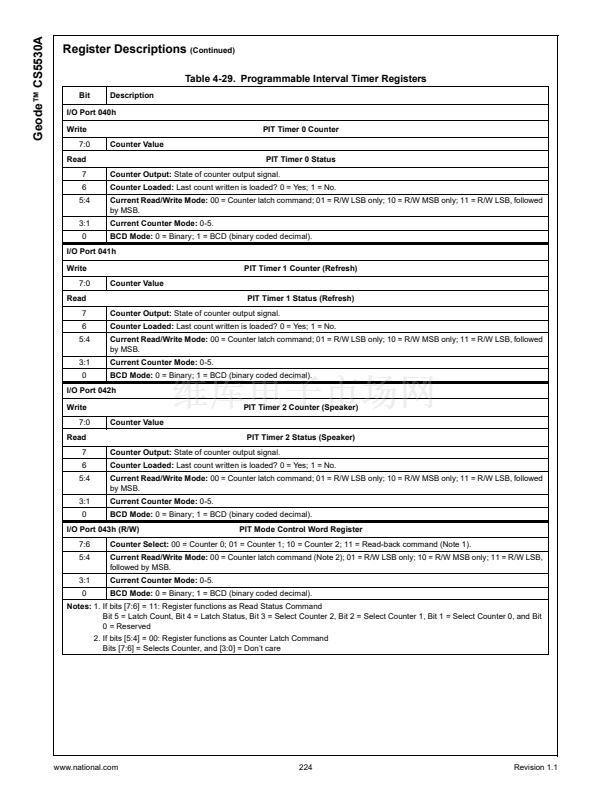

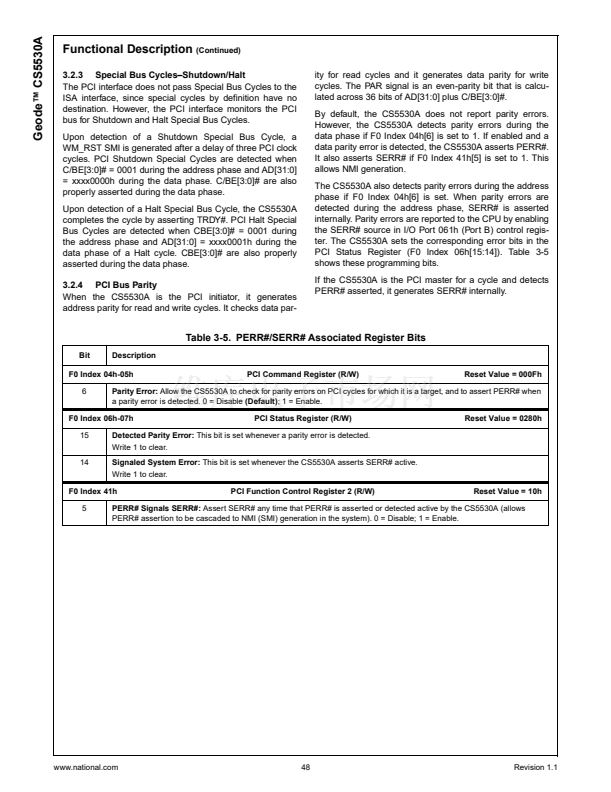

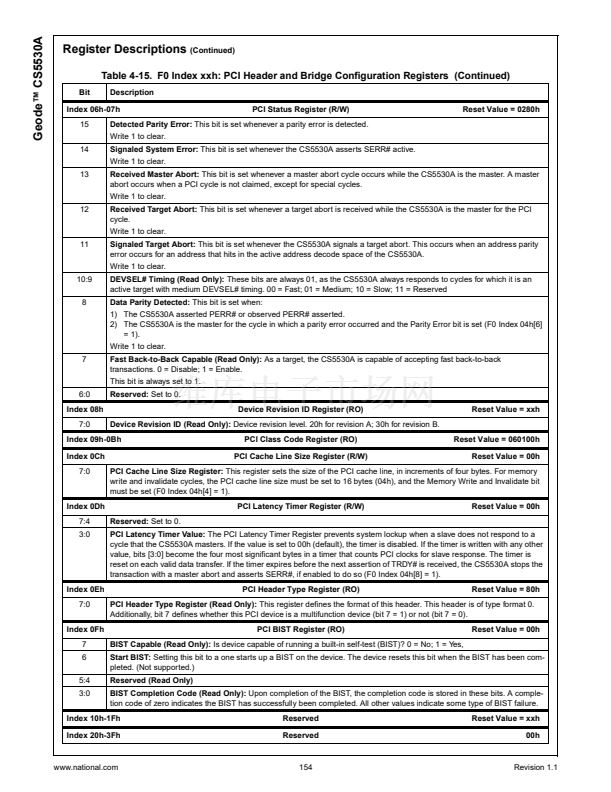

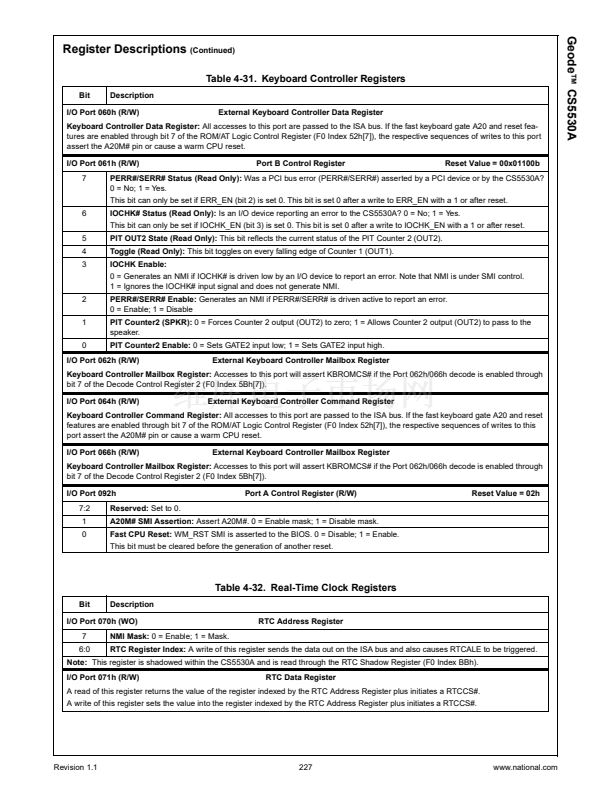

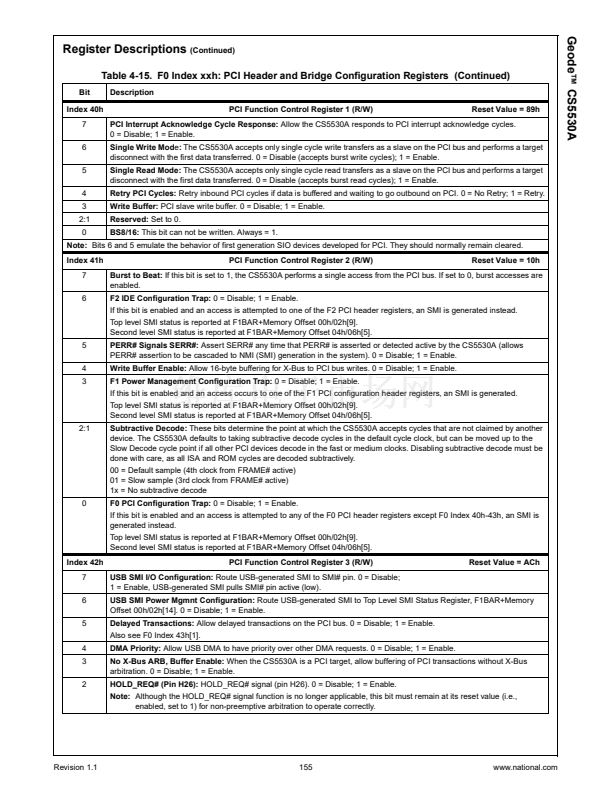

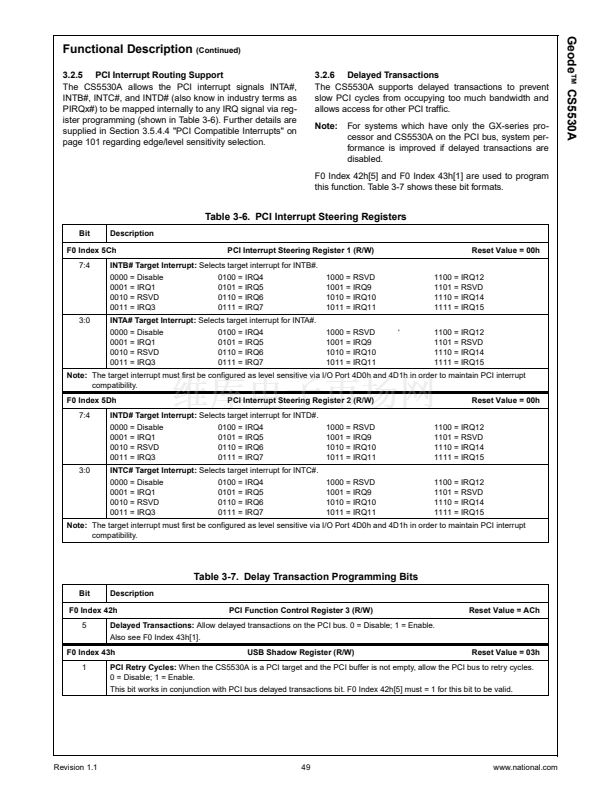

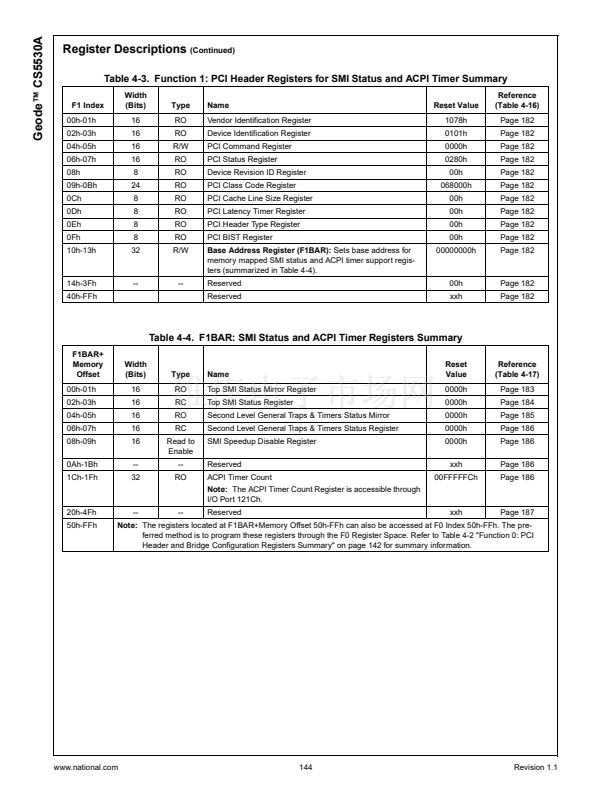

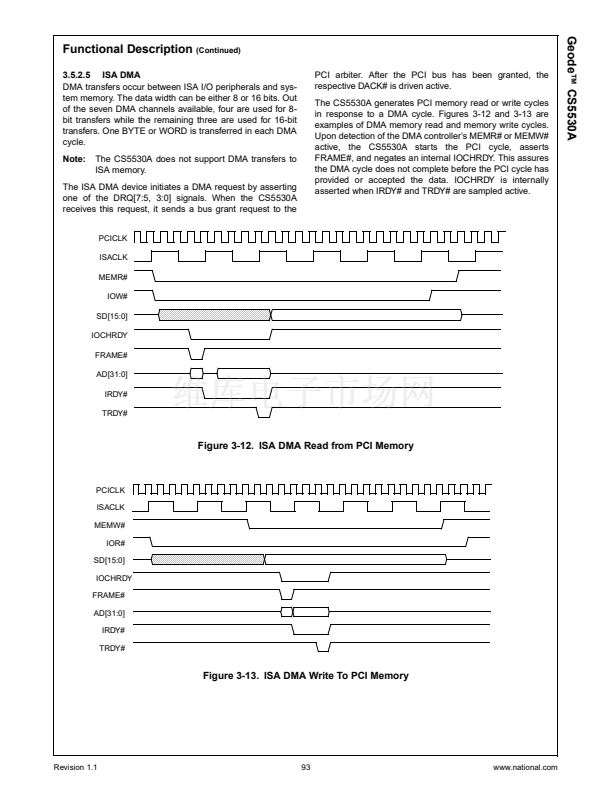

The CS5530A I/O companion is a PCI-to-ISA bridge (South

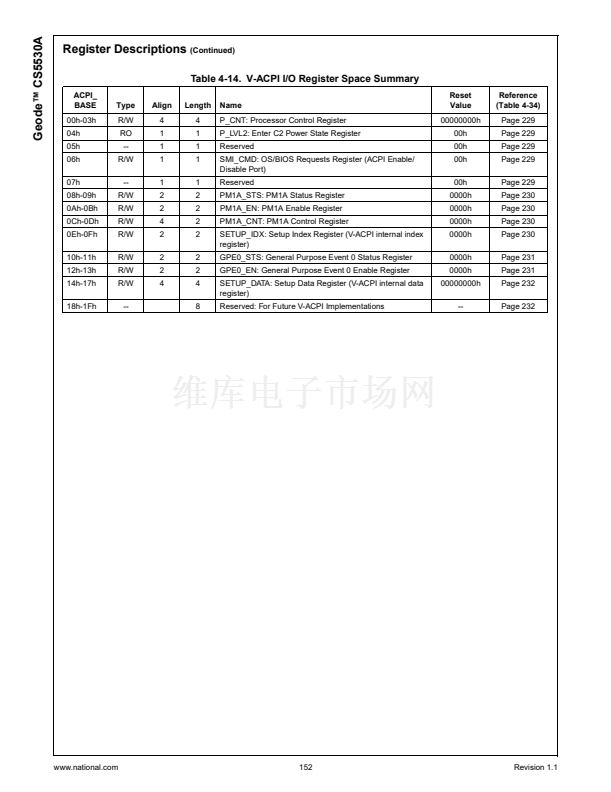

Bridge), ACPI-compliant chipset that provides AT/ISA style

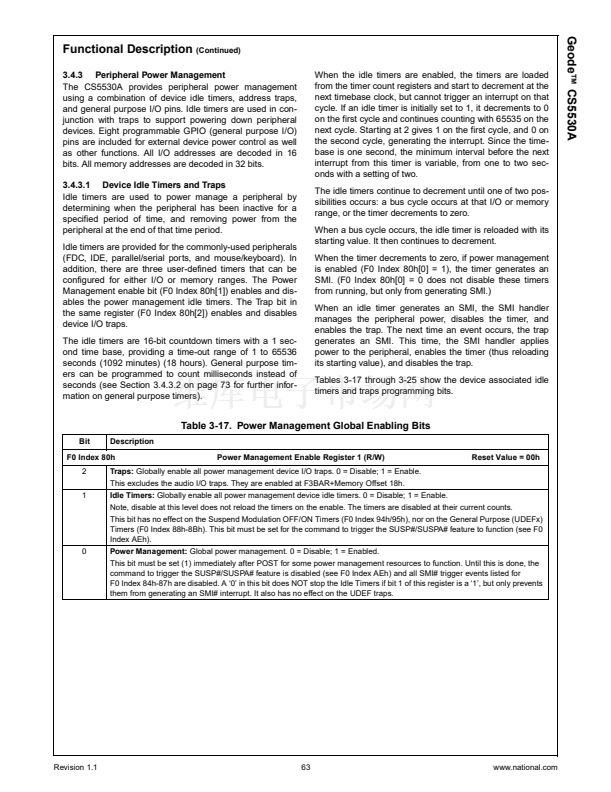

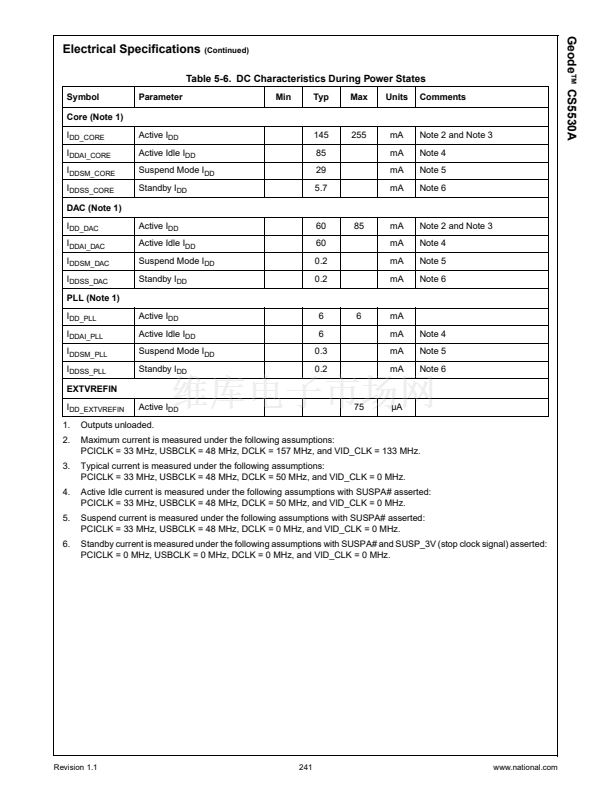

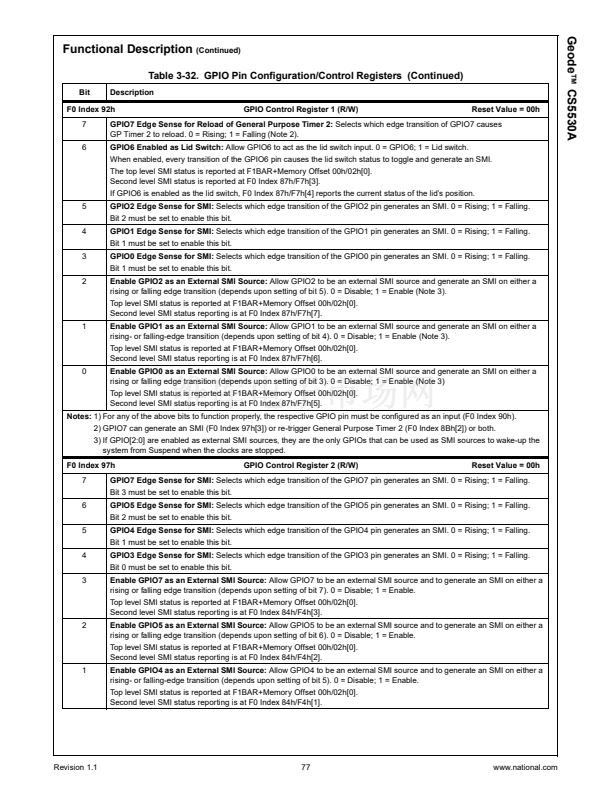

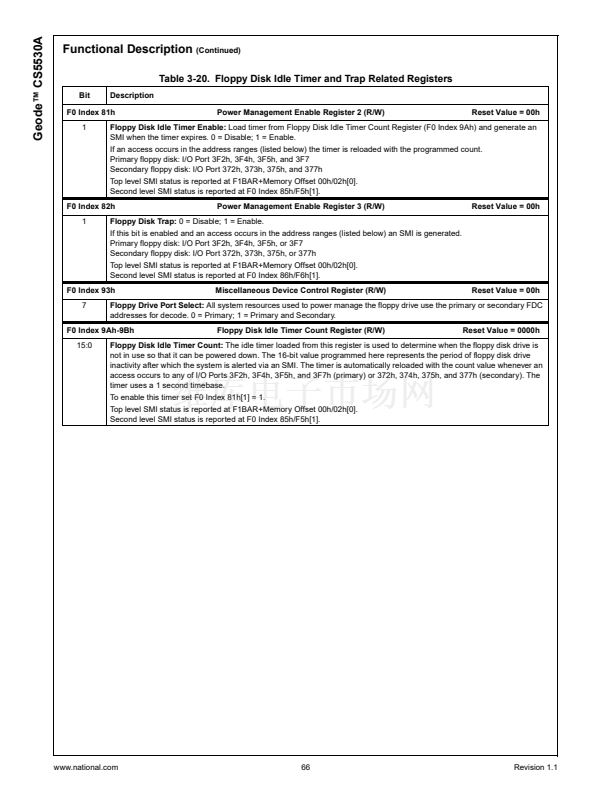

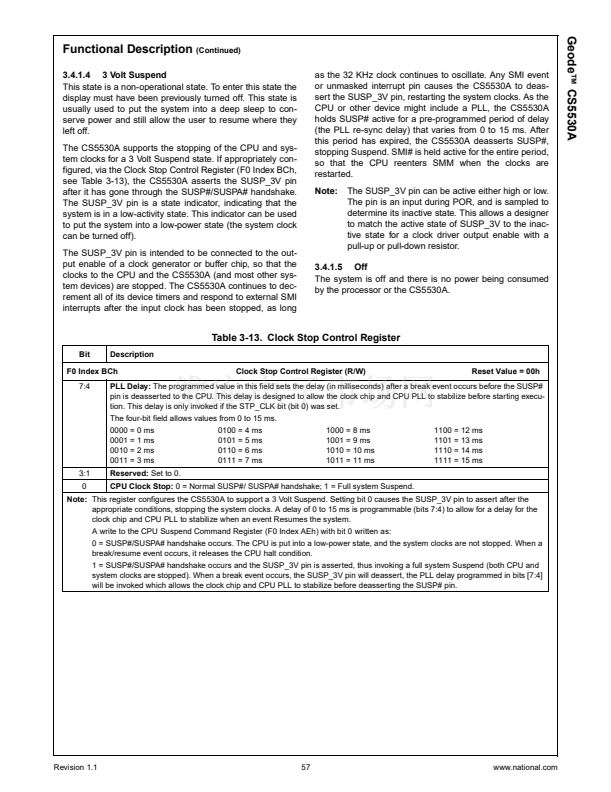

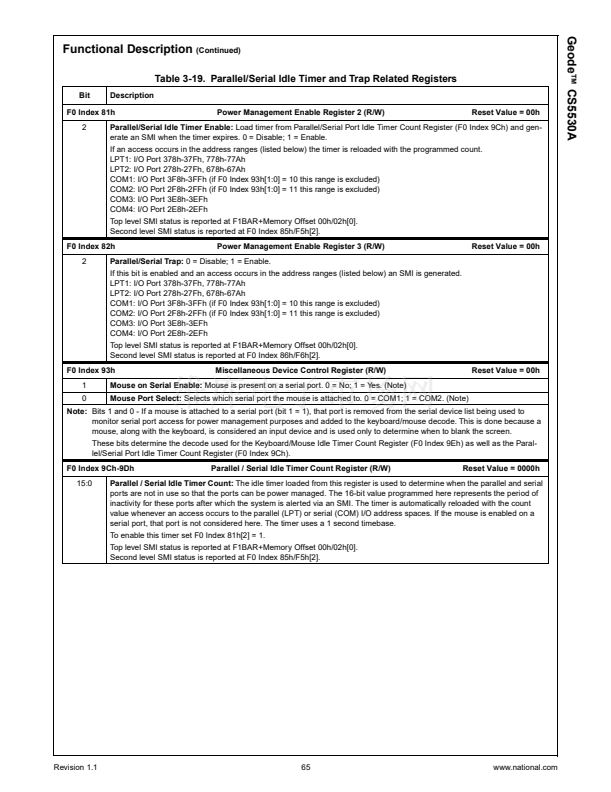

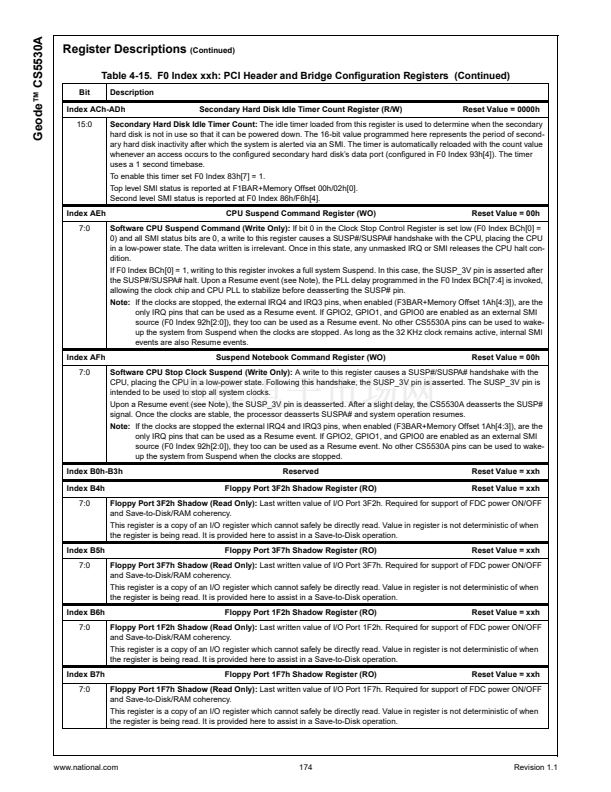

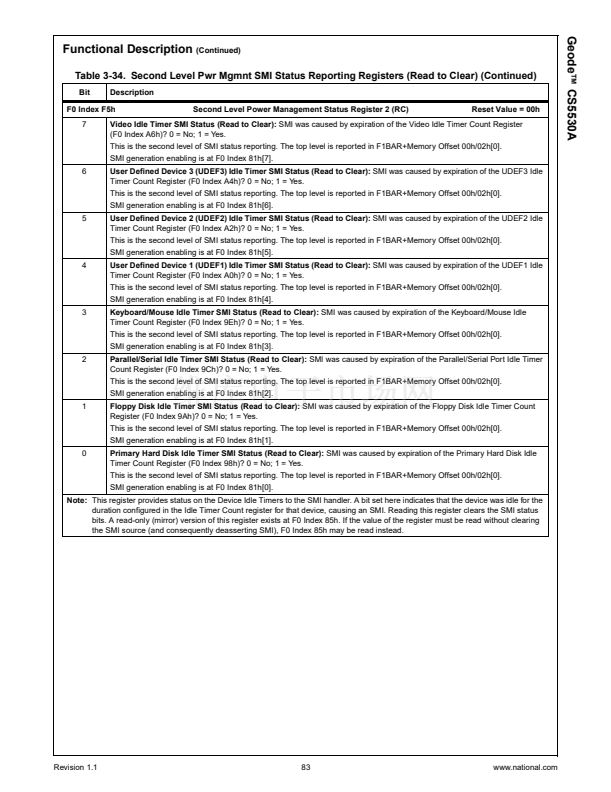

functionality. The device contains state-of-the-art power
management that enables systems, especially battery
powered systems, to significantly reduce power consump-
tion.

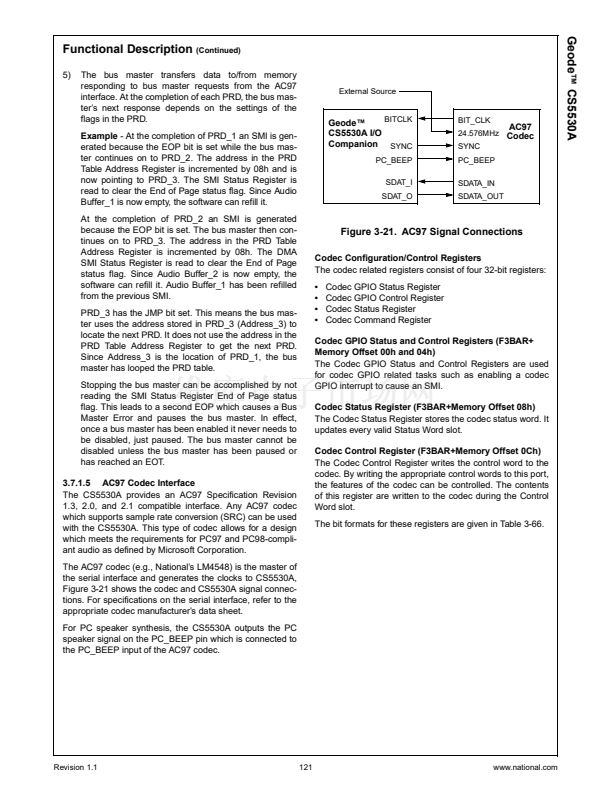

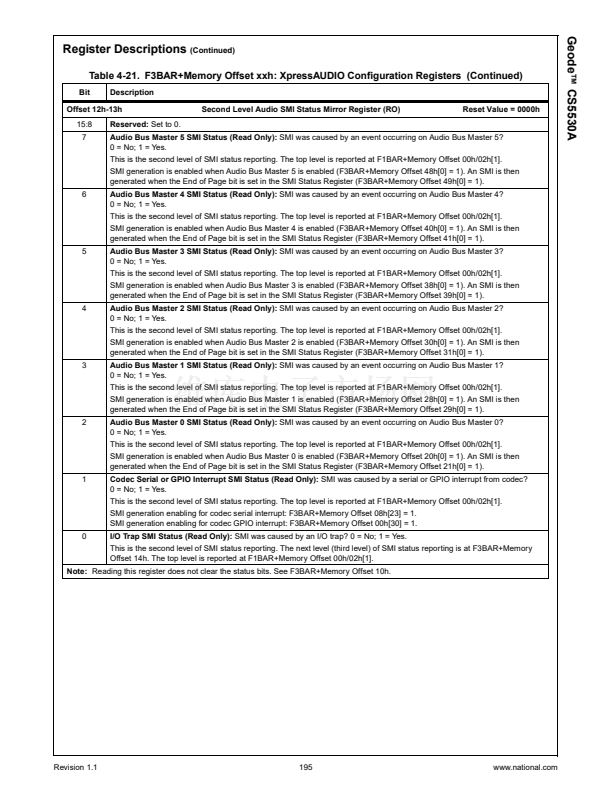

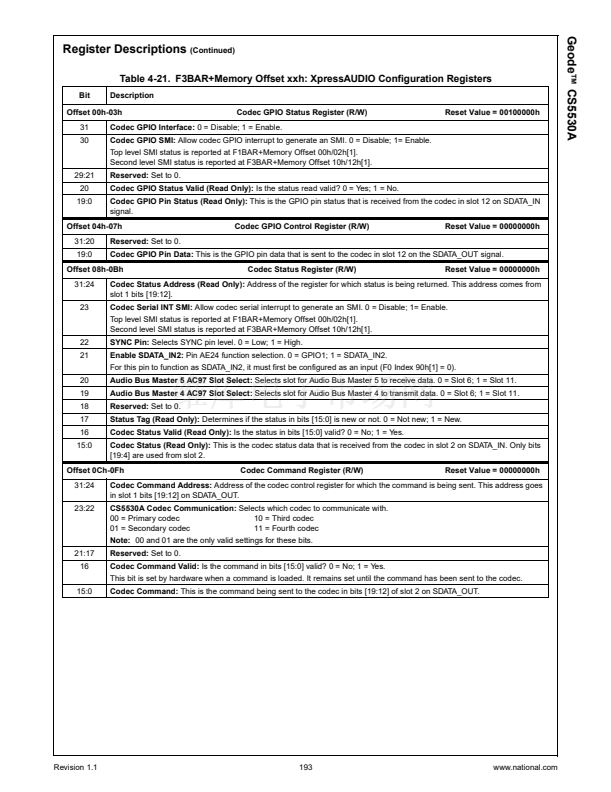

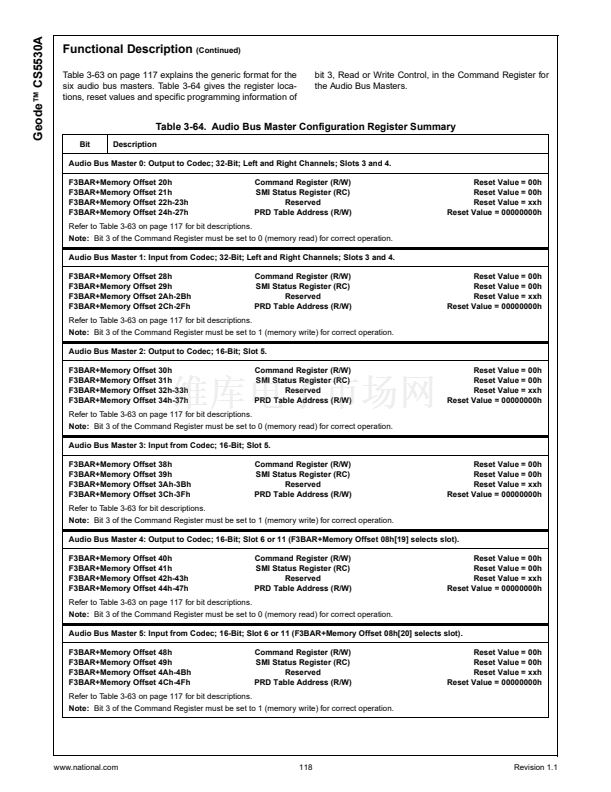

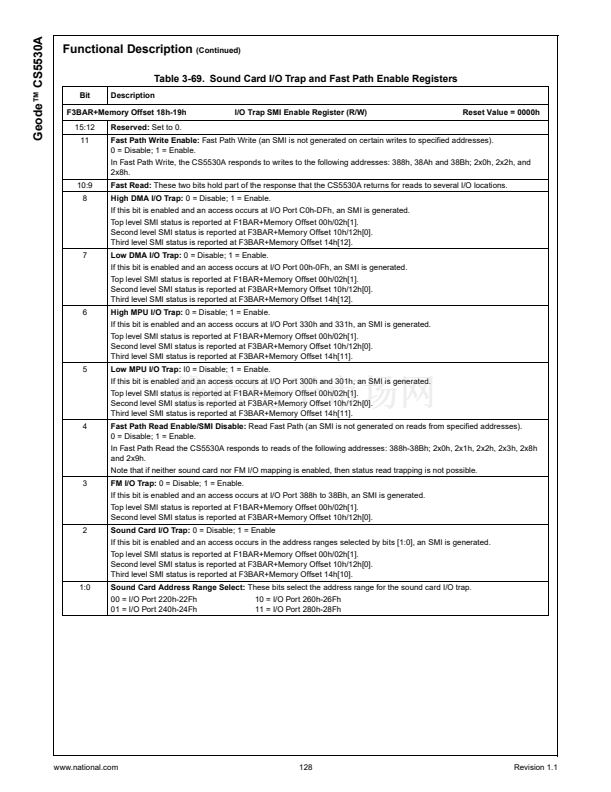

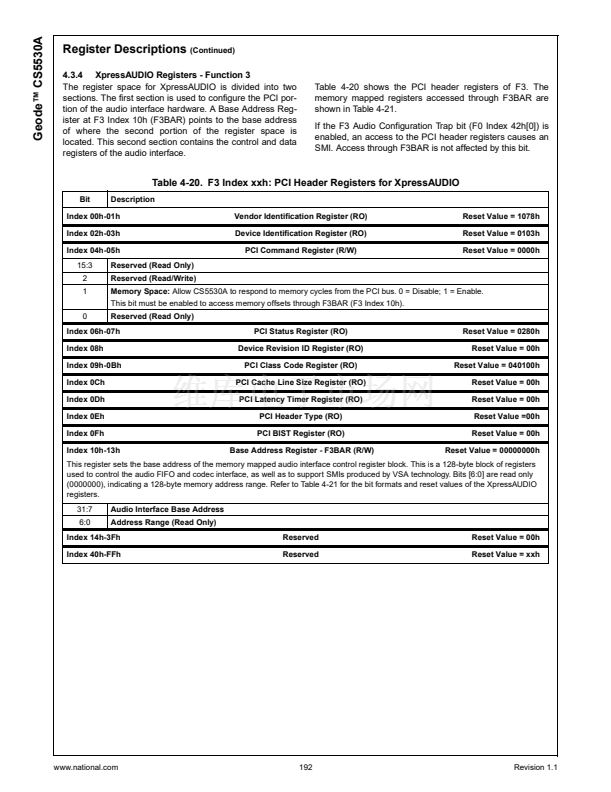

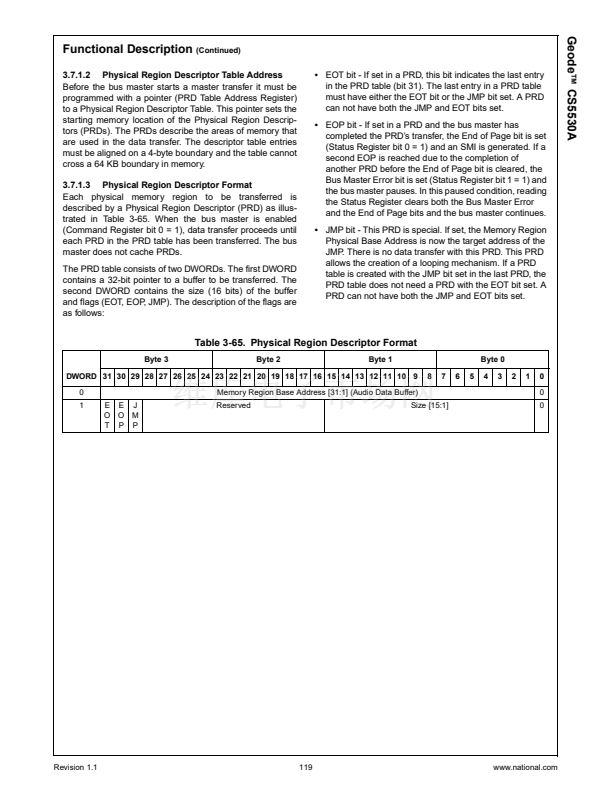

Audio is supported through PCI bus master engines which
connect to an AC97 compatible codec such as the National
Semiconductor LM4548. If industry standard audio is
required, a combination of hardware and software called
Virtual System Architecture
庐
(VSA鈩? technology is pro-
vided.

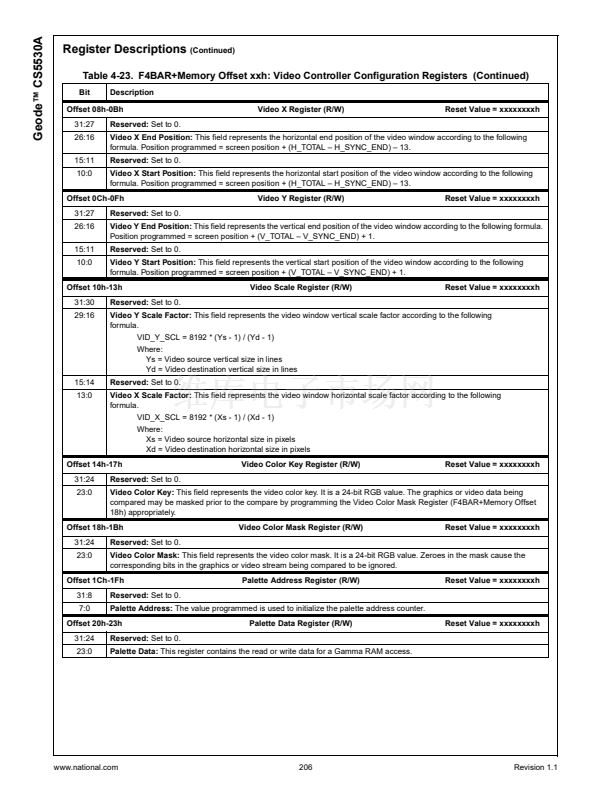

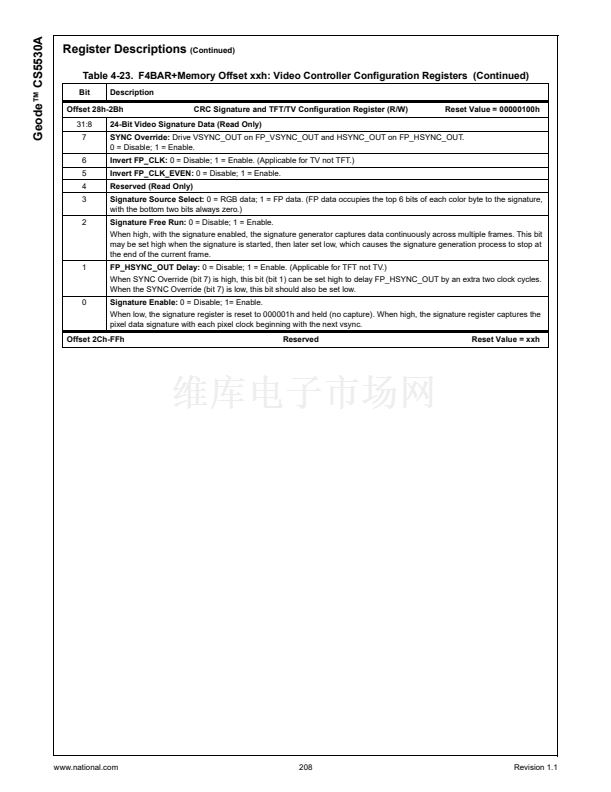

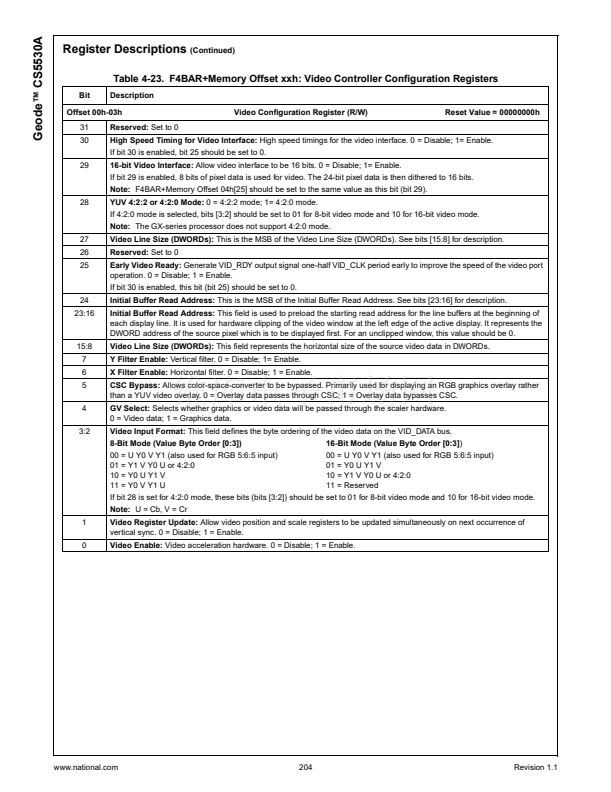

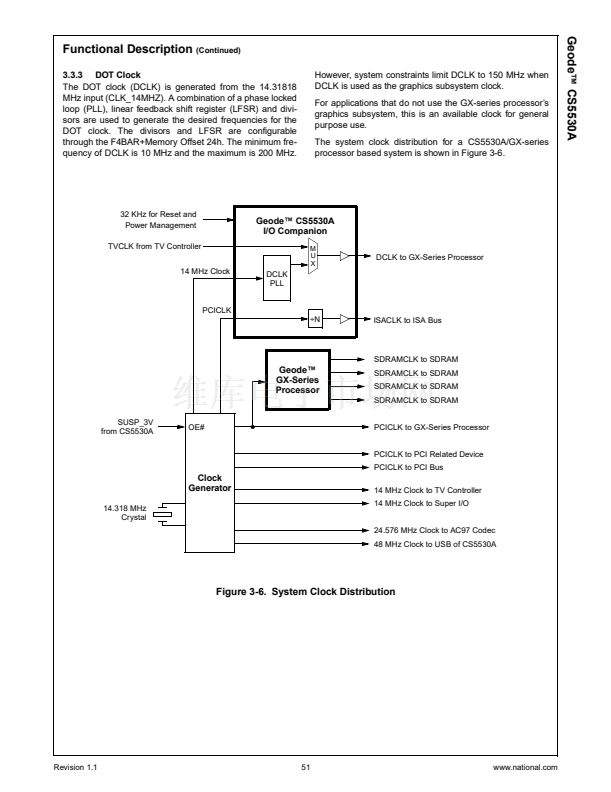

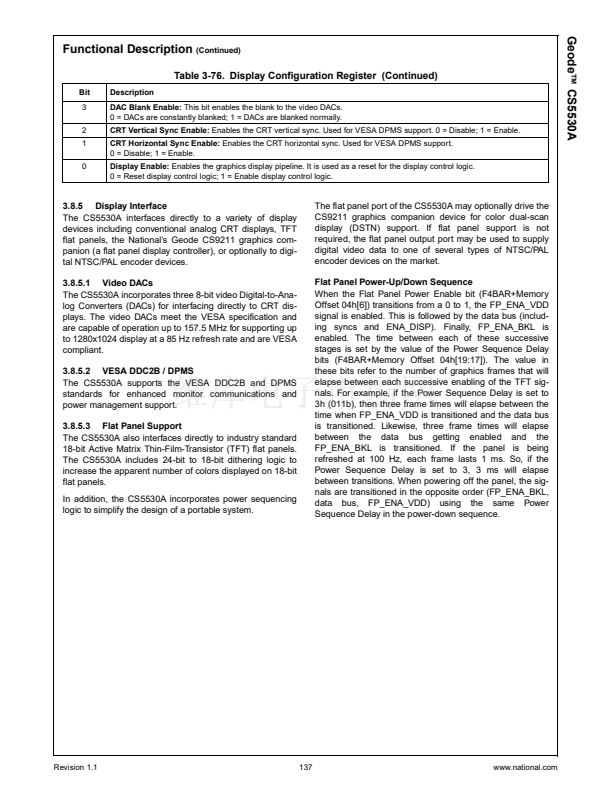

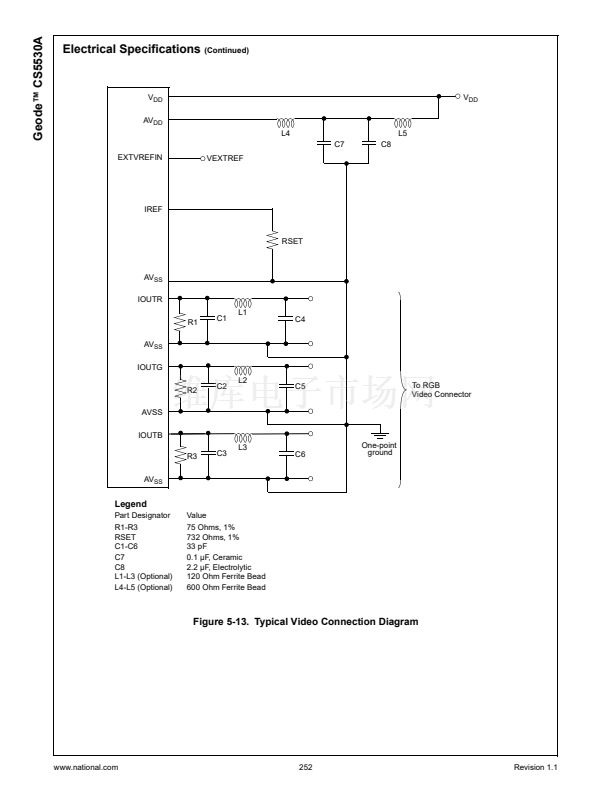

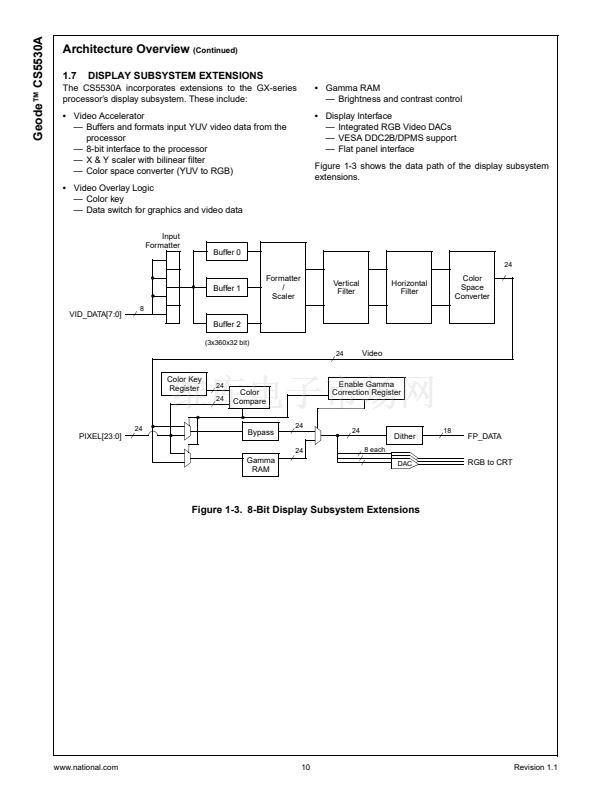

The Geode GX-series processors鈥?graphics/video output is
connected to the CS5530A. The CS5530A graphics/video

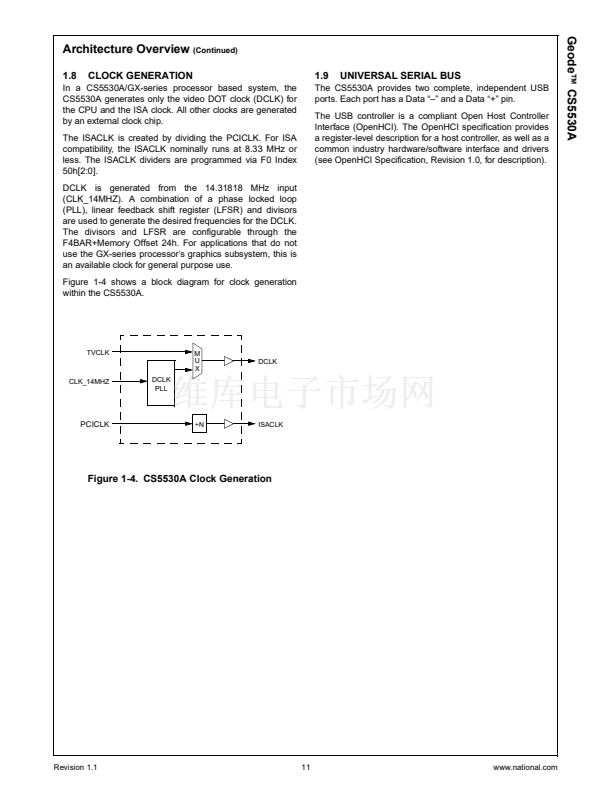

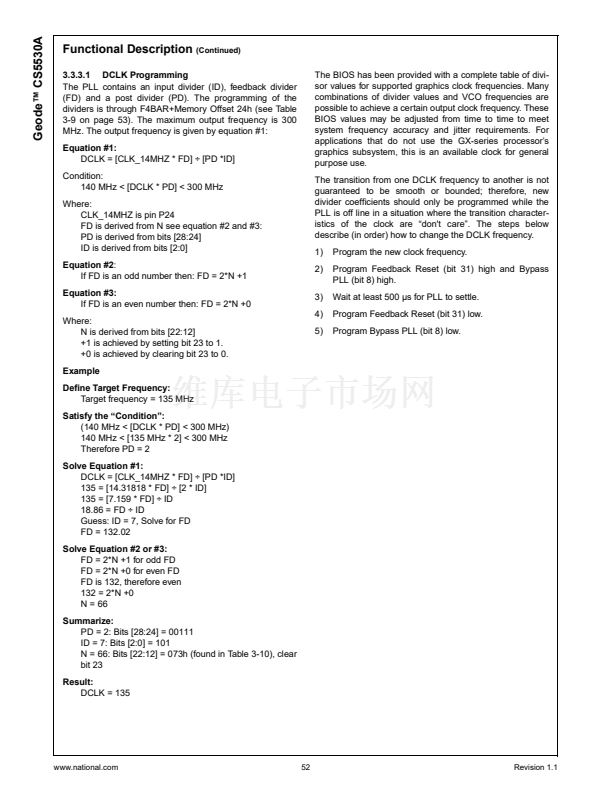

support includes a PLL that generates the DOT clock for
the GX-series processors (where the graphics controller is
located), video acceleration hardware, gamma RAM plus
three DACs for RGB output to CRT, and digital RGB that
can be directly connected to TFT panels or NTSC/PAL
encoders. The digital RGB output can also be connected to
the National Semiconductor Geode CS9211 graphics com-
panion (a flat panel display controller) for DSTN panel sup-
port.

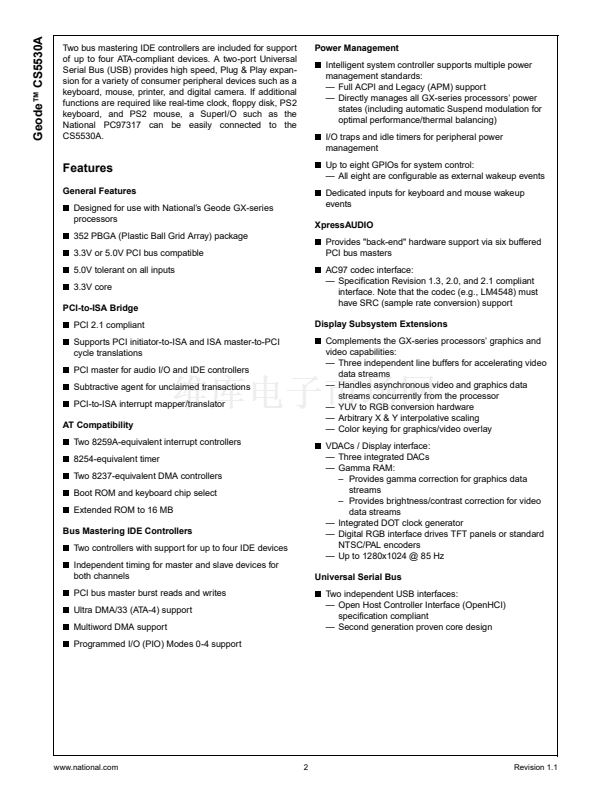

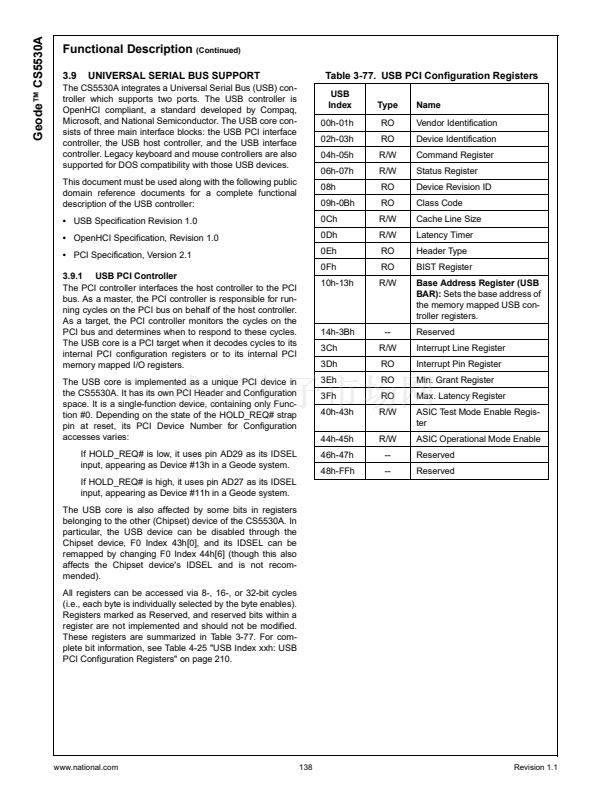

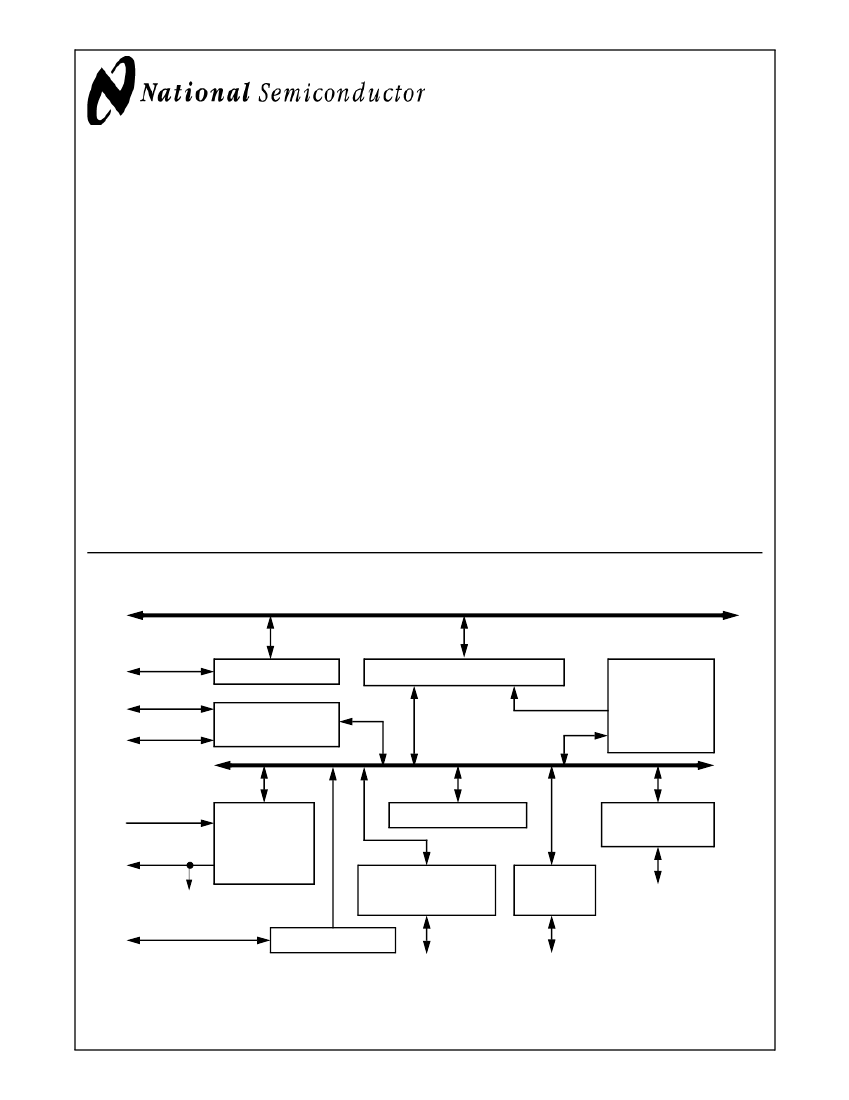

Geode鈩?CS5530A Internal Block Diagram
PCI Bus

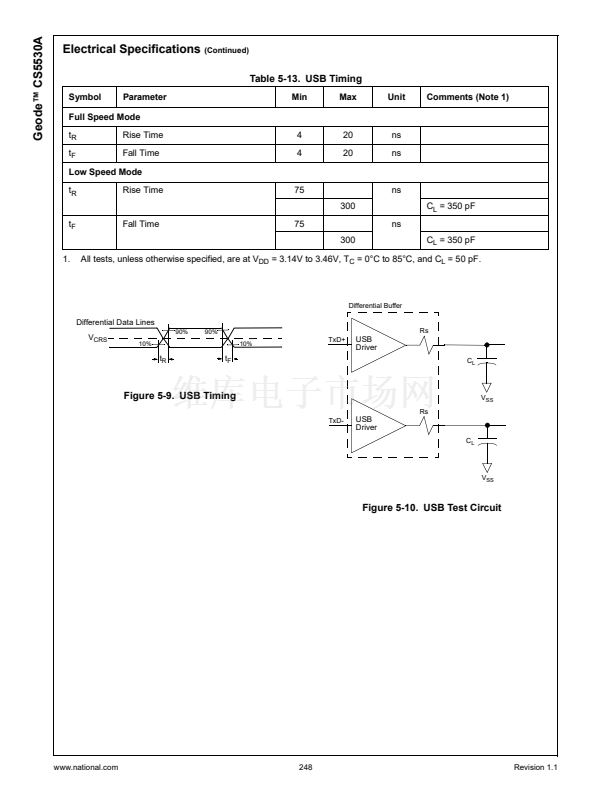

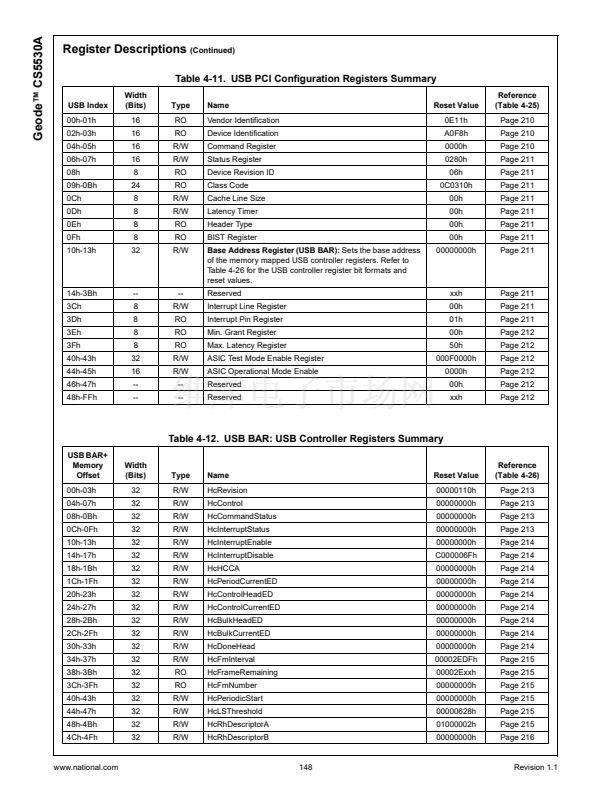

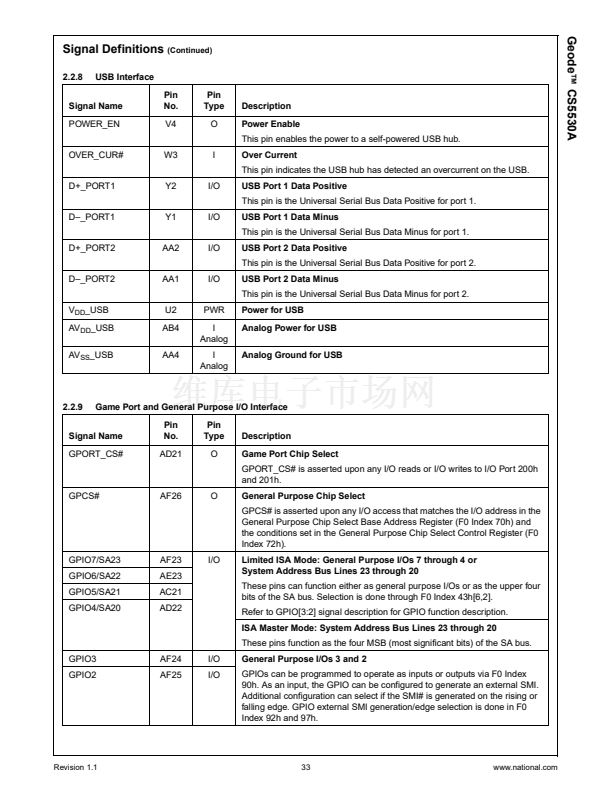

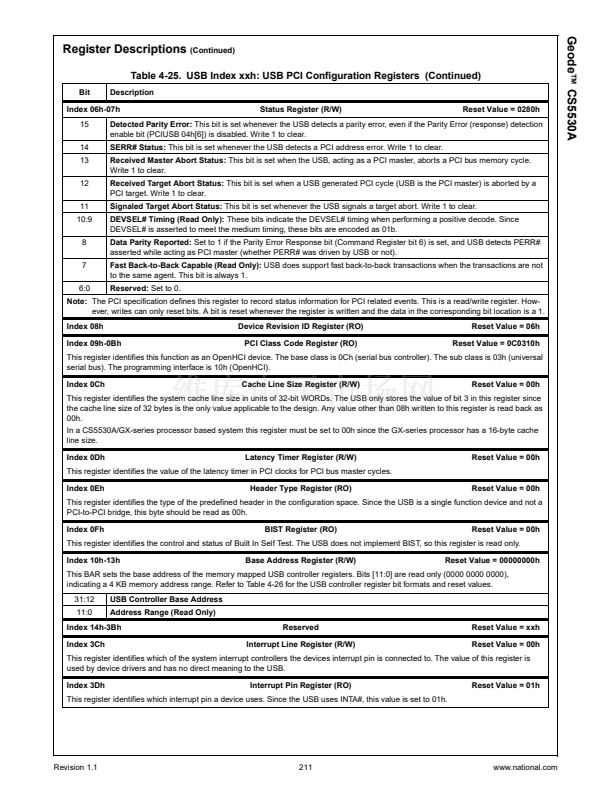

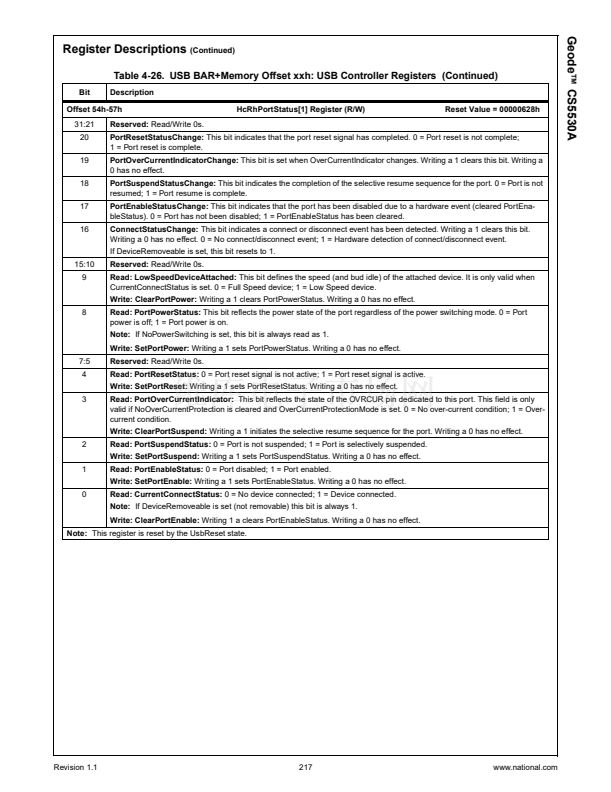

USB

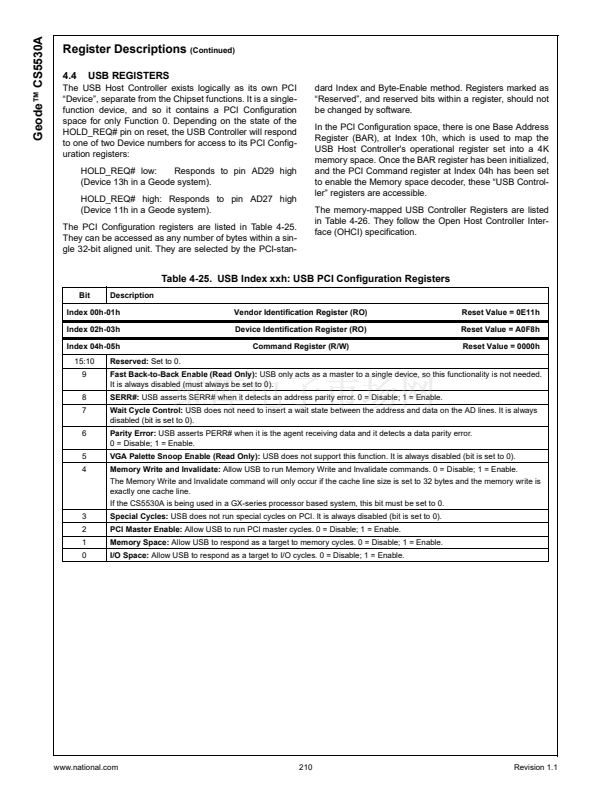

PCI to USB Macro
GPIOs

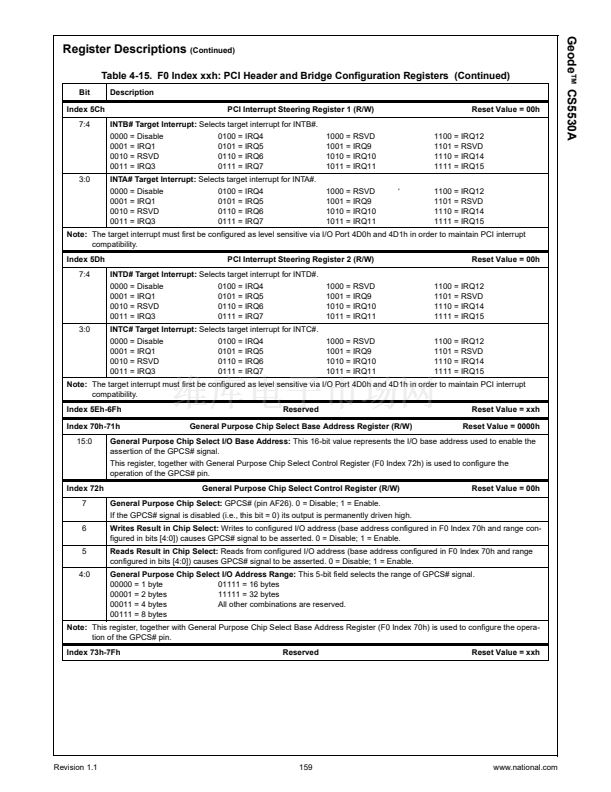

GPCS

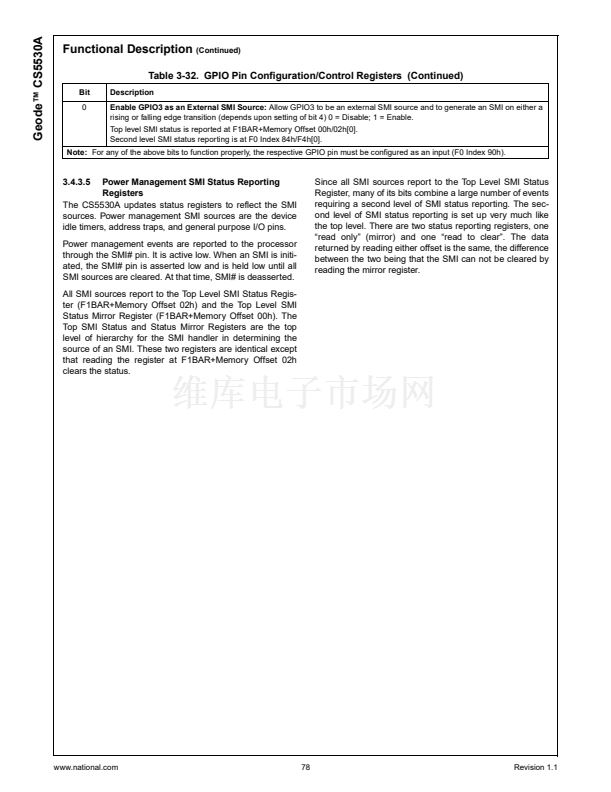

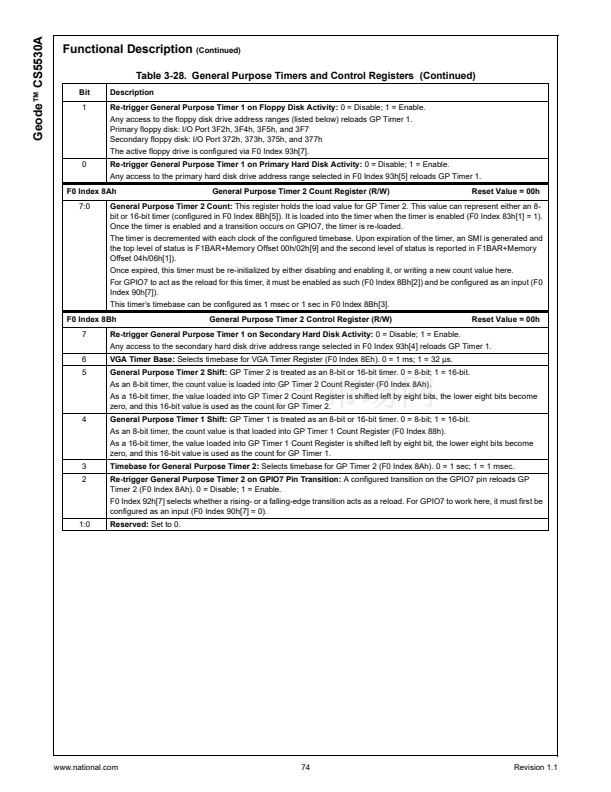

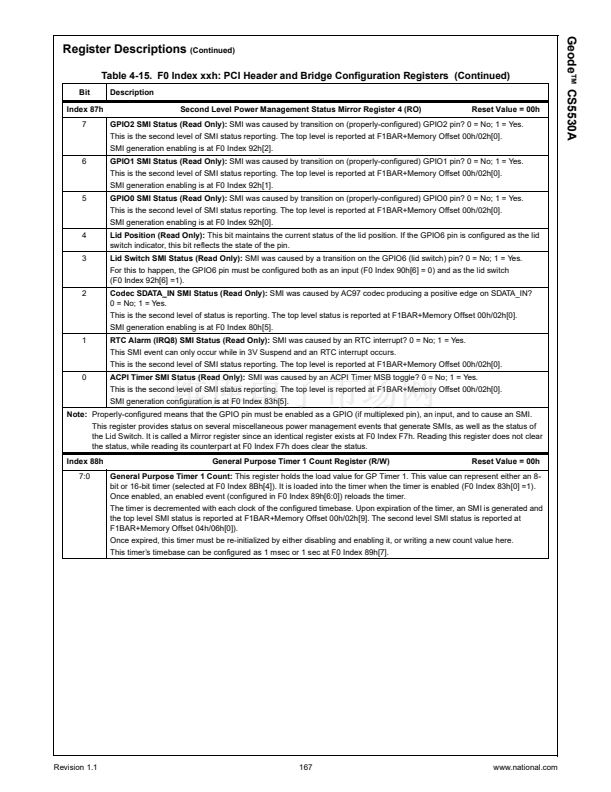

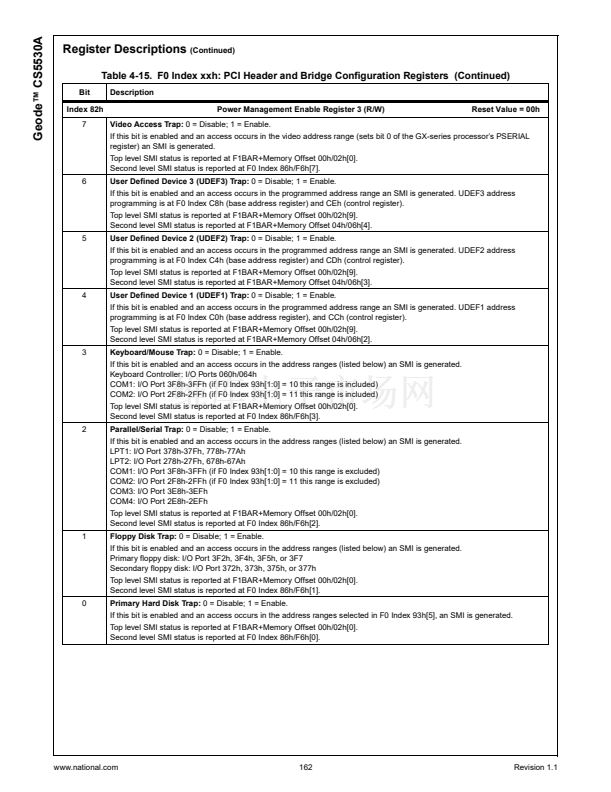

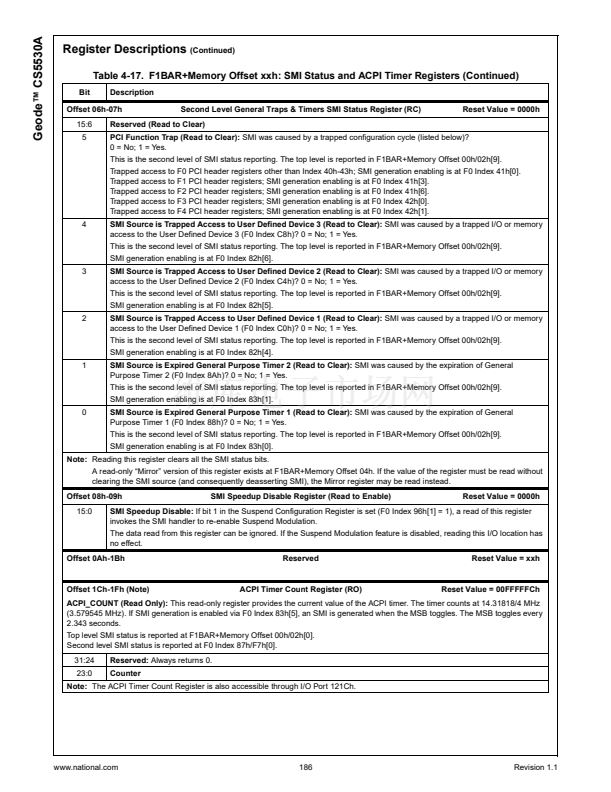

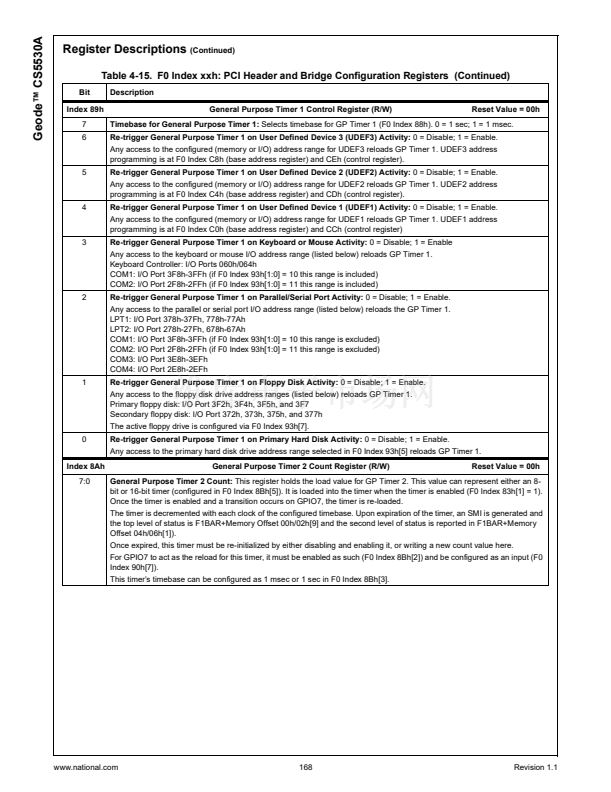

Pwr Mgmt, Traps,
Events, and Timers

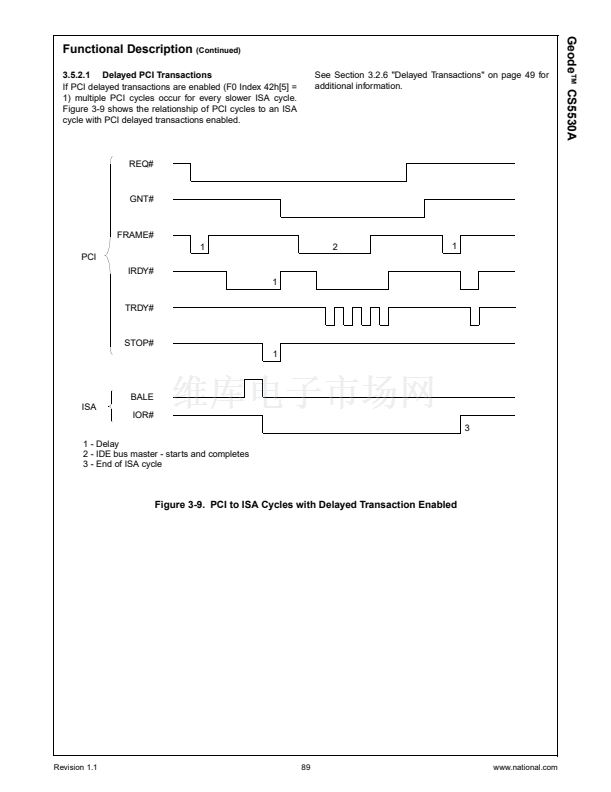

PCI to X-Bus / X-Bus to PCI Bridge
CS5530A Support

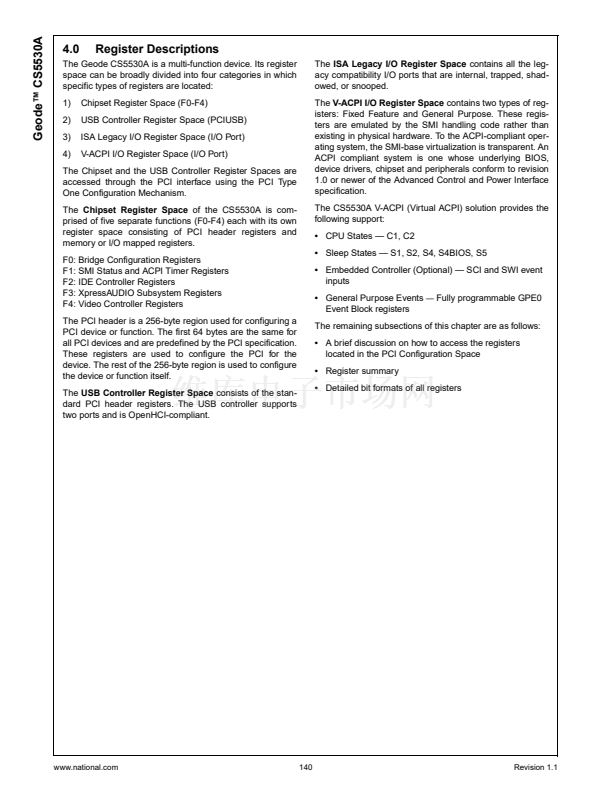

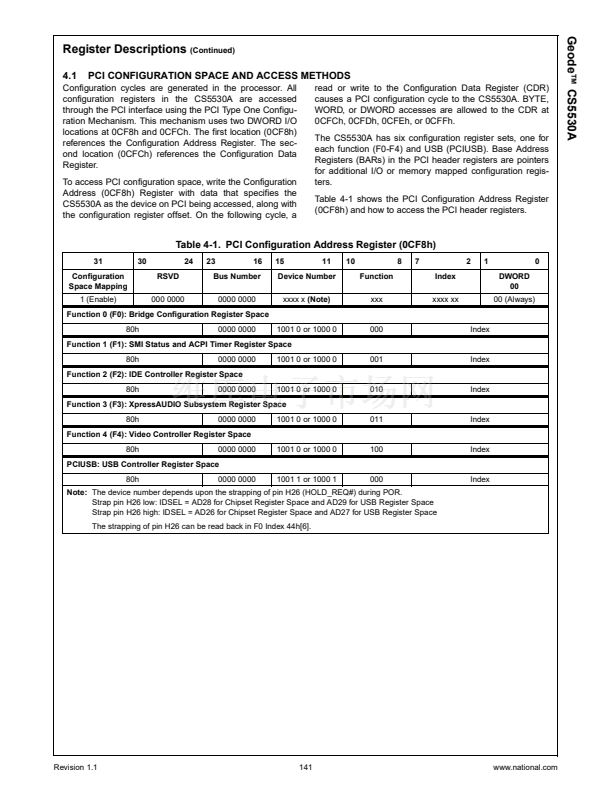

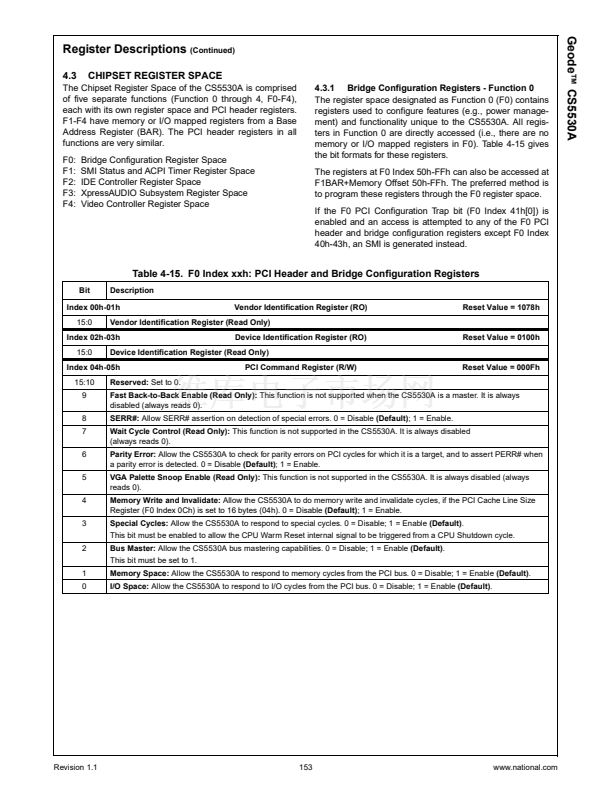

PCI Configuration
Registers
Active Decode
Address Mapper
X-Bus Arbiter
X-Bus
Graphics
and Video
from CPU

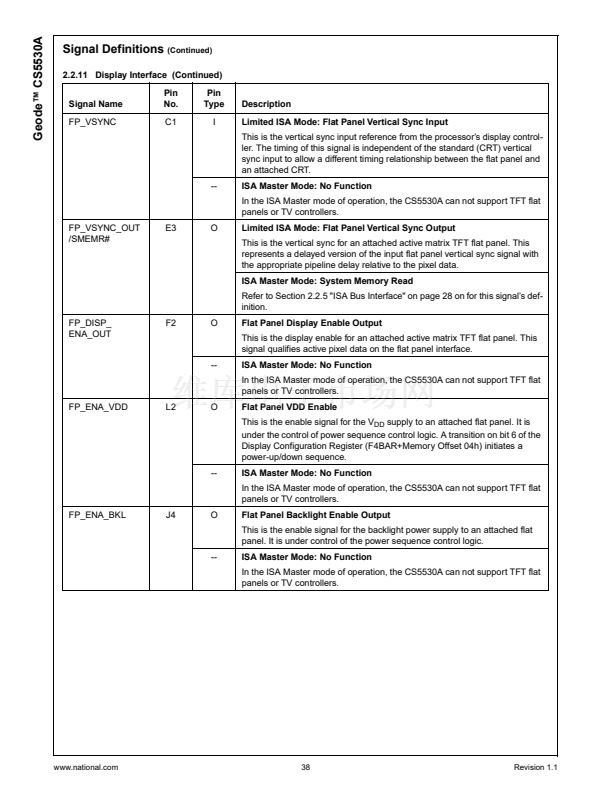

Display Interface

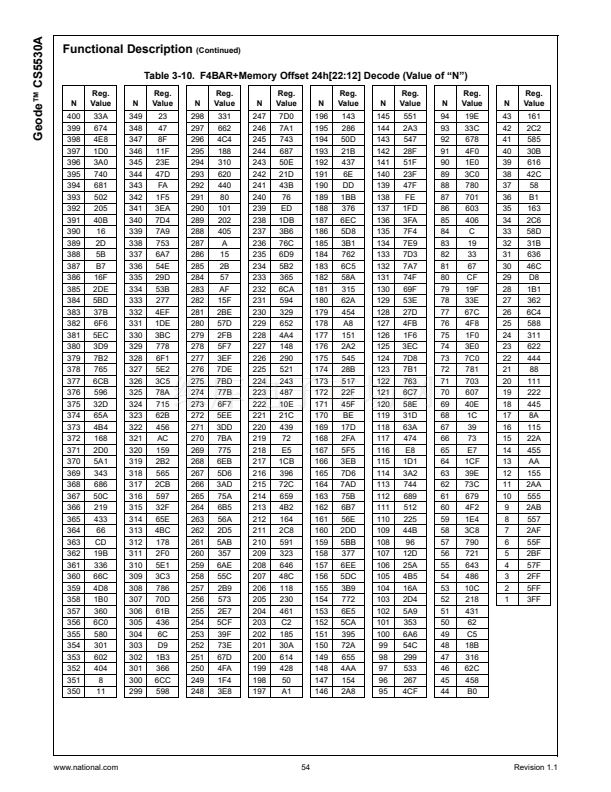

MPEG, DOT Clock
CSC and SCL
RGB/FP Interface

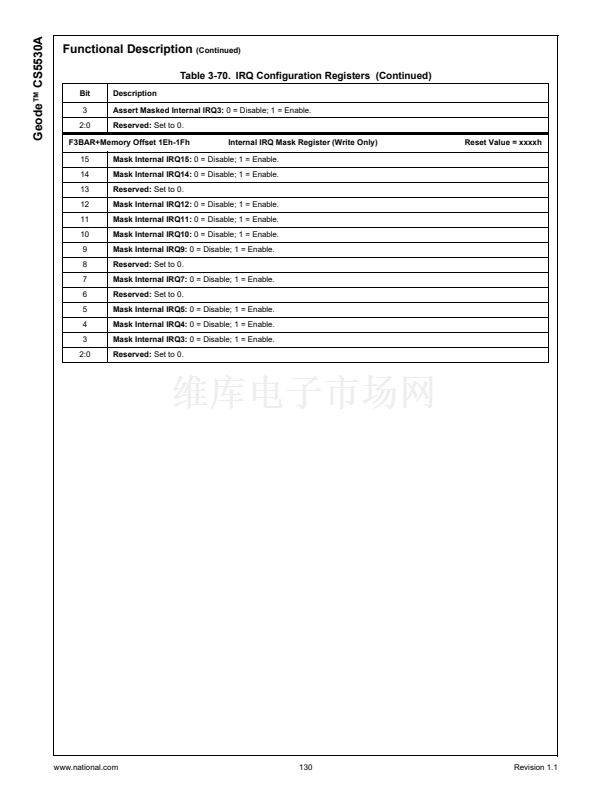

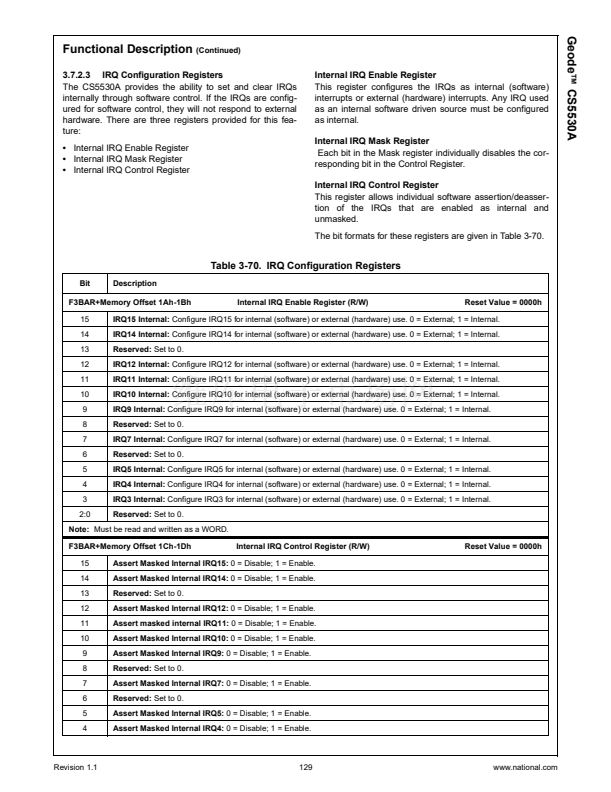

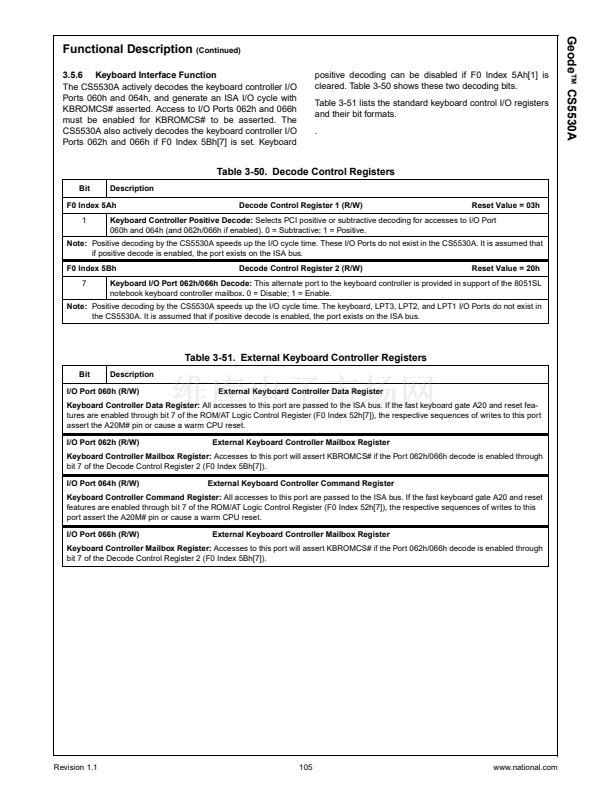

AT Compatibility Logic
Audio/Codec/MPU
Interface
Display
Geode鈩?CS9211
Graphics Companion
Joystick

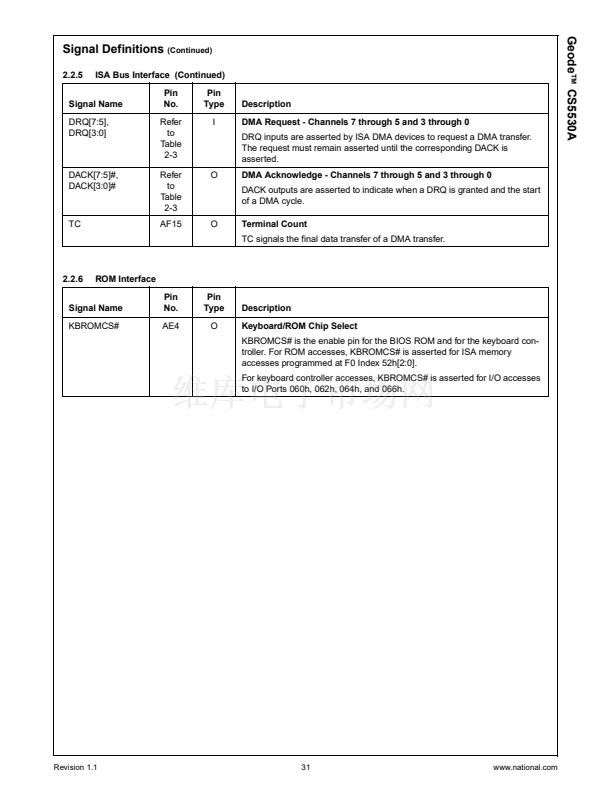

ISA Bus Interface

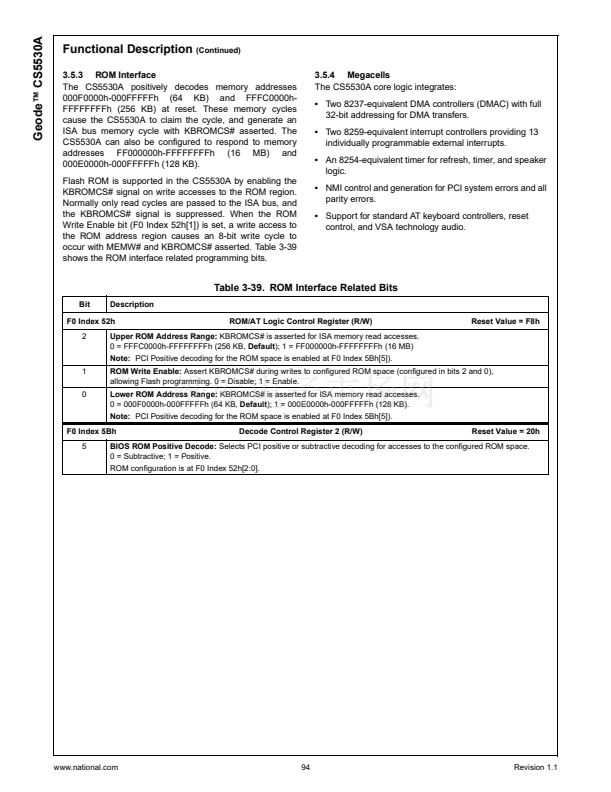

AT Ports, ISA Megacells

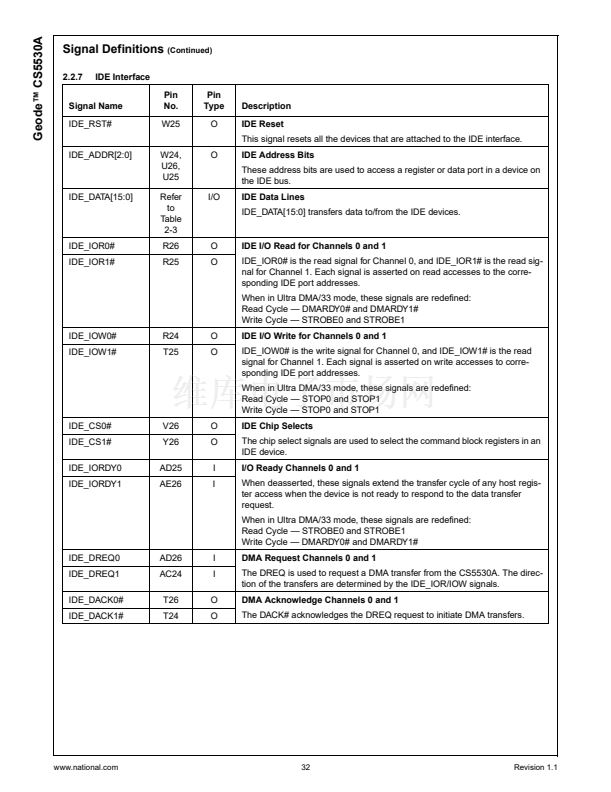

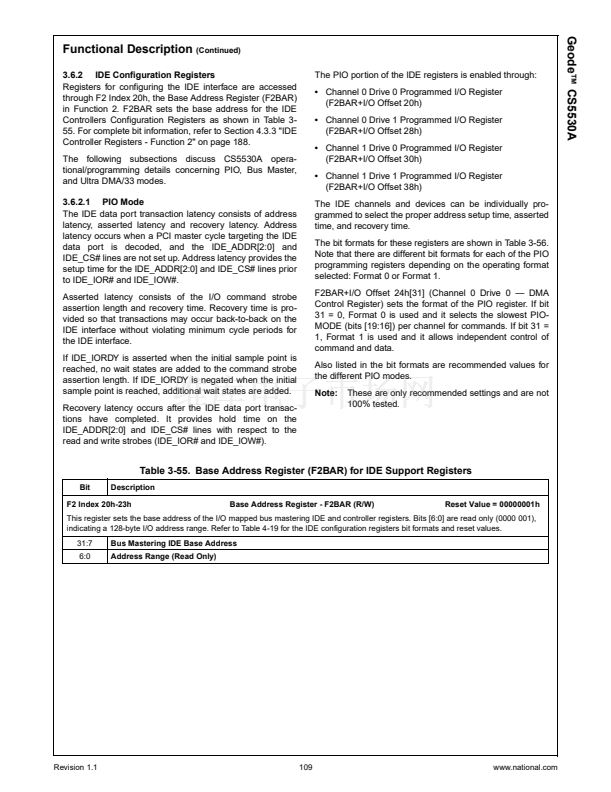

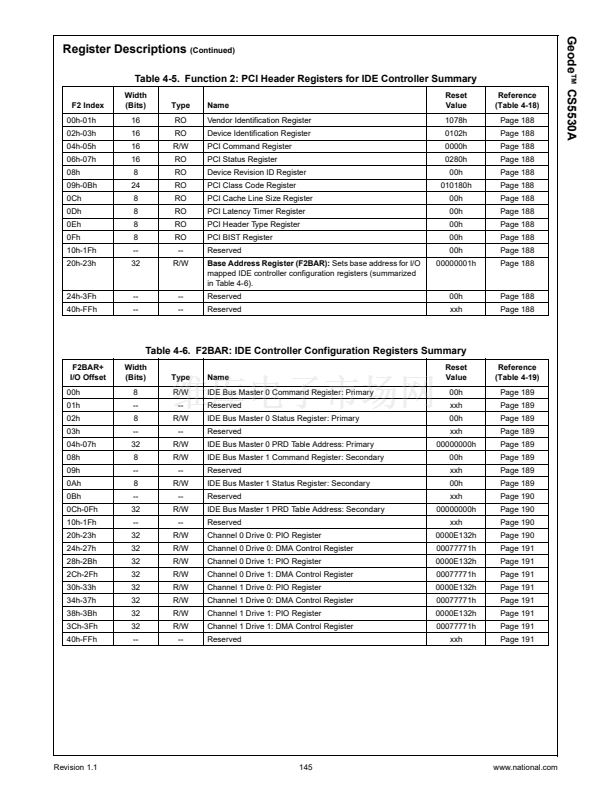

Ultra DMA/33
IDE
Interface
AC97 Codec
(e.g., LM4548)
Joystick / Game Port
ISA Bus
PC97317 SIO
IDE
National Semiconductor and Virtual System Architecture are registered trademarks of National Semiconductor Corporation.
Geode, VSA and WebPAD are trademarks of National Semiconductor Corporation.
For a complete listing of National Semiconductor trademarks, please visit www.national.com/trademarks.
漏 2001 National Semiconductor Corporation
www.national.com
