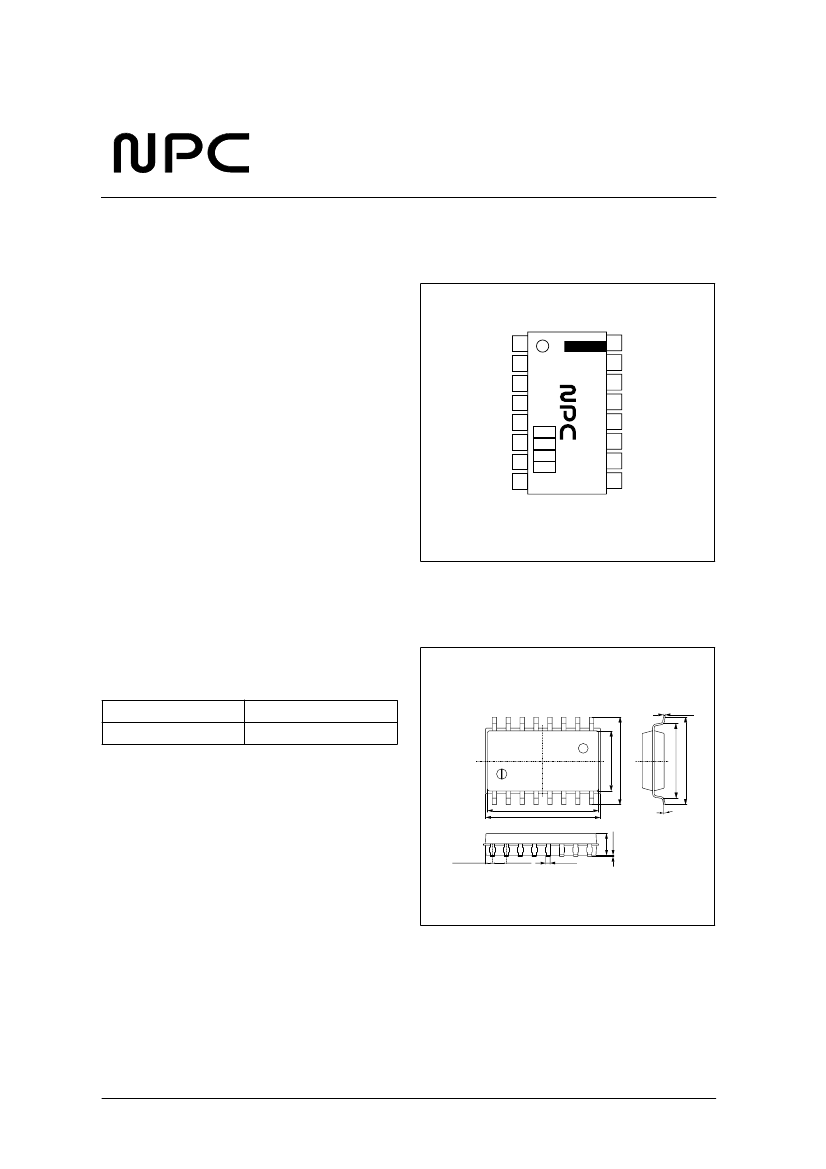

SM5852CS

NIPPON PRECISION CIRCUITS INC.

Dynamic Range Compression LSI

OVERVIEW

The SM5852CS is a digital signal processor IC that

performs dynamic range compression for use in

digital audio reproduction equipment. It is designed

for use with a 44.1 kHz sampling frequency.

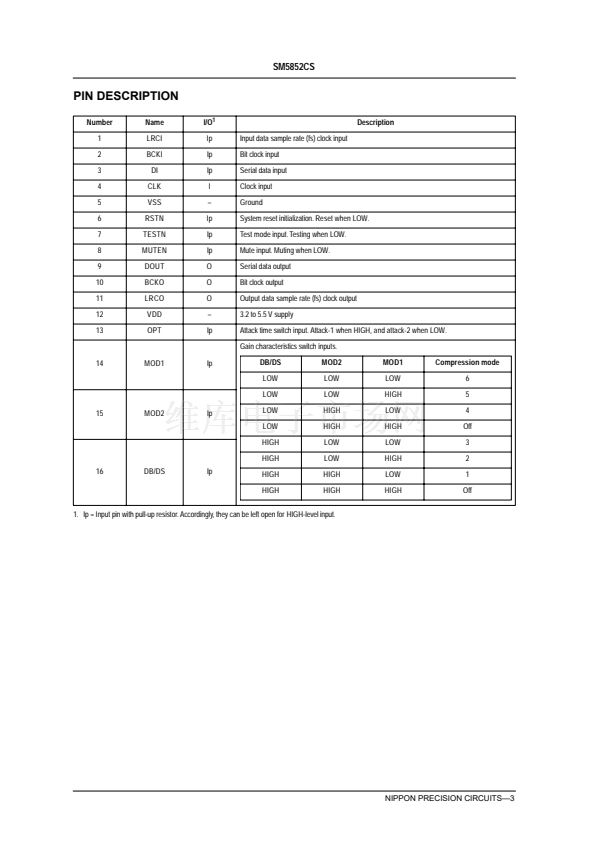

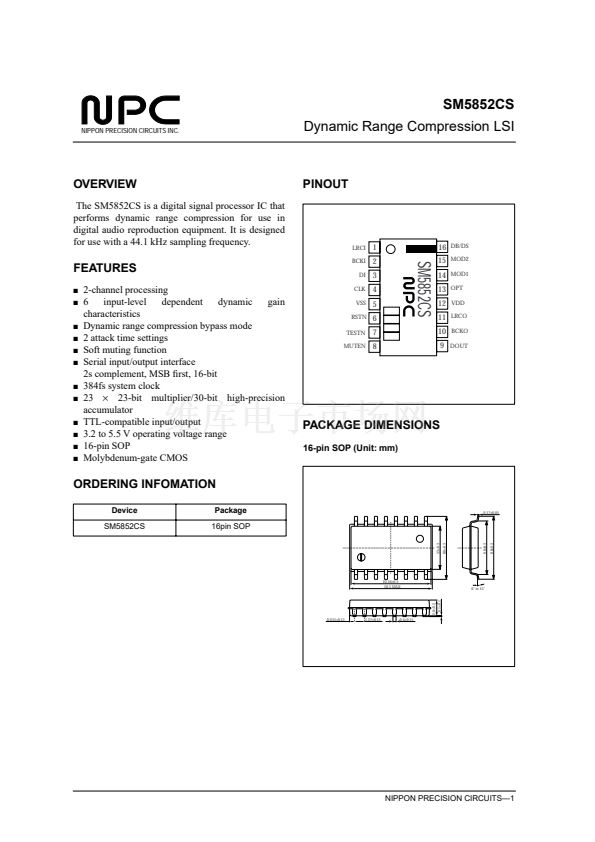

PINOUT

LRCI

BCKI

DI

CLK

VSS

RSTN

TESTN

MUTEN

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

DB/DS

MOD2

MOD1

OPT

VDD

LRCO

BCKO

DOUT

SM5852CS

FEATURES

s

s

s

s

s

s

s

s

s

s

s

s

2-channel processing

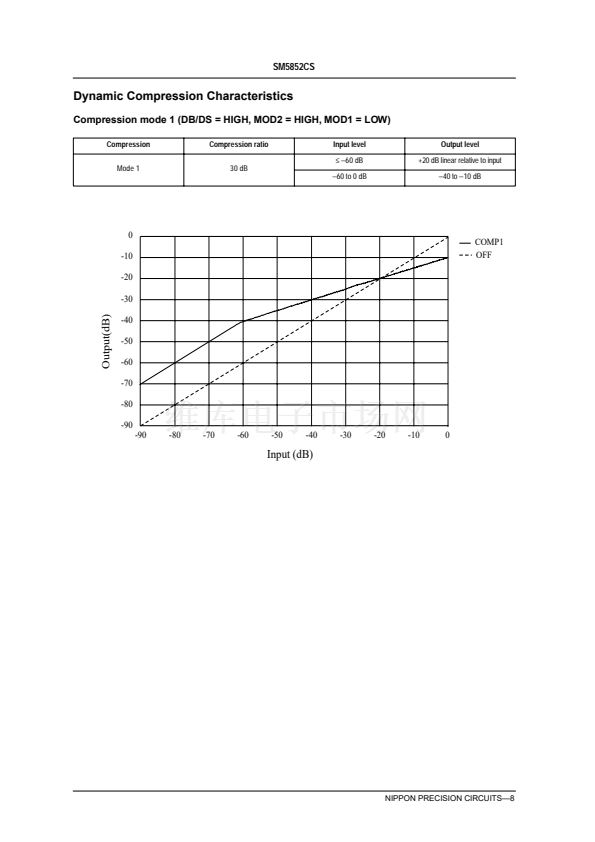

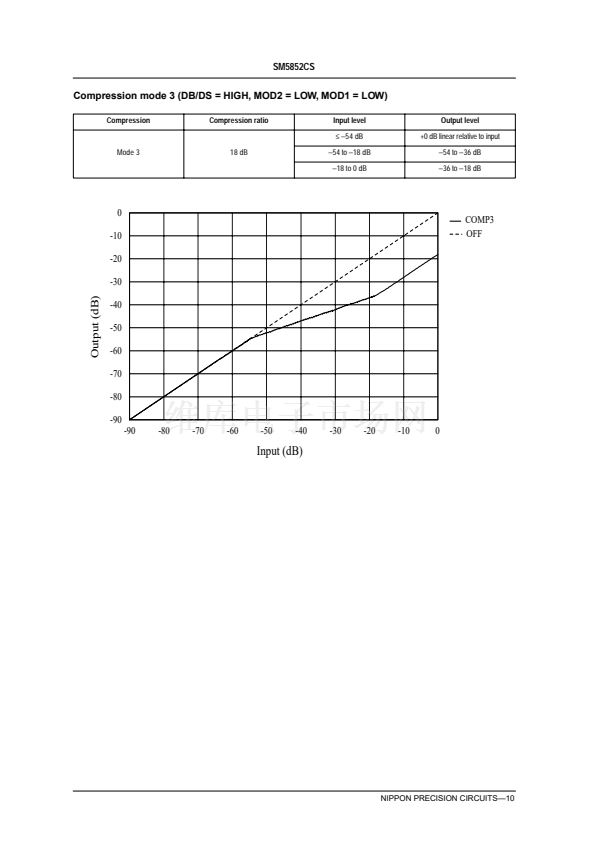

6

input-level

dependent

dynamic

gain

characteristics

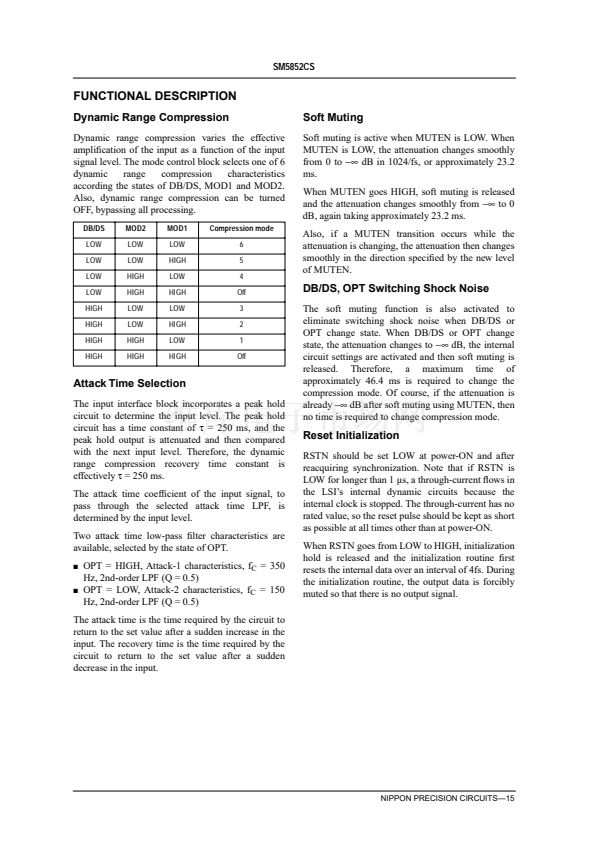

Dynamic range compression bypass mode

2 attack time settings

Soft muting function

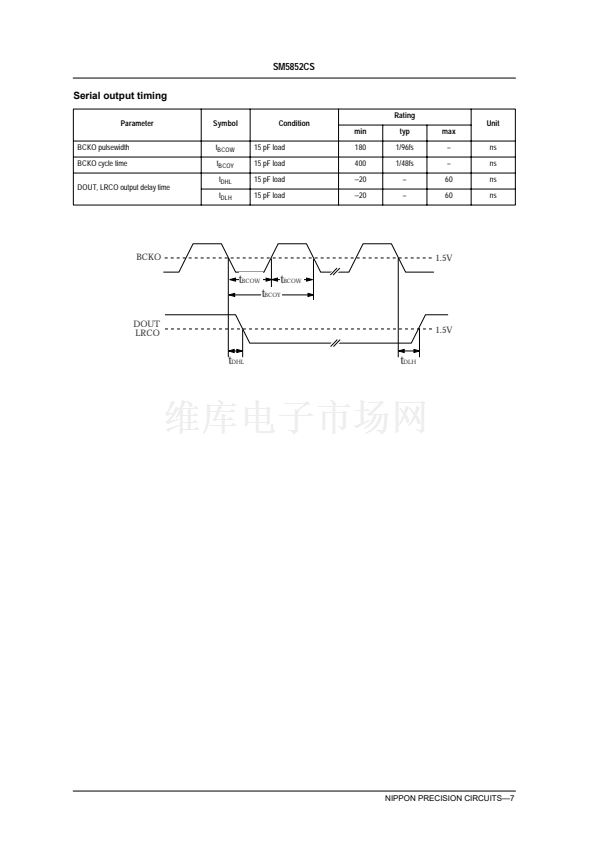

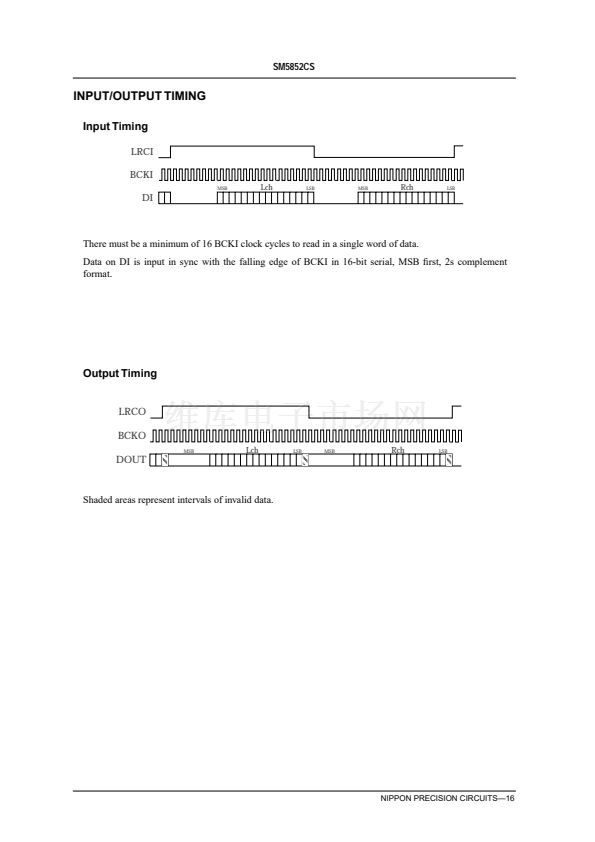

Serial input/output interface

2s complement, MSB 铿乺st, 16-bit

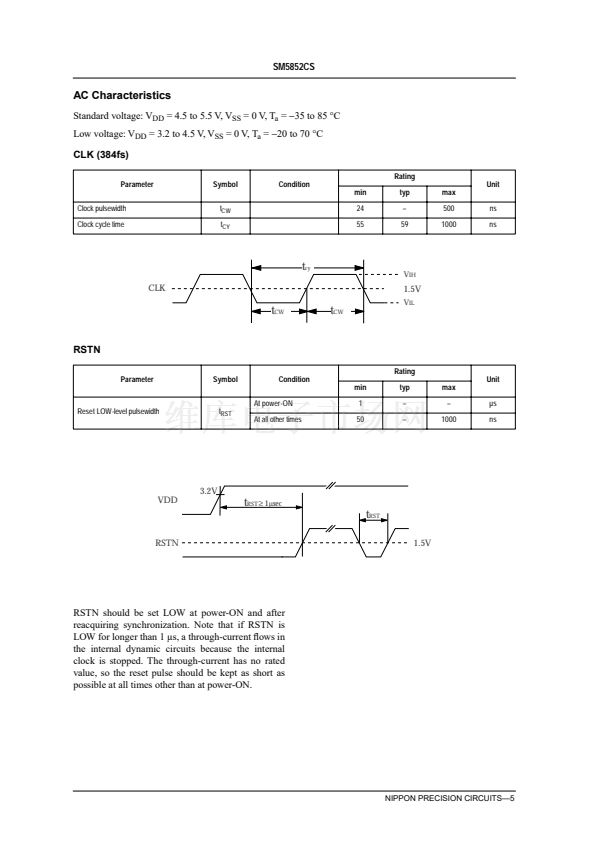

384fs system clock

23

脳

23-bit multiplier/30-bit high-precision

accumulator

TTL-compatible input/output

3.2 to 5.5 V operating voltage range

16-pin SOP

Molybdenum-gate CMOS

PACKAGE DIMENSIONS

16-pin SOP (Unit: mm)

ORDERING INFOMATION

Device

SM5852CS

Package

16pin SOP

6.8卤0.3

0藲 to 15藲

2.0卤0.2

0.1卤0.1

5.5卤0.3

8.0卤0.3

8.0卤0.3

0.17卤0.05

10.16卤0.3

10.5 MAX

0.635卤0.15

1.27卤0.15

0.4卤0.15

NIPPON PRECISION CIRCUITS鈥?

next
